Brita Tahoe 10-Cup Water Filter Pitcher Instruction Manual

1. ആമുഖം

The Brita Tahoe Water Filter Pitcher is designed to provide healthier, great-tasting tap water by reducing impurities. This BPA-free pitcher has a 10-cup capacity and includes one Standard filter. It features a flip-top lid for easy refilling and a convenient handle for pouring. The integrated SmartLight filter indicator helps you monitor filter life, ensuring optimal performance.

Image 1.1: The Brita Tahoe 10-Cup Water Filter Pitcher with a filter installed. This image shows the pitcher's clear body, white lid, and the filter cartridge.

2 സുരക്ഷാ വിവരങ്ങൾ

• Use with potable (safe to drink) water only. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• Keep the pitcher and filter out of reach of children.
• Do not expose the pitcher to direct sunlight or extreme temperatures.
• Wash the pitcher components (excluding the filter) regularly with mild detergent and warm water.
• The filter is not intended to purify water; it reduces specific contaminants as listed in the product specifications.

3. പാക്കേജ് ഉള്ളടക്കം

Your Brita Tahoe Water Filter Pitcher package should include the following items:

• 1 x Brita Tahoe 10-Cup Pitcher (with lid and reservoir)
• 1 x Brita Standard Water Filter

Image 3.1: The Brita Tahoe pitcher and filter as packaged for retail. The image displays the pitcher and a filter cartridge within the product box.

4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps to prepare your Brita Tahoe pitcher for first use:

1. Wash Pitcher Components: Before first use, wash the pitcher, lid, and reservoir by hand with mild soap and rinse thoroughly. Do not wash the filter.
2. ഫിൽറ്റർ തയ്യാറാക്കുക: Rinse the new Brita Standard filter under cold tap water for 15 seconds.
3. ഫിൽട്ടർ ചേർക്കുക: Remove the lid and reservoir from the pitcher. Insert the filter into the reservoir by aligning the groove on the filter with the ridge in the reservoir. Press down firmly until the filter is secure.
4. Activate SmartLight Indicator: On the lid, locate the SmartLight indicator button. Press and hold this button for 5 seconds until a green light flashes, indicating the filter life tracker has been reset.
5. Fill and Discard: Fill the reservoir with cold tap water. Allow the water to filter through. Discard the first two pitchers of filtered water, as this helps to flush out any carbon dust.

Image 4.1: An illustration detailing the easy setup process for the Brita Tahoe pitcher. It shows rinsing the filter, inserting it, activating the SmartLight, and filling the reservoir.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Using your Brita Tahoe pitcher is straightforward:

• പൂരിപ്പിക്കൽ: Lift the flip-top lid and fill the reservoir with cold tap water. The water will filter through to the main pitcher compartment.
• പകരുന്നു: Once the water has filtered, simply tilt the pitcher to pour. The convenient handle provides a secure grip.
• SmartLight Indicator: The SmartLight indicator on the lid will flash green, yellow, or red to indicate filter status. A green light means the filter is good, yellow means it's time to replace soon, and red means it's time to change the filter.

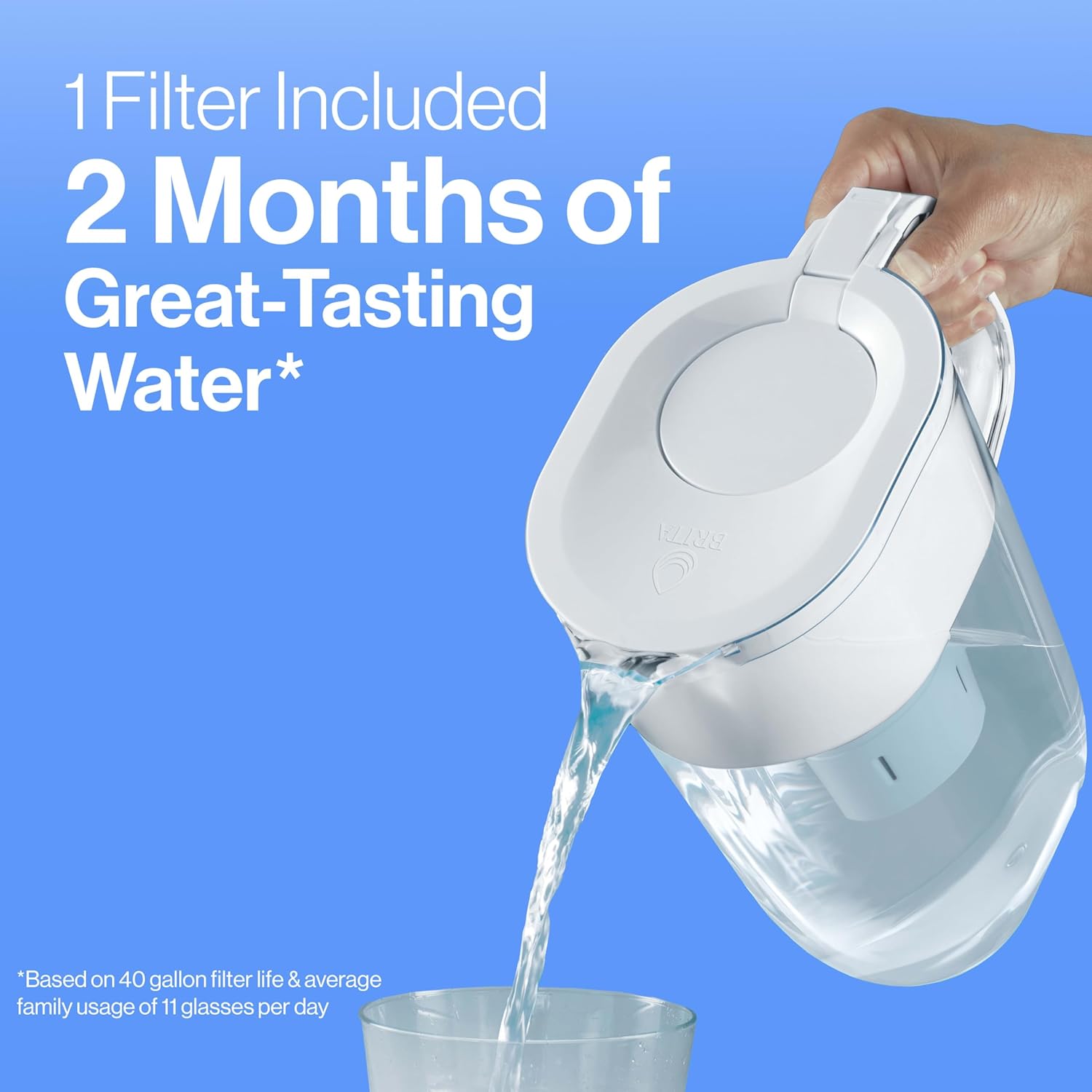

Image 5.1: A hand pouring filtered water from the Brita Tahoe pitcher into a glass. This demonstrates the ease of use for daily hydration.

Image 5.2: A diagram highlighting key features of the Brita pitcher, including the SmartFilter Alert, easy-to-pour design, included filter, and BPA-free material.

6. പരിപാലനം

6.1 ഫിൽട്ടർ മാറ്റിസ്ഥാപിക്കൽ

Regular filter replacement is crucial for optimal performance and water quality. The SmartLight indicator will signal when it's time to change your filter.

• Standard Filters: Replace your Brita Standard filter after approximately 40 gallons or every two months, whichever comes first.
• Elite Filters (Compatible): If using Brita Elite filters, replace them after approximately 120 gallons or every six months, whichever comes first.

To replace the filter, simply remove the old filter from the reservoir and follow the 'Prepare the Filter' and 'Insert Filter' steps from the Setup Instructions (Section 4) for the new filter. Remember to reset the SmartLight indicator after each filter change.

ചിത്രം 6.1: ഒരു ക്ലോസപ്പ് view of a Brita Original filter, highlighting its ability to reduce contaminants such as chlorine, mercury, cadmium, copper, and zinc.

Image 6.2: A cutaway diagram illustrating how the Brita Original filter works, showing the ion-exchange resin, activated carbon, and built-in mesh screens.

6.2 Cleaning the Pitcher

For best results, clean your Brita pitcher regularly:

• Remove the filter before cleaning.
• Hand wash the pitcher, lid, and reservoir with a mild dish soap and warm water.
• എല്ലാ ഘടകങ്ങളും നന്നായി കഴുകുക.
• Do not place the lid with the SmartLight indicator in the dishwasher or submerge it in water, as this may damage the electronics.

7. പ്രശ്‌നപരിഹാരം

8 സ്പെസിഫിക്കേഷനുകൾ

• ബ്രാൻഡ്: ബ്രിട്ട
• മോഡലിൻ്റെ പേര്: താഹോ
• ഇനം മോഡൽ നമ്പർ: OB60/OB03
• ശേഷി: 10 കപ്പ്
• മെറ്റീരിയൽ: പ്ലാസ്റ്റിക് (BPA-രഹിതം)
• ഉൽപ്പന്ന അളവുകൾ: 10.22"L x 5.68"W x 10.39"H
• ഇനത്തിൻ്റെ ഭാരം: 1.3 പൗണ്ട്
• ശുദ്ധീകരണ രീതി: Activated Carbon, Carbon Block
• പ്രത്യേക സവിശേഷത: എൻഎസ്എഫ് സാക്ഷ്യപ്പെടുത്തി
• പിന്തുണയ്ക്കുന്ന ജലത്തിന്റെ TDS ലെവൽ പരമാവധി (PPM): 500
• UPC: 060258506846

Image 8.1: The Brita Tahoe pitcher with its dimensions (length, width, height) and 10-cup capacity clearly marked. It also indicates it is 'Fridge Friendly'.

9. വാറൻ്റി വിവരങ്ങൾ

For detailed warranty information regarding your Brita Tahoe Water Filter Pitcher, please refer to the official Brita website or the warranty card included with your product packaging. Brita typically offers a limited warranty covering defects in materials and workmanship.

10. പിന്തുണ

If you have any questions, require assistance, or need to order replacement filters, please visit the official Brita support page:

Brita Support Webസൈറ്റ്
