1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
ഈ ഉൽപ്പന്നം കൂട്ടിച്ചേർക്കുന്നതിനും ഉപയോഗിക്കുന്നതിനും മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും വായിച്ച് മനസ്സിലാക്കുക. ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് പരിക്കോ ഉൽപ്പന്ന കേടുപാടുകളോ ഉണ്ടാക്കാം.
- മുതിർന്നവരുടെ അസംബ്ലി ആവശ്യമാണ്: This product requires adult assembly. Keep children and pets away from the assembly area.
- ഭാരം ശേഷി: The maximum weight capacity for this swing is 660 പൗണ്ട് (300 കി.ഗ്രാം)ഈ പരിധി കവിയരുത്.
- സുരക്ഷിത ഇൻസ്റ്റാളേഷൻ: Ensure the swing is securely attached to a sturdy frame or ceiling hooks capable of supporting the swing's weight plus the maximum user weight.
- ലെവൽ ഉപരിതലം: Always place the swing on a stable, level surface to prevent tipping.
- പതിവ് പരിശോധന: Periodically check all bolts, nuts, and chain connections to ensure they are tight and secure.
- Avoid Over-swinging: Do not swing excessively high or engage in rough play, as this may cause instability or damage.
- കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: Avoid using the swing during strong winds, heavy rain, or other severe weather conditions.
2. പാക്കേജ് ഉള്ളടക്കം
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact VINGLI customer support.
- Swing Bench (pre-assembled back and seat)
- ആംറെസ്റ്റുകൾ (2 കഷണങ്ങൾ)
- Hanging Chains (2 sets)
- Hardware Pack (nuts, bolts, wrench)

ചിത്രം 2.1: മൊത്തത്തിൽ view of the VINGLI Metal Patio Porch Swing.
3. സജ്ജീകരണവും അസംബ്ലി നിർദ്ദേശങ്ങളും
Assembly is designed to be straightforward. One person can typically complete assembly in approximately 5 minutes, with two people making the process even quicker.
- ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഭാഗങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. പോറലുകൾ ഉണ്ടാകാതിരിക്കാൻ വൃത്തിയുള്ളതും മൃദുവായതുമായ ഒരു പ്രതലത്തിൽ അവയെ വയ്ക്കുക.
- ആംറെസ്റ്റുകൾ അറ്റാച്ചുചെയ്യുക: The swing bench comes with the back and seat pre-assembled. Attach the two armrests to the sides of the swing bench using the provided bolts and nuts. Ensure all connections are finger-tight initially.
- എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാക്കുക: Once all armrests are in place, use the included wrench to fully tighten all bolts and nuts. Do not overtighten.
- Connect Hanging Chains: Attach the hanging chains to the designated points on the swing bench. Ensure the chains are securely fastened.
- സ്വിംഗ് തൂക്കിയിടുക: Carefully lift the swing and hang it onto your existing sturdy swing frame or ceiling hooks. Ensure the frame/hooks are rated for the swing's weight capacity.

Figure 3.1: Illustration of chain adjustment for optimal swing angle.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The VINGLI Metal Patio Porch Swing is designed for comfortable and relaxing use. Follow these guidelines for optimal experience:
- ഇരിപ്പിടം: The swing features an ergonomic design with curves in the knee area and dense seat intervals for a comfortable sitting experience.
- സ്വിംഗ് ആംഗിൾ ക്രമീകരിക്കൽ: The upgraded chains allow for angle adjustment. To adjust, carefully take the swing down from its hanging position. Find a proper tilting position by adjusting the chain links, then re-lock the chains and re-hang the swing. This allows you to customize the recline for better comfort.
- ഭാരം വിതരണം: Distribute weight evenly when multiple users are on the swing, ensuring not to exceed the 660 lbs capacity.

Figure 4.1: Ergonomic design of the swing seat for enhanced comfort.

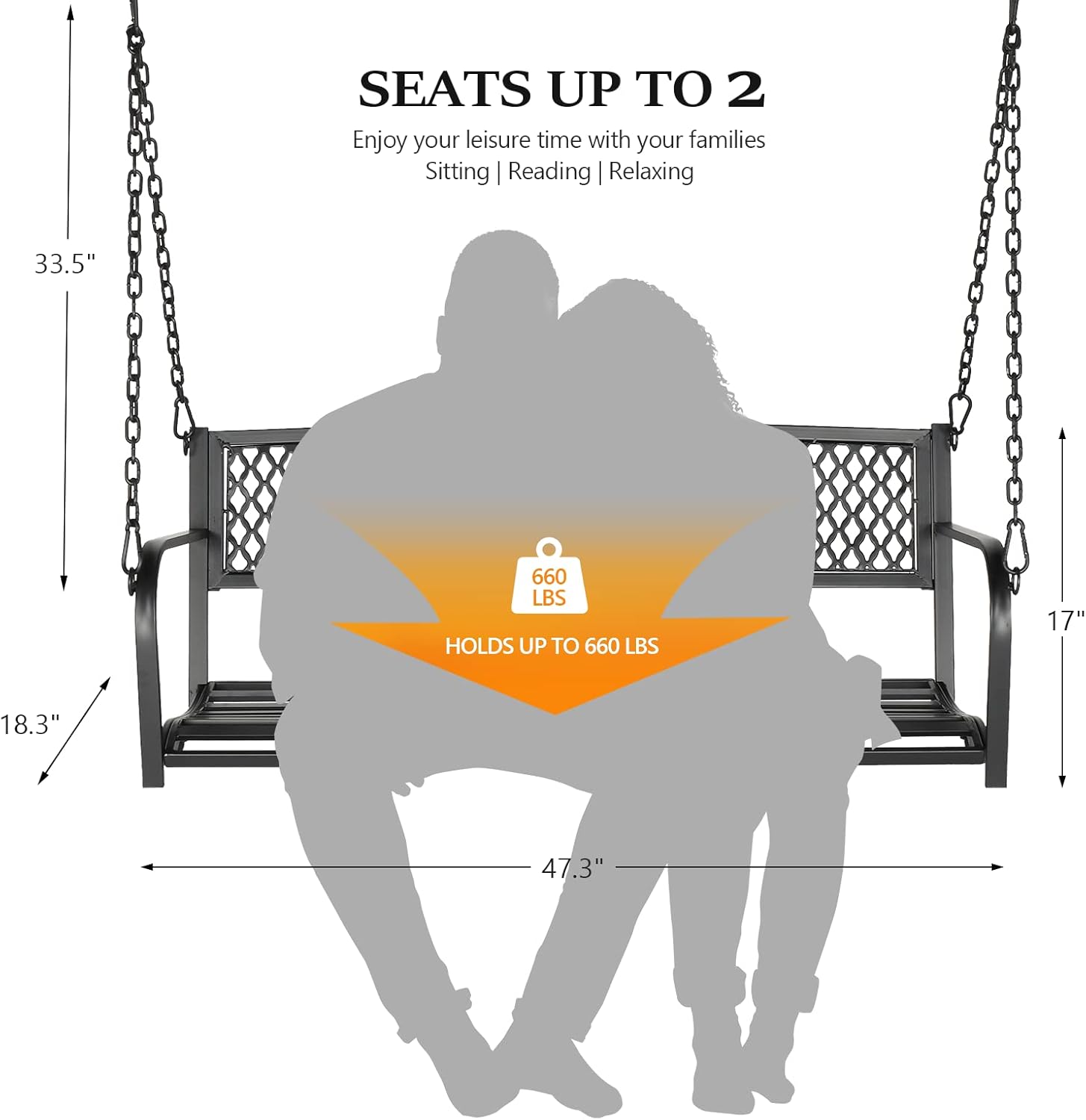

ചിത്രം 4.2: ഉൽപ്പന്ന അളവുകളും പരമാവധി ഭാര ശേഷിയും.
5. പരിപാലനം
Proper maintenance will extend the life and appearance of your VINGLI porch swing.
- വൃത്തിയാക്കൽ: Wipe down the metal frame and seat with a damp cloth and mild soap. Rinse thoroughly and dry completely to prevent rust. Avoid harsh chemicals or abrasive cleaners.
- തുരുമ്പ് തടയൽ: The swing features a lacquered finish. If scratches or chips occur, touch up with rust-inhibiting paint to prevent corrosion.
- ഹാർഡ്വെയർ പരിശോധന: Annually, or more frequently with heavy use, inspect all bolts, nuts, and chain links for tightness. Tighten any loose hardware.
- ശൈത്യകാല സംഭരണം: During off-season or harsh weather, it is recommended to cover the swing or store it indoors to protect it from extreme elements.
6. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സ്വിംഗ് അസ്ഥിരമോ ഇളകുന്നതോ ആണ്. | Loose hardware; uneven hanging surface. | Ensure all bolts and nuts are securely tightened. Verify the swing is hung from a level and stable structure. |
| ഉപയോഗ സമയത്ത് ഞരക്കമുള്ള ശബ്ദം. | Friction at chain connections or pivot points. | Apply a small amount of silicone-based lubricant to the chain links and any moving parts where friction occurs. |
| Difficulty adjusting swing angle. | Chains are under tension; incorrect locking mechanism use. | Remove the swing from its hanging position before attempting to adjust the chain length. Ensure the chain's loop-locked design is correctly engaged. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | വിംഗ്ലി |
| മോഡൽ നമ്പർ | വിഎൽ-ജി57000115 |
| നിറം | കറുപ്പ് |
| ഉൽപ്പന്ന അളവുകൾ (D x W x H) | 18.3"D x 47.3"W x 17"H |
| ഫ്രെയിം മെറ്റീരിയൽ | ലോഹം |
| ഫിനിഷ് തരം | Lacquered |
| സീറ്റിൻ്റെ ആഴം | 18.3 ഇഞ്ച് |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
| ഇനത്തിൻ്റെ ഭാരം | 29.7 പൗണ്ട് |
| പരമാവധി ഭാരം ശേഷി | 660 പൗണ്ട് |
| യു.പി.സി | 810158420908 |
8. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും
For warranty information, missing parts, or any questions regarding the assembly or operation of your VINGLI Metal Patio Porch Swing, please contact VINGLI customer support.
Please have your model number (VL-G57000115) and purchase details ready when contacting support.
