1. ആമുഖം
This manual provides instructions for the proper setup, operation, and maintenance of your JOBY GripTight GorillaPod for MagSafe. This device is designed to securely hold MagSafe-compatible iPhones (iPhone 12, 13, 14 series) and other smartphones, offering versatile positioning for photography, videography, and general use.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The JOBY GripTight GorillaPod for MagSafe combines a flexible tripod with a magnetic and clamping phone holder, providing a stable and adaptable platform for your mobile device.
പ്രധാന സവിശേഷതകൾ:
- MagSafe അനുയോജ്യത: Quick and secure magnetic attachment for iPhone 12, 13, 14 series, and other MagSafe-enabled smartphones.
- Hybrid Holding Mechanism: Utilizes both magnetic attachment and a closing jaw clamp for enhanced security.
- 360° റൊട്ടേഷൻ: Allows for seamless switching between horizontal and vertical phone orientations.
- Accessory Mounts: Features two integrated 1/4" connections for attaching additional accessories like lights or microphones.
- Flexible GorillaPod Legs: Bendable and grippable legs for securing the device to various surfaces or using it as a handheld grip.
ഘടകങ്ങൾ:
- GripTight MagSafe Phone Holder
- GorillaPod 1K Tripod
Figure 2.1: The JOBY GripTight GorillaPod for MagSafe, showing the flexible tripod legs and the phone holder with its magnetic disc.
Figure 2.2: The GorillaPod with a smartphone mounted, demonstrating the attachment points for external accessories like a light and microphone (shown in outline).
3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
3.1 Attaching the Phone Holder to the GorillaPod
- Ensure the 1/4"-20 screw on the GorillaPod is aligned with the threaded hole at the base of the GripTight MagSafe Phone Holder.
- Screw the phone holder onto the GorillaPod until it is securely tightened. Do not overtighten.
3.2 നിങ്ങളുടെ സ്മാർട്ട്ഫോൺ മൌണ്ട് ചെയ്യുന്നു
The GripTight MagSafe Phone Holder offers two methods for securing your smartphone:
- Magnetic Attachment (for MagSafe-compatible devices):
- Align your MagSafe-compatible iPhone (iPhone 12, 13, 14 series) with the magnetic disc on the phone holder.
- The phone will snap into place magnetically. Ensure a firm connection.
- Clamping Mechanism (for added security or non-MagSafe devices):
- After magnetically attaching your phone, or if using a non-MagSafe phone within the compatible width range (64-86mm / 2.52-3.39 inches), gently pull the top jaw of the holder upwards.
- Place your phone between the jaws.
- Release the top jaw to securely clamp the phone. Ensure the phone is centered and stable.

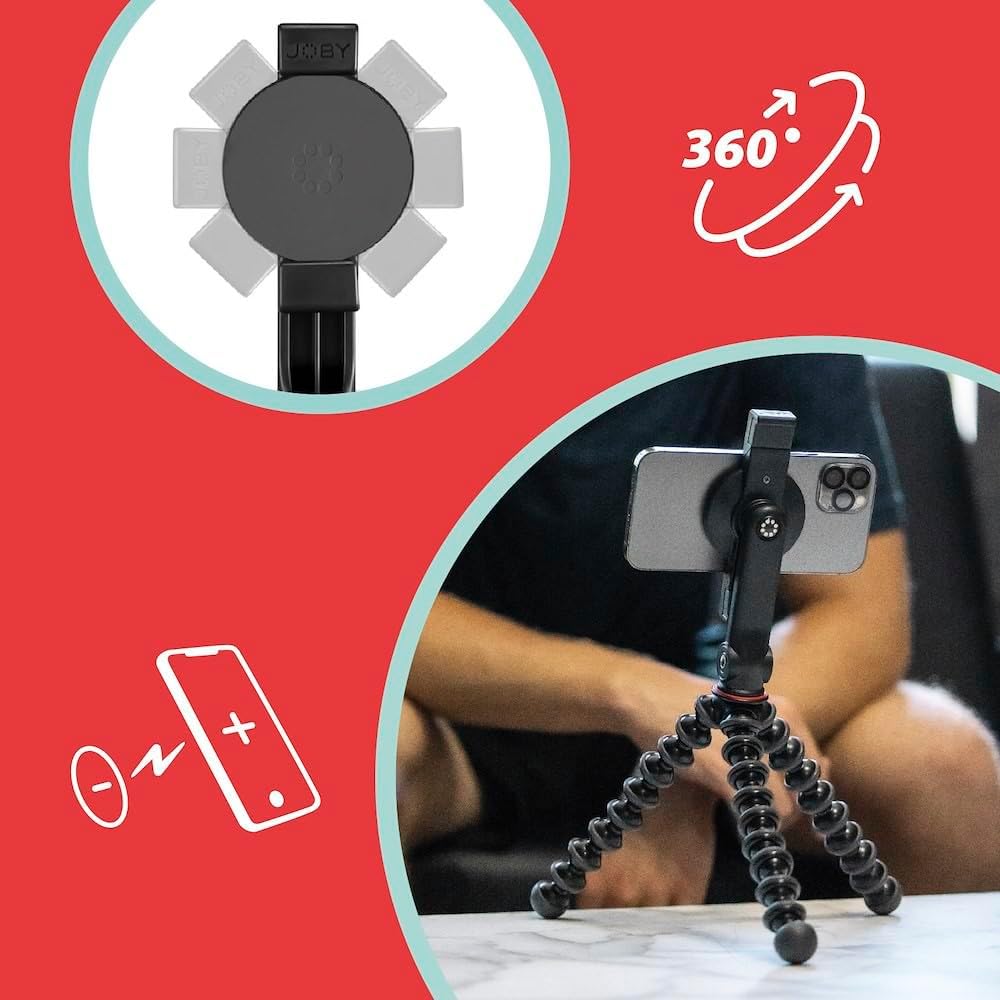

Figure 3.1: Illustration of MagSafe attachment and the 360-degree rotation capability of the phone holder.
Figure 3.2: The phone holder's adjustable jaws accommodate smartphones with widths between 64mm and 86mm (2.52-3.39 inches).
3.3 ബാഹ്യ ആക്സസറികൾ അറ്റാച്ചുചെയ്യുന്നു
The phone holder features two 1/4" connections for mounting additional accessories.
- Locate the 1/4" threaded holes on the sides of the phone holder.
- Screw compatible accessories, such as a JOBY Beamo light or Wavo microphone, into these connections.

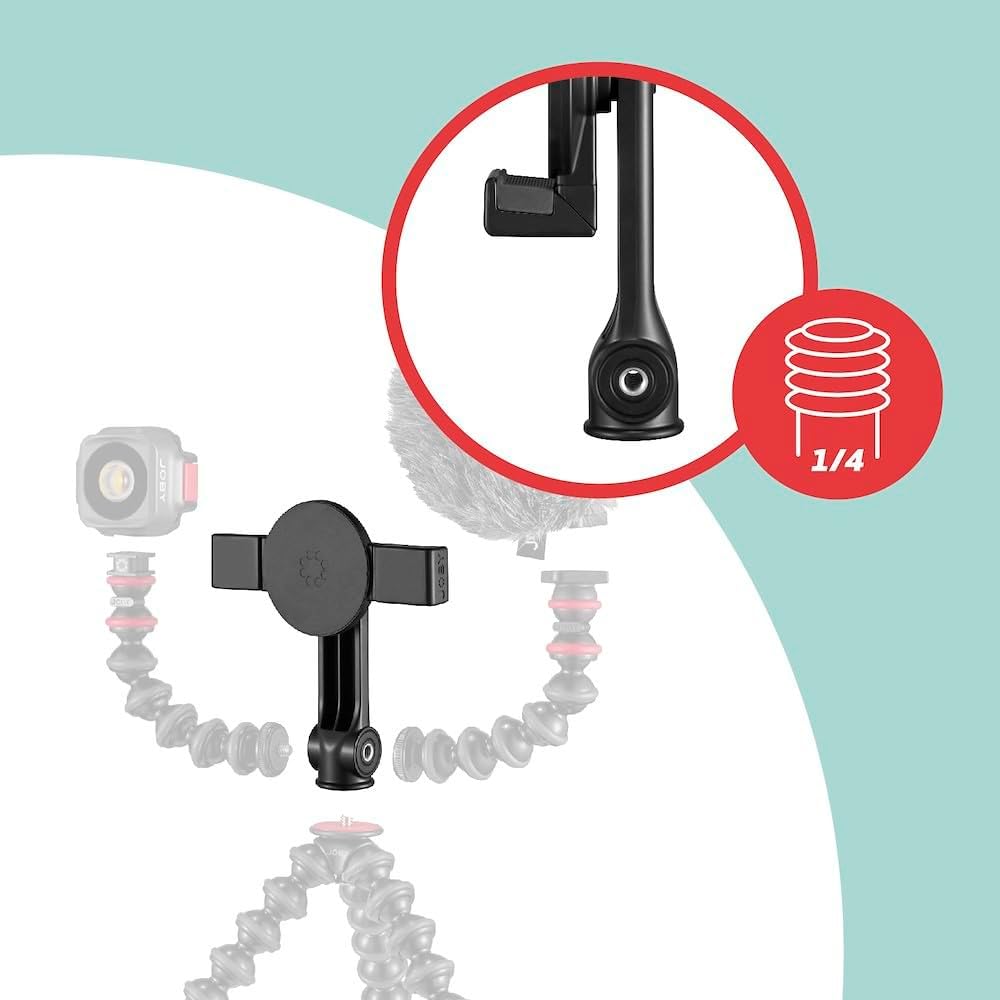

Figure 3.3: The 1/4" accessory mounts on the phone holder, allowing for expansion with lights or microphones.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 Positioning the GorillaPod
The flexible legs of the GorillaPod allow for various configurations:
- ട്രൈപോഡ് മോഡ്: Spread the legs to form a stable base on flat surfaces.
- Grip Mode: Bring the legs together to use the GorillaPod as a comfortable handheld grip for vlogging or mobile photography.
- Wrap Mode: Bend and wrap the flexible legs around objects like branches, poles, or railings to secure your phone in unique positions.
Figure 4.1: The GorillaPod's flexible legs allow it to be wrapped around objects for secure mounting.
Figure 4.2: Using the GorillaPod as a handheld grip for mobile vlogging with attached accessories.
4.2 Adjusting Phone Orientation
The phone holder allows for 360-degree rotation. Simply rotate your phone to switch between portrait and landscape modes as needed for your content creation or viewing.
5. പരിപാലനം
- വൃത്തിയാക്കൽ: Wipe the GorillaPod and phone holder with a soft, damp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ഒഴിവാക്കുക.
- സംഭരണം: ഉപയോഗത്തിലില്ലാത്തപ്പോൾ നേരിട്ട് സൂര്യപ്രകാശത്തിൽ നിന്ന് അകലെ തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ഉപകരണം സൂക്ഷിക്കുക.
- ലെഗ് കെയർ: While the GorillaPod legs are durable, avoid excessive force or extreme bending angles that could damage the joints over time.
- കാന്തിക ഉപരിതലം: Keep the magnetic surface clean and free of debris to ensure optimal magnetic adhesion.
6. പ്രശ്നപരിഹാരം
| ഇഷ്യൂ | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Phone not holding securely (MagSafe) | Debris on magnetic surface; phone case interfering; not a MagSafe-compatible phone. | Clean the magnetic disc and phone back. Remove phone case if it's not MagSafe-compatible. Use the clamping mechanism for added security or if your phone is not MagSafe-compatible. |
| Phone slipping from clamp | Phone width outside specified range; clamp not fully engaged. | Ensure phone width is between 64-86mm. Verify the clamp jaws are fully closed and gripping the phone firmly. |
| GorillaPod unstable | Legs not properly positioned; uneven surface. | Adjust the legs to create a wider, more stable base. Ensure all three feet are making contact with the surface. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | JG T GT/GP/MS |
| ഉൽപ്പന്ന അളവുകൾ | 2.36 x 1.97 x 14.17 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 7.7 ഔൺസ് |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Smartphones (MagSafe-compatible iPhones 12, 13, 14 series; other smartphones 64-86mm wide) |
| മൗണ്ടിംഗ് തരം | Phone Mount, Magnetic Mount, Tripod Mount |
| ആക്സസറി മൗണ്ടുകൾ | Two 1/4" connections |
8. വാറൻ്റിയും പിന്തുണയും
For warranty information and customer support, please refer to the official JOBY website or contact JOBY customer service directly. Keep your proof of purchase for any warranty claims.
Official JOBY Webസൈറ്റ്: www.joby.com
