1. ആമുഖം
The Verizon 4G LTE Network Extender (Model SLS-BU102) is designed to enhance 4G LTE cellular signal coverage within buildings. This enterprise-grade small cell device connects to your existing internet connection to create a secure tunnel back to Verizon's core network, generating a strong LTE signal. It provides in-building coverage for multiple users, ensuring seamless cellular connectivity where outdoor signals may be weak.
This manual provides detailed instructions for the setup, operation, and maintenance of your Network Extender.
2. പാക്കേജ് ഉള്ളടക്കം
താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക:

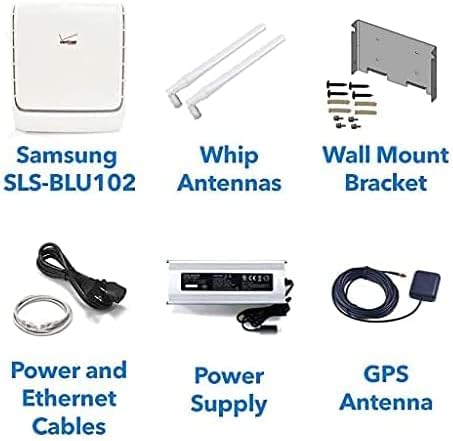

Image 2.1: Package contents including the Network Extender unit, antennas, wall mount, cables, power supply, and GPS antenna.
- Verizon 4G LTE Network Extender Unit (SLS-BU102)
- Whip Antennas (2 units)
- വാൾ മൗണ്ട് ബ്രാക്കറ്റ്
- പവർ കേബിൾ
- ഇഥർനെറ്റ് കേബിൾ
- പവർ സപ്ലൈ യൂണിറ്റ്
- ജിപിഎസ് ആൻ്റിന
- നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Verizon 4G LTE Network Extender is a compact device designed for easy integration into various environments. It features two omnidirectional whip antennas for signal transmission and reception, and a multi-colored LED indicator to display its operational status.
ചിത്രം 3.1: മുൻഭാഗം view of the Verizon 4G LTE Network Extender with attached whip antennas.
3.1 പ്രധാന ഘടകങ്ങൾ
- പ്രധാന യൂണിറ്റ്: The core device that processes and amplifies the 4G LTE signal.
- Whip Antennas: Two external antennas that rotate 360 degrees for optimal signal coverage.
- LED സൂചകം: A single multi-colored LED on the device indicates its connectivity status.
- തുറമുഖങ്ങൾ: Includes ports for power, Ethernet, and GPS antenna connection.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The Network Extender is designed for simple plug-and-play installation. Follow these steps to set up your device:
4.1 പ്ലേസ്മെന്റ് പരിഗണനകൾ
- Place the unit in a central location within the desired coverage area.
- Ensure proximity to a power outlet and an active internet connection (router/modem).
- For optimal GPS signal acquisition, place the GPS antenna near a window or in an area with clear sky view.
4.2 കണക്ഷൻ ഘട്ടങ്ങൾ
- ആൻ്റിനകൾ അറ്റാച്ചുചെയ്യുക: Screw the two whip antennas onto the designated ports on the Network Extender. Adjust their orientation for best coverage.
- GPS ആന്റിന ബന്ധിപ്പിക്കുക: Connect the GPS antenna cable to the GPS port on the Network Extender. Position the GPS antenna as described in 4.1.
- ഇന്റർനെറ്റിലേക്ക് കണക്റ്റുചെയ്യുക: Use the provided Ethernet cable to connect the Network Extender's LAN port to an available LAN port on your internet router or modem.
- പവർ ബന്ധിപ്പിക്കുക: Plug the power supply into the Network Extender's power input, then plug the power cable into a wall outlet.
- പവർ ഓൺ: The device will automatically power on and begin its startup sequence. Observe the LED indicator for status.
ചിത്രം 4.1: പിൻഭാഗം view of the Network Extender showing mounting points and approximate dimensions (in inches and millimeters).
4.3 വാൾ മൗണ്ടിംഗ് (ഓപ്ഷണൽ)
The Network Extender can be wall-mounted using the included bracket. Refer to Image 4.1 for anchor bolt hole dimensions and placement. Ensure the mounting surface is suitable to support the device's weight (approximately 10 pounds).
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once successfully set up, the Network Extender will automatically begin providing enhanced 4G LTE coverage. It operates by creating a secure connection to Verizon's network over your internet connection.
5.1 Coverage and Capacity
- A single unit provides a coverage area of up to 75,000 square feet.
- Supports up to 42 simultaneously active users.
- Supports up to 200 idle users per device.
- Multiple devices can be deployed to create a larger "super-cell" coverage area of up to 150,000 square feet.
5.2 Automatic Hand-off
When users enter the building, their devices will automatically "hand off" from the outdoor cellular network to the Network Extender's coverage zone, ensuring continuous and strong signal.
5.3 Local Administration Interface
The Network Extender supports an embedded web server, allowing for customization of IP settings and monitoring of connected devices. This interface can display currently connected users and historical capacity utilization over a 24-hour period.
6. പരിപാലനം
The Verizon 4G LTE Network Extender requires minimal maintenance. Keep the device in a clean, dry environment and ensure proper ventilation. Avoid blocking the ventilation grilles. Do not attempt to open or repair the device yourself, as this will void any warranty.
- കേബിൾ കണക്ഷനുകൾ സുരക്ഷിതമാണെന്ന് ഉറപ്പാക്കാൻ പതിവായി പരിശോധിക്കുക.
- Dust the unit periodically with a soft, dry cloth.
- Ensure the device is not exposed to extreme temperatures or direct sunlight.
7. പ്രശ്നപരിഹാരം
ഈ വിഭാഗം പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും അഭിസംബോധന ചെയ്യുന്നു.
7.1 LED ഇൻഡിക്കേറ്റർ സ്റ്റാറ്റസ്
The Network Extender features a single multi-colored LED that indicates its operational status. Refer to the official Verizon documentation or the local administration interface for a detailed explanation of specific LED colors and patterns.
- No Signal / Weak Signal: Ensure all cables (Ethernet, power, GPS) are securely connected. Verify your internet connection is active. Check GPS antenna placement for clear sky view.
- ഉപകരണം പവർ ചെയ്യുന്നില്ല: Check the power cable connection and the wall outlet. Try a different outlet.
- Intermittent Service: Check your internet connection stability. Ensure the Network Extender is not obstructed or placed near sources of interference.
If issues persist, contact technical support.
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | SLS-BU102 |
| Coverage Area (Single Device) | 75,000 ചതുരശ്ര അടി വരെ. |
| Coverage Area (Multiple Devices) | Up to 150,000 sq. ft. (super-cell) |
| Active User Capacity | ഒരേ സമയം 42 ഉപയോക്താക്കൾ വരെ |
| Idle User Capacity | Up to 200 idle users |
| വയർലെസ് കമ്മ്യൂണിക്കേഷൻ സ്റ്റാൻഡേർഡ് | 4G LTE, 802.11ac (for internal Wi-Fi router functionality, if applicable) |
| MIMO പിന്തുണ | 2x2 മിമോ |
| കണക്റ്റിവിറ്റി | Ethernet (IPsec tunnel to Verizon network) |
| വൈദ്യുതി ഉപഭോഗം | കുറഞ്ഞ വൈദ്യുതി ഉപഭോഗ രൂപകൽപ്പന |
| അളവുകൾ (ഏകദേശം) | 10.60 x 8.98 x 2.95 ഇഞ്ച് (269.3 x 228.2 x 75 മിമി) |
| ഇനത്തിൻ്റെ ഭാരം | 10 പൗണ്ട് |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Smartphone, Tablet, Laptop, Wi-Fi enabled devices |
9. വാറൻ്റിയും പിന്തുണയും
This product is offered as an Amazon Renewed item. For specific warranty details, please refer to the Amazon Renewed program terms and conditions at the time of purchase. Technical support is available to assist with activation, setup, and any usage issues you may encounter.
For technical assistance, please contact Verizon customer support or the Amazon Renewed support channel.
