1. ആമുഖം
വാങ്ങിയതിന് നന്ദി.asing the THRIVE MD-450 Kneading Massager. This device is a controlled medical device designed to provide a firm kneading massage to various parts of your body, including the neck, shoulders, waist, and thighs. Please read this manual thoroughly before use to ensure safe and effective operation.

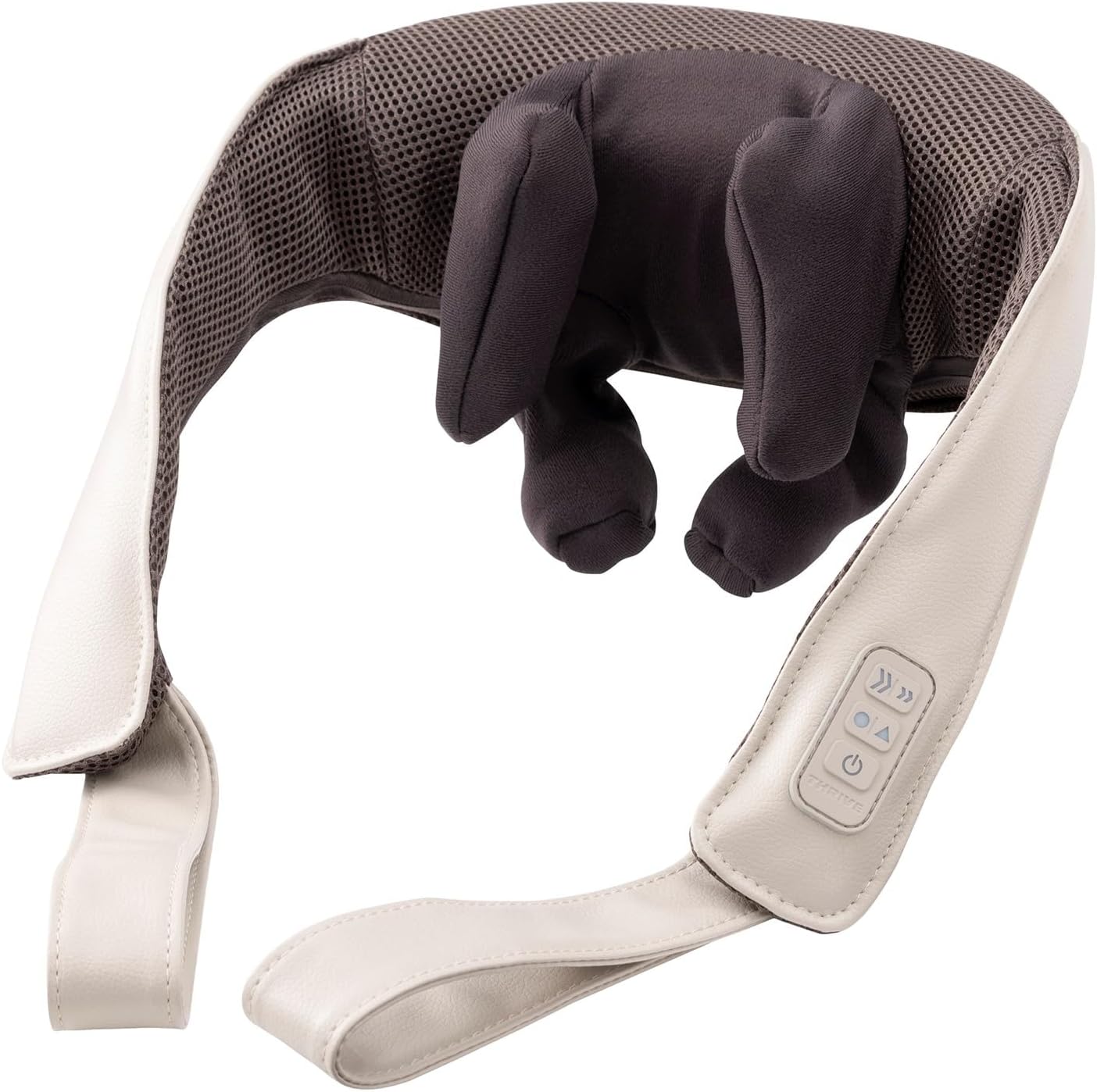

Figure 1.1: THRIVE MD-450 Kneading Massager (Ivory)
2. സുരക്ഷാ മുൻകരുതലുകൾ
WARNING: To reduce the risk of electric shock, burns, fire, or injury to persons:
- ഉപയോഗിച്ചതിന് ശേഷവും വൃത്തിയാക്കുന്നതിന് മുമ്പും എല്ലായ്പ്പോഴും ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിൽ നിന്ന് മസാജർ അൺപ്ലഗ് ചെയ്യുക.
- കുളിക്കുമ്പോഴും കുളിക്കുമ്പോഴും ഉപയോഗിക്കരുത്.
- ഒരു ടബ്ബിലേക്കോ സിങ്കിലേക്കോ വീഴാനോ വലിക്കാനോ കഴിയുന്നിടത്ത് ഉപകരണം സ്ഥാപിക്കുകയോ സൂക്ഷിക്കുകയോ ചെയ്യരുത്.
- വെള്ളത്തിലോ മറ്റ് ദ്രാവകത്തിലോ ഇടുകയോ ഇടുകയോ ചെയ്യരുത്.
- ഈ ഉപകരണത്തിൽ ഒരിക്കലും പിന്നുകളോ മറ്റ് മെറ്റാലിക് ഫാസ്റ്റനറോ ഉപയോഗിക്കരുത്.
- കുട്ടികൾ, അസാധുക്കൾ, അല്ലെങ്കിൽ വികലാംഗർ എന്നിവർ ഈ ഉപകരണം ഉപയോഗിക്കുമ്പോൾ, അടുത്തിടപഴകുമ്പോൾ, അടുത്ത മേൽനോട്ടം ആവശ്യമാണ്.
- ഈ മാനുവലിൽ വിവരിച്ചിരിക്കുന്നതുപോലെ ഈ ഉപകരണം ഉദ്ദേശിച്ച ഉപയോഗത്തിന് മാത്രം ഉപയോഗിക്കുക. നിർമ്മാതാവ് ശുപാർശ ചെയ്യാത്ത അറ്റാച്ച്മെൻ്റുകൾ ഉപയോഗിക്കരുത്.
- കേടായ ചരട് അല്ലെങ്കിൽ പ്ലഗ് ഉണ്ടെങ്കിൽ, അത് ശരിയായി പ്രവർത്തിക്കുന്നില്ലെങ്കിൽ, അത് ഉപേക്ഷിക്കുകയോ കേടുപാടുകൾ സംഭവിക്കുകയോ അല്ലെങ്കിൽ വെള്ളത്തിൽ പതിക്കുകയോ ചെയ്താൽ ഒരിക്കലും അത് പ്രവർത്തിപ്പിക്കരുത്.
- ചൂടായ പ്രതലങ്ങളിൽ നിന്ന് ചരട് സൂക്ഷിക്കുക.
- ഉറങ്ങുമ്പോഴോ മയക്കത്തിലോ ഒരിക്കലും ഉപയോഗിക്കരുത്.
- ഒരു തുറസ്സിലും ഒരു വസ്തുവും ഇടുകയോ തിരുകുകയോ ചെയ്യരുത്.
- എയറോസോൾ (സ്പ്രേ) ഉൽപ്പന്നങ്ങൾ ഉപയോഗിക്കുന്നിടത്തോ ഓക്സിജൻ നൽകുന്നിടത്തോ പ്രവർത്തിക്കരുത്.
- Do not use on sensitive skin areas or where circulation is poor.
- ഈ ഉൽപ്പന്നം ഒരു കളിപ്പാട്ടമല്ല. കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
3. ഉൽപ്പന്ന സവിശേഷതകൾ
The THRIVE MD-450 Kneading Massager is equipped with advanced features to provide a comprehensive massage experience:
- Six Kneading Balls: Features six massage balls (three upper, three lower) that operate simultaneously to firmly grasp and relieve muscle stiffness.
- ടാർഗെറ്റുചെയ്ത മസാജ് ഏരിയകൾ: Effectively massages the neck, shoulders, waist, and thighs.
- Adjustable Grip and Pressure: The direction of the grips and the applied pressure can be adjusted to find the optimal massage position.
- ഒന്നിലധികം മോഡുകൾ: Includes two automatic modes and a continuous mode with two speed settings (Fast and Slow).
- യാന്ത്രിക-ടൈമർ: Equipped with a 10-minute auto-timer for safety and to prevent overuse.

Figure 3.1: Targeted massage for neck and shoulders.

Figure 3.2: Illustration of the six kneading balls in action.
4. സജ്ജീകരണം
The THRIVE MD-450 is designed for easy setup:
- Unpack the massager and all its components from the box.
- Ensure the power cord is free from kinks or damage.
- Plug the power cord into a standard AC100V 50/60Hz electrical outlet.
- ഉപകരണം ഇപ്പോൾ ഉപയോഗത്തിന് തയ്യാറാണ്.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Follow these steps to operate your THRIVE MD-450 Kneading Massager:
5.1 നിയന്ത്രണ പാനൽ
The control panel is located on one of the arm straps for easy access during use.

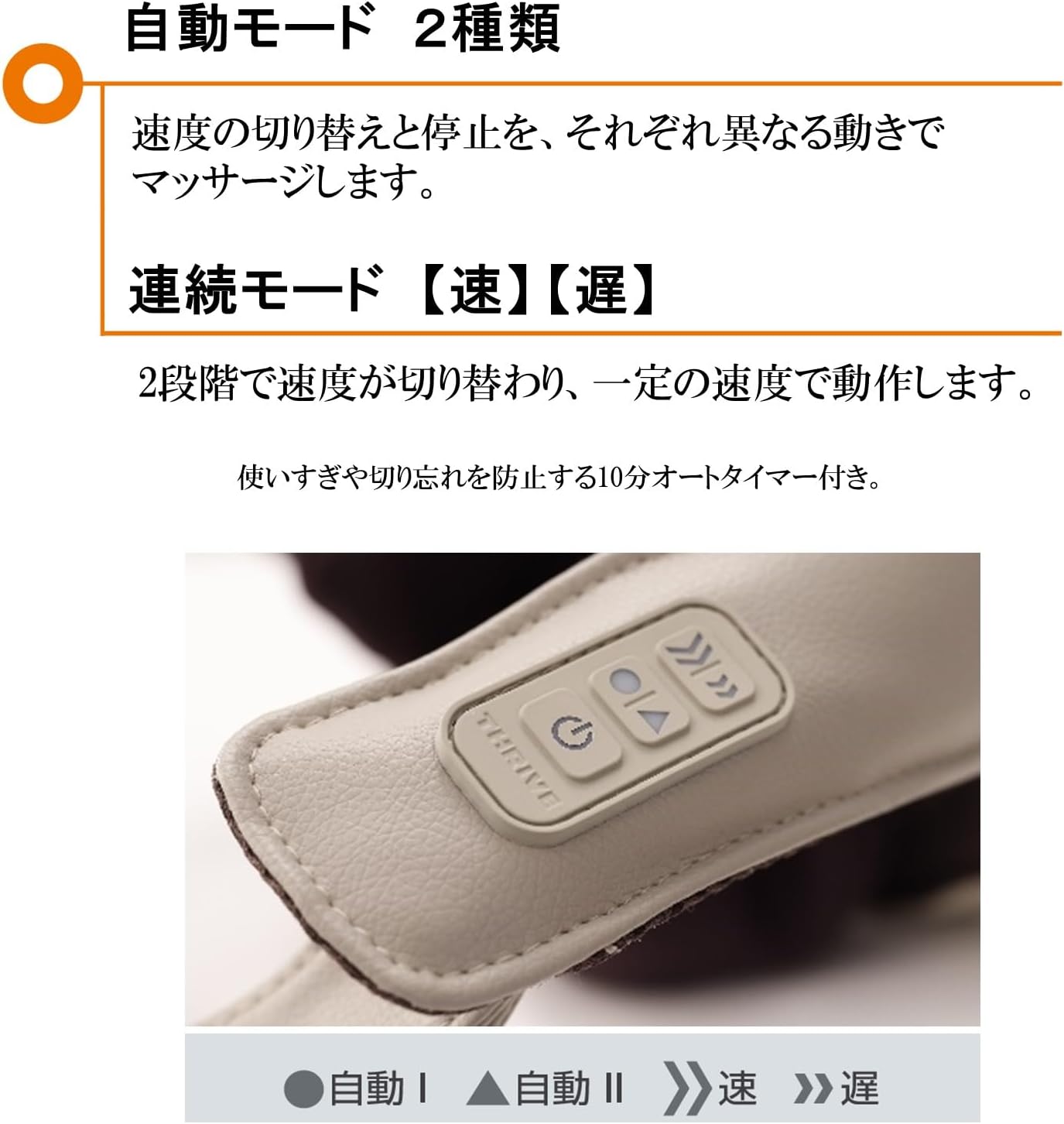

ചിത്രം 5.1: നിയന്ത്രണ പാനൽ ഓവർview
- പവർ ബട്ടൺ (⑂): Press to turn the massager ON or OFF.
- Mode Button (▲): Cycles through the two automatic modes (Automatic I and Automatic II).
- Speed Buttons (»): Adjusts the speed in continuous mode between Fast (» Fast) and Slow (» Slow).
5.2 Usage for Different Body Parts
The massager can be used on various parts of the body. Adjust the position and hold the grips as shown:

Figure 5.2: Usage examples for neck, waist, and thighs.
- Neck/Shoulders: Place the massager around your neck and shoulders, holding the arm straps to adjust pressure and position.
- അരക്കെട്ട്: Position the massager on your lower back or waist area, using the arm straps to secure it.
- Thighs: Place the massager on your thighs. You can hold the main unit or the straps to keep it in place.
The massager will automatically turn off after approximately 10 minutes of continuous operation to prevent overuse.
6. പരിപാലനം
Proper maintenance ensures the longevity and hygiene of your massager:
- വൃത്തിയാക്കൽ: Always unplug the massager before cleaning. Wipe the surface with a soft, slightly damp തുണി. അബ്രാസീവ് ക്ലീനറുകൾ ഉപയോഗിക്കരുത് അല്ലെങ്കിൽ യൂണിറ്റ് വെള്ളത്തിൽ മുക്കരുത്.
- സംഭരണം: Store the massager in a cool, dry place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on top of the massager.
- ചരട് പരിചരണം: Do not wrap the power cord tightly around the unit. Avoid twisting or bending the cord excessively.
7. പ്രശ്നപരിഹാരം
If you encounter any issues with your massager, please refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| മസാജർ ഓണാക്കുന്നില്ല. | ശരിയായി പ്ലഗ് ഇൻ ചെയ്തിട്ടില്ല. പവർ ഔട്ട്ലെറ്റ് പ്രശ്നം. കേടായ കോർഡ്/പ്ലഗ്. | വർക്കിംഗ് ഔട്ട്ലെറ്റിലേക്ക് പവർ കോർഡ് സുരക്ഷിതമായി പ്ലഗ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക. മറ്റൊരു ഔട്ട്ലെറ്റ് പരീക്ഷിക്കുക. Do not use if cord or plug is damaged; contact customer support. |
| Massage feels weak or inconsistent. | തെറ്റായ സ്ഥാനനിർണ്ണയം. Overuse protection activated. | Adjust the massager's position and the grip pressure. The unit may have automatically shut off after 10 minutes. Wait a few minutes before restarting. |
| പ്രവർത്തന സമയത്ത് അസാധാരണമായ ശബ്ദം. | ആന്തരിക തകരാറ്. | Turn off the unit immediately and unplug it. Do not attempt to repair. Contact customer support. |
If the problem persists after trying these solutions, please contact our customer support center.
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | MD-450(IV) |
| ഉൽപ്പന്ന അളവുകൾ | 37 x 35.5 x 15.5 സെ.മീ (നീളം x വീതി x ഉയരം) |
| ഉൽപ്പന്ന ഭാരം | 1.6 കി.ഗ്രാം |
| നിറം | ആനക്കൊമ്പ് |
| റേറ്റുചെയ്ത പവർ | AC100V 50/60Hz 20W |
| ഓട്ടോ-ടൈമർ | 20 minutes (internal timer, though feature bullets mention 10 min auto-off for safety) |
| Kneading Speed (Approx.) | Fast: 15 times/minute, Slow: 7 times/minute |
| മെറ്റീരിയലുകൾ | Synthetic leather, Polyester, Nylon |
| മാതൃരാജ്യം | ചൈന |
| ജല പ്രതിരോധ നില | നോൺ-വാട്ടർപ്രൂഫ് |
9. വാറൻ്റിയും പിന്തുണയും
Daito Electric Industry Co., Ltd. is committed to ensuring your peace of mind when using THRIVE products.

Figure 9.1: THRIVE MD-450 in different colors.
9.1 വാറൻ്റി വിവരങ്ങൾ
ഈ ഉൽപ്പന്നം എ 1 വർഷത്തെ നിർമ്മാതാവിന്റെ വാറന്റി വാങ്ങിയ തീയതി മുതൽ. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക. സാധാരണ ഉപയോഗത്തിൽ മെറ്റീരിയലുകളിലും വർക്ക്മാൻഷിപ്പിലുമുള്ള വൈകല്യങ്ങൾ വാറന്റി ഉൾക്കൊള്ളുന്നു.
9.2 ഉപഭോക്തൃ പിന്തുണ
For any inquiries, repairs, or support regarding your THRIVE product, please contact our Customer Consultation Center:
- ഫോൺ നമ്പർ: 0570-064-762
- പ്രവർത്തന സമയം: 9:00 AM - 5:00 PM JST (Monday - Friday, excluding holidays)
Calls from general phones are charged at local call rates.

Figure 9.2: Warranty and Support Contact Information.
