iZEEKER 4K Dual Dash Cam User Manual

1. ആമുഖം

The iZEEKER GD850 4K Dual Dash Cam is designed to provide comprehensive vehicle recording with advanced features for enhanced safety and convenience. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your dash cam.

പ്രധാന സവിശേഷതകൾ:

• 4K ഫ്രണ്ട് & 1080P റിയർ റെക്കോർഡിംഗ്: Captures clear, high-resolution video from both front and rear perspectives.
• 3'' IPS Touch Screen: Offers intuitive and responsive control for easy navigation.
• Sony Starvis Sensor & WDR: Ensures superior night vision and balanced exposure in various lighting conditions.
• Built-in WiFi & GPS: Allows for easy video management via mobile app and accurate location/speed tracking.
• Loop Recording & G-Sensor: പഴയ foo യാന്ത്രികമായി ഓവർറൈറ്റ് ചെയ്യുന്നുtage and locks important video segments upon impact.
• പാർക്കിംഗ് മോണിറ്റർ: Provides surveillance when the vehicle is parked (requires hardwire kit).

Figure 1.1: iZEEKER GD850 4K Dual Dash Cam and Rear Camera.

This image displays the primary components of the iZEEKER GD850 dash cam system, including the main front camera unit with its large display and the compact rear camera.

2. ഉൽപ്പന്ന ഘടകങ്ങൾ

ഇൻസ്റ്റാൾ ചെയ്യുന്നതിനുമുമ്പ്, പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ദയവായി ഉറപ്പാക്കുക:

• Main Dash Cam Unit (Front Camera)
• പിൻ ക്യാമറ
• Power Cable with Integrated GPS Module
• പിൻ ക്യാമറ കണക്ഷൻ കേബിൾ
• Mounting Options (Suction Cup Mount, Adhesive Mount)
• യുഎസ്ബി കാർഡ് റീഡർ
• ഉപയോക്തൃ മാനുവൽ
• Wiring Tools (e.g., pry tool)

Figure 2.1: Included Components of the GD850 Dash Cam System.

This image illustrates the various items included in the product package, such as the main dash cam, rear camera, GPS module, and a 64GB memory card with a USB card reader.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 മൈക്രോ എസ്ഡി കാർഡ് ചേർക്കുന്നു

Insert a high-speed (Class 10 or higher) Micro SD card (up to 256GB, not included) into the designated slot on the dash cam. Ensure the card is inserted correctly until it clicks into place.

3.2 ഫ്രണ്ട് ഡാഷ് കാം മൌണ്ട് ചെയ്യുന്നു

നിങ്ങളുടെ വിൻഡ്ഷീൽഡിൽ അനുയോജ്യമായ ഒരു സ്ഥലം തിരഞ്ഞെടുക്കുക, ഏറ്റവും നല്ലത് പിൻഭാഗത്തിന് പിന്നിൽ.view നിങ്ങളുടെ തടസ്സം ഒഴിവാക്കാൻ കണ്ണാടി view. Clean the area thoroughly before applying the mount.

• സക്ഷൻ കപ്പ് മൗണ്ട്: സക്ഷൻ കപ്പ് വിൻഡ്ഷീൽഡിനെതിരെ ദൃഢമായി അമർത്തി ലിവർ ഫ്ലിപ്പുചെയ്ത് അത് ഉറപ്പിക്കുക.
• പശ മൗണ്ട്: Peel off the protective film from the adhesive pad and firmly press the mount onto the windshield for at least 30 seconds.

Figure 3.1: Strap-on Installation Method for the Dash Cam.

This image demonstrates the easy strap-on installation method, allowing the dash cam to be securely attached to the vehicle's rearview കണ്ണാടി.

3.3 പിൻ ക്യാമറ ഇൻസ്റ്റാൾ ചെയ്യുന്നു

Mount the rear camera on the rear windshield or license plate area. Connect the rear camera to the main dash cam unit using the provided rear camera cable. Ensure the cable is routed neatly and securely.

Figure 3.2: Rear Camera with Guide Function and Waterproof Design.

This image highlights the rear camera's design, featuring a guide function for parking assistance and a waterproof construction for reliable performance in various weather conditions.

3.4 പവർ കണക്ഷൻ

Connect the power cable (with integrated GPS module) to the dash cam and plug the other end into your vehicle's 12V power outlet (cigarette lighter socket). Route the cable along the windshield trim to keep it tidy and out of the way.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 അടിസ്ഥാന പ്രവർത്തനം

• പവർ ഓൺ/ഓഫ്: The dash cam will automatically power on and begin recording when your vehicle starts. It will power off when the vehicle is turned off.
• ടച്ച് സ്‌ക്രീൻ നിയന്ത്രണം: Use the 3-inch IPS touch screen to navigate menus, adjust settings, and review footage.
• റെക്കോർഡിംഗ് സൂചകം: A white light under the screen indicates that the camera is recording.

4.2 റെക്കോർഡിംഗ് സവിശേഷതകൾ

• ലൂപ്പ് റെക്കോർഡിംഗ്: The dash cam records video in continuous loops (e.g., 1, 3, or 5-minute segments). When the memory card is full, the oldest unlocked footagഇ തിരുത്തിയെഴുതപ്പെടും.
• അടിയന്തര റെക്കോർഡിംഗ് (ജി-സെൻസർ): In the event of a sudden impact or collision, the built-in G-sensor will automatically detect the event and lock the current video segment, preventing it from being overwritten.
• മാനുവൽ എമർജൻസി റെക്കോർഡിംഗ്: Touch the triangle icon on the touchscreen to manually lock the current recording.

Figure 4.1: Front 4K Ultra HD and Rear 1080P Full HD Recording.

This image illustrates the high-definition recording capabilities of the dash cam, with the front camera capturing in 4K Ultra HD and the rear camera in 1080P Full HD.

Figure 4.2: 64GB TF Card and Loop Recording Feature.

This image explains the loop recording functionality, showing how the dash cam continuously records and manages storage using a 64GB TF card and an included card reader for easy file കൈമാറ്റം.

4.3 വിപുലമായ സവിശേഷതകൾ

• വൈഫൈ കണക്റ്റിവിറ്റി: Download the "Lucky Cam" or "OK cam" app on your smartphone (Android/iOS). Connect your phone to the dash cam's WiFi network to view തത്സമയംtage, playback recordings, and download files directly to your device.
• GPS പ്രവർത്തനം: The integrated GPS module records your driving route, speed, and coordinates, which can be viewed using dedicated player software on a computer.
• പാർക്കിംഗ് മോണിറ്റർ: When enabled (requires a hardwire kit, sold separately), the dash cam will automatically power on and record a short video if a collision is detected while your vehicle is parked.
• Traffic Signal Detection: Supports recognition of traffic signals to enhance driving awareness.

Figure 4.3: Parking Monitor, Traffic Signal Detection, and GPS Features.

This image visually represents the advanced functionalities of the dash cam, including the parking monitor (requiring a hardwire kit), traffic signal detection for improved safety, and reliable GPS for location tracking.

4.4 Type-C Fast Charging

The dash cam utilizes a Type-C port for power, offering stable and efficient charging. This modern connection is reversible, preventing incorrect insertion.

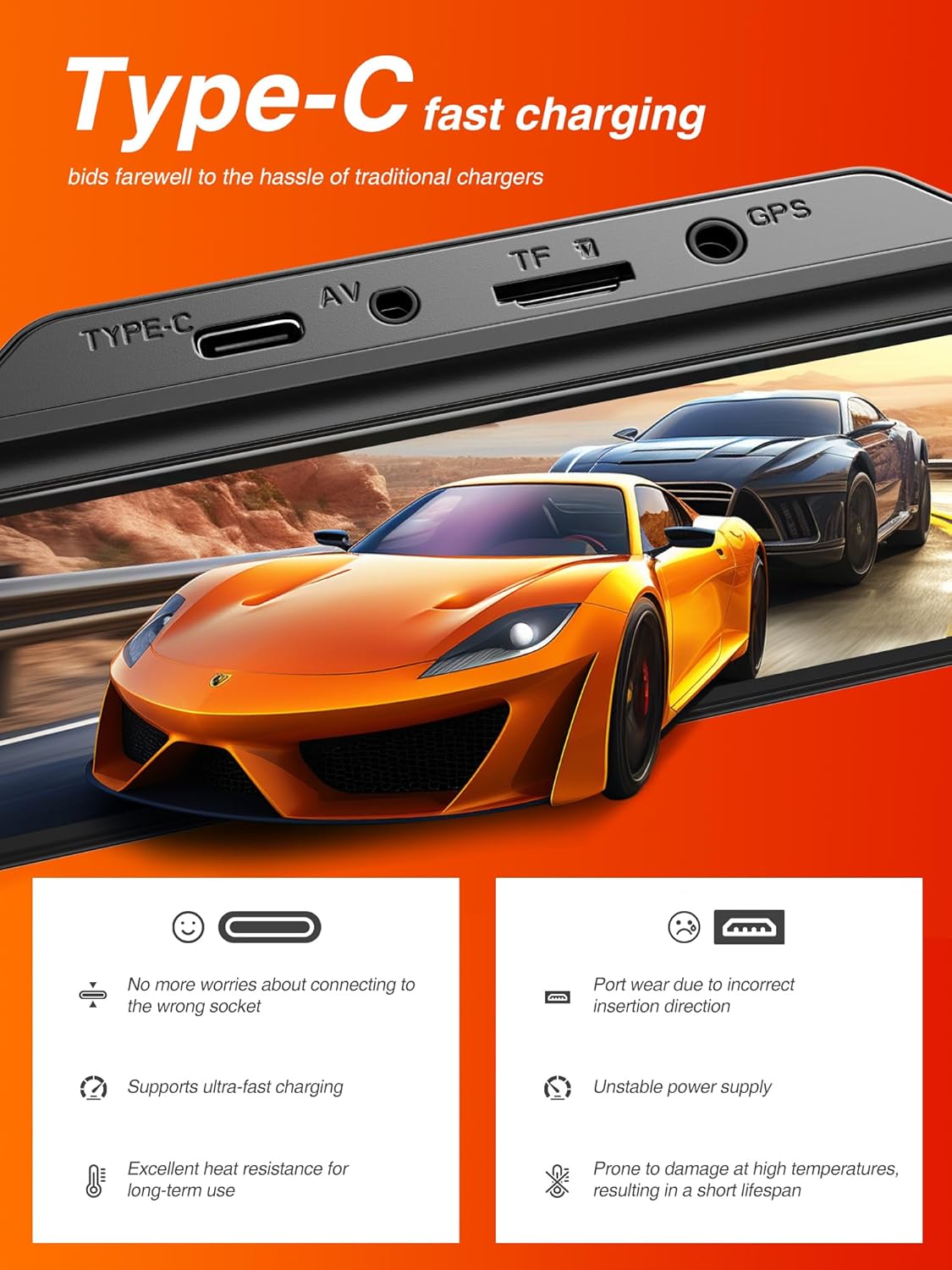

Figure 4.4: Type-C Fast Charging Port.

This image highlights the Type-C charging port on the dash cam, emphasizing its benefits such as ease of connection and support for ultra-fast charging.

5. പരിപാലനം

5.1 Formatting the Micro SD Card

It is recommended to format the Micro SD card regularly (e.g., once a month) to ensure optimal performance and prevent data corruption. This can typically be done through the dash cam's settings menu.

5.2 ഉപകരണം വൃത്തിയാക്കുന്നു

Use a soft, dry cloth to clean the dash cam's screen and lenses. Avoid using abrasive cleaners or solvents that could damage the device.

5.3 ഫേംവെയർ അപ്ഡേറ്റുകൾ

Check the iZEEKER official website periodically for any available firmware updates. Updating the firmware can improve performance, add new features, or fix bugs.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your iZEEKER GD850 dash cam, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact iZEEKER customer support for further assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

8.1 വാറൻ്റി വിവരങ്ങൾ

The iZEEKER GD850 Dash Cam comes with a 24 മാസ വാറൻ്റി from the date of purchase. This warranty covers manufacturing defects and ensures the product's quality and performance under normal use. Please retain your proof of purchase for warranty claims.

8.2 ഉപഭോക്തൃ പിന്തുണ

For technical assistance, troubleshooting, or warranty inquiries, please contact iZEEKER customer support:

• ഇമെയിൽ: support@izeeker.co
• നിർമ്മാതാവ്: iZEEKER (Accion Innovations LLC)
• വിലാസം: 17928 Rowland St, City of Industry, CA 91748, USA

Figure 8.1: Warranty and Support Contact Details.

This image provides information regarding the 24-month warranty and the official contact email for customer support, along with the manufacturer's address.
