സിംഗർ SM024 തയ്യൽ മെഷീൻ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The SINGER SM024 sewing machine is designed for both beginners and intermediate users, offering a range of features to simplify sewing tasks. Its durable all-metal frame ensures stability and longevity, while intuitive controls make it easy to operate.

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your SINGER SM024 sewing machine, ensuring you get the most out of your product.

2. എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

Your SINGER SM024 sewing machine package includes the following components:

• SINGER SM024 Sewing Machine
• ഓൾ-പർപ്പസ് ഫൂട്ട്
• ബട്ടൺഹോൾ കാൽ
• Hem Guide Foot
• Bobbins (15J)
• സൂചികളുടെ പായ്ക്ക്
• Other essential accessories (e.g., seam ripper, lint brush)

The image displays the SINGER SM024 sewing machine alongside its accessory kit, which includes various presser feet, bobbins, needles, and maintenance tools, all neatly arranged.

3 പ്രധാന സവിശേഷതകൾ

The SINGER SM024 is equipped with features designed for ease of use and versatility:

3.1. 24 Stitch Options

The machine offers 24 built-in stitch options, suitable for a variety of sewing projects from basic repairs to decorative enhancements. Stitch selection is made easy with a simple dial.

This image highlights the stitch selection dial and the adjustable stitch length and width controls, demonstrating the machine's versatility with 97 stitch applications.

3.2. Built-In Needle Threader

Effortless threading of the needle for a faster start to your projects. This feature significantly reduces eye strain and saves time.

The image shows hands using the built-in needle threader to effortlessly guide thread through the needle's eye, simplifying the setup process.

3.3. Front-Loading Bobbin System

The front-loading bobbin is easy to wind and insert, ensuring smooth thread delivery and consistent stitching.

This close-up image displays the front-loading bobbin case, showing how the bobbin is inserted and secured for operation.

3.4. എൽഇഡി ലൈറ്റിംഗ്

A bright LED light illuminates the sewing area, providing clear visibility and reducing shadows, which is especially helpful for detailed work.

The image shows the sewing machine's needle area brightly lit by the integrated LED light, ensuring clear visibility during sewing.

3.5. Removable Free Arm

The removable free arm simplifies sewing cuffs, collars, pant hems, and other small, circular projects.

This image illustrates the SINGER SM024 with its removable free arm section pulled away, revealing the narrow arm for sewing cylindrical items like cuffs and hems.

4. സജ്ജീകരണം

Follow these steps to set up your SINGER SM024 sewing machine:

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the machine and all accessories from the packaging. Retain the packaging for future storage or transport.
2. പ്ലേസ്മെൻ്റ്: Place the machine on a stable, flat surface. Ensure there is adequate space around the machine for fabric movement.
3. പവർ കണക്ഷൻ: Connect the foot pedal cord to the machine's power input. Then, plug the power cord into a suitable electrical outlet.
4. മെഷീൻ ത്രെഡിംഗ്:
   • Place a spool of thread on the spool pin at the top of the machine.
   • Follow the numbered threading path indicated on the machine.
   • Use the built-in needle threader to easily thread the needle.
5. ബോബിൻ ചേർക്കൽ:
   • Open the front-loading bobbin cover.
   • Insert a wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction as shown in the manual.
   • ബോബിൻ കവർ അടയ്ക്കുക.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once set up, your SINGER SM024 is ready for use:

1. ഓൺ ചെയ്യുക: Flip the power switch located on the side of the machine to the "On" position. The LED light will illuminate the sewing area.
2. Select Stitch: Use the stitch selection dial to choose your desired stitch pattern (refer to the stitch chart on the machine).
3. Adjust Stitch Length/Width: Use the corresponding dial to adjust the stitch length and width as needed for your fabric and project.
4. Place Fabric: Lift the presser foot lever, place your fabric under the presser foot, and lower the lever.
5. Start Sewing: Gently press the foot pedal to begin sewing. The harder you press, the faster the machine will sew.
6. റിവേഴ്സ് സ്റ്റിച്ചിംഗ്: For securing stitches at the beginning and end of a seam, press and hold the reverse lever.
7. ഒരു തയ്യൽ പൂർത്തിയാക്കുന്നു: When you reach the end of your seam, lift the needle to its highest position, raise the presser foot, and gently pull the fabric away from the machine. Use the thread cutter on the side of the machine to trim threads.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your sewing machine:

• വൃത്തിയാക്കൽ: Regularly clean lint and dust from the bobbin area and feed dogs using the provided lint brush.
• സൂചി മാറ്റിസ്ഥാപിക്കൽ: Replace the needle frequently, especially when starting a new project or if the needle becomes bent or dull. Use the correct needle type for your fabric.
• എണ്ണയിടൽ: Refer to the full user manual for specific oiling instructions. Not all modern machines require user oiling.
• സംഭരണം: When not in use, cover the machine to protect it from dust and store it in a dry place.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:

For more detailed troubleshooting, please refer to the full User Manual (PDF) available on the product page or SINGER's official webസൈറ്റ്.

You can also find the official User Manual ഇവിടെ.

8 സ്പെസിഫിക്കേഷനുകൾ

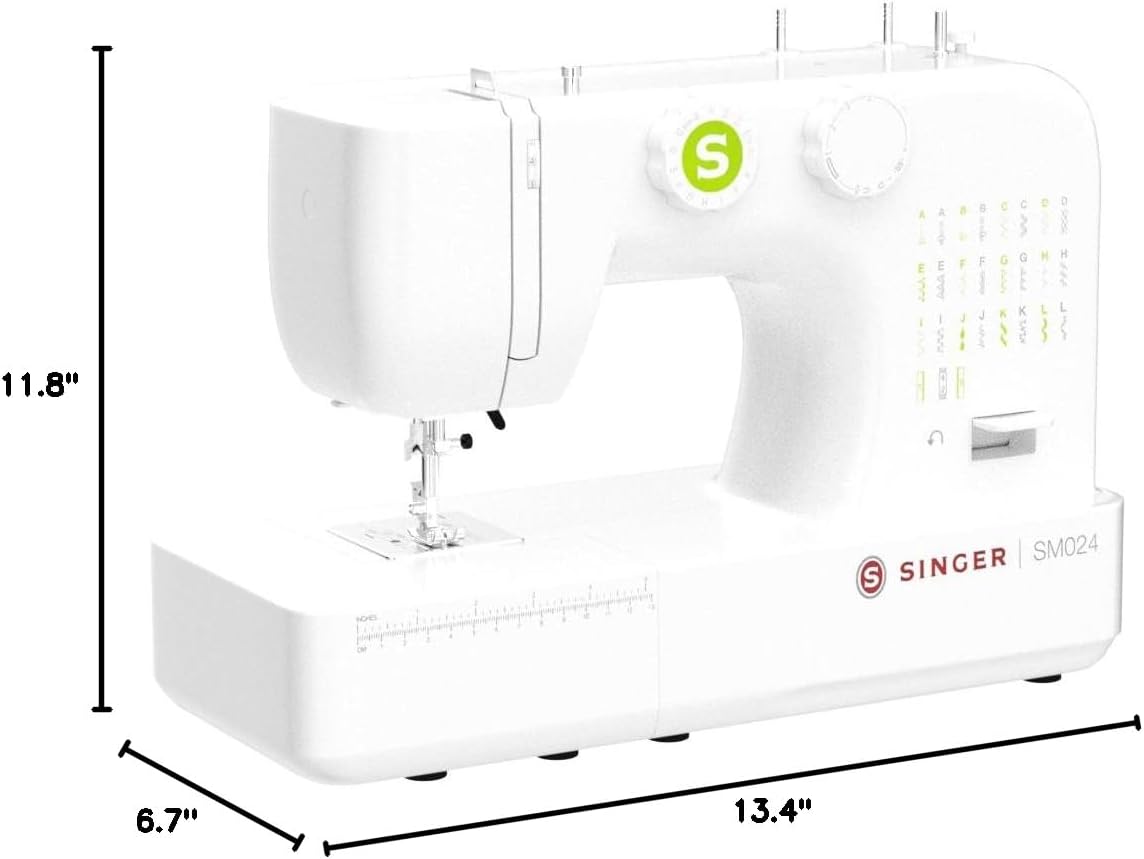

The image provides a visual representation of the SINGER SM024 sewing machine with its key dimensions (height, depth, width) labeled for reference.

9. വാറണ്ടിയും പിന്തുണയും

The SINGER SM024 sewing machine comes with a 25 വർഷത്തെ പരിമിതമായ ഭാഗങ്ങളുടെ വാറന്റി ഒപ്പം 90 days full coverage.

For further assistance, product registration, or to access additional resources, please visit the official SINGER webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

നിങ്ങൾക്ക് സന്ദർശിക്കാനും കഴിയും ആമസോണിലെ സിംഗർ സ്റ്റോർ കൂടുതൽ ഉൽപ്പന്നങ്ങൾക്കും വിവരങ്ങൾക്കും.
