EP 15 Ft LED Work Light Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The EP 15 Ft LED Work Light is a versatile and durable lighting solution designed for various indoor and outdoor applications. Featuring a powerful 1200 Lumen COB LED, an extra-long 15 ft 16/3 SJTW heavy-duty cord, a strong magnetic base, and a 360° rotatable hook, this work light provides bright, uniform illumination and flexible positioning. It also includes a grounded outlet for additional power needs, making it a practical tool for workshops, garages, and job sites.

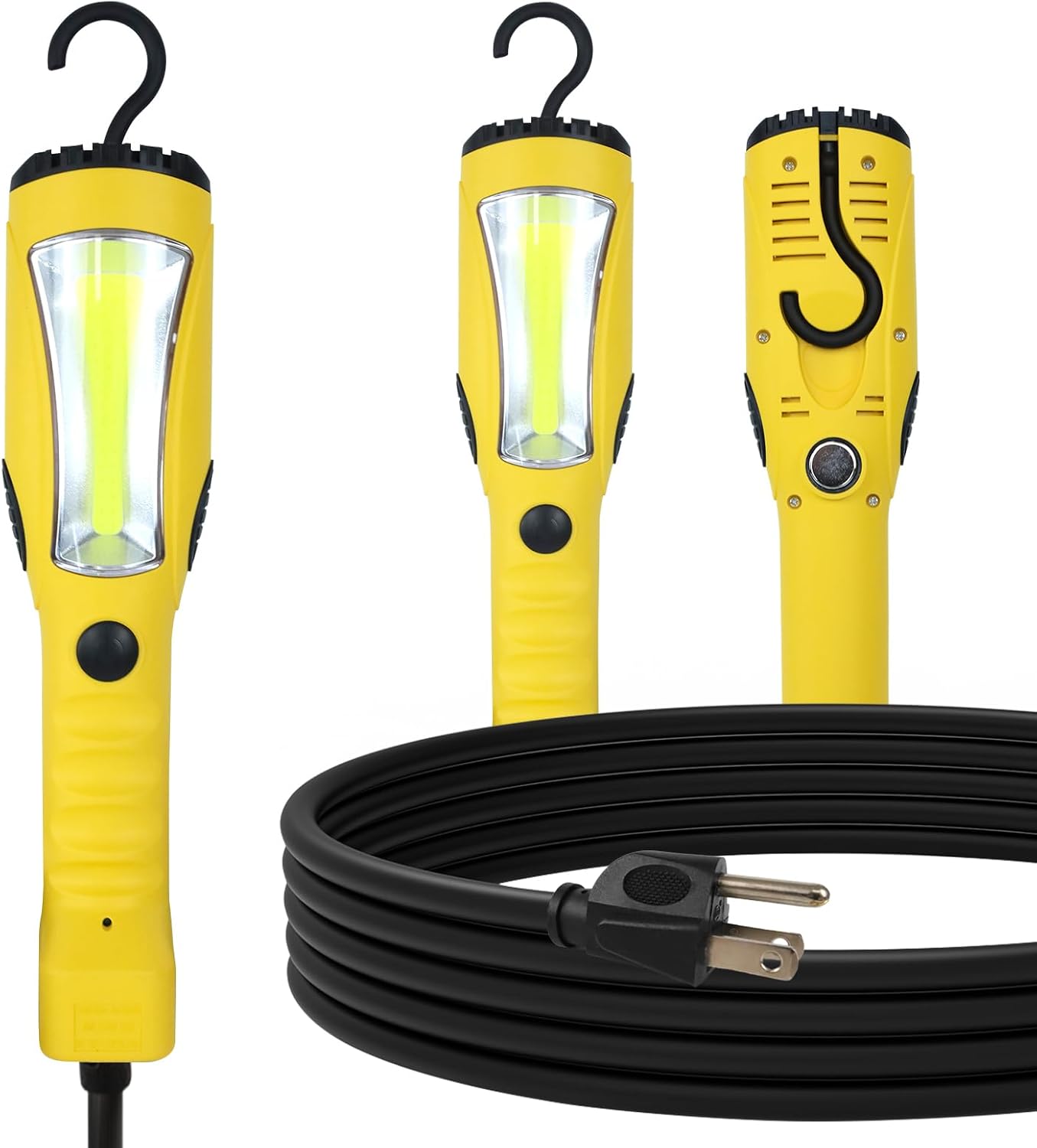

ചിത്രം 1.1: കഴിഞ്ഞുview of the EP 15 Ft LED Work Light, showcasing അതിന്റെ ഒതുക്കമുള്ള രൂപകൽപ്പനയും സംയോജിത പവർ കോഡും.

Image 1.2: Detail of the COB LED light, highlighting its high luminous efficiency and uniform light emission without glare.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety instructions before using the EP 15 Ft LED Work Light. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• ഇലക്ട്രിക്കൽ സുരക്ഷ: Ensure the work light is connected to a properly grounded 120V AC outlet. Do not use if the cord or plug is damaged. Do not overload the grounded outlet on the light; refer to the maximum amp load indicated on the product.
• ലൈറ്റ് സുരക്ഷ: Do not stare directly into the LED light source, as it can cause eye strain or damage.
• പരിസ്ഥിതി വ്യവസ്ഥകൾ: This light is designed for indoor and outdoor use, but avoid submerging it in water. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• കൈകാര്യം ചെയ്യൽ: Always handle the light by its anti-slip handle. Do not carry the light by its cord.
• പരിപാലനം: വൃത്തിയാക്കുന്നതിനോ അറ്റകുറ്റപ്പണികൾ നടത്തുന്നതിനോ മുമ്പ് വൈദ്യുതിയിൽ നിന്ന് വിച്ഛേദിക്കുക.

3. ഉൽപ്പന്ന ഘടകങ്ങൾ

Familiarize yourself with the key components of your EP LED Work Light:

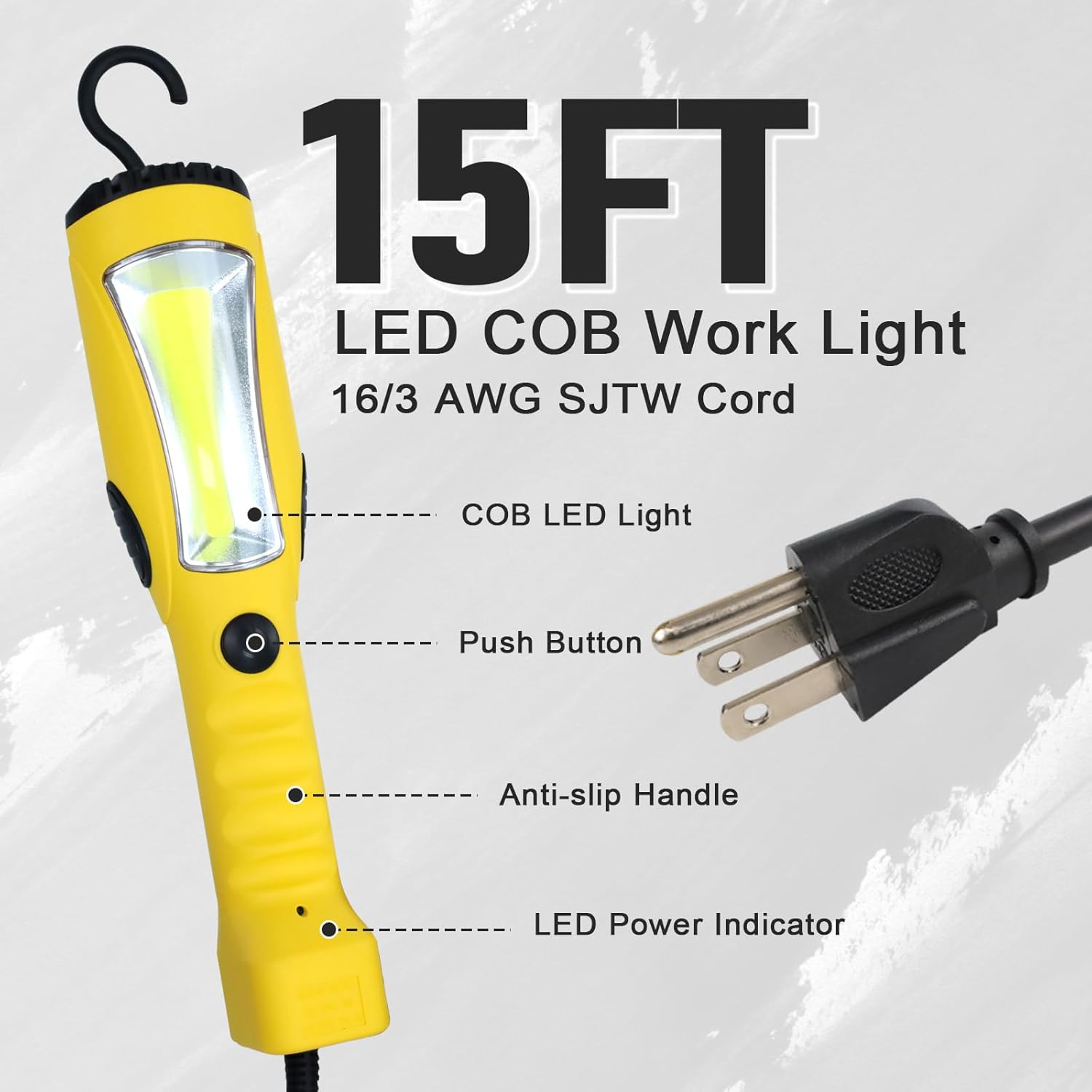

Image 3.1: Labeled diagram of the work light's main features.

• COB LED Light: Provides powerful 1200 Lumen illumination.
• ഞെക്കാനുള്ള ബട്ടണ്: Controls the light's power (On/Off).
• Anti-slip Handle: Ergonomically designed for comfortable and secure grip, reducing fatigue during extended use.
• LED പവർ ഇൻഡിക്കേറ്റർ: Illuminates when the light is powered on.
• 15 ft 16/3 SJTW Heavy Duty Cord: Extra-long, durable, waterproof, and weather-resistant power cord.
• ഗ്രൗണ്ടഡ് ഔട്ട്ലെറ്റ്: Located at the bottom of the handle, allows for connection of corded tools or other electrical devices (acts as an extension cord).


  Image 3.2: The grounded outlet provides convenient power for additional tools.

• ശക്തമായ കാന്തിക അടിത്തറ: Integrated neodymium magnet on the back allows for secure attachment to any metal surface for hands-free operation.


  Image 3.3: The magnetic base securely attaches to metal surfaces.
• 360° Rotatable Hook: Heavy-duty plastic hook that rotates 360° for flexible positioning and can be folded away to save space.


  Image 3.4: The rotatable hook offers versatile hanging options.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The EP LED Work Light is designed for immediate use with minimal setup.

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the work light from its packaging. Inspect the light and cord for any signs of damage. If damaged, do not use and contact customer support.
2. പ്ലേസ്മെൻ്റ്:
   • കാന്തിക അറ്റാച്ച്മെൻ്റ്: For hands-free operation, place the integrated magnetic base firmly onto any clean, flat metal surface.
   • തൂക്കിയിടുന്നത്: Extend the 360° rotatable hook from its stored position. Hang the light from a suitable support structure. Adjust the hook's rotation to direct the light as needed.
   • ഫ്രീസ്റ്റാൻഡിംഗ്: The light can also be placed on a flat surface.
3. പവർ കണക്ഷൻ: Plug the 15 ft power cord into a standard 120V AC grounded electrical outlet.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Using your EP LED Work Light is straightforward:

1. ഓൺ/ഓഫ് ചെയ്യുന്നു: Press the black push button located on the handle to turn the light ON. Press the button again to turn the light OFF. The LED power indicator will illuminate when the light is on.
2. പ്രകാശ ദിശ ക്രമീകരിക്കുന്നു: Utilize the 360° rotatable hook or reposition the magnetic base to direct the light beam precisely where needed.
3. Using the Grounded Outlet: The grounded outlet at the base of the handle can be used to power other corded tools or electrical devices. Ensure the total current draw of connected devices does not exceed the maximum amp load specified on the light (typically 12A).

6. പരിപാലനവും പരിചരണവും

Proper maintenance will ensure the longevity and optimal performance of your work light.

• വൃത്തിയാക്കൽ: Disconnect the light from the power source before cleaning. Wipe the exterior surfaces with a soft, damp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• സംഭരണം: When not in use, store the work light in a dry, cool place, away from direct sunlight and extreme temperatures. Coil the cord neatly to prevent tangling and damage.
• പരിശോധന: Periodically inspect the power cord, plug, and housing for any signs of wear, cuts, or damage. If damage is found, discontinue use and seek professional repair or replacement.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your EP LED Work Light, refer to the following common problems and solutions:

8 സാങ്കേതിക സവിശേഷതകൾ

9. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും

EP stands behind the quality of its products.

വാറൻ്റി: This EP LED Work Light comes with a 1 വർഷത്തെ പരിമിത വാറൻ്റി from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accidents, unauthorized repairs, or normal wear and tear.

ഉപഭോക്തൃ പിന്തുണ: For warranty claims, technical assistance, or any questions regarding your EP LED Work Light, please contact EP customer support. Please have your product model and purchase information ready when contacting support.

For the most up-to-date contact information, please visit the official EP webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷൻ പരിശോധിക്കുക.
