COSTWAY 40,000 BTU Outdoor Propane Patio Heater

1. ആമുഖം

വാങ്ങിയതിന് നന്ദി.asing the COSTWAY Outdoor Propane Patio Heater. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new heater. Please read all instructions carefully before use and retain this manual for future reference.

This 40,000 BTU propane heater is designed to provide warmth and ambiance to your outdoor living spaces, featuring a dancing flame and portable design with wheels for easy movement.

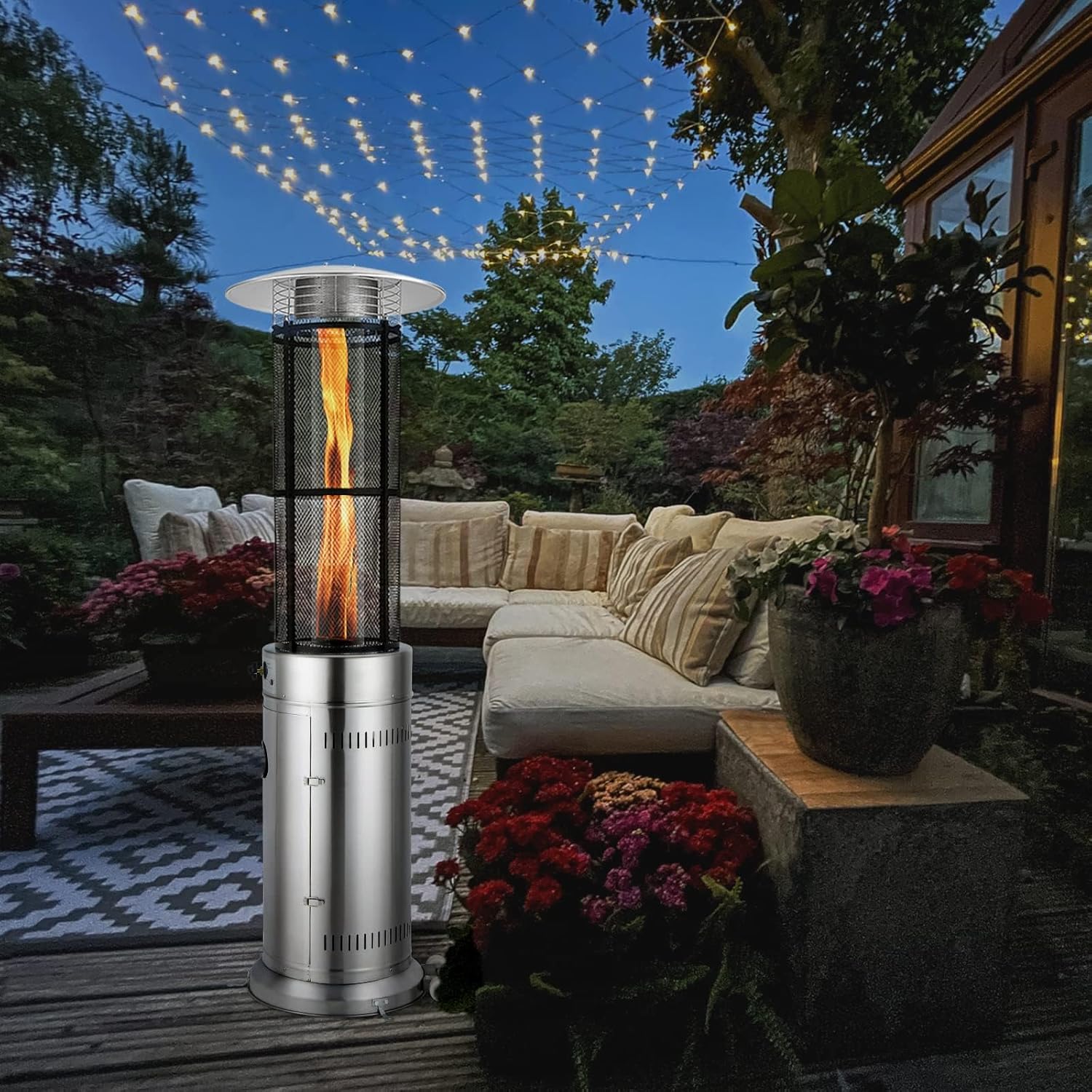

Image 1.1: The COSTWAY Outdoor Propane Patio Heater providing warmth in an outdoor patio setting.

2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: For outdoor use only. Never operate this heater indoors or in enclosed spaces. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always keep the heater area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
• Maintain proper clearances from combustible materials: 24 inches from sides and rear, 36 inches from top.
• പ്രവർത്തന സമയത്ത് മതിയായ വെന്റിലേഷൻ ഉറപ്പാക്കുക.
• Dual Safety Protections: This heater is equipped with tip-over protection, which automatically shuts off the gas supply if the heater is accidentally knocked over. It also features flame protection, which cuts off the gas if the flame extinguishes.
• Do not store a spare liquid propane (LP) cylinder under or near this appliance.
• Always use the heater on a firm, level surface. Four ground nails are provided for higher stability.
• പ്രവർത്തന സമയത്ത് ഹീറ്റർ ഒരിക്കലും ശ്രദ്ധിക്കാതെ വിടരുത്.
• കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും ഹീറ്ററിൽ നിന്ന് അകറ്റി നിർത്തുക.

Image 2.1: Illustration of the heater's dual safety features: automatic shut-off upon tipping and flame-out protection.

3. പാക്കേജ് ഉള്ളടക്കം

Before assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or operate the heater. Contact customer service for assistance.

• Heater Base Assembly
• Heat-Resistant Glass Tube
• Metal Mesh Guard
• Premium Top Reflector
• Gas Hose and Regulator (Excess Flow Valve)
• Portable Wheels (2)
• Ground Fixers (4)
• ഹാർഡ്‌വെയർ പായ്ക്ക് (സ്ക്രൂകൾ, നട്ടുകൾ, വാഷറുകൾ)
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

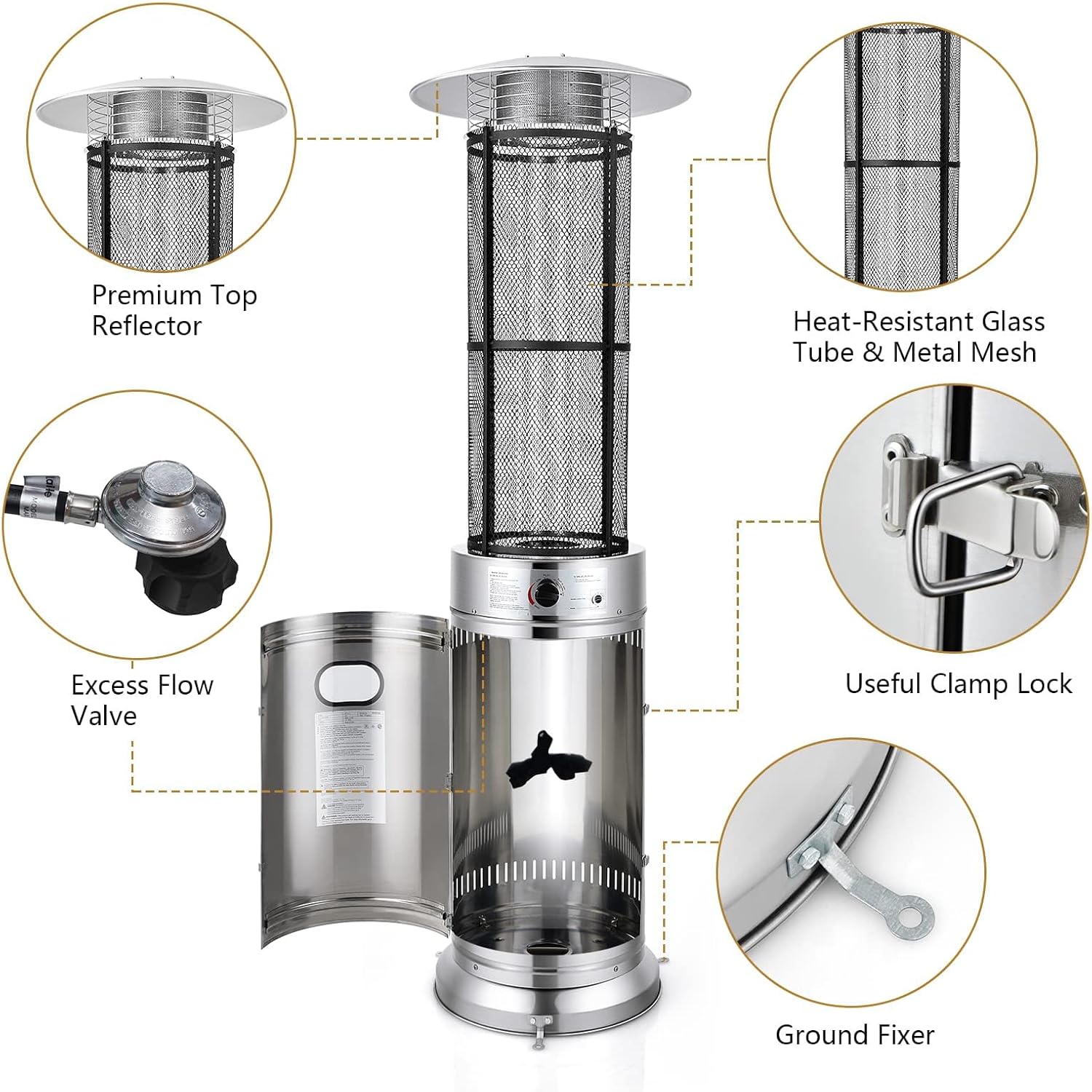

ചിത്രം 3.1: വിശദമായത് view of the heater's main components and accessories.

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Assembly is required. Follow the detailed instructions provided in the included manual. A 20 lbs propane cylinder tank is required for operation and is not included with the heater.

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഭാഗങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്ത് വൃത്തിയുള്ളതും പരന്നതുമായ പ്രതലത്തിൽ വയ്ക്കുക.
2. ചക്രങ്ങൾ അറ്റാച്ചുചെയ്യുക: Secure the two portable wheels to the designated points on the heater base using the provided hardware.
3. Install Glass Tube and Mesh: Carefully insert the heat-resistant glass tube into the central column. Then, attach the metal mesh guard around the glass tube, securing it according to the manual's diagrams.
4. Mount Top Reflector: Place the premium top reflector onto the upper section of the heater, ensuring it is securely fastened.
5. ഗ്യാസ് ഹോസ് ബന്ധിപ്പിക്കുക: Attach the gas hose with the excess flow valve to the heater's gas inlet. Ensure all connections are tight.
6. Secure Base Panels: Assemble the base panels around the propane tank compartment, using the useful clamp lock to secure them.
7. Install Ground Fixers: For added stability, install the four ground fixers to the base of the heater, especially if placing on soft ground.

Image 4.1: Product dimensions and key components for assembly, including the propane tank compartment.

5. Setup and Gas Connection

Before connecting the propane tank, ensure the heater is placed in a suitable outdoor location, away from any combustible materials and with adequate ventilation.

1. Propane Tank Requirement: This heater operates with a standard 20 lbs liquid propane (LP) cylinder tank (not included). Ensure the tank is full and in good condition.
2. Place Propane Tank: Open the heater's base door and carefully place the 20 lbs propane tank inside the designated compartment.
3. റെഗുലേറ്റർ ബന്ധിപ്പിക്കുക: Connect the regulator assembly from the heater to the propane tank valve. Turn the regulator coupling nut clockwise until it is fully tightened. Do not overtighten.
4. ചോർച്ച പരിശോധന: After connecting the tank, perform a leak test. Mix a solution of soapy water (50% soap, 50% water). Apply the solution to all gas connections. If bubbles appear, there is a leak. Tighten the connection or replace the faulty part. Do not use the heater if a leak is detected.
5. ഗ്യാസ് വാൽവ് തുറക്കുക: Slowly open the main valve on the propane tank fully counter-clockwise.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The heater features an easy-to-operate ignition system. Always ensure the area is clear before ignition.

1. Prepare for Ignition: പ്രൊപ്പെയ്ൻ ടാങ്ക് വാൽവ് പൂർണ്ണമായും തുറന്നിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
2. Ignite Pilot Light: Depress and turn the control knob counter-clockwise to the "IGNITE" - "PILOT" position. Keep the knob depressed for approximately 60 seconds to allow gas to flow and the pilot light to establish. You may hear a click as the igniter sparks.
3. Verify Pilot Light: Once the pilot light is lit, continue to hold the knob for a few more seconds, then release. If the pilot light goes out, repeat step 2.
4. താപ ക്രമീകരണം ക്രമീകരിക്കുക: After the pilot light is stable, turn the control knob to your desired heat setting: "LOW" or "HIGH". The dancing flame will become visible and heat will radiate outwards.
5. ഓഫാക്കാൻ: Turn the control knob clockwise to the "OFF" position. Close the valve on the propane tank.

Image 6.1: The control knob for easy ignition and heat adjustment, along with the portable wheels.

Image 6.2: Visual guide for starting and controlling the heater, including the convenient control knob and easy-to-adjust valve.

7. പരിപാലനം

Regular maintenance ensures safe and efficient operation of your patio heater.

• വൃത്തിയാക്കൽ: Keep the exterior surfaces clean. Use a soft, damp cloth to wipe down the stainless steel. Do not use abrasive cleaners or solvents. Ensure the heater is completely cool before cleaning.
• Burner and Glass Tube: Periodically inspect the burner and glass tube for any obstructions (e.g., spider webs, debris). Clean gently with a soft brush if necessary.
• ഗ്യാസ് കണക്ഷനുകൾ: Regularly check all gas connections for tightness and signs of wear. Perform a leak test at the beginning of each heating season or if the gas tank has been disconnected.
• സംഭരണം: When not in use for extended periods, disconnect the propane tank and store the heater in a dry, protected area. Consider using a weather-resistant cover.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your heater, refer to the following common problems and solutions.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official COSTWAY webസൈറ്റ്. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
