1. ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of the Y&H 600W Solar Grid Tie Micro Inverter. Microinverters convert direct current (DC) from solar panels into alternating current (AC) for use in residential and small commercial environments. This unit is designed for single-phase or three-phase connections and features an IP65 waterproof design for durability.
2. ഉൽപ്പന്ന സവിശേഷതകൾ
- IP65 വാട്ടർപ്രൂഫ് ഡിസൈൻ: Effectively prevents rainwater erosion on the surface.
- Enhanced AC Wiring Solution: Features improved AC wiring for faster installation and reduced risk of miswiring.
- MC4 DC Input Connector: Designed to prevent incorrect positive and negative terminal connections.
- Real-time AC Data Monitoring: Integrated AC digital meter displays voltage, current, active power, electrical energy, frequency, and power factor.
- കുറഞ്ഞ ഡിസി വോളിയംtagഇ ഓപ്പറേഷൻ: Operates at low DC voltage (up to 50V), enhancing safety during installation and operation compared to higher voltage string inverters.
- Solar Panel Compatibility: Suitable for two 250W-300W 36V solar panels (Vmp 30-39V; Voc 36-50V). Each MC4 branch supports up to 300W.
- Stackable Connection: Allows for expansion of your solar system.
- സംരക്ഷണ സവിശേഷതകൾ: Includes high precision phase detection, over and under voltage protection, over and under frequency protection, and islanding protection.
- കുറഞ്ഞ പരിപാലനം: Requires minimal maintenance, primarily occasional cleaning of photovoltaic panels.
3. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജ് തുറക്കുമ്പോൾ, താഴെ പട്ടികപ്പെടുത്തിയിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിലവിലുണ്ടെന്നും നല്ല നിലയിലാണെന്നും ഉറപ്പാക്കുക:
- Y&H 600W Micro Inverter Unit
- LCD Screen Cable with AC Data Monitoring Display
- മൗണ്ടിംഗ് സ്ക്രൂകളും വാഷറുകളും
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ
Figure 3.1: Package Contents - Y&H Micro Inverter, LCD screen cable, and mounting hardware.
Figure 3.2: Y&H 600W Micro Inverter with integrated LCD display.
4 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | WVC-600W-110V-LCD |
| ഉൽപ്പന്ന അളവുകൾ | 11.14 x 7.87 x 1.64 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 3.43 പൗണ്ട് |
| ബ്രാൻഡ് | വൈ&എച്ച് |
| ശുപാർശ ചെയ്യുന്ന ഉപയോഗങ്ങൾ | സൗരോർജ്ജം |
| പവർ ഉറവിടം | സൗരോർജ്ജം |
| വാട്ട്tage | 300 watts (per MC4 branch) |
Figure 4.1: Product Dimensions of the Y&H WVC-600 Micro Inverter.
5. ഇൻസ്റ്റലേഷൻ
5.1 Safety Precautions and Environment
Proper installation is crucial for the safe and efficient operation of your micro inverter. Observe the following guidelines:
- നേരിട്ടുള്ള സൂര്യപ്രകാശം ഒഴിവാക്കുക: Install the inverter in a location that avoids direct sunlight to prevent excessive temperatures.
- Prevent Rain and Moisture: Ensure the installation prevents rain or other liquids from getting the unit wet or soaking it.
- വെന്റിലേഷൻ ഉറപ്പാക്കുക: The inverter requires installation in a well-ventilated environment to facilitate proper heat dissipation.
Figure 5.1: Environmental considerations for inverter installation.
Figure 5.2: Proper and improper inverter installation positions.
5.2 ഘട്ടം ഘട്ടമായുള്ള ഇൻസ്റ്റാളേഷൻ
- ഇൻവെർട്ടർ ഘടിപ്പിക്കുക: Install the inverter on the bottom of the solar panel or in a cool, ventilated, and dry location.
- Connect DC Input: Connect the two DC terminals of your photovoltaic (PV) modules to the inverter. Ensure positive from the PV module connects to positive on the inverter, and negative to negative, using MC4 connectors. The inverter is compatible with two 250W-300W 36V solar panels (Vmp 30-39V; Voc 36-50V). Each MC4 branch should not exceed 300W.
- എസി ഔട്ട്പുട്ട് ബന്ധിപ്പിക്കുക: Connect the AC output cable from the inverter to a household outlet. Ensure the household outlet switch is turned on.
Figure 5.3: Connecting solar panels to the micro inverter.
5.3 വയറിംഗ് ഡയഗ്രമുകൾ
The Y&H Micro Inverter supports both single-phase and three-phase grid connections, as well as stackable configurations for larger systems.

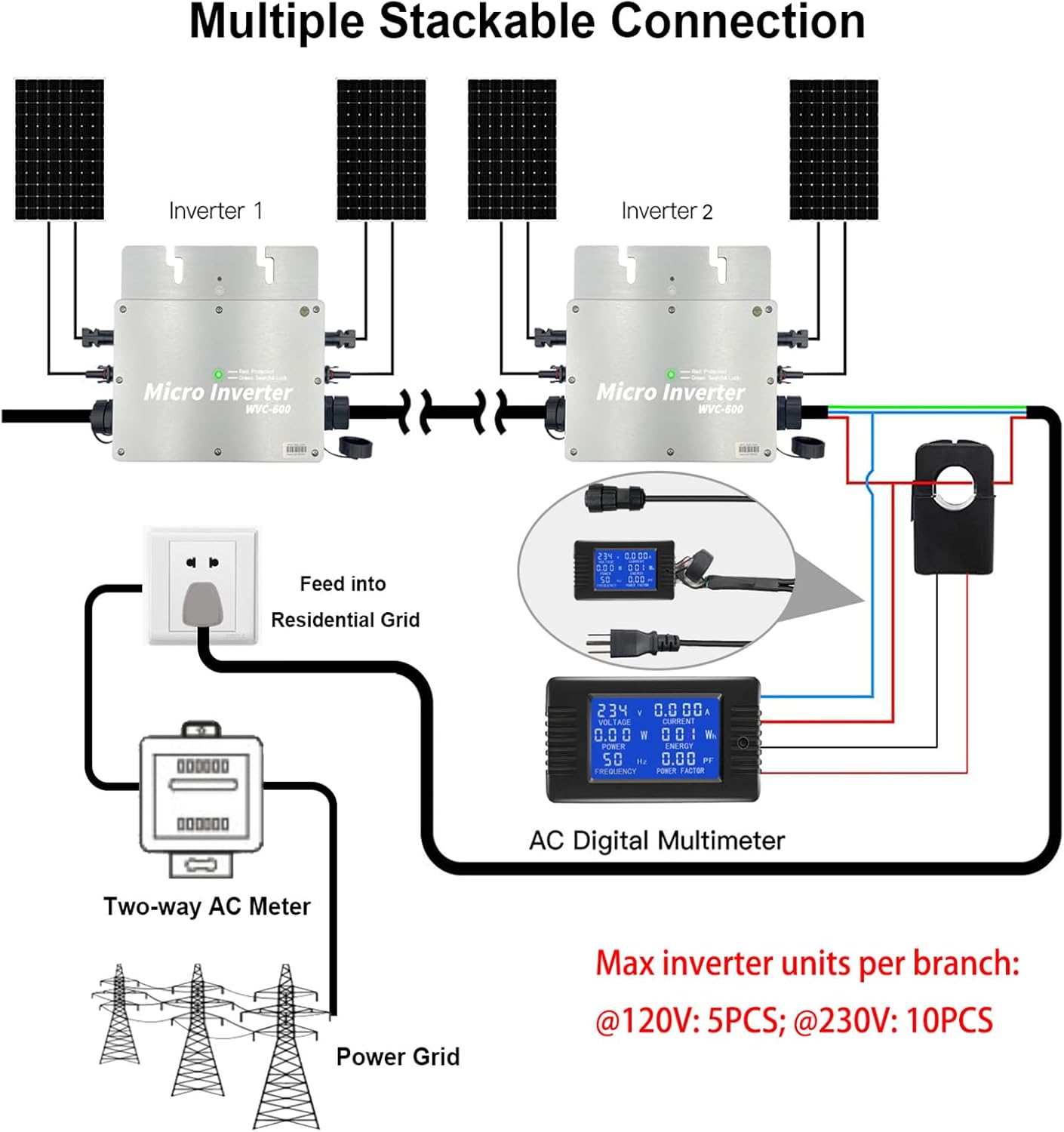

Figure 5.4: Multiple stackable connection diagram for residential grid tie.
Figure 5.5: Single-phase and three-phase grid connection diagrams.
5.4 ഇൻസ്റ്റലേഷൻ വീഡിയോ ഗൈഡ്
Watch this video for a visual guide on unpacking and connecting the Y&H Micro Inverter.
Video 5.1: Unpacking and basic connection of the Y&H Solar Grid Tie Micro Inverter.
This video demonstrates the wiring and testing process for the micro inverter.
Video 5.2: Detailed wiring and testing of the Y&H 600W Solar Grid Tie Micro Inverter.
6. ഓപ്പറേഷൻ
Once properly installed and connected, the micro inverter will begin converting DC power from your solar panels into AC power for your home grid. The integrated LCD display provides real-time monitoring of key operational parameters:
- വാല്യംtage: എസി outputട്ട്പുട്ട് വോളിയംtage.
- നിലവിലുള്ളത്: AC output current.
- സജീവ ശക്തി: Instantaneous power output in watts.
- Electrical Energy: Accumulated energy production.
- ആവൃത്തി: എസി ഔട്ട്പുട്ട് ഫ്രീക്വൻസി.
- പവർ ഫാക്ടർ: Indicates the efficiency of power usage.
The inverter features indicator lights:
- ഗ്രീൻ ലൈറ്റ്: സാധാരണ പ്രവർത്തനത്തെയും വൈദ്യുതി ഉൽപാദനത്തെയും സൂചിപ്പിക്കുന്നു.
- ചുവന്ന വെളിച്ചം: Indicates a protection state or fault. Refer to the troubleshooting section if the red light is active.
Figure 6.1: MPPT Technology for optimal performance.
Microinverters offer optimal performance for each module, ensuring that even if one panel is underperforming due to shading or other issues, the rest of your system continues to operate at peak efficiency. This maximizes your power yield throughout the day.
Figure 6.2: Performance comparison: Y&H Microinverter vs. Traditional String Inverter.
7. പരിപാലനം
The Y&H Micro Inverter is designed for minimal maintenance. To ensure continued optimal performance and longevity:
- സോളാർ പാനലുകൾ വൃത്തിയാക്കുക: Occasionally clean any dust or debris from your photovoltaic panels to maximize sunlight absorption.
- കണക്ഷനുകൾ പരിശോധിക്കുക: Periodically check all DC and AC connections to ensure they are secure and free from corrosion.
- Monitor Environment: Ensure the inverter's installation environment remains ventilated, dry, and protected from direct sunlight and excessive moisture.
8. പ്രശ്നപരിഹാരം
If you encounter issues with your Y&H Micro Inverter, consider the following common troubleshooting steps:
- No Power Output / Red Indicator Light:
- Check all DC connections from the solar panels to the inverter. Ensure correct polarity and secure connections.
- Verify the AC connection to the household grid is secure and the outlet is powered.
- Confirm that the solar panels are receiving sufficient sunlight and are within the specified voltage (Vmp 30-39V; Voc 36-50V) and power limits (max 300W per branch).
- Ensure the inverter is not overheating. Check for proper ventilation and clear any obstructions around the unit.
- കുറഞ്ഞ പവർ ഔട്ട്പുട്ട്:
- Clean solar panels to remove dirt, dust, or debris that may be reducing efficiency.
- Check for shading on solar panels throughout the day.
- Verify that the solar panel specifications match the inverter's requirements.
- എൽസിഡി ഡിസ്പ്ലേ പ്രവർത്തിക്കുന്നില്ല:
- Ensure the LCD screen cable is securely connected to the inverter.
- Check for any physical damage to the display or cable.
If issues persist after performing these checks, please contact Y&H technical support for further assistance.
9. വാറൻ്റിയും പിന്തുണയും
Y&H is committed to providing reliable products and excellent customer service. Your Y&H Micro Inverter comes with an after-sales guarantee.
9.1 After-Sales Guarantee
In the event of a product fault, Y&H will:
- Determine the cause of the product fault.
- Provide free replacement parts if applicable.
- Replace the product if necessary.
9.2 സാങ്കേതിക പിന്തുണ
For any questions, technical assistance, or warranty claims, please contact Y&H technical support. Our team is dedicated to helping you achieve energy self-sufficiency and ensuring your satisfaction.
