1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Bell & Howell Director Series Zoomatic Camera is a vintage 8mm movie camera equipped with a Varamat Zoom Lens F/1.8. This manual provides essential information for its setup, operation, and maintenance.

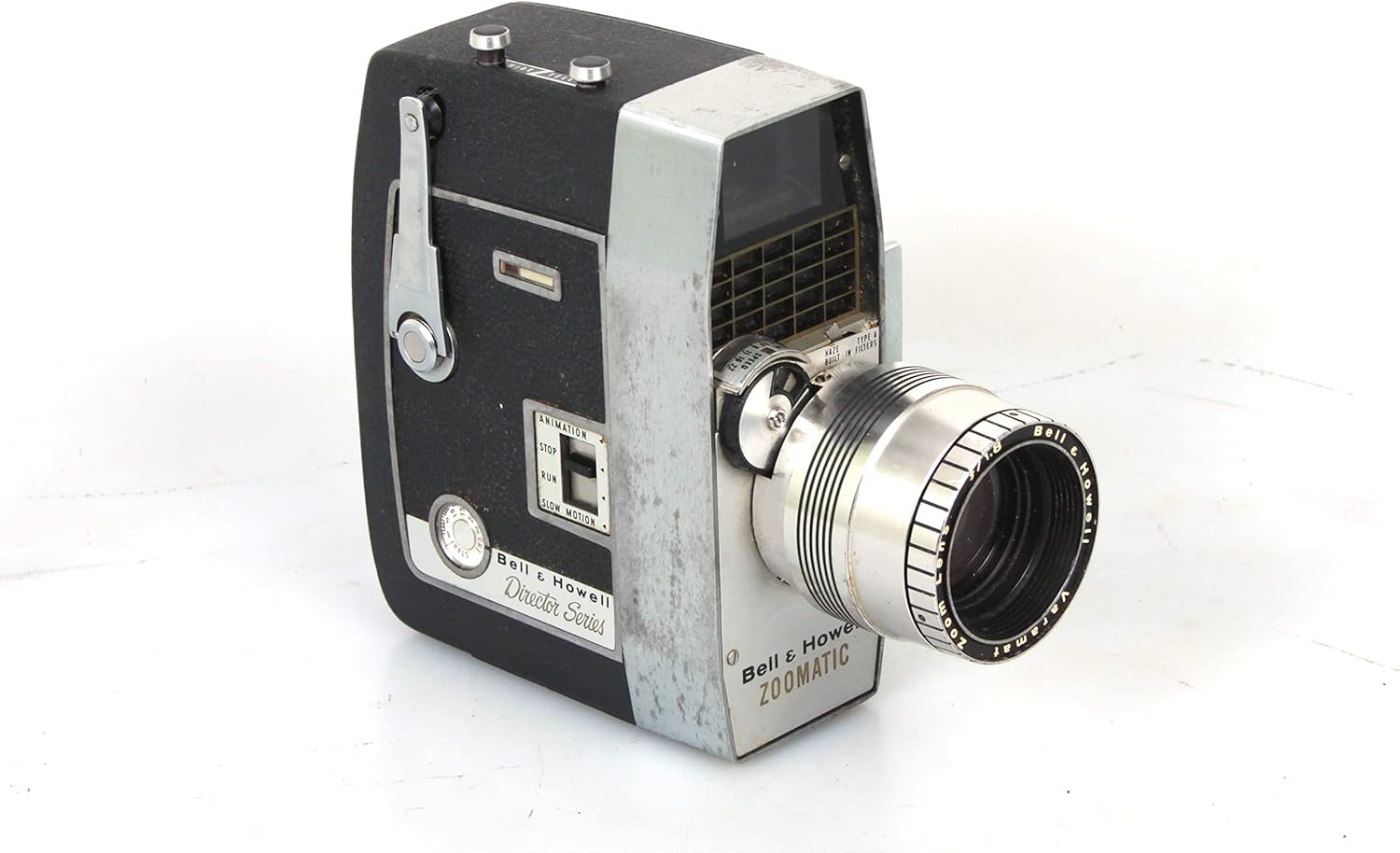

ചിത്രം 1.1: മുൻവശം view of the Bell & Howell Director Series Zoomatic 8mm movie camera, showcasing its classic design and zoom lens.
പ്രധാന സവിശേഷതകൾ:
- DIRECTOR SERIES ZOOMATIC CAMERA with a high-quality F/1.8 zoom lens.
- VINTAGE design, reflecting classic 8mm film technology.
- Equipped with an automatic exposure control type.
- Designed for movie shooting modes.
2. സജ്ജീകരണം
Before operating your Bell & Howell 8mm movie camera, ensure it is properly set up for film loading and power.
2.1 ഫിലിം ലോഡിംഗ്
To load film, open the camera's side door. The camera accommodates standard 8mm film reels. Carefully place the film reel onto the supply spindle and thread the film according to the internal diagram, ensuring it passes through the gate and onto the take-up reel. Close the door securely.
ചിത്രം 2.1: ആന്തരിക view of the camera with the side door open, illustrating the film loading area with supply and take-up reels.
2.2 പവർ സ്രോതസ്സ്
ഈ വിൻtage camera typically operates on internal batteries (not specified, but common for such models). Ensure fresh batteries are installed in the designated compartment, usually located on the side or bottom of the camera. Refer to the battery compartment for specific battery type and polarity.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Familiarize yourself with the camera's controls for optimal filming.
3.1 Filming
To begin filming, press and hold the trigger or recording button, typically located on the side or front grip. Release the button to stop recording. The camera's motor will activate during recording, indicating film transport.
ചിത്രം 3.1: വശം view highlighting the film advance mechanism and the lens focus ring.
3.2 സൂം പ്രവർത്തനം
The Varamat Zoom Lens F/1.8 allows for optical zoom. Adjust the zoom by rotating the zoom ring on the lens barrel. Rotate clockwise for telephoto (zoom in) and counter-clockwise for wide-angle (zoom out). Ensure smooth rotation for consistent footage.
ചിത്രം 3.2: വിശദമായി view of the lens area, showing the zoom ring and other operational dials.
3.3 ഫോക്കസ് അഡ്ജസ്റ്റ്മെന്റ്
To achieve sharp images, adjust the focus ring on the lens. Look through the viewfinder and rotate the focus ring until the subject appears clear and sharp. Some models may feature a "Universal Focus Lock" for simplified operation in certain conditions.
ചിത്രം 3.3: ഫ്രണ്ടൽ view emphasizing the lens and its focus adjustment capabilities.
4. പരിപാലനം
Proper maintenance ensures the longevity and optimal performance of your vintagഇ ക്യാമറ.
- ലെൻസ് ക്ലീനിംഗ്: The lens may accumulate dust and haze over time. Use a soft, lint-free cloth and a specialized lens cleaning solution to gently wipe the lens surfaces. Avoid abrasive materials that could scratch the lens.
- ശരീരം വൃത്തിയാക്കൽ: Wipe the camera body with a dry, soft cloth to remove dust and fingerprints. For stubborn marks, a slightly damp തുണി ഉപയോഗിക്കാം, തുടർന്ന് ഉടനടി ഉണക്കാം.
- സംഭരണം: Store the camera in a cool, dry place, away from direct sunlight and extreme temperatures. It is advisable to remove batteries during long periods of non-use to prevent leakage.
- Viewകണ്ടെത്തുന്നയാൾ: ദി viewfinder may become hazy. While internal cleaning requires professional service, keep the external eyepiece clean with a soft cloth.
5. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your Bell & Howell 8mm movie camera.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Camera motor not running. | ഡെഡ് അല്ലെങ്കിൽ തെറ്റായി ഇൻസ്റ്റാൾ ചെയ്ത ബാറ്ററികൾ. | ബാറ്ററി പോളാരിറ്റി പരിശോധിച്ച് പുതിയ ബാറ്ററികൾ ഉപയോഗിച്ച് മാറ്റിസ്ഥാപിക്കുക. |
| Film not advancing. | Improper film loading; film jammed. | Re-load film carefully according to instructions. Check for obstructions. |
| ചിത്രങ്ങൾ മങ്ങിയതായി തോന്നുന്നു. | Incorrect focus setting; dirty lens. | Adjust the focus ring. Clean the lens as per maintenance instructions. |
| Viewfinder is hazy. | Internal haze or dust. | Clean external eyepiece. For internal haze, professional cleaning may be required. |
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | DIRECTOR SERIES ZOOMATIC |
| ലെൻസ് | Varamat Zoom Lens F/1.8 |
| ഫിലിം തരം | 8 എംഎം ഫിലിം |
| ഷൂട്ടിംഗ് മോഡുകൾ | സിനിമ |
| എക്സ്പോഷർ നിയന്ത്രണ തരം | ഓട്ടോമാറ്റിക് |
| നിറം | കറുപ്പ് |
| ഇനത്തിൻ്റെ ഭാരം | 4 പൗണ്ട് (ഏകദേശം) |
| സൂം തരം | ഒപ്റ്റിക്കൽ സൂം |
7. വാറൻ്റിയും പിന്തുണയും
ഒരു വിൻ ആയിtage item, this Bell & Howell 8mm movie camera may not come with a manufacturer's warranty. For support regarding operation or repair, it is recommended to consult with vintage camera specialists or authorized repair centers. Online communities and forums dedicated to vintage film equipment can also be valuable resources for troubleshooting and advice.
