Black Diamond Cosmo 350-R Headlamp

ആമുഖം

The Black Diamond Cosmo 350-R is a versatile and powerful rechargeable headlamp designed for outdoor enthusiasts. With its integrated battery, robust construction, and multiple lighting modes, it provides reliable illumination for a wide range of activities, from camping and hiking to climbing and general outdoor use. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Cosmo 350-R headlamp.

Figure 1: Black Diamond Cosmo 350-R Headlamp (Octane)

പ്രധാന സവിശേഷതകൾ:

• 350 Lumen Max Output: Provides powerful illumination for various conditions.
• റീചാർജ് ചെയ്യാവുന്നത്: Integrated 1500 mAh Li-ion battery with micro-USB charge port for convenient recharging.
• ഒന്നിലധികം ക്രമീകരണങ്ങൾ: Includes dimming, strobe, red LED night-vision, and lock mode.
• IP67 വാട്ടർപ്രൂഫ്: Tested to operate at least 1.0 meters underwater for 30 minutes, ensuring durability in wet conditions.
• Red Night Vision: Features dimming and strobe modes, activating without cycling through white light.
• ഇന്റഗ്രേറ്റഡ് ബാറ്ററി മീറ്റർ: ശതമാനം പ്രദർശിപ്പിക്കുന്നുtage of power remaining.
• സുഖപ്രദമായ ഹെഡ്‌ബാൻഡ്: Recycled elastic headband with Repreve fiber construction for next-to-skin comfort.

സജ്ജമാക്കുക

1. Charging the Headlamp:

Before first use, fully charge the Cosmo 350-R headlamp. Locate the micro-USB charge port on the side of the headlamp unit. Connect the provided micro-USB cable to the port and the other end to a compatible USB power source (e.g., wall adapter, computer USB port, power bank).

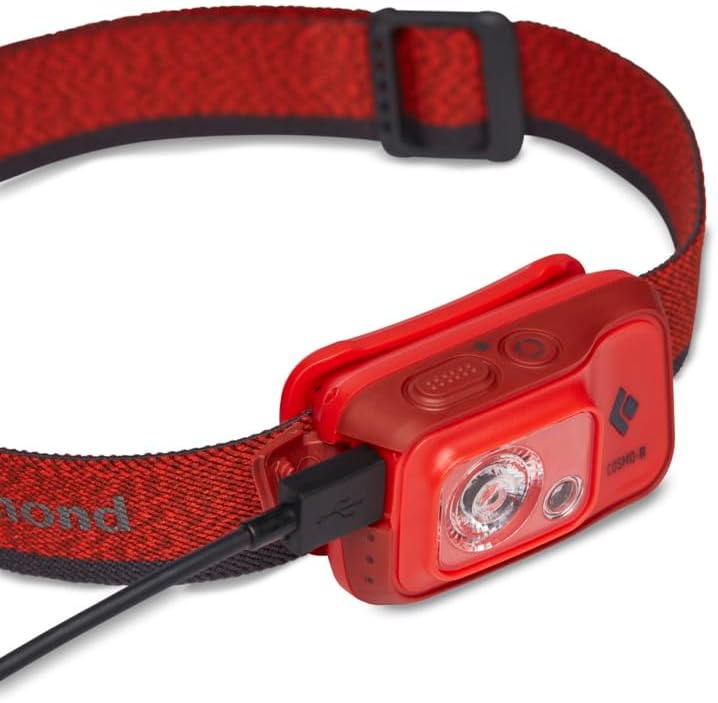

Figure 2: Charging the Cosmo 350-R Headlamp

• The battery meter will indicate charging progress.
• ഒരു പൂർണ്ണ ചാർജ് സാധാരണയായി നിരവധി മണിക്കൂറുകൾ എടുക്കും.

2. Adjusting the Headband:

The elastic headband is adjustable to ensure a secure and comfortable fit. Slide the buckle on the headband to tighten or loosen it around your head or helmet. Ensure the headlamp is centered on your forehead.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ചിത്രം 3: ഹെഡ്ൽamp നിയന്ത്രണ ബട്ടണുകൾ

1. പവർ ഓൺ/ഓഫ്:

• ഹെഡ്ഡൽ ഓണാക്കാൻamp, press the large power/mode button once.
• ഹെഡ്ഡൽ ഓഫ് ചെയ്യാൻamp, press and hold the power/mode button until the light extinguishes.

2. മോഡ് തിരഞ്ഞെടുക്കൽ:

The Cosmo 350-R features multiple lighting modes:

• വൈറ്റ് ലൈറ്റ്: Press the power/mode button repeatedly to cycle through different white light settings (e.g., high, medium, low).
• Red Night Vision: From the off position, press and hold the power/mode button for 2 seconds to activate red night vision. This mode is ideal for preserving night adaptation.
• സ്ട്രോബ് മോഡ്: From any white or red light setting, quickly double-press the power/mode button to activate strobe mode. Double-press again to return to the previous mode.

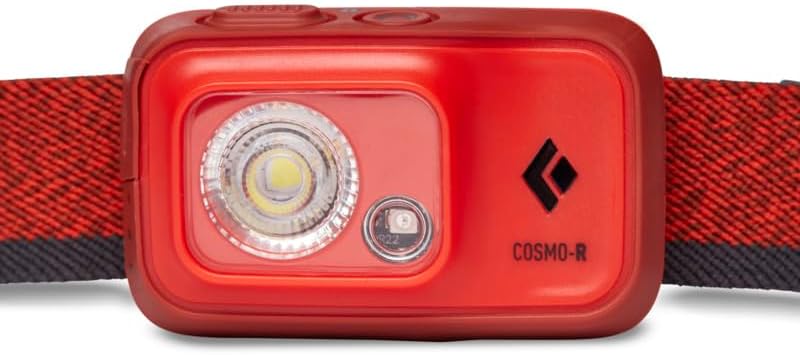

ചിത്രം 4: മുൻഭാഗം View LED-കൾക്കൊപ്പം

3. Dimming (Brightness Adjustment):

തലയെടുപ്പ് സമയത്ത്amp is on in any white or red light mode, press and hold the power/mode button. The light will gradually dim or brighten. Release the button when the desired brightness is reached.

4. Lock Mode:

Lock mode prevents accidental activation of the headlamp, saving battery life during transport or storage.

• Activate Lock Mode: Press and hold the small lock button for 3 seconds until the light flashes.
• Deactivate Lock Mode: Press and hold the lock button for 3 seconds until the light flashes again and turns on.

5. Battery Meter:

The integrated battery meter displays the remaining power. When the headlamp is turned on, a small indicator light will show the battery level for a few seconds. Refer to the user guide for specific indicator meanings (e.g., green for full, yellow for medium, red for low).

മെയിൻ്റനൻസ്

1. വൃത്തിയാക്കൽ:

തല തുടയ്ക്കുകamp മൃദുവായ, d ഉള്ള ബോഡിയും ലെൻസുംamp cloth. Do not use abrasive cleaners or solvents, as they may damage the unit. Ensure the charging port cover is securely closed before cleaning or exposing to water.

2. സംഭരണം:

തലക്കെട്ട് സൂക്ഷിക്കുകamp in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is partially charged (around 50%) and activate lock mode to prevent accidental discharge.

3. ബാറ്ററി കെയർ:

• ബാറ്ററി ഇടയ്ക്കിടെ പൂർണ്ണമായും ഡിസ്ചാർജ് ചെയ്യുന്നത് ഒഴിവാക്കുക, കാരണം ഇത് അതിന്റെ ആയുസ്സ് കുറയ്ക്കും.
• Recharge the battery regularly, even if not in use, to maintain optimal performance.
• Use only the provided or a certified micro-USB cable for charging.

4. Waterproofing (IP67):

The Cosmo 350-R is rated IP67, meaning it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. While it is highly water-resistant, it is not designed for prolonged underwater use. Always ensure the charging port cover is sealed before exposing the headlamp വെള്ളത്തിലേക്ക്.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your Black Diamond Cosmo 350-R headlamp, refer to the table below for common problems and their solutions.

If the problem persists after attempting these solutions, please contact Black Diamond customer support.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Black Diamond headlamps, including the Cosmo 350-R, come with a മൂന്ന് വർഷത്തെ വാറന്റി from the date of purchase. This warranty covers manufacturing defects in materials and workmanship.

For warranty claims, technical support, or any other inquiries regarding your Black Diamond Cosmo 350-R headlamp, please contact Black Diamond Equipment directly. You can find more information and contact details on their official webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ആമസോൺ സ്റ്റോർ വഴി:

Visit the BLACK DIAMOND Store on Amazon

Please have your product model number (BD620677) and proof of purchase ready when contacting support.
