1. ആമുഖം
Thank you for choosing the E-ACE 11.26-inch Mirror Dash Cam. This device is designed to enhance your driving safety and provide comprehensive recording capabilities. It features a large, full-screen display, GPS functionality, and advanced monitoring features. This manual provides detailed instructions for installation, operation, and maintenance.
പ്രധാന സവിശേഷതകൾ:
- 3-Channel Simultaneous Recording: Records front, internal, and rear views concurrently.
- 11.26-ഇഞ്ച് ഫുൾ ടച്ച് സ്ക്രീൻ: Provides a clear and intuitive interface for easy operation and display switching.
- സംയോജിത ജിപിഎസ്: Records driving speed, direction, and route for playback.
- വിപുലമായ രാത്രി കാഴ്ച: Equipped with a 2-megapixel CMOS sensor and STARVIS technology for clear night recordings.
- Essential Recording Functions: Includes loop recording, emergency recording (G-sensor), and 24-hour parking monitoring.
- എളുപ്പമുള്ള ഇൻസ്റ്റാളേഷൻ: Designed for simple attachment over your vehicle's existing rearview കണ്ണാടി.
2. പാക്കേജ് ഉള്ളടക്കം
താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:
- 1x E-ACE 11.26-inch Mirror Dash Cam (Main Unit)
- 1x Built-in Internal Camera with Infrared Light
- 1x പിൻ ക്യാമറ
- 2x Rubber Bands for Fixing
- 1x Rear Camera Mounting Sticker
- 1x English Instruction Manual
- 1x Rear Camera Cable (approx. 6 meters)
- 1x GPS Antenna (1 meter)
- 1x Cigarette Lighter Power Cord (approx. 3 meters)
- 1x Micro SD Card (32GB/CLASS10)
Image: All components included in the E-ACE Mirror Dash Cam package.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Follow these steps to install your E-ACE Mirror Dash Cam:
- പ്രധാന യൂണിറ്റ് മൌണ്ട് ചെയ്യുക: Secure the main dash cam unit over your vehicle's existing rearview mirror using the provided rubber bands. Ensure it is firmly attached and does not obstruct your view.
- പവർ ബന്ധിപ്പിക്കുക: Insert the cigarette lighter power cord into your vehicle's cigarette lighter socket. Connect the other end to the Mini USB port on the main dash cam unit. Route the cable neatly to avoid interference with driving.
- പിൻ ക്യാമറ ഇൻസ്റ്റാൾ ചെയ്യുക:
- Choose a suitable location on the rear of your vehicle, typically above the license plate or on the rear window.
- Use the provided double-sided tape for attachment. If a more permanent fixture is desired, use the screws (drilling may be required).
- Connect the rear camera cable to the main unit and route it carefully through the vehicle's interior.
- ജിപിഎസ് ആന്റിന ഇൻസ്റ്റാൾ ചെയ്യുക: Attach the GPS antenna to a location on your dashboard or windshield with a clear view of the sky. Connect the GPS antenna cable to the designated GPS port on the main unit.
- മൈക്രോ എസ്ഡി കാർഡ് ചേർക്കുക: Insert the included 32GB Micro SD card into the designated slot on the main unit. Ensure it is inserted correctly until it clicks into place.
- Parking Monitoring (Optional): For 24-hour parking monitoring functionality, a separate step-down cable (not included) is required. This cable connects directly to your car's fuse box to provide continuous power.
Image: E-ACE Mirror Dash Cam and its primary accessories.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
This section details the primary functions and how to operate your dash cam.
4.1 അടിസ്ഥാന പ്രവർത്തനം
- പവർ ഓൺ/ഓഫ്: The device will automatically power on and begin recording when your vehicle's engine starts. It will power off automatically when the engine is turned off.
- സ്ക്രീൻ നിയന്ത്രണം: The 11.26-inch display is a full touch screen. Swipe the screen up, down, left, or right to adjust the camera view or switch between different display modes (front, internal, rear camera viewഎസ്).
- സ്വിച്ചിംഗ് ക്യാമറ Views: On the display, touch the car icon once to cycle through front, internal, and rear camera views.
4.2 Recording Functions
- ലൂപ്പ് റെക്കോർഡിംഗ്: The dash cam continuously records video in segments (1, 2, or 3 minutes). When the SD card is full, the oldest unlocked fileകൾ തിരുത്തിയെഴുതിയിരിക്കുന്നു.
- അടിയന്തര റെക്കോർഡിംഗ് (ജി-സെൻസർ): In the event of a sudden impact or collision, the built-in G-sensor automatically detects the event and locks the current video segment, preventing it from being overwritten by loop recording.
- 24 മണിക്കൂർ പാർക്കിംഗ് നിരീക്ഷണം: With a connected step-down cable, the dash cam can monitor your vehicle even when parked. It will automatically start recording if an impact is detected.
- സമയദൈർഘ്യ റെക്കോർഡിംഗ്: This feature records video at a lower frame rate, compressing long periods into shorter video files, useful for extended parking monitoring.
- വോയിസ് റെക്കോർഡിംഗ്: The built-in microphone allows for audio recording during driving. This can be enabled or disabled via the settings.
Image: Display showing simultaneous recording from front, internal, and rear cameras.
Image: Explanation of 24-hour parking monitoring and GPS functionality.
Image: Features like G-sensor, voice recording, and reverse assist.
5. പരിപാലനം
ശരിയായ അറ്റകുറ്റപ്പണി നിങ്ങളുടെ ഡാഷ് കാമിന്റെ ദീർഘായുസ്സും മികച്ച പ്രകടനവും ഉറപ്പാക്കുന്നു.
- Cleaning the Lenses and Screen: Use a soft, lint-free cloth to gently wipe the camera lenses and the display screen. Avoid using abrasive cleaners or solvents that could damage the surfaces.
- SD കാർഡ് മാനേജുമെന്റ്: Periodically format the Micro SD card (at least once a month) to prevent data corruption and ensure smooth recording. Back up any important fileഫോർമാറ്റ് ചെയ്യുന്നതിന് മുമ്പ് എസ്.
- ഫേംവെയർ അപ്ഡേറ്റുകൾ: Check the E-ACE official website for any available firmware updates. Follow the instructions carefully to update the device.
- താപനില പരിഗണനകൾ: Avoid exposing the dash cam to extreme temperatures for extended periods, as this can affect battery life and electronic components.
6. പ്രശ്നപരിഹാരം
If you encounter any issues with your E-ACE Mirror Dash Cam, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം / പരിഹാരം |
|---|---|
| ഉപകരണം പവർ ഓണാക്കുന്നില്ല. | Ensure the cigarette lighter power cord is securely connected and the vehicle's power outlet is functioning. Check the fuse in the cigarette lighter plug. |
| Screen flickers or device stops working. | This could indicate a hardware issue. Please contact customer support for assistance. |
| GPS signal is weak or slow to acquire. | Ensure the GPS antenna is mounted in a location with a clear view of the sky, away from obstructions. Environmental factors (e.g., tunnels, dense urban areas) can affect signal strength. |
| Loop recording is not smooth or freezes. | Format the Micro SD card regularly. Ensure you are using a high-speed (Class 10 or higher) SD card. If the issue persists, the SD card may be faulty and require replacement. |
| Rear camera image is not displayed. | Check the connection of the rear camera cable to both the rear camera and the main unit. Ensure the cable is not damaged. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | ഇ-എസിഇ |
| മോഡൽ | B09Q2RT7S3 |
| സ്ക്രീൻ വലിപ്പം | 11.26 inches (LCD Touch Screen) |
| വീഡിയോ ക്യാപ്ചർ റെസല്യൂഷൻ | 1080p (Front, Internal, Rear) |
| ഫ്രണ്ട് ക്യാമറ ആംഗിൾ | 170° |
| Internal Camera Angle | 330° |
| പിൻ ക്യാമറ ആംഗിൾ | 150° |
| ഒപ്റ്റിക്കൽ സെൻസർ ടെക്നോളജി | CMOS |
| പ്രത്യേക സവിശേഷതകൾ | Built-in GPS, Night Vision, G-Sensor, Loop Recording, Parking Monitor, WDR, HDR |
| മൗണ്ടിംഗ് തരം | Clip-on (over rearview കണ്ണാടി) |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | User Manual, GPS Antenna, 32GB Micro SD Card |
| ഉൽപ്പന്ന അളവുകൾ | 29 cm (W) x 7 cm (H) x 1.5 cm (D) |
| പാക്കേജ് അളവുകൾ | 33.4 x 11.4 x 5.9 സെ.മീ; 920 ഗ്രാം |

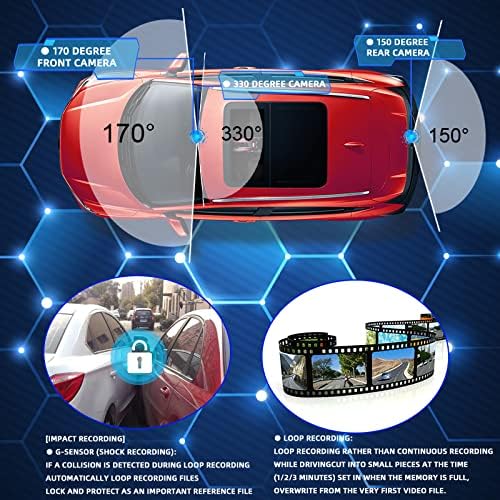

Image: Camera viewing angles for comprehensive coverage.
8. വാറൻ്റിയും പിന്തുണയും
E-ACE stands behind the quality of its products. Your Mirror Dash Cam comes with the following:
- 2 വർഷത്തെ ഗുണനിലവാര വാറന്റി: We provide a 2-year warranty covering manufacturing defects.
- 1-Month Full Refund/Exchange: If you are not satisfied with your purchase within one month, you are eligible for a full refund or exchange.
For any questions, technical support, or warranty claims, please contact our customer service team. We are committed to providing prompt assistance.
