Crosley CR6043A-NA Brio Bluetooth Turntable Shelf System

ആമുഖം

The Crosley Brio Record Player is a comprehensive audio system designed to play vinyl records and stream digital music. It features a three-speed turntable, integrated Bluetooth connectivity, and a pair of 32-watt bookshelf speakers. This system combines classic vinyl playback with modern audio options, making it suitable for various listening preferences.

The turntable supports 33 1/3, 45, and 78 RPM records and includes an auto-stop function for convenience. Its Bluetooth capability allows for wireless streaming from mobile devices directly through the included speakers. Additionally, RCA output and auxiliary input ports provide options for connecting to external audio systems or other devices.

ബോക്സിൽ എന്താണുള്ളത്

Upon unpacking your Crosley Brio Turntable Shelf System, please ensure all the following components are present:

• ടേൺ ചെയ്യാവുന്ന യൂണിറ്റ്
• 45 ആർ‌പി‌എം അഡാപ്റ്റർ
• പവർ അഡാപ്റ്റർ
• Bookshelf Speakers (2 units)
• Clear Dust Cover

സജ്ജീകരണ ഗൈഡ്

1. പായ്ക്ക് ചെയ്യലും പ്ലേസ്മെന്റും

Carefully remove all components from the packaging. Place the turntable unit on a stable, level surface. Position the bookshelf speakers on either side of the turntable, ensuring they are within reach of the speaker cables.

ചിത്രം: മുൻഭാഗം view of the Crosley Brio Turntable with its two accompanying bookshelf speakers.

2. സ്പീക്കറുകൾ ബന്ധിപ്പിക്കുന്നു

Connect the included bookshelf speakers to the 'SPEAKER OUT' ports on the rear of the turntable unit. Ensure the left speaker is connected to the 'L' terminal and the right speaker to the 'R' terminal. The speaker cables are typically color-coded (e.g., red for right, white for left) or marked with '+' and '-' for correct polarity.

Image: Rear panel of the turntable showing AUX, AUDIO OUT, SPEAKER OUT, and DC 12V connections.

3. പവർ കണക്ഷൻ

Plug the power adapter into the 'DC 12V' port on the rear of the turntable unit, then plug the other end into a standard wall outlet.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Playing Vinyl Records

1. പൊടി കവർ ഉയർത്തുക.
2. ടർടേബിൾ പ്ലാറ്ററിൽ ഒരു വിനൈൽ റെക്കോർഡ് സ്ഥാപിക്കുക.
3. Select the desired speed (33 1/3, 45, or 78 RPM) using the speed selection switch. For 45 RPM records, place the included 45 adapter on the center spindle.
4. Release the tonearm clip. Gently lift the tonearm using the cueing lever and position the stylus over the desired track on the record.
5. Lower the cueing lever to gently drop the stylus onto the record. The record will begin to play.
6. The auto-stop function will automatically stop the platter when the record finishes. If auto-stop is off, the record will continue spinning.

ചിത്രം: ആംഗിൾഡ് view of the turntable with a vinyl record spinning and the tonearm in position.

ചിത്രം: മുകളിൽ നിന്ന് താഴേക്ക് view of the turntable's control panel, showing speed selection, pitch, volume, and power knobs.

2. ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി

1. Turn the turntable on.
2. Rotate the mode knob to the Bluetooth setting. The Bluetooth indicator light will begin to flash, indicating it is in pairing mode.
3. On your mobile device, enable Bluetooth and select 'Crosley Brio' from the list of available devices.
4. Once paired, the Bluetooth indicator light will stop flashing and remain solid. You can now stream audio from your device through the turntable's speakers.

3. സഹായ ഇൻപുട്ട്

1. Connect an external audio device (e.g., smartphone, MP3 player) to the 'AUX IN' port on the rear of the turntable using a 3.5mm audio cable (not included).
2. Rotate the mode knob to the AUX setting.
3. Play audio from your connected device. The sound will be output through the turntable's speakers.

4. ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ

Watch this official video for a visual overview of the Crosley Brio Bluetooth Turntable Shelf System.

വീഡിയോ: ഒരു ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ പ്രദർശനംasing the features and design of the Crosley CR6043A-NA Brio Bluetooth Turntable Shelf System.

ഫീച്ചറുകൾ

• Three-Speed Belt-Drive Turntable with Auto Stop: Plays 33 1/3, 45, and 78 RPM records. Includes a 45 adapter and a clear dust cover.
• Bluetooth Record Player: Bluetooth connectivity allows you to stream music from your mobile device through the matching full-range bookshelf speakers. 32W Peak, 16W RMS, 8W RMS x 2 - 24.5W Max Power Consumption - Frequency response 85Hz -15KHz.
• വൈവിധ്യമാർന്ന കണക്ഷനുകൾ: Connect your personal stereo system using the RCA output or use the aux input to connect external devices to the bookshelf speakers.
• എളുപ്പമുള്ള സജ്ജീകരണം: Setting up this vinyl record player is easy. Ready in minutes to enjoy vinyl listening with modern technology.
• ക്ലാസിക് ഡിസൈൻ: Inspired by 100 years of Crosley innovations, our products blend vintage looks with modern technology. Crosley Radio products are proudly designed in the USA.

സ്പെസിഫിക്കേഷനുകൾ

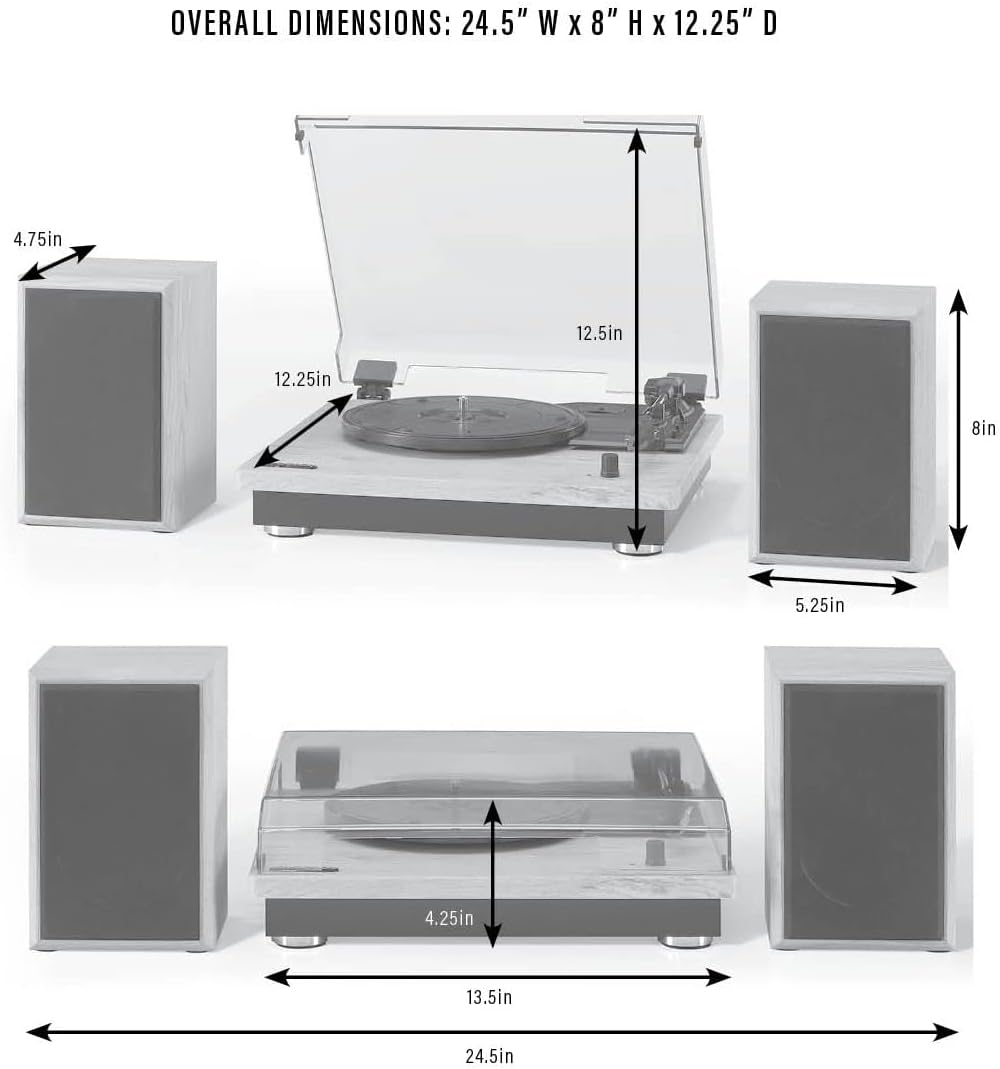

Image: Diagram illustrating the overall dimensions of the turntable and its speakers.

മെയിൻ്റനൻസ്

1. പൊടി മൂടൽ സംരക്ഷണം

Keep the clear dust cover closed when the turntable is not in use to prevent dust accumulation on the platter and stylus. Clean the dust cover with a soft, dry cloth. Avoid abrasive cleaners that may scratch the surface.

2. Stylus Maintenance

The stylus (needle) is a delicate component. Handle it with care. Periodically check the stylus for dust or debris and gently clean it with a soft brush designed for stylus cleaning. A worn or dirty stylus can damage your records and degrade sound quality. Replace the stylus if it appears damaged or if sound quality diminishes significantly.

ട്രബിൾഷൂട്ടിംഗ്

• ശക്തിയില്ല: Ensure the power adapter is securely connected to both the turntable and a working wall outlet.
• ശബ്ദമില്ല: Verify that the speakers are correctly connected to the 'SPEAKER OUT' ports. Check the volume knob and ensure it is turned up. If using Bluetooth or AUX, confirm the correct mode is selected and the external device's volume is also up.
• Skipping or Distorted Sound: Check that the record is clean and free of scratches. Ensure the turntable is on a stable, level surface to prevent vibrations. Inspect the stylus for damage or debris.
• ബ്ലൂടൂത്ത് ജോടിയാക്കൽ പ്രശ്നങ്ങൾ: Make sure no other devices are currently paired with the turntable. Turn off and on your mobile device's Bluetooth, then try pairing again. Ensure the turntable is in Bluetooth pairing mode (flashing indicator light).

വാറൻ്റിയും പിന്തുണയും

വാറന്റി വിവരങ്ങൾക്കോ ​​സാങ്കേതിക പിന്തുണയ്ക്കോ, ദയവായി നിങ്ങളുടെ ഉൽപ്പന്നത്തിനൊപ്പം ഉൾപ്പെടുത്തിയിരിക്കുന്ന ഡോക്യുമെന്റേഷൻ പരിശോധിക്കുക അല്ലെങ്കിൽ ഔദ്യോഗിക ക്രോസ്ലി സന്ദർശിക്കുക. webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
