1. ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your NVX XLOC44X 4-Channel High Voltage Active Line Output Converter. The XLOC44X is designed to integrate aftermarket amplifiers with factory audio systems that lack RCA outputs, converting high-level speaker signals into low-level RCA signals. It features impedance matching, auto turn-on capabilities, and remote level control for enhanced audio system flexibility.
2 സുരക്ഷാ വിവരങ്ങൾ
- ഏതെങ്കിലും ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും വാഹനത്തിന്റെ ബാറ്ററി നെഗറ്റീവ് ടെർമിനൽ വിച്ഛേദിക്കുക.
- Ensure all wiring is properly routed and secured to prevent damage or interference.
- Do not mount the unit in locations exposed to excessive heat, moisture, or direct sunlight.
- Use appropriate gauge wiring for power and ground connections to prevent overheating.
- ഇൻസ്റ്റലേഷൻ പ്രക്രിയയുടെ ഏതെങ്കിലും ഭാഗത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ ഒരു പ്രൊഫഷണൽ ഇൻസ്റ്റാളറെ സമീപിക്കുക.
- ഈ ഉൽപ്പന്നത്തിൽ കാൻസർ, ജനന വൈകല്യങ്ങൾ അല്ലെങ്കിൽ മറ്റ് പ്രത്യുൽപാദന തകരാറുകൾ എന്നിവയ്ക്ക് കാരണമാകുന്ന കാലിഫോർണിയ സംസ്ഥാനത്തിന് അറിയപ്പെടുന്ന രാസവസ്തുക്കൾ അടങ്ങിയിരിക്കുന്നു.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
3.1 പ്രധാന സവിശേഷതകൾ
- 4-Channel Speaker Level Inputs | 4-Channel RCA Outputs
- Handles up to 40V (400 watts RMS) input
- Provides up to 9.5 Volts of output
- Auto turn-on via DC offset or Audio detection
- Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
- Built-in Low Pass Filter (LPF)
- Adjustable Bass Boost (0dB to 12dB)
- Ground Isolation switch (GND, ISO, 200Ω)
- Remote Level Control included
3.2 ഘടകങ്ങളും നിയന്ത്രണങ്ങളും
The NVX XLOC44X unit and its included accessories are designed for seamless integration into your vehicle's audio system.
ചിത്രം 3.2.1: The NVX XLOC44X Line Output Converter shown with its included remote bass level control. The main unit features various input/output terminals and control switches on its top panel.

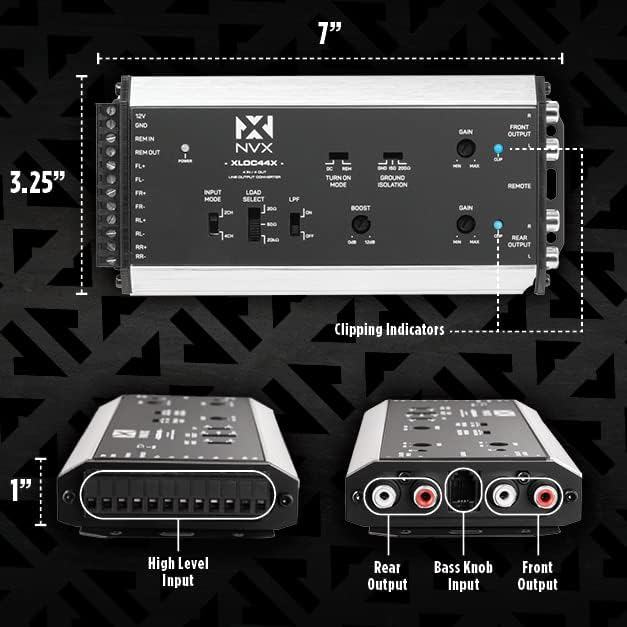

ചിത്രം 3.2.2: വിശദമായി view of the NVX XLOC44X showing its dimensions (7 inches long, 3.25 inches wide, 1 inch high) and key labeled components. These include High Level Input terminals, Rear Output RCA jacks, Bass Knob Input, Front Output RCA jacks, and Clipping Indicators.
ചിത്രം 3.2.3: The included remote level control knob and its connecting cable. This allows for convenient adjustment of the output level from the driver's seat.
ചിത്രം 3.2.4: Mounting screws and a small screwdriver are provided for installation of the XLOC44X unit and the remote level control.
നിയന്ത്രണ പാനൽ ലേഔട്ട്:
- 12V/GND/REM IN/REM OUT: Power and remote turn-on connections.
- FL+/FL-/FR+/FR-/RL+/RL-/RR+/RR-: High-level speaker inputs.
- ഇൻപുട്ട് മോഡ്: Switch for 2CH or 4CH input configuration.
- LOAD SELECT: Switch for 20Ω, 60Ω, or 20KΩ impedance matching.
- LPF: Low Pass Filter switch (ON/OFF).
- ബൂസ്റ്റ്: Bass Boost adjustment knob (0dB to 12dB).
- TURN ON MODE: Switch for DC offset or REM (remote) turn-on.
- ഗ്രൗണ്ട് ഐസൊലേഷൻ: Switch for GND, ISO, or 200Ω ground isolation.
- GAIN (FRONT/REAR): Output level adjustment knobs.
- CLIP (FRONT/REAR): Clipping indicator LEDs.
- FRONT OUTPUT/REAR OUTPUT: RCA low-level outputs.
- നീക്കംചെയ്യുക: Port for the remote level control.
4. ഇൻസ്റ്റലേഷൻ
Proper installation is crucial for optimal performance and safety. Follow these steps carefully.
4.1 Mounting the XLOC44X
- Choose a dry, secure location for the XLOC44X unit, away from direct heat sources or moving parts. Ensure adequate ventilation.
- Use the provided mounting screws to secure the unit to a flat surface.
- Mount the remote level control in an easily accessible location for the driver, using the provided bracket and screws.
4.2 വയറിംഗ് കണക്ഷനുകൾ
All wiring should be done with the vehicle's battery disconnected.
- Power (12V): Connect the 12V terminal of the XLOC44X to a constant +12V power source from the vehicle's battery. Use an appropriate fuse (not included) as close to the battery as possible.
- ഗ്രൗണ്ട് (GND): Connect the GND terminal to a solid chassis ground point in the vehicle. Ensure a clean, paint-free metal-to-metal connection.
- റിമോട്ട് ഇൻപുട്ട് (REM IN): If using the remote turn-on feature from your head unit, connect the REM IN terminal to the head unit's remote output wire. If using DC offset or audio detection, this connection may not be necessary.
- റിമോട്ട് ഔട്ട്പുട്ട് (REM OUT): Connect the REM OUT terminal to the remote turn-on input of your aftermarket amplifier(s). This provides a turn-on signal to the amplifier when the XLOC44X powers on.
- High-Level Speaker Inputs (FL+/FL-, FR+/FR-, RL+/RL-, RR+/RR-): Connect the vehicle's factory speaker wires to the corresponding high-level input terminals on the XLOC44X. Ensure correct polarity.
- RCA Outputs (FRONT OUTPUT, REAR OUTPUT): Connect RCA cables from the XLOC44X's FRONT OUTPUT and REAR OUTPUT jacks to the corresponding RCA inputs on your aftermarket ampലൈഫയർ(കൾ).
- റിമോട്ട് ലെവൽ കൺട്രോൾ: Connect the remote level control cable to the "REMOTE" port on the XLOC44X.
After all connections are made, reconnect the vehicle's battery and proceed to initial setup.
5. Operation and Initial Setup
Once installed, configure the XLOC44X settings for optimal audio performance.
5.1 Turn-On Mode Selection
ചിത്രം 5.1.1: The "TURN ON MODE" switch allows selection between DC offset detection (DC) or remote wire input (REM) for automatic power-on.
- DC: Select this mode if your factory head unit provides a DC offset on the speaker outputs when turned on. The XLOC44X will detect this voltage and turn on automatically.
- REM: Select this mode if you have connected a dedicated remote turn-on wire from your head unit to the REM IN terminal.
- ഓഡിയോ കണ്ടെത്തൽ: The XLOC44X can also turn on by detecting an audio signal on the high-level inputs. This is often used when neither DC offset nor a remote wire is available.
5.2 Input Mode and Load Select
- INPUT MODE (2CH/4CH): Set this switch based on the number of high-level input channels you are using. If connecting only front speaker signals to drive all four outputs, select 2CH. If connecting both front and rear speaker signals, select 4CH.
- LOAD SELECT (20Ω, 60Ω, 20KΩ): This switch adjusts the impedance presented to the factory head unit. Experiment with these settings if your factory stereo shuts down or exhibits unusual behavior. Start with 20KΩ, then try 60Ω, and finally 20Ω if necessary. This helps prevent the factory system from detecting an incorrect load and shutting off.
5.3 Ground Isolation
- GROUND ISOLATION (GND, ISO, 200Ω): This switch helps eliminate ground loop noise.
- GND: Direct ground connection.
- ISO: Isolated ground.
- 200Ω: Ground through a 200-ohm resistor.
5.4 നേട്ട ക്രമീകരണം
- GAIN (FRONT/REAR): These knobs adjust the output level of the RCA signals. Set them to match the input sensitivity of your aftermarket amplifier(s). Start with the gain at minimum, then slowly increase it until the amplifier's input is properly driven without clipping. The CLIP indicators on the XLOC44X will illuminate if the signal is clipping, indicating that the gain is set too high.
5.5 Low Pass Filter (LPF) and Bass Boost
ചിത്രം 5.5.1: The LPF switch and BOOST knob. The LPF can be turned ON or OFF, and the Bass Boost can be adjusted from 0dB to 12dB.
- LPF (ON/OFF): If you are sending the output to a subwoofer amplifier, you may want to engage the Low Pass Filter to only pass low frequencies. For full-range speakers, turn the LPF OFF.
- BOOST (0dB-12dB): This knob adjusts the amount of bass boost applied to the signal. Use sparingly and adjust to taste, ensuring the signal does not clip.
5.6 റിമോട്ട് ലെവൽ കൺട്രോൾ
ചിത്രം 5.6.1: The RCA output jacks and the dedicated port for the remote bass level control. The remote control allows for convenient adjustment of the output level.
The included remote level control allows you to adjust the output level of the XLOC44X from your listening position. This is particularly useful for controlling subwoofer levels independently.
6. പരിപാലനം
The NVX XLOC44X requires minimal maintenance. Keep the unit clean and free from dust and debris. Periodically check all wiring connections to ensure they are secure. Do not use harsh chemicals or abrasive cleaners on the unit.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No power to XLOC44X or ampജീവൻ. | Blown fuse, loose power/ground connection, incorrect turn-on mode. | Check fuse on 12V line. Verify 12V and GND connections are secure. Ensure TURN ON MODE switch is set correctly (DC/REM) or that audio detection is working. |
| ഓഡിയോ ഔട്ട്പുട്ട് ഇല്ല. | Incorrect input/output connections, amplifier gain too low, XLOC44X gain too low, LPF engaged incorrectly. | Verify all high-level and RCA connections. Adjust XLOC44X and amplifier gain settings. Ensure LPF is OFF for full-range signals. |
| Engine whine or other noise. | ഗ്രൗണ്ട് ലൂപ്പ് പ്രശ്നം. | Adjust the GROUND ISOLATION switch (GND, ISO, 200Ω) to find the setting that eliminates the noise. Ensure a good chassis ground connection. |
| Factory stereo shuts down or distorts. | Incorrect load presented to factory head unit. | Adjust the LOAD SELECT switch (20Ω, 60Ω, 20KΩ) to a setting that is compatible with your factory system. |
| Audio sounds distorted or clips. | Gain set too high, excessive bass boost. | Reduce the GAIN settings on the XLOC44X and/or the amplifier. Reduce the BOOST level. Observe the CLIP indicators on the XLOC44X. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ഇൻപുട്ട് ചാനലുകൾ | 4 (High-Level Speaker Inputs) |
| ഔട്ട്പുട്ട് ചാനലുകൾ | 4 (RCA Low-Level Outputs) |
| പരമാവധി ഇൻപുട്ട് വോളിയംtage | 40 Volts (equivalent to 400 watts RMS) |
| പരമാവധി putട്ട്പുട്ട് വോളിയംtage | 9.5 വോൾട്ട് |
| Turn-On Modes | DC Offset, Audio Detection, Remote (REM) |
| Load Select Impedance | 20Ω, 60Ω, 20KΩ |
| ബാസ് ബൂസ്റ്റ് | 0dB മുതൽ 12dB വരെ |
| ലോ പാസ് ഫിൽട്ടർ (LPF) | സ്വിച്ച് ഓൺ/ഓഫ് |
| ഗ്രൗണ്ട് ഐസൊലേഷൻ | GND, ISO, 200Ω |
| അളവുകൾ (L x W x H) | 7 x 3.25 x 1 ഇഞ്ച് (ഏകദേശം) |
| ഇനത്തിൻ്റെ ഭാരം | 1.08 പൗണ്ട് |
| നിർമ്മാതാവ് | എൻവിഎക്സ് |
| മോഡൽ നമ്പർ | xloc44x |
9. വാറൻ്റിയും പിന്തുണയും
For specific warranty information, please refer to the warranty card included with your product or visit the official NVX website. For technical support or further assistance, please contact NVX customer service or visit the ആമസോണിലെ NVX സ്റ്റോർ.
