GOOLOO GP2000 ജമ്പ് സ്റ്റാർട്ടർ & S4 ബാറ്ററി ചാർജർ യൂസർ മാനുവൽ

1. ആമുഖം

This manual provides detailed instructions for the safe and effective use of your GOOLOO GP2000 Jump Starter and GOOLOO S4 4Amp Car Battery Charger. Please read this manual thoroughly before operation to ensure proper usage and to prevent damage to the devices or injury.

The GOOLOO GP2000 is a powerful portable jump starter designed to start vehicles with up to 9.0L gas or 7.0L diesel engines. The GOOLOO S4 is an all-weather battery charger, maintainer, and desulfator compatible with various 6V and 12V lead-acid batteries, as well as 12V LiFePO4 batteries.

2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety precautions to avoid electric shock, explosion, fire, or injury.

ഉൽപ്പന്നം ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും വായിക്കുക.
Do not expose the devices to rain or wet conditions.
Do not operate the devices if they have been dropped or damaged.
കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
പ്രവർത്തന സമയത്ത് ശരിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
Wear eye protection when working with batteries.
The GP2000 is for jump-starting vehicles only; do not use it as a battery charger.
The S4 is a battery charger/maintainer; it is not a jump starter.

3. പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

GOOLOO GP2000 ജമ്പ് സ്റ്റാർട്ടർ
GOOLOO S4 4Amp കാർ ബാറ്ററി ചാർജർ
Heavy-duty Jumper Clamps (for GP2000)
AC Power Cord (for S4)
ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
USB Charging Cable (for GP2000)

GOOLOO GP2000 Jump Starter and S4 Battery Charger together

Image: The GOOLOO GP2000 Jump Starter and GOOLOO S4 Battery Charger, showing both units side-by-side. The GP2000 is on the right, a black and red rectangular device with power indicator lights. The S4 is on the left, a black and red unit with a digital display and attached power cord.

4. സജ്ജീകരണവും പ്രാരംഭ ചാർജിംഗും

4.1. GOOLOO GP2000 Jump Starter

Before first use, fully charge the GP2000. Connect the provided USB charging cable to the Type-C input port on the jump starter and plug the other end into a USB power adapter (not included). The LED indicator lights will show the charging progress.

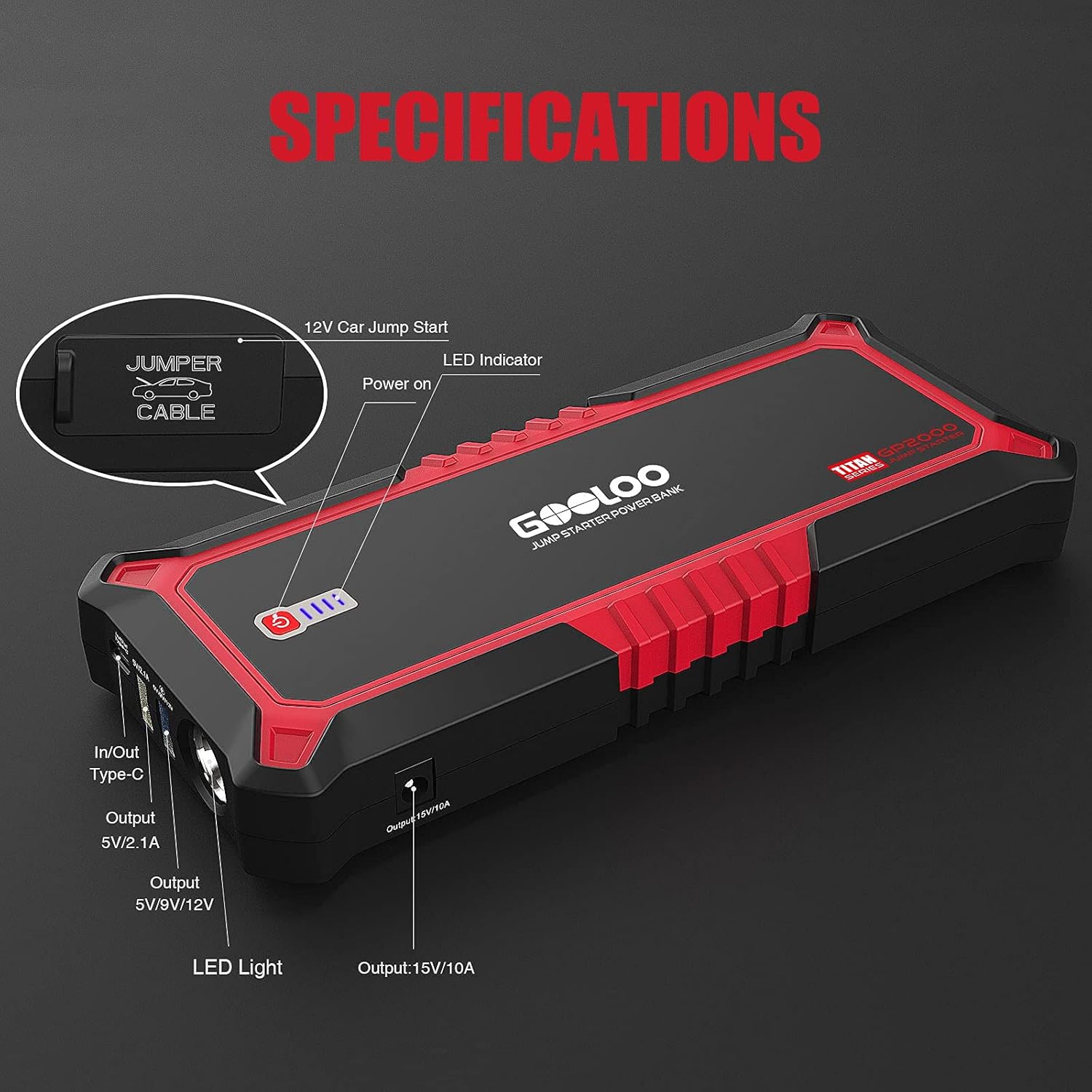

GOOLOO GP2000 Jump Starter with labeled ports and features

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the GOOLOO GP2000 Jump Starter, highlighting its various ports and features. Labels indicate the 12V Car Jump Start port, LED indicator, power button, In/Out Type-C port, USB outputs (5V/2.1A, 5V/9V/12V), LED light, and 15V/10A output.

4.2. GOOLOO S4 Battery Charger

The S4 charger does not require initial charging. Simply connect it to a power outlet using the AC power cord. Ensure the battery to be charged is clean and free of corrosion.

GOOLOO S4 Battery Charger with accessories

Image: The GOOLOO S4 Battery Charger displayed with its included accessories: the AC power plug, battery clamps (red and black), and a ring terminal connector. The S4 unit itself features a digital display and a robust red and black casing.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. Using the GOOLOO GP2000 Jump Starter

Ensure the GP2000 is sufficiently charged (at least 3 LED indicators).
Connect the blue end of the jumper cable to the 12V jump start port on the GP2000.
ചുവന്ന cl കണക്റ്റുചെയ്യുകamp വാഹന ബാറ്ററിയുടെ പോസിറ്റീവ് (+) ടെർമിനലിലേക്കും കറുത്ത cl യിലേക്കുംamp നെഗറ്റീവ് (-) ടെർമിനലിലേക്ക്.
വാഹനം സ്റ്റാർട്ട് ചെയ്യുക.
വാഹനം സ്റ്റാർട്ട് ചെയ്തുകഴിഞ്ഞാൽ, ഉടൻ തന്നെ cl നീക്കം ചെയ്യുക.amps from the battery, then disconnect the jumper cable from the GP2000.

GOOLOO GP2000 Jump Starter connected to clamps

Image: The GOOLOO GP2000 Jump Starter with its heavy-duty jumper clamps attached. The black and red unit is shown with the red and black clamps connected to its side port, ready for use.

GOOLOO GP2000 Jump Starter in use for emergency starting

Image: A visual representation of the GOOLOO GP2000 Jump Starter being used to start a vehicle. The device is shown connected to a car battery under the hood, emphasizing its role as an emergency jump starter for various vehicle types.

GOOLOO GP2000 Jump Starter with built-in LED flashlight

Image: A person holding the GOOLOO GP2000 Jump Starter, demonstrating its built-in LED flashlight feature. The flashlight illuminates an engine bay, showing its utility in low-light conditions with stable, strobe, and SOS modes.

GOOLOO GP2000 Jump Starter as a portable power supply

Image: The GOOLOO GP2000 Jump Starter functioning as a portable power supply, charging a smartphone and a tablet simultaneously. This image highlights its versatility beyond jump-starting, providing power for various portable devices.

5.2. Using the GOOLOO S4 Battery Charger

Connect the S4's battery clamps to the battery terminals: red to positive (+), black to negative (-).
Plug the S4 into a standard 100-120VAC 50-60Hz power outlet.
The S4 will automatically detect the battery type and voltage (6V അല്ലെങ്കിൽ 12V) ചാർജ് ചെയ്ത് ചാർജിംഗ് പ്രക്രിയ ആരംഭിക്കുക.
Use the "MODE" button to select specific charging modes if needed (e.g., 12V STD, 12V AGM/C, 12V GEL, 12V LFP, 6V STD).
The display will show charging status and battery voltage.
Once charging is complete, the S4 will switch to maintenance mode. Disconnect the power, then the clampബാറ്ററിയിൽ നിന്ന് s.

GOOLOO S4 Battery Charger connected to a battery

Image: The GOOLOO S4 Battery Charger actively charging a car battery. The charger's display shows charging information, and its clamps are securely connected to the battery terminals, illustrating the charging process.

GOOLOO S4 Battery Charger's automatic detection and repair features

Image: An illustration highlighting the GOOLOO S4 Battery Charger's intelligent features: automatic detection of sulfation and acid stratification, automatic repair of battery damage, and simple plug-and-play auto-charge functionality. The S4 is shown connected to a battery.

6. പരിപാലനം

വൃത്തിയാക്കൽ: Wipe the devices with a dry, soft cloth. Do not use abrasive cleaners or solvents.
സംഭരണം: Store the GP2000 and S4 in a cool, dry place when not in use.
GP2000 Battery Maintenance: Recharge the GP2000 every 3-6 months, even if not used, to maintain battery health.
S4 Cable Inspection: Regularly inspect the S4's cables and clamps for any signs of damage or wear.

7. പ്രശ്‌നപരിഹാരം

പ്രശ്നം	സാധ്യമായ കാരണം	പരിഹാരം
GP2000 ഓൺ/ചാർജ് ചെയ്യുന്നില്ല.	ബാറ്ററി കുറവാണ്; ചാർജിംഗ് കേബിൾ/അഡാപ്റ്റർ തകരാറിലാണ്.	Charge the unit; try a different USB cable or adapter.
GP2000 not jump-starting vehicle.	Insufficient charge; incorrect clamp connection; battery too dead.	Ensure full charge; check polarity (+ to +, - to -); vehicle battery may be beyond jump-start capability.
S4 not charging battery.	Incorrect connection; battery severely discharged/damaged; power outlet issue.	Verify correct clamp polarity; battery may be unrecoverable; check power outlet.
S4 display shows error code.	Refer to specific error codes in the full manual (if available).	Consult GOOLOO support or the detailed product manual for specific error code meanings and solutions.

8 സ്പെസിഫിക്കേഷനുകൾ
