hoogo Flipflop Universal Flexible Vacuum Cleaner Brush Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The hoogo Flipflop is a universal flexible vacuum cleaner brush designed for efficient cleaning across various floor types and in hard-to-reach areas. Its innovative folding mechanism allows for versatile use, adapting to both wide-open spaces and narrow gaps.

പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• Flexible Folding Mechanism: Adapts from a wide 35 cm cleaning width to a narrow 11.7 cm for tight spaces.
• സാർവത്രിക അനുയോജ്യത: Fits most standard vacuum cleaner hoses with 32 mm or 35 mm round diameters.
• Dyson Compatibility: Can be used with hoogo AD 14 adapter (sold separately) for Dyson V10, V11, and V15 models.
• Natural Bristles: Soft natural bristles protect sensitive floors like parquet while ensuring thorough cleaning.
• കാര്യക്ഷമമായ ഡിസൈൻ: Allows for 90-degree corner cleaning and reaching under furniture with a low profile 10 സെ.മീ.

ചിത്രം 1.1: കഴിഞ്ഞുview of the hoogo Flipflop vacuum cleaner brush, showcasing അതിന്റെ വഴക്കമുള്ള ഡിസൈൻ.

Image 1.2: The flexible rotation mechanism of the hoogo Flipflop brush, indicating its adaptability for various cleaning angles.

2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to properly attach the hoogo Flipflop brush to your vacuum cleaner.

1. Identify Hose Diameter: Ensure your vacuum cleaner hose has a round diameter of either 32 mm or 35 mm. The hoogo Flipflop is designed to fit these standard sizes.
2. ബ്രഷ് ഘടിപ്പിക്കുക: Firmly insert the vacuum cleaner hose into the connection port of the hoogo Flipflop brush. Ensure a secure fit to prevent loss of suction during operation.
3. Dyson Compatibility (Optional): If you own a Dyson V10, V11, or V15 model, you will need the hoogo AD 14 adapter (B0B5B9PVSG), which is sold separately. Attach the adapter to your Dyson vacuum, then connect the Flipflop brush to the adapter.

Image 2.1: Visual guide for attaching the hoogo Flipflop brush to a standard vacuum cleaner hose, illustrating the secure connection point.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The hoogo Flipflop brush is designed for versatile cleaning. Understand its features to maximize cleaning efficiency.

3.1. Cleaning Wide Open Surfaces

For large, unobstructed areas, the brush automatically extends to its full width of 35 cm, providing broad coverage for quick cleaning.

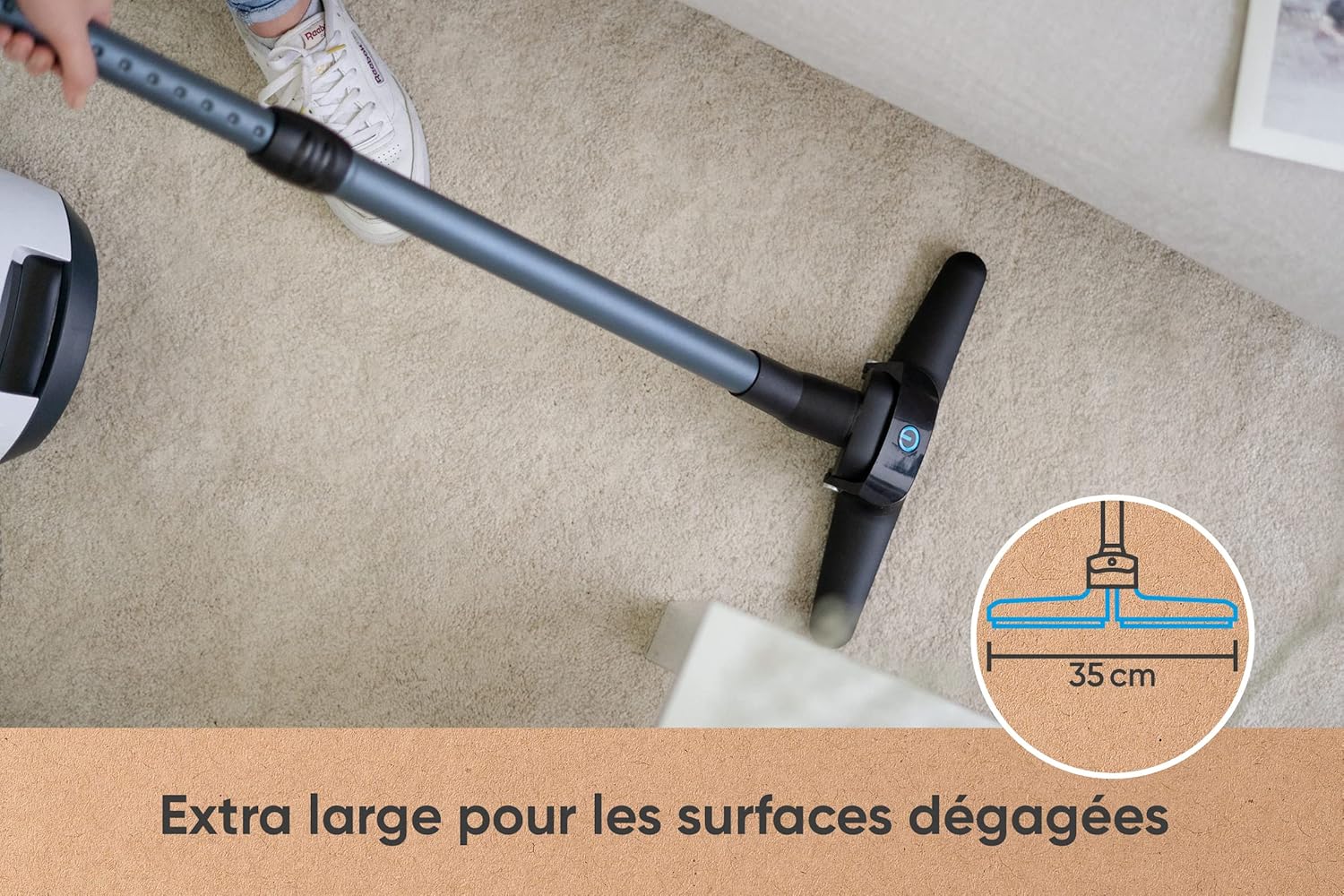

Image 3.1: The hoogo Flipflop brush in its extended 35 cm configuration, efficiently cleaning a wide carpeted area.

3.2. Navigating Narrow Spaces

When encountering narrow passages or spaces, the brush's patented folding mechanism allows it to automatically fold, reducing its width to just 11.7 cm. This enables easy access to areas between furniture or tight corners without needing to move obstacles.

Image 3.2: The hoogo Flipflop brush in its folded state, demonstrating its ability to clean narrow gaps effectively.

3.3. Cleaning Corners and Edges

The flexible design facilitates cleaning at a 90-degree angle, ensuring thorough removal of dust and debris from room corners and along baseboards.

Image 3.3: The hoogo Flipflop brush angled for precise cleaning in a 90-degree corner.

3.4. Cleaning Under Furniture

കുറഞ്ഞ പ്രോ ഉപയോഗിച്ച്file of only 10 cm, the brush can easily reach under most furniture, beds, and appliances, ensuring comprehensive cleaning without the need to move heavy items.

Image 3.4: The hoogo Flipflop brush demonstrating its low profile, allowing it to clean effectively under furniture.

3.5. Floor Types

The soft natural bristles are suitable for all hard floors, including sensitive parquet, and short-pile carpets. The design ensures gentle yet effective cleaning without scratching or damaging surfaces.

4. പരിപാലനം

To ensure the longevity and optimal performance of your hoogo Flipflop brush, follow these simple maintenance guidelines:

• Bristle Cleaning: Periodically check the natural bristles for accumulated lint, hair, or debris. These can be easily wiped off by hand or vacuumed away with a smaller attachment.
• പ്രത്യേക ചികിത്സയില്ല: The natural bristles do not require any special cleaning agents or treatments. Avoid harsh chemicals that could damage the bristles.
• സംഭരണം: Store the brush in a clean, dry place when not in use.

5. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your hoogo Flipflop brush.

5.1. Reduced Suction

• കണക്ഷൻ പരിശോധിക്കുക: Ensure the brush is securely attached to the vacuum cleaner hose. A loose connection can lead to air leaks and reduced suction.
• തടസ്സങ്ങൾ മായ്‌ക്കുക: Inspect the bristles and the brush's air channels for any blockages (e.g., large debris, tangled hair) that might impede airflow.
• Vacuum Cleaner Issue: If the problem persists, check your vacuum cleaner's bag/canister, filters, and hose for any issues, as the problem might not be with the brush itself.

5.2. Brush Not Folding/Unfolding Properly

• തടസ്സങ്ങൾക്കായി പരിശോധിക്കുക: Ensure there is no debris or foreign objects caught in the folding mechanism that might prevent smooth operation.
• മാനുവൽ അഡ്ജസ്റ്റ്മെൻ്റ്: Gently try to manually fold or unfold the brush to see if it moves freely. If it feels stiff, check for any visible damage.

If you encounter issues not covered here or require further assistance, please contact hoogo customer support.

6 സ്പെസിഫിക്കേഷനുകൾ

Image 6.1: A visual summary of the hoogo Flipflop's key features and dimensions.

7. വാറൻ്റിയും പിന്തുണയും

hoogo products are developed and designed in Germany, reflecting a commitment to quality and innovation.

• നന്നാക്കൽ: The product is designed with a focus on repairability, with a stated 10-year repairability period.
• യന്ത്രഭാഗങ്ങൾ: സ്പെയർ പാർട്‌സുകളുടെ ലഭ്യത സംബന്ധിച്ച വിവരങ്ങൾ നിലവിൽ ലഭ്യമല്ല.
• ഉപഭോക്തൃ പിന്തുണ: For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official hoogo webസൈറ്റ്.

Image 7.1: Packaging highlighting the 10-year repairability commitment for hoogo products.
