Futaba T10PX Medium Drop Down Instruction Manual

ആമുഖം

This manual provides essential information for the installation and proper use of the Futaba T10PX Medium Drop Down. This component is designed as a direct replacement part for the Futaba 10PX radio system, enhancing ergonomics and control. Please read this manual thoroughly before installation to ensure correct assembly and optimal performance.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Futaba T10PX Medium Drop Down is an accessory designed to reposition the steering wheel on your Futaba 10PX transmitter, providing a more comfortable and ergonomic grip for extended use. It consists of a main mounting plate, a perforated ring, and a curved ergonomic piece.

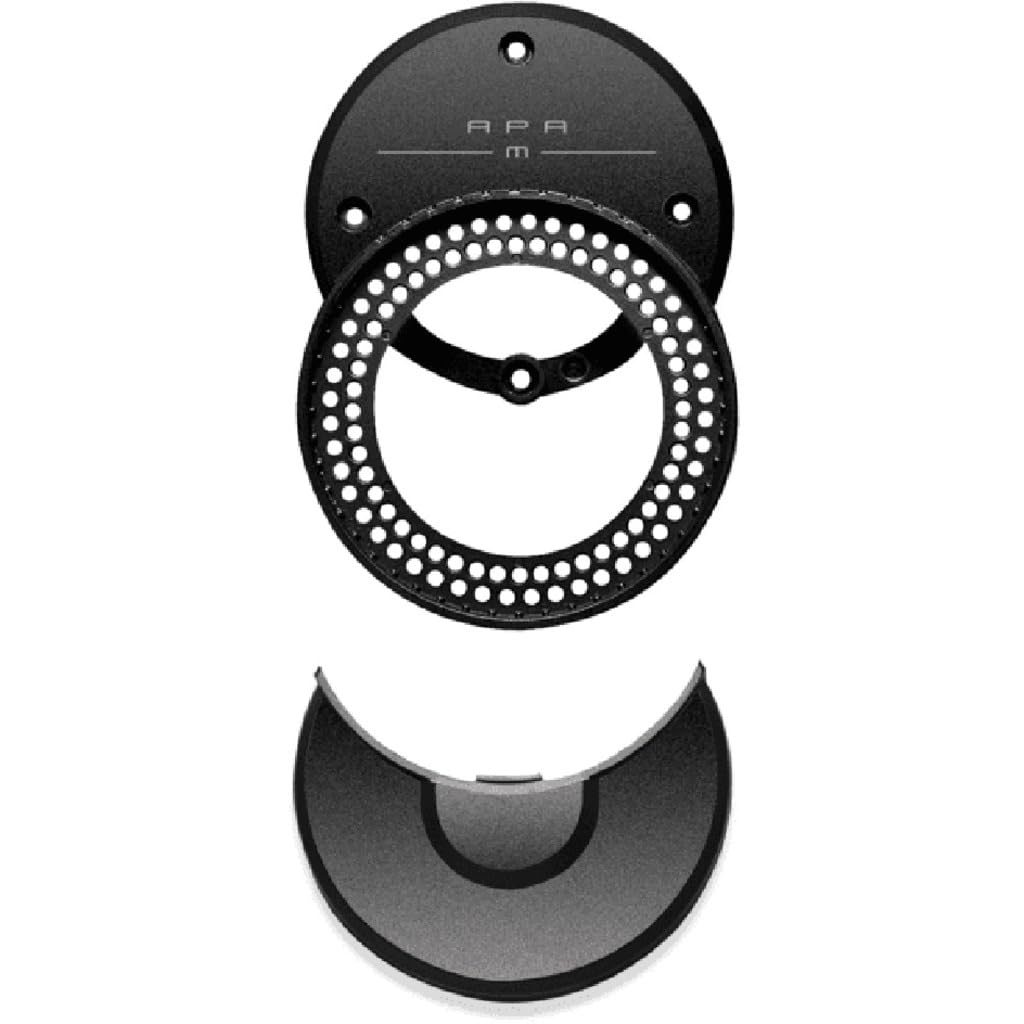

Figure 1: Components of the Futaba T10PX Medium Drop Down. The image displays three distinct parts: a circular top plate with "APA M" inscribed, a circular perforated ring, and a curved, ergonomic bottom piece.

പാക്കേജ് ഉള്ളടക്കം:

• One (1) Futaba T10PX Medium Drop Down assembly (as shown in Figure 1)

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation of the Futaba T10PX Medium Drop Down requires careful handling of your Futaba 10PX transmitter. It is recommended to consult the original Futaba 10PX transmitter manual for specific disassembly instructions if you are unfamiliar with the process.

ആവശ്യമായ ഉപകരണങ്ങൾ (ഉൾപ്പെടുത്തിയിട്ടില്ല):

• ചെറിയ ഫിലിപ്സ് ഹെഡ് സ്ക്രൂഡ്രൈവർ
• Possibly a small flathead screwdriver or plastic pry tool (for careful separation of components)

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. പവർ ഓഫ്: Ensure your Futaba 10PX transmitter is powered off and disconnected from any power source.
2. നിലവിലുള്ള ഘടകങ്ങൾ നീക്കം ചെയ്യുക: Carefully remove the existing steering wheel and any associated drop-down or adapter components from your Futaba 10PX transmitter. Refer to your transmitter's manual for precise instructions on removing these parts.
3. Assemble Drop Down: If the Futaba T10PX Medium Drop Down components are separate (as shown in Figure 1), assemble them according to the design. The perforated ring typically sits between the main mounting plate and the transmitter body, with the curved ergonomic piece attaching to the steering wheel mechanism.
4. Mount New Drop Down: Align the Futaba T10PX Medium Drop Down with the mounting points on your Futaba 10PX transmitter.
5. സ്ക്രൂകൾ ഉപയോഗിച്ച് സുരക്ഷിതമാക്കുക: Use the appropriate screws (usually from the original transmitter assembly, or provided with the drop down if applicable) to secure the new drop down firmly in place. Do not overtighten screws.
6. Reattach Steering Wheel: Reattach your steering wheel to the newly installed drop down mechanism. Ensure it is securely fastened and rotates freely without obstruction.
7. പ്രവർത്തനക്ഷമത പരിശോധന: Power on your transmitter and perform a basic check to ensure the steering wheel operates correctly and the drop down is stable.

പ്രവർത്തന പരിഗണനകൾ

Once installed, the Futaba T10PX Medium Drop Down integrates seamlessly with your Futaba 10PX transmitter. No special operational procedures are required beyond the standard use of your radio system. The primary benefit is improved ergonomics during operation.

• Ensure the steering wheel's range of motion is not impeded by the new drop down.
• Verify that all connections are secure before operating your RC vehicle.

മെയിൻ്റനൻസ്

The Futaba T10PX Medium Drop Down requires minimal maintenance. Regular inspection is recommended to ensure its longevity and proper function.

• വൃത്തിയാക്കൽ: Wipe the surface with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• പരിശോധന: Periodically check all mounting screws for tightness. If any screws feel loose, gently tighten them.
• നാശം: If the drop down shows signs of cracking, bending, or other damage, replace it immediately to prevent potential issues during operation.

ട്രബിൾഷൂട്ടിംഗ്

Most issues related to the Futaba T10PX Medium Drop Down are installation-related.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For specific warranty information and technical support regarding your Futaba T10PX Medium Drop Down, please refer to the official Futaba website or contact Futaba customer service directly. Warranty terms may vary based on region and retailer.

ഓൺലൈൻ ഉറവിടങ്ങൾ: www.futabarc.com
