Waveshare CH343G USB to TTL (UART) Communication Module User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Waveshare CH343G USB to TTL (UART) Communication Module is designed for reliable serial communication between a computer and various embedded systems, microcontrollers, or single-board computers. It features the CH343G chip, offering enhanced data rates and flexible IO voltage levels compared to its predecessor. This module supports multiple operating systems, including Windows, Mac, Linux, and Android.

Figure 1: Waveshare CH343G USB to TTL (UART) Communication Module with jumper wires.

പാക്കേജ് ഉള്ളടക്കം

• CH343 USB UART Board (Type C) x1
• 6-pin squid wire x1

ചിത്രം 2: പാക്കേജിൽ ഉൾപ്പെടുത്തിയിരിക്കുന്ന ഉള്ളടക്കങ്ങൾ.

2. സവിശേഷതകൾ

• Adopts the new version CH343G chip, supporting higher data rates (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V) compared to CH340G.
• Compatible with Mac, Linux, Android, Windows 7/8/8.1/10/11 operating systems.
• Features a double-sided black immersion gold process for enhanced durability and aesthetic appeal.
• Integrated resettable Fuse and Transient Voltage Suppressor (TVS) for protection against overcurrent, overvoltage, and improved shock resistance, ensuring stable and safe communication.
• Onboard IO protection circuits provide anti-surge and anti-static capabilities for stable and safe communication performance.
• Includes 3.3V and 5V TTL level switch pins for selecting the appropriate TTL communication level.
• Supports 3.3V/5V output (when the module is powered by USB, the onboard jumper must be shorted to the desired 3.3V or 5V output).

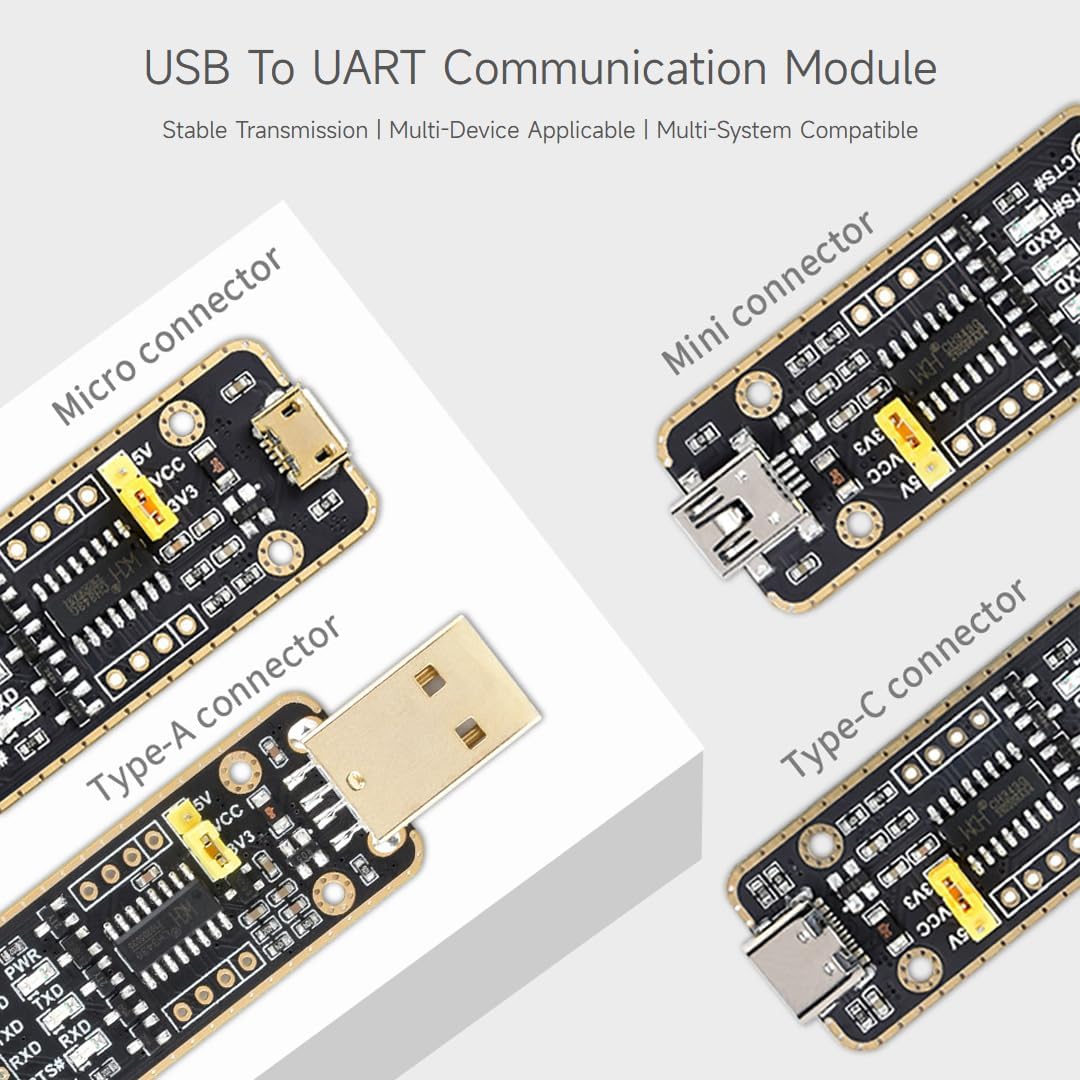

Figure 3: The module is available with different USB connector types.

3 സ്പെസിഫിക്കേഷനുകൾ

The following table details the technical specifications of the Waveshare CH343G USB to TTL (UART) Communication Module.

Figure 4: Features and Specifications overview.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

4.1 ഡ്രൈവർ ഇൻസ്റ്റലേഷൻ

Before connecting the module to your computer, it is recommended to install the necessary drivers. The CH343G chip requires specific drivers for proper recognition and functionality across different operating systems.

• വിൻഡോസ്: Download the latest CH343G driver from the Waveshare official website or the chip manufacturer's website. Run the installer and follow the on-screen instructions. Verify installation in Device Manager under 'Ports (COM & LPT)'.
• മാക് ഒഎസ്: Download the appropriate CH343G driver for your Mac OS version. Install the driver and restart your computer if prompted. You can verify installation using the 'System Information' utility.
• Linux: Most modern Linux distributions include CH34x drivers in their kernel. If the module is not recognized automatically, you may need to install the `ch34x` kernel module or download and compile the driver from the manufacturer's website. Use `ls /dev/ttyUSB*` or `dmesg | grep tty` to check for device recognition.
• ആൻഡ്രോയിഡ്: For Android devices, driver support is typically integrated into the system or handled by specific applications that utilize serial communication.

4.2 Hardware Connection and Pinouts

The module provides a 6-pin header for UART communication. Ensure correct pin connections to your target device.

• വിസിസി: Power output (5V or 3.3V, selected by jumper). Connect to the target device's power input.
• GND: Ground. Connect to the target device's ground.
• TXD: Transmit Data. Connects to the target device's RXD (Receive Data) pin.
• RXD: Receive Data. Connects to the target device's TXD (Transmit Data) pin.
• RTS#: Request To Send (active low). Connects to the target device's CTS (Clear To Send) pin if hardware flow control is used.
• CTS#: Clear To Send (active low). Connects to the target device's RTS (Request To Send) pin if hardware flow control is used.

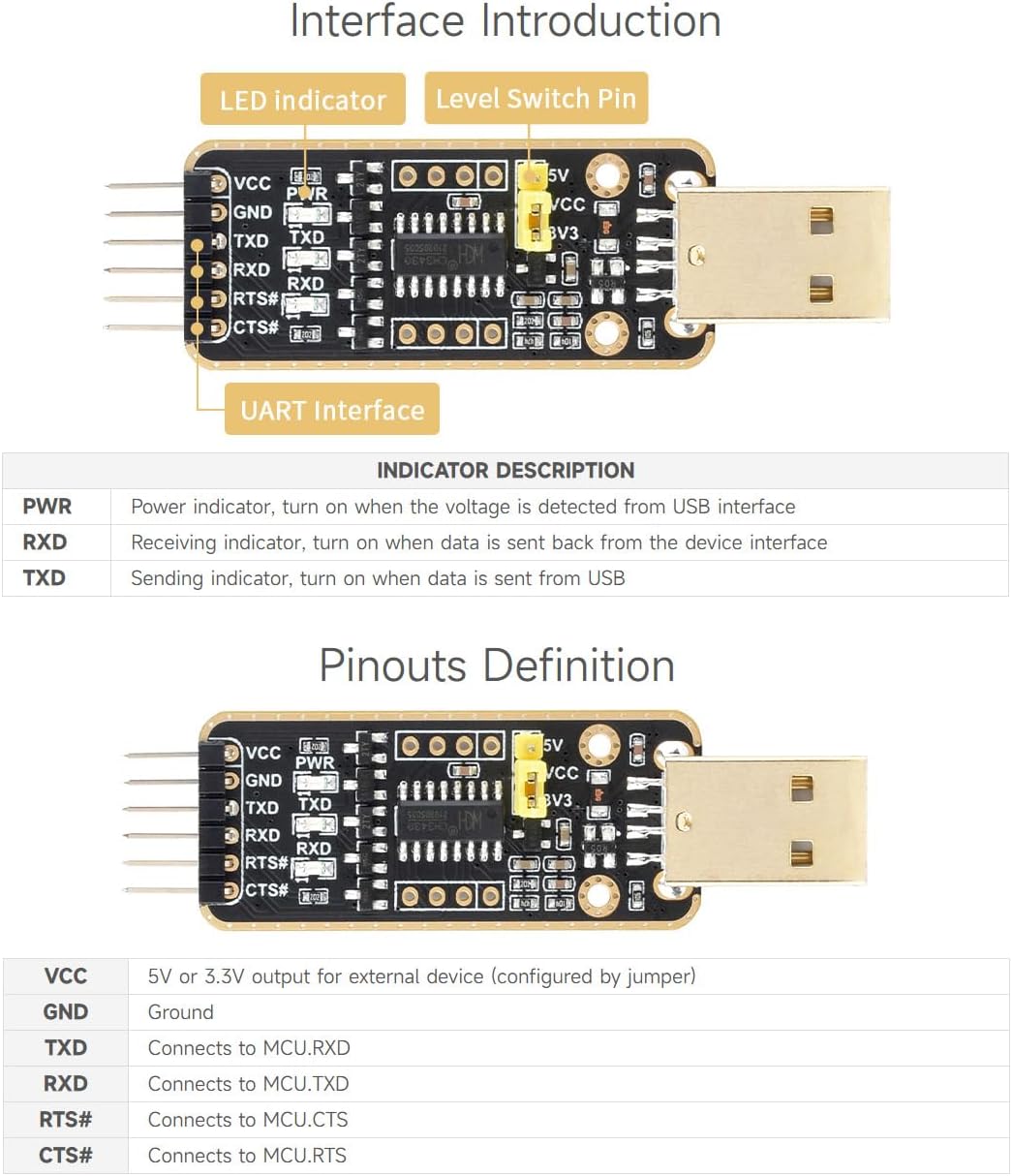

Figure 5: Interface Introduction and Pinouts Definition.

4.3 ഔട്ട്ലൈൻ അളവുകൾ

Refer to the following diagram for the physical dimensions of the module.

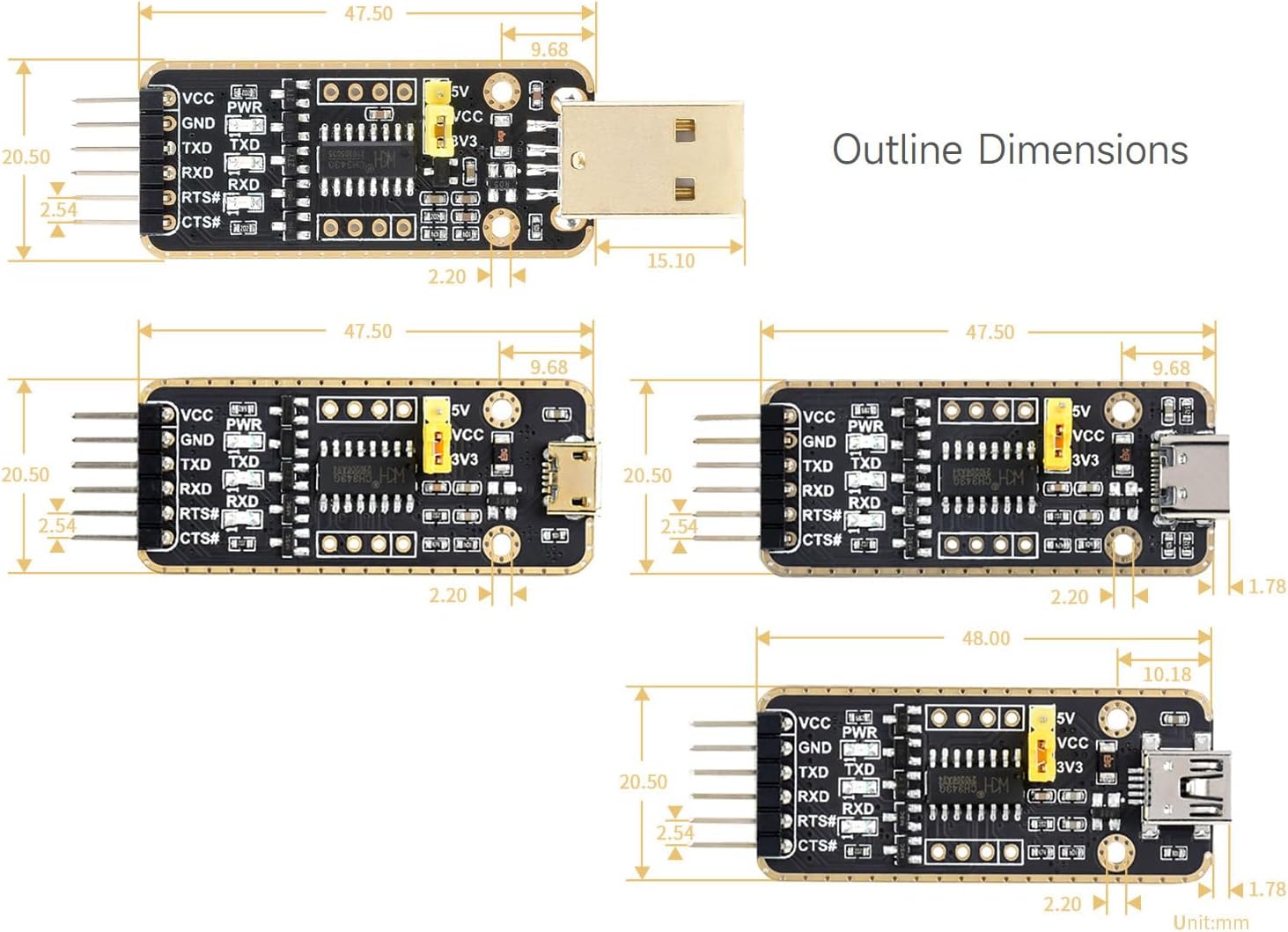

Figure 6: Outline Dimensions of the module variants.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 TTL Level Selection

The module supports multiple TTL voltage levels (5V, 3.3V, 2.5V, 1.8V). The 3.3V and 5V levels can be selected via an onboard jumper. For 2.5V or 1.8V, external configuration might be required depending on the specific application and target device.

• To select 5V TTL level, place the jumper cap on the 5V pins.
• To select 3.3V TTL level, place the jumper cap on the 3V3 pins.

Caution: Ensure the selected TTL level matches the voltage requirements of your target device to prevent damage.

5.2 അടിസ്ഥാന ആശയവിനിമയം

Once the drivers are installed and the module is connected to your computer and target device:

• Open a serial terminal program (e.g., PuTTY, Tera Term, Arduino Serial Monitor).
• Identify the COM port (Windows) or `/dev/ttyUSBx` (Linux/Mac) assigned to the module.
• Configure the serial terminal settings to match your target device's UART parameters (baud rate, data bits, parity, stop bits, flow control). Common baud rates include 9600, 115200, etc.
• You should now be able to send and receive data between your computer and the target device.

6. പരിപാലനം

To ensure the longevity and reliable operation of your Waveshare CH343G module, follow these maintenance guidelines:

• സംഭരണം: Store the module in a dry, anti-static environment when not in use.
• കൈകാര്യം ചെയ്യൽ: Avoid touching the electronic components directly. Use anti-static precautions (e.g., anti-static wrist strap) when handling the module to prevent electrostatic discharge (ESD) damage.
• വൃത്തിയാക്കൽ: If necessary, gently clean the module with a soft, dry cloth. Do not use liquids or abrasive cleaners.
• ശാരീരിക സമ്മർദ്ദം: Avoid bending or applying excessive force to the module or its connectors.

7. പ്രശ്‌നപരിഹാരം

• Module not recognized by computer:
  • Ensure drivers are correctly installed for your operating system.
  • Try a different USB port or USB cable.
  • ഡ്രൈവർ ഇൻസ്റ്റാൾ ചെയ്തതിനുശേഷം നിങ്ങളുടെ കമ്പ്യൂട്ടർ പുനരാരംഭിക്കുക.
• No communication with target device:
  • Verify TXD and RXD connections are crossed (TXD of module to RXD of device, and RXD of module to TXD of device).
  • Check that the GND pins of both the module and the target device are connected.
  • Confirm that the selected TTL voltage level (5V/3.3V) matches the target device's requirements.
  • Ensure baud rate, data bits, parity, and stop bits settings in your serial terminal match the target device.
  • If using hardware flow control (RTS/CTS), ensure these pins are correctly connected and enabled in your software.
• Power LED (PWR) not lit:
  • Ensure the module is properly connected to a powered USB port.
  • യുഎസ്ബി കേബിളിന് കേടുപാടുകൾ സംഭവിച്ചിട്ടുണ്ടോ എന്ന് പരിശോധിക്കുക.

8 സുരക്ഷാ വിവരങ്ങൾ

The Waveshare CH343G module incorporates several protection features to enhance safety and stability:

• പുനഃസ്ഥാപിക്കാവുന്ന ഫ്യൂസ്: Protects against overcurrent conditions, preventing damage to the module and connected devices.
• താൽക്കാലിക വോളിയംtage Suppressor (TVS): Guards against overvoltagഇ സ്പൈക്കുകളും സർജുകളും.
• IO Protection Circuits: Provides anti-surge and anti-static protection for the communication lines.

Always observe proper electrical safety practices when working with electronic components. Do not exceed the specified voltagഇ അല്ലെങ്കിൽ നിലവിലെ പരിധികൾ.

Figure 7: Multiple Protection Circuits for safe and stable operation.

9 അനുയോജ്യത

The Waveshare CH343G USB to TTL (UART) Communication Module is designed for broad compatibility with various operating systems and devices:

• ഓപ്പറേറ്റിംഗ് സിസ്റ്റങ്ങൾ: Windows 7/8/8.1/10/11, Mac OS, Linux, Android.
• അനുയോജ്യമായ ഉപകരണങ്ങൾ: Single-Board Computers (SBCs), Microcontrollers (MCUs), Embedded Systems, Personal Computers, Laptops, Servers.

Figure 8: Multiple Systems Support.

10. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, and additional resources, please refer to the official Waveshare webസൈറ്റിൽ പ്രവേശിക്കുകയോ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി ബന്ധപ്പെടുകയോ ചെയ്യുക. പ്രത്യേക വാറന്റി നിബന്ധനകൾ പ്രദേശത്തെയും റീട്ടെയിലറെയും ആശ്രയിച്ച് വ്യത്യാസപ്പെടാം.

വേവ്ഷെയർ ഒഫീഷ്യൽ Webസൈറ്റ്: www.waveshare.com
