NATERIAL LYRA Extendable Garden Table User Manual

1. ആമുഖം

Thank you for choosing the NATERIAL LYRA Extendable Garden Table. This manual provides essential information for the proper setup, operation, maintenance, and care of your new table. Please read this manual thoroughly before assembly and use to ensure safe and optimal performance. This table is designed for outdoor use, providing a versatile dining solution for up to 10 people.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• വിപുലീകരിക്കാവുന്ന ഡിസൈൻ: The tabletop extends from 180 cm to 260 cm, accommodating 8 to 10 guests. The 80 cm extension plate allows for quick adjustment.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Features a robust aluminum frame that is weather-resistant and rust-proof, ensuring longevity in outdoor environments.
• Elegant Glass Top: The smooth glass surface provides a modern aesthetic and is easy to clean.
• ക്രമീകരിക്കാവുന്ന സ്ഥിരത: Equipped with adjustable feet to compensate for uneven surfaces, providing enhanced stability.
• എളുപ്പമുള്ള പരിപാലനം: The glass top and aluminum frame require minimal effort for cleaning.

Figure 1: Key Features of the LYRA Table

3. സജ്ജീകരണവും അസംബ്ലിയും

The NATERIAL LYRA table requires minimal assembly. Ensure all components are present before beginning. While specific step-by-step instructions are not provided here, general assembly typically involves attaching the legs to the tabletop. Refer to the included hardware and diagrams for precise connections.

1. എല്ലാ ഘടകങ്ങളും അൺപാക്ക് ചെയ്ത് പാക്കിംഗ് ലിസ്റ്റുമായി താരതമ്യം ചെയ്യുക.
2. പോറലുകൾ ഉണ്ടാകാതിരിക്കാൻ മൃദുവായതും വൃത്തിയുള്ളതുമായ ഒരു പ്രതലത്തിൽ മേശപ്പുറത്ത് ശ്രദ്ധാപൂർവ്വം തലകീഴായി വയ്ക്കുക.
3. Attach each leg to the designated corner of the tabletop using the provided fasteners. Ensure all connections are secure but do not overtighten.
4. Carefully turn the table upright.
5. Adjust the feet as necessary to ensure the table is level and stable on your chosen surface.

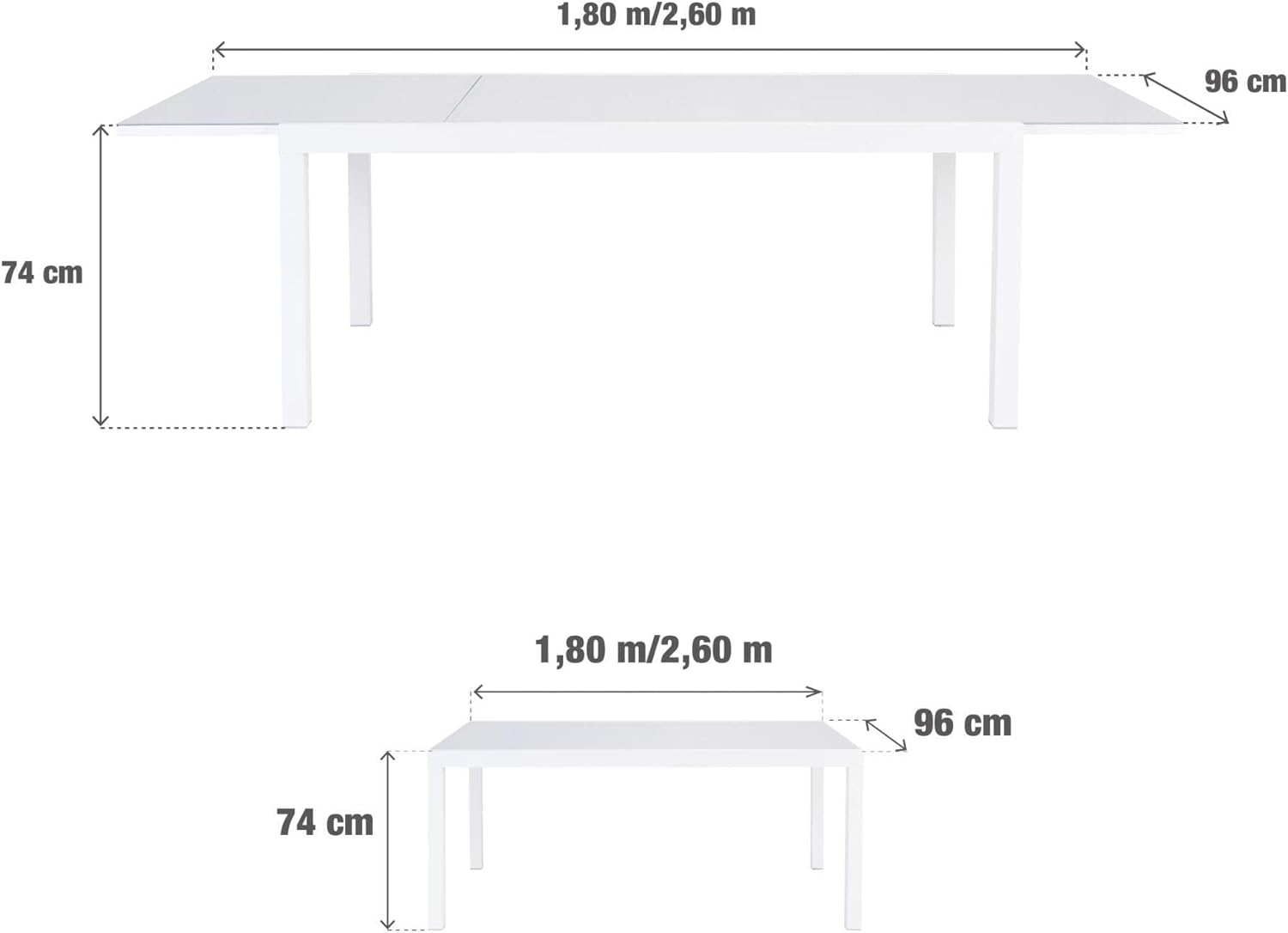

Figure 2: Table Dimensions

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The LYRA table features an intuitive extension mechanism to easily adjust its length.

4.1 Extending the Table

1. Gently pull one end of the tabletop outwards. The main sections of the table will slide apart, revealing the central extension leaf storage area.
2. Lift the extension leaf from its stored position.
3. Place the extension leaf into the gap created between the two main tabletop sections. Ensure it is properly aligned and seated.
4. Push the main tabletop sections back together until they meet the extension leaf, creating a continuous surface.

4.2 Retracting the Table

1. Gently pull one end of the tabletop outwards to create a gap.
2. Lift the extension leaf out of the gap.
3. Store the extension leaf in its designated storage area beneath the table.
4. Push the main tabletop sections back together until they are fully closed.

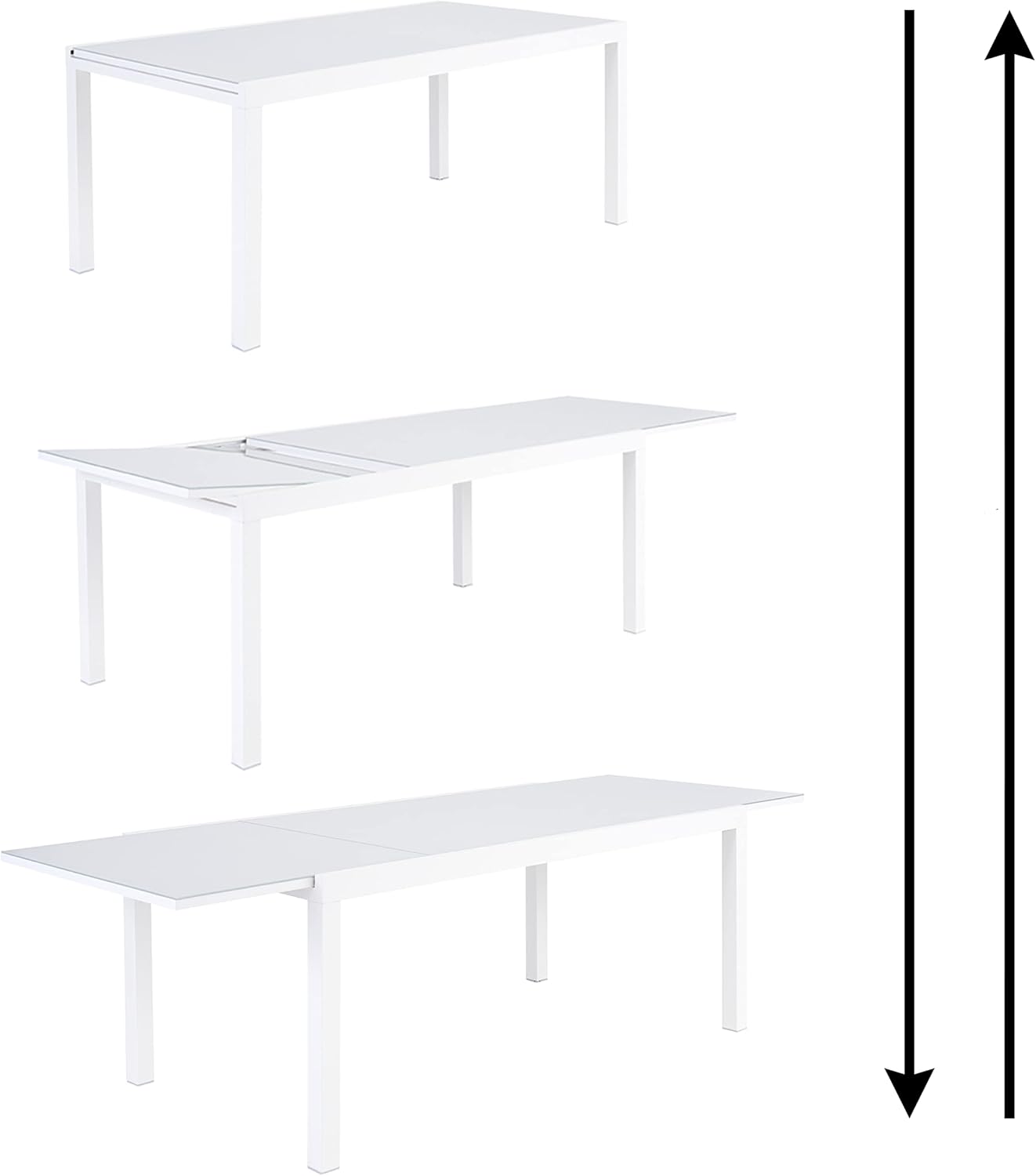

Figure 3: Table Extension Process

Figure 4: Detail of Extension Mechanism

5. പരിപാലനവും പരിചരണവും

Proper care will ensure the longevity and appearance of your NATERIAL LYRA table.

• വൃത്തിയാക്കൽ: For routine cleaning, simply use a soft sponge or cloth with warm water. For more stubborn dirt, a mild soap solution can be used. Rinse thoroughly and dry with a clean cloth to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
• ശൈത്യകാല സംഭരണം: Although the aluminum frame is rust-proof and weather-resistant, it is highly recommended to bring the table indoors during the winter season or cover it with a suitable, breathable outdoor furniture cover. This will protect the glass top and extend the overall lifespan of the table.
• സ്ഥിരത പരിശോധന: Periodically check that all fasteners are tight. If the table feels wobbly, tighten the screws. Adjust the feet as needed to maintain stability.
• Glass Top Protection: While durable, avoid placing extremely hot items directly on the glass surface without a protective mat. Also, avoid dropping heavy or sharp objects on the glass.

6. പ്രശ്‌നപരിഹാരം

ചില പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും ഇതാ:

• മേശ ഇളകിയിരിക്കുന്നു:
      പരിഹാരം: Check if the adjustable feet are properly set. Adjust each foot individually until the table is stable on the surface. Also, ensure all assembly screws are tightened.
• Extension Mechanism is Stiff:
      പരിഹാരം: Ensure the tracks are clean and free of debris. A silicone-based lubricant (avoid oil-based lubricants that can attract dirt) can be applied sparingly to the sliding mechanisms if needed.
• Scratches on Glass Top:
      പരിഹാരം: Minor scratches may be polished with specialized glass scratch removal kits. For deeper scratches, professional repair or replacement of the glass top may be necessary. Always use placemats or coasters to prevent scratches.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact Naterial customer service directly. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official Naterial webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുക.
