ALAULM XL-13 Piece Outdoor Patio Furniture Set with 43-inch Propane Fire Pit Table (Grey)

1. സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ

Read all instructions before assembly and use of this product. Failure to follow these instructions may result in property damage, personal injury, or death.

• CSA സർട്ടിഫിക്കേഷൻ: The propane fire pit is CSA certified, ensuring it meets safety standards.
• വെൻ്റിലേഷൻ: Always use the fire pit in a well-ventilated outdoor area. Never use indoors or in enclosed spaces.
• ബാറ്ററി ഇൻസ്റ്റാളേഷൻ: Ensure a AAA battery is correctly inserted into the spark ignition system before attempting to light the fire pit.
• ക്ലിയറൻസ്: Maintain adequate clearance from combustible materials.
• Wind Guard: The tempered glass wind guard must be properly installed during operation to prevent flame disruption and enhance safety.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep children and pets away from the fire pit during operation and while it is cooling down.
• ഇന്ധനം: Use only propane gas as fuel for the fire pit.

2. പാക്കേജ് ഉള്ളടക്കം

The ALAULM XL-13 Piece Patio Furniture Set is delivered in multiple boxes. Please verify all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• 4 x Armrest Sofas
• 6 x Armless Sofas
• 2 x Coffee Tables
• 1 x 43-inch Propane Fire Pit Table
• 10 x Cushions (Grey)
• അസംബ്ലി ഹാർഡ്‌വെയറും ഉപകരണങ്ങളും
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

3. സജ്ജീകരണവും അസംബ്ലിയും

Assembly is required for this furniture set. It is recommended to have at least two people for assembly. The set may arrive in up to 8 separate boxes, which may be delivered at different times.

3.1. അൺപാക്കിംഗും തയ്യാറാക്കലും

1. Carefully unpack all boxes and lay out components on a soft, clean surface to prevent scratches.
2. Identify all parts against the provided parts list in the manual.
3. Ensure all hardware (bolts, washers, nuts) is present. Extra hardware is typically included.

3.2. Furniture Assembly

Follow the step-by-step instructions provided in the included assembly manual for each furniture piece. General steps include:

1. Attach legs to sofa frames and coffee tables.
2. Connect sofa sections using the provided connectors to create desired configurations.
3. Place cushions on the assembled sofa frames. The cushions are 4 inches thick and the backrests are 29.4 inches high.

3.3. Fire Pit Table Assembly

1. Assemble the fire pit table base according to the instructions.
2. Install the stainless steel burner and connect the gas hose.
3. Place the lava rocks or fire glass (if included) around the burner.
4. Install the tempered glass wind guard securely around the burner area.
5. Insert one AAA battery into the push-button spark ignition system.
6. Connect a standard 20 lb propane tank (not included) to the gas hose. Ensure all connections are tight and check for leaks using a soapy water solution.

Figure 1: Product Size and Combination Options. This diagram illustrates different possible arrangements for the modular sofa sections and provides overall dimensions for the set.

Figure 2: 43-inch Gas Fire Pit Table Details. This image highlights the flame adjustment knob, the durable stainless steel burner, and the protective dust cover for the fire pit.

4. Operating the Propane Fire Pit

The fire pit is designed for ease of use with a push-button spark ignition system and a flame adjustment knob.

4.1. Lighting Instructions

1. പ്രൊപ്പെയ്ൻ ടാങ്ക് വാൽവ് പൂർണ്ണമായും തുറന്നിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
2. Turn the flame adjustment knob to the 'LOW' position.
3. Press and hold the ignition button. While holding, slowly turn the flame adjustment knob to 'HIGH' until the burner ignites.
4. Once ignited, continue to hold the ignition button for 10-15 seconds to allow the thermocouple to heat up. Release the button.
5. Adjust the flame height using the flame adjustment knob to your desired level. The fire pit has a heat output of 55,000 BTU.

4.2. ഷട്ട് ഡൗൺ

1. Turn the flame adjustment knob to the 'OFF' position.
2. പ്രൊപ്പെയ്ൻ ടാങ്കിലെ വാൽവ് അടയ്ക്കുക.
3. Allow the fire pit and lava rocks/fire glass to cool completely before covering or storing.

5. പരിപാലനവും പരിചരണവും

Regular maintenance ensures the longevity and appearance of your ALAULM patio furniture set.

• ഫ്രെയിമുകൾ വൃത്തിയാക്കൽ: Wipe the steel and rattan frames with a damp cloth. For stubborn dirt, use a mild soap solution and rinse thoroughly. Dry with a clean, dry cloth.
• കുഷ്യൻ കെയർ: The cushions are made with waterproof fabric. For spills, wipe immediately with a damp cloth. For deeper cleaning, remove covers (if applicable) and hand wash with mild soap, then air dry. Do not machine wash or tumble dry.
• Fire Pit Care: After the fire pit has cooled, use the provided dust cover to protect it from elements when not in use. Periodically inspect the burner and gas connections for any signs of wear or damage.
• സംഭരണം: During prolonged periods of non-use or harsh weather, it is recommended to store cushions indoors and cover the furniture set with a weather-resistant cover.

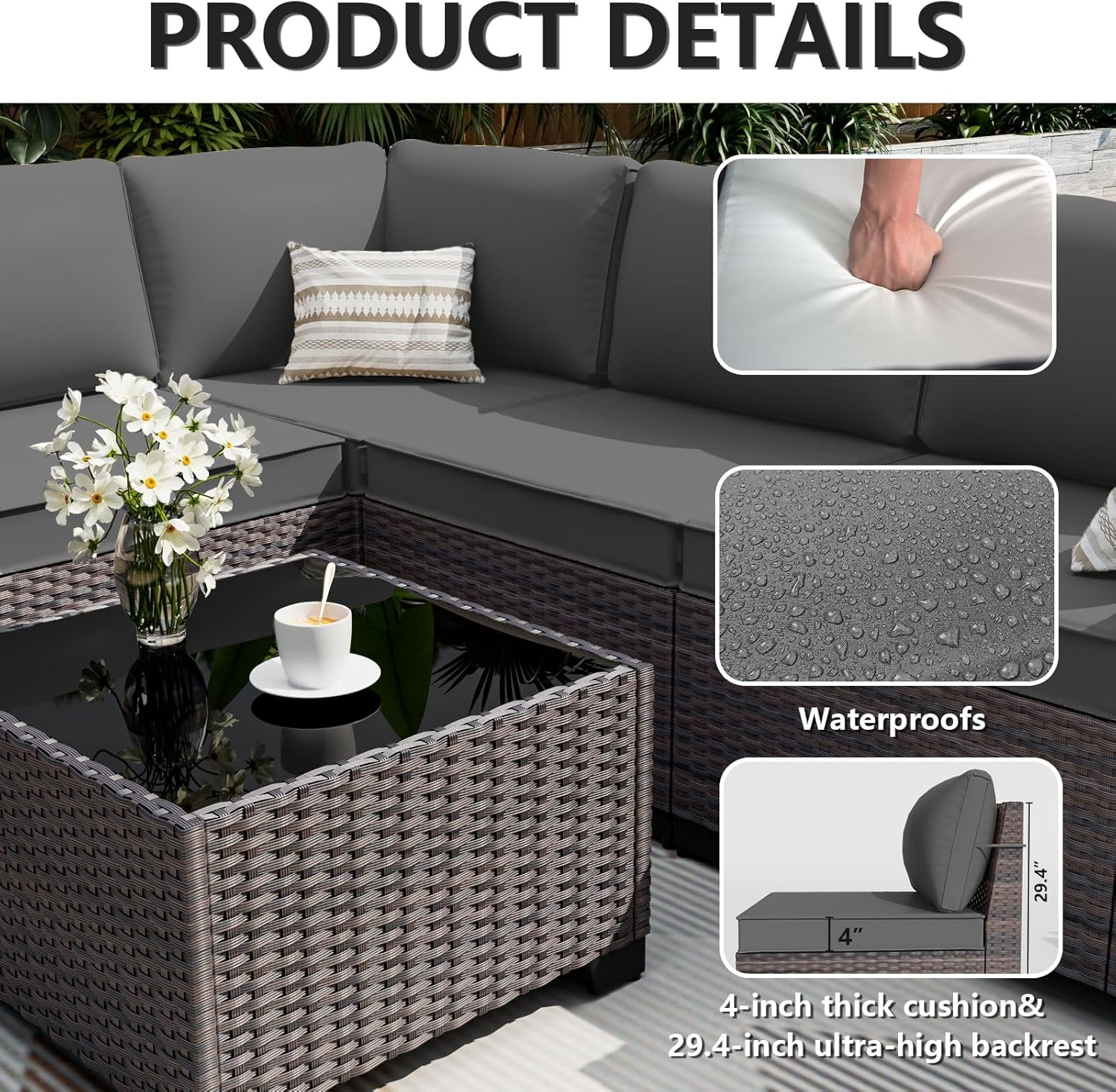

Figure 3: Cushion Details. This image illustrates the waterproof nature of the cushion fabric and the comfortable 4-inch thickness of the seat cushions.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your ALAULM patio furniture set, refer to the following common solutions.

6.1. Fire Pit Not Igniting

• ബാറ്ററി പരിശോധിക്കുക: Ensure a fresh AAA battery is correctly installed in the ignition module.
• ഗ്യാസ് വിതരണം: Verify the propane tank valve is fully open and the tank contains sufficient fuel.
• ഗ്യാസ് കണക്ഷനുകൾ: Check all gas connections for tightness. Perform a leak test with soapy water.
• ഇഗ്നിഷൻ സീക്വൻസ്: Re-attempt the lighting procedure, ensuring you hold the ignition button for 10-15 seconds after ignition.

6.2. Wobbly Furniture Sections

• ബോൾട്ടുകൾ മുറുക്കുക: Inspect all assembly bolts and tighten any that are loose.
• ലെവൽ ഉപരിതലം: Ensure the furniture is placed on a flat, level surface.

7. ഉൽപ്പന്ന സവിശേഷതകൾ

8. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും

ALAULM is committed to customer satisfaction. While specific warranty details are not provided in this manual, we offer dedicated customer support for any issues you may encounter.

• നഷ്ടപ്പെട്ടതോ കേടായതോ ആയ ഭാഗങ്ങൾ: If you receive your product with missing or damaged accessories, please send pictures to our customer service team.
• പ്രതികരണ സമയം: Our after-sales team aims to reply to inquiries within 24 hours.
• ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: Refer to your purchase documentation or the ALAULM brand store on Amazon for the most current customer service contact details.
