1. ആമുഖം
This manual provides detailed instructions for the assembly, operation, and maintenance of your KATO 10-1763 N Gauge OUIGO Wego 10-Car Set Railway Model Trains. Please read this manual thoroughly before use to ensure proper handling and to maximize the lifespan of your model train set.
The KATO OUIGO Wego 10-Car Set features a vibrant light blue design with large polka dots and logos, replicating the actual OUIGO train. It includes a powered unit with a flywheel for stable operation and illuminated headlights/tail lights.
2. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- OUIGO Wego 10-Car Set (Locomotives x2, Passenger Cars x8)
- Dummy boards for headlight/tail light reproduction when connected
- Draw bars for connecting locomotives and passenger cars
- നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)
ചിത്രം 2.1: The KATO 10-1763 OUIGO Wego 10-Car Set as packaged, showing the individual train cars securely placed in protective foam.

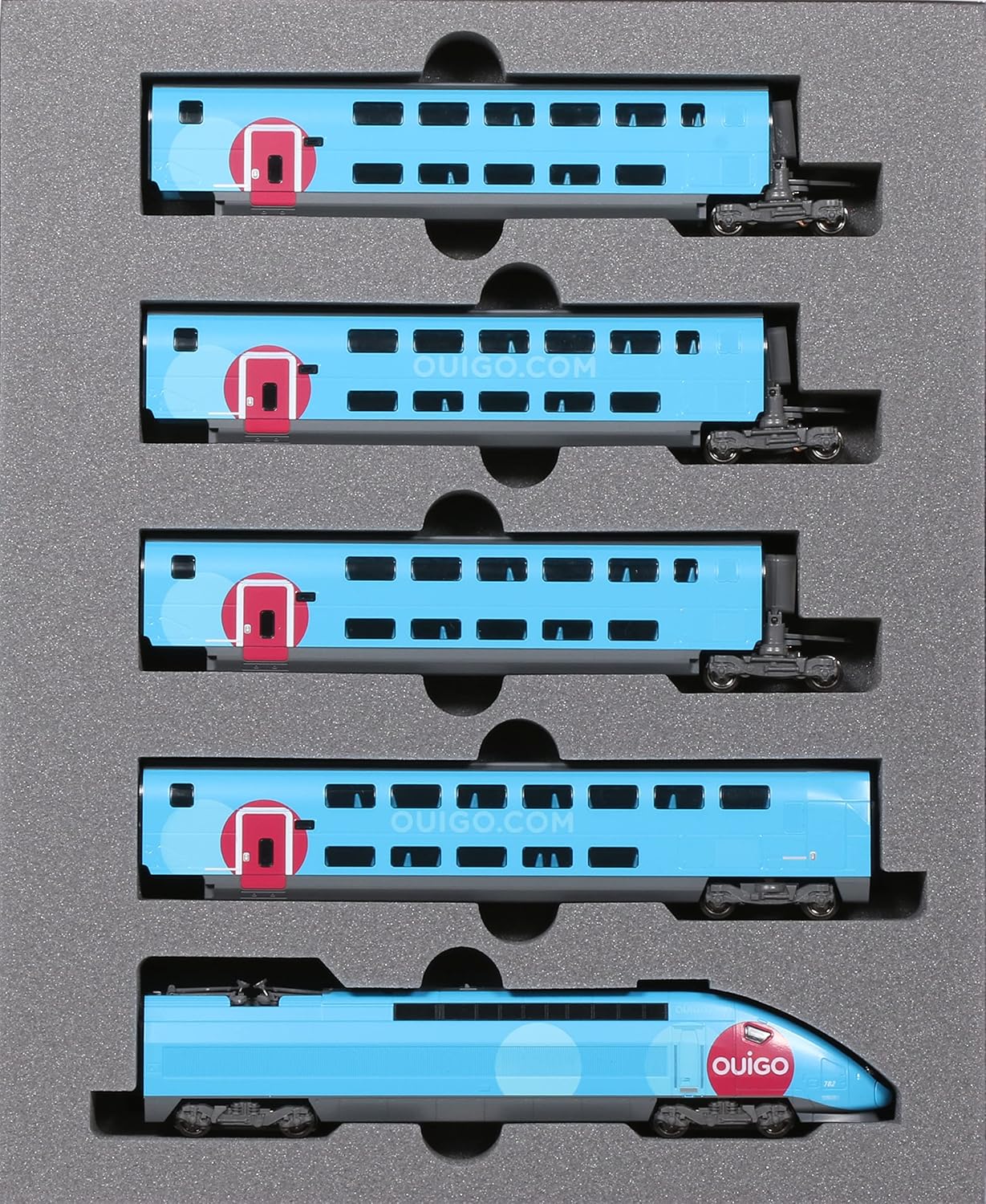

ചിത്രം 2.2: The second part of the KATO 10-1763 OUIGO Wego 10-Car Set packaging, displaying the remaining train cars in their protective slots.
3. സജ്ജീകരണം
3.1 Track Preparation
Ensure your N Gauge railway track is clean and properly assembled on a stable surface. The track provides power to the train, so good electrical contact is essential for smooth operation.
3.2 Connecting the Train Cars
- Carefully remove each train car from its packaging.
- Connect the locomotive and passenger cars using the provided draw bars. The connection between the locomotive and passenger car is similar to the 10-1657 Thalys PBA painting model.
- To reproduce a 20-car model, remove the coupler cover at the head of one locomotive and use the included draw bar to connect it to another 10-car set (sold separately).
ചിത്രം 3.1: The KATO 10-1763 OUIGO Wego N Gauge train set positioned on railway tracks, ready for operation.
3.3 Pantograph Adjustment
The model features a new pantograph design, created separately for AC and DC operation. While some models may differ from the actual car, ensure the pantographs are correctly positioned for your layout.
ചിത്രം 3.2: എ വിശദമായി view of the pantograph mechanism on the KATO 10-1763 OUIGO Wego model train, showing its intricate design.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 പവർ കണക്ഷൻ
Connect your N Gauge power pack to the railway track. This model train system receives power directly from the rails; it does not use batteries for driving, illumination, or lighting.
4.2 Starting the Train
Gradually increase the power supply from your control unit. The powered unit with flywheel ensures stable operation. The headlights and tail lights will illuminate (using bulb color LED) as power is supplied.
ചിത്രം 4.1: The front of the KATO 10-1763 OUIGO Wego locomotive, showcasing its illuminated headlights and detailed front design.
ചിത്രം 4.2: An angled perspective of the KATO 10-1763 OUIGO Wego locomotive on tracks, highlighting its sleek profile and front details.
4.3 DCC Compatibility
This model is DCC compatible. It includes a 6-pin socket for M1 and M2 cars. To reverse the control of the headlight/tail light on the M2 car, you will need to change the CV29 value settings of the installed decoder.
4.4 Reproducing Connected Locomotives
When connecting two locomotives, replace the included dummy board to reproduce the light configuration as if they were connected in a real train formation.
5. പരിപാലനം
5.1 വൃത്തിയാക്കൽ
- Regularly clean the wheels and track to ensure optimal electrical contact and smooth operation.
- Use a soft, dry cloth to wipe down the train cars. Avoid using harsh chemicals or abrasive materials.
5.2 സംഭരണം
When not in use, store the train set in its original packaging or a suitable protective case to prevent dust accumulation and damage. Keep it away from direct sunlight and extreme temperatures.
6. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Train does not move or moves erratically. |
|
|
| Headlights/tail lights do not illuminate. |
|
|
| ട്രെയിൻ ഇടയ്ക്കിടെ പാളം തെറ്റുന്നു. |
|
|
7 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ നമ്പർ: 10-1763
- ബ്രാൻഡ്: കാറ്റോ
- സ്കെയിൽ: N Gauge (1/150)
- Number of Cars: 10 (2 locomotives, 8 passenger cars)
- മെറ്റീരിയൽ: പ്ലാസ്റ്റിക്
- ഊർജ്ജ സ്രോതസ്സ്: Track-powered (no batteries required for operation)
- ലൈറ്റിംഗ്: Headlights/Tail lights (bulb color LED)
- DCC Compatibility: Yes (6-pin socket for M1 and M2)
- ശുപാർശ ചെയ്യുന്ന പ്രായം: 8 വർഷവും അതിൽ കൂടുതലും
- ഉൽപ്പന്ന അളവുകൾ: Approximately 10 x 10 x 10 cm (packaging); 980 g (total weight)
- റിലീസ് തീയതി: 31 ഓഗസ്റ്റ് 2022
8. വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support, please refer to the official Kato webനിങ്ങളുടെ സ്ഥലത്തെ റീട്ടെയിലറെ ബന്ധപ്പെടുക അല്ലെങ്കിൽ ബന്ധപ്പെടുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
This product is designed for hobby use and is not intended for commercial applications. Any modifications to the product not authorized by the manufacturer may void the warranty.
