OLIGHT Warrior Mini2 User Manual

ആമുഖം

The OLIGHT Warrior Mini2 is a high-performance rechargeable tactical flashlight designed for everyday carry (EDC), outdoor activities, camping, and emergency situations. It features a maximum output of 1,750 lumens, a 220-meter beam distance, and incorporates a smart proximity sensor for enhanced safety. This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your Warrior Mini2 flashlight.

Image: The OLIGHT Warrior Mini2 flashlight, showcasing its compact design and key specifications including 1750 lumens max output, 45 days max runtime, 220 meters max throw, 1.5 meters drop test rating, and IPX8 waterproof rating.

ബോക്സിൽ എന്താണുള്ളത്

• Warrior Mini2 x 1
• MCC3 Magnetic USB Charging Cable x 1
• Two-Way Pocket Clip x 1
• ലാൻയാർഡ് x 1
• Lanyard Clip x 1

സജ്ജമാക്കുക

ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

Before first use, unscrew the body of the flashlight and remove the insulating film from the battery. Ensure the positive end of the battery faces the flashlight head when reinserting or replacing the battery.

Image: A visual guide demonstrating the battery installation process, specifically highlighting the removal of the insulating film from the battery before initial use.

ചാർജിംഗ്

The Warrior Mini2 utilizes a convenient magnetic charging system. Attach the MCC3 magnetic charging cable to the tail cap of the flashlight. The indicator on the charger will show red during charging and turn green when fully charged.

Image: The OLIGHT Warrior Mini2 flashlight connected to its magnetic USB charging cable, illustrating the ease of charging by simply snapping the cable onto the tail cap.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

General Operation (Side Switch)

The side switch allows access to six different lighting modes for daily use. Press the side switch to turn the flashlight on or off. Hold the side switch to cycle through brightness levels (Moonlight, Low, Medium, High). Double-click for Turbo mode, and triple-click for Strobe mode.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the OLIGHT Warrior Mini2, highlighting the side switch and its accessibility for selecting preferred output settings.

തന്ത്രപരമായ വാൽ സ്വിച്ച്

ഇരട്ട-കൾtage tactical tail switch provides quick access to Turbo or Strobe modes. A light press activates momentary low light, while a firm press activates momentary high light. For constant on, press and hold until it clicks. This switch is ideal for tactical operations.

Image: A hand holding the OLIGHT Warrior Mini2, illustrating the use of the tactical tail switch to quickly activate Strobe or Turbo modes.

പ്രോക്സിമിറ്റി സെൻസർ

The Warrior Mini2 is equipped with a smart proximity sensor. This sensor automatically dims the LED and turns it completely off after 1 minute if the lens is obstructed, preventing overheating and potential damage to nearby objects. This feature activates in higher output modes.

Image: The OLIGHT Warrior Mini2 flashlight demonstrating its safe proximity protection feature, where the light dims automatically when the lens is obstructed.

Lockout/Unlock Feature

To prevent accidental activation, the flashlight features a lockout mode. When the flashlight is off, press and hold the side switch for approximately 2 seconds to access the button lockout mode. To unlock, for the first time using or under lockout mode, keep holding the side switch for over one second until the moonlight mode is on again.

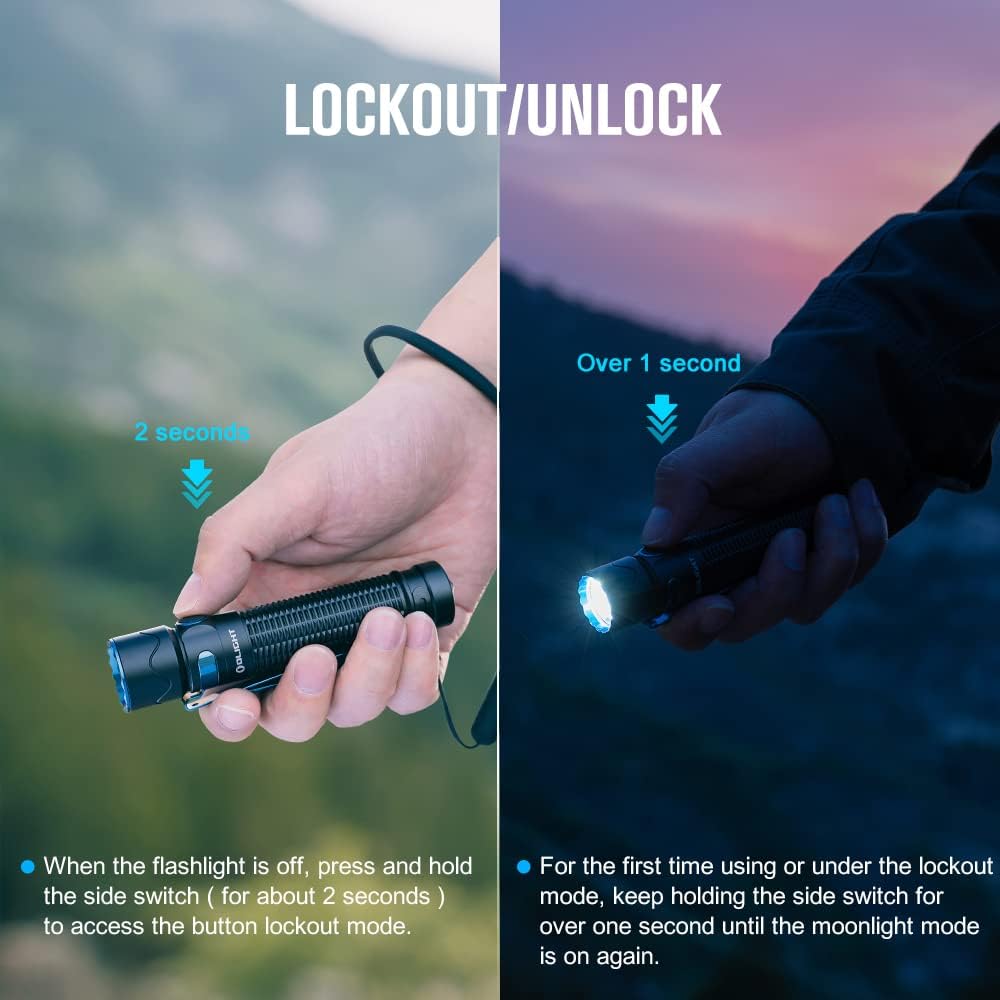

Image: A visual guide illustrating the lockout and unlock procedures for the OLIGHT Warrior Mini2, showing the duration for holding the side switch for each action.

മെയിൻ്റനൻസ്

To ensure optimal performance and longevity of your OLIGHT Warrior Mini2, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Regularly clean the threads and O-rings with a clean cloth. Apply a thin layer of silicone grease to the O-rings periodically to maintain water resistance.
• ബാറ്ററി കെയർ: Store the flashlight with a partially charged battery if not used for extended periods. Avoid fully discharging the battery to prolong its lifespan.
• ലെൻസ് ക്ലീനിംഗ്: Use a soft, clean cloth to wipe the lens. Avoid abrasive materials that could scratch the surface.
• ഡിസ്അസംബ്ലിംഗ് ഒഴിവാക്കുക: Do not attempt to disassemble the flashlight head or other sealed components, as this may void the warranty and cause damage.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your Warrior Mini2, please refer to the following common troubleshooting steps:

• ഫ്ലാഷ്‌ലൈറ്റ് ഓണാകുന്നില്ല: Ensure the battery is correctly installed with the positive end facing the head. Check if the insulating film has been removed. Verify the battery is charged.
• ഡിം ലൈറ്റ് ഔട്ട്പുട്ട്: The battery may be low; recharge the flashlight. The proximity sensor might be activated due to an obstruction; clear the lens area.
• ചാർജിംഗ് പ്രശ്നങ്ങൾ: Ensure the magnetic charging cable is securely attached and the USB power source is functional. Check for debris on the magnetic contact points.
• ആകസ്മികമായ സജീവമാക്കൽ: Ensure the lockout mode is engaged when carrying the flashlight to prevent unintended power-on.

If problems persist after attempting these steps, please contact OLIGHT customer support.

സ്പെസിഫിക്കേഷനുകൾ

Image: A graphic detailing the various output modes of the OLIGHT Warrior Mini2, including Turbo (1750 Lumens), High, Med, Low, Moon, and Strobe, along with their respective runtimes.

വാറൻ്റിയും പിന്തുണയും

OLIGHT offers a ആജീവനാന്ത വാറൻ്റി on the Warrior Mini2 flashlight, reflecting their commitment to quality and durability. For detailed warranty terms and conditions, please refer to the official OLIGHT webസൈറ്റ് അല്ലെങ്കിൽ ഉൾപ്പെടുത്തിയ വാറന്റി കാർഡ്.

If you have any questions about your OLIGHT Warrior Mini2 or require technical assistance, please do not hesitate to contact OLIGHT customer support. You can find contact information on the official OLIGHT webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലർ വഴി.

ഉപയോക്തൃ മാനുവലിന്റെ ഡൗൺലോഡ് ചെയ്യാവുന്ന PDF പതിപ്പിന്, ദയവായി സന്ദർശിക്കുക: OLIGHT Warrior Mini2 User Manual (PDF)
