ആമുഖം
The Olympus Lock 100DR N Series Rekeyable Deadbolt Lock is designed for securing cabinets and doors. This Grade 1 deadbolt lock features a 7/8" barrel diameter and a durable zinc die-cast body with a solid brass, pin tumbler cylinder. It is engineered for easy installation, use, and maintenance, making it an ideal solution for various institutional and commercial applications.
Image: The Olympus Lock 100DR Deadbolt Lock, showcasing its robust design and satin chrome finish.
പ്രധാന സവിശേഷതകൾ
- നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Features a Grade 1 rating with a durable zinc die-cast lock body and a solid brass, pin tumbler cylinder.
- Easily Rekeyable: Equipped with a set screw cylinder release mechanism for convenient rekeying. Keys are removable in both locked and unlocked positions.
- ബഹുമുഖ ആപ്ലിക്കേഷൻ: Suitable for various cabinet and door locking needs in commercial and institutional settings.
- കൈകൊണ്ട് നിർമ്മിക്കാത്ത ഡിസൈൻ: Simplifies installation as the lock can be used on either left or right-handed doors.
- Keyed Alike Compatibility: Can be keyed together with other Olympus Lock N series locks for unified access.

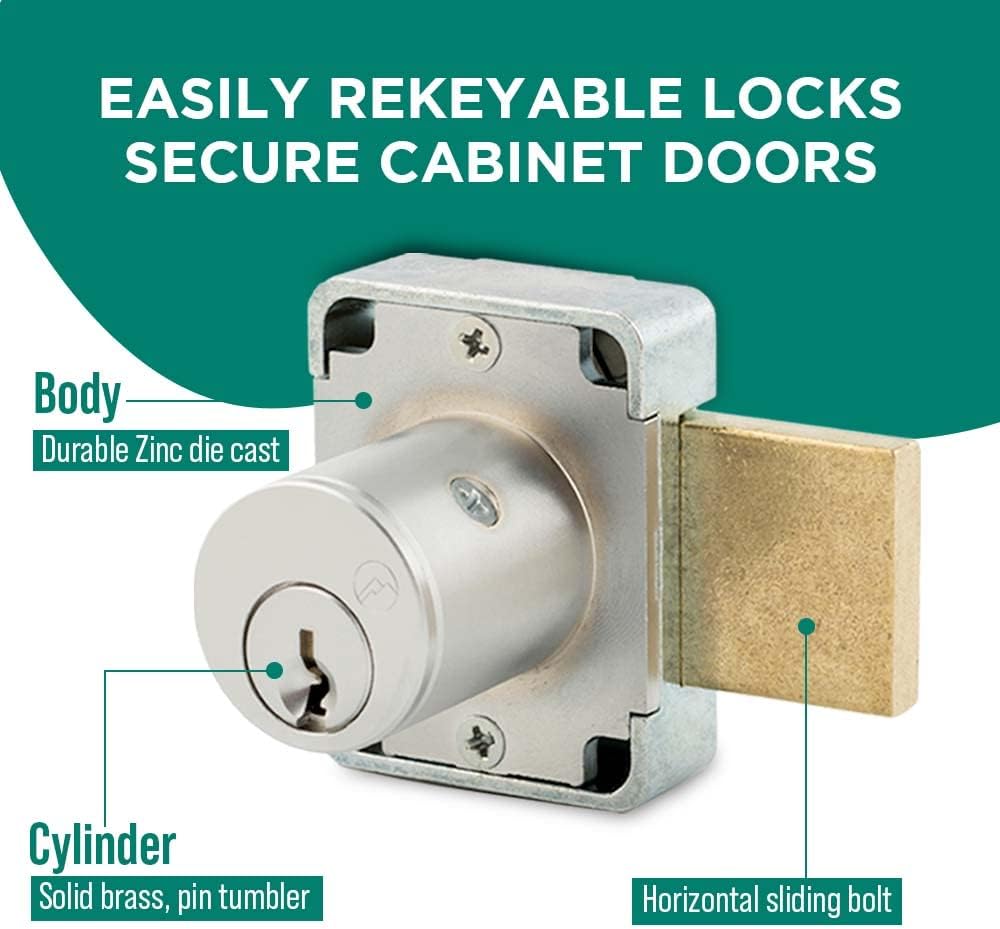

Image: Diagram illustrating the easily rekeyable design of the lock, highlighting the durable zinc die-cast body and solid brass pin tumbler cylinder.
Image: The Olympus Lock 100DR, indicating its ANSI/BHMA Grade 1 performance rating (E07121).
പാക്കേജ് ഉള്ളടക്കം
Each Olympus Lock 100DR Deadbolt Lock package includes the following components:
- 1 x 100DR Deadbolt Lock
- 2 x Keys (Key #915)
- 1 x 56-1 Bar Strike
- Lock Mounting Screws
Image: Visual representation of the package contents, including the deadbolt lock, two keys, the 56-1 bar strike, and mounting screws.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Follow these steps for proper installation of your Olympus Lock 100DR Deadbolt Lock. Ensure you have the necessary tools, such as a drill, screwdriver, and measuring tape, before beginning.
- Prepare the Door/Cabinet: Measure and mark the desired location for the lock on your cabinet or door. Refer to the dimensions diagram in the Specifications section for precise measurements.
- തുളകൾ: Carefully drill the necessary holes for the lock cylinder and mounting screws according to the marked dimensions. Ensure holes are clean and free of debris.
- Insert Lock Body: Place the 100DR deadbolt lock body into the prepared opening, ensuring the cylinder is properly aligned.
- Secure Lock Body: Use the provided lock mounting screws to firmly attach the lock body to the door or cabinet. Do not overtighten.
- Install Bar Strike: Position the 56-1 bar strike on the frame or adjacent panel where the deadbolt will extend. Mark and drill pilot holes, then secure the strike with its screws. Ensure the strike is aligned for smooth bolt operation.
- ടെസ്റ്റ് ഓപ്പറേഷൻ: Insert a key into the lock cylinder and test the locking and unlocking mechanism. The deadbolt should extend and retract smoothly into the strike plate without resistance.
Image: A hand inserting a key into a cabinet lock, demonstrating the final step of installation and testing.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Olympus Lock 100DR Deadbolt Lock is designed for straightforward operation.
- ലോക്കിംഗ്: Insert the key into the cylinder and turn it clockwise until the deadbolt fully extends into the strike plate. Remove the key. The key can be removed in both the locked and unlocked positions.
- അൺലോക്ക് ചെയ്യുന്നു: Insert the key into the cylinder and turn it counter-clockwise until the deadbolt fully retracts. Remove the key.
- Rekeying: The lock is easily rekeyable using a set screw cylinder release mechanism. This process should be performed by a qualified locksmith or trained personnel to ensure proper security and function. Consult a locksmith for rekeying services.
മെയിൻ്റനൻസ്
Proper maintenance ensures the longevity and smooth operation of your deadbolt lock.
- വൃത്തിയാക്കൽ: Wipe the exterior of the lock with a soft, dry cloth. Avoid abrasive cleaners or solvents, which can damage the finish.
- ലൂബ്രിക്കേഷൻ: Periodically apply a small amount of graphite lubricant or a silicone-based spray specifically designed for locks into the keyway. Do not use oil-based lubricants as they can attract dust and debris.
- പരിശോധന: Regularly check the mounting screws for tightness and ensure the deadbolt operates smoothly. Address any looseness or resistance promptly.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| താക്കോൽ തിരുകാനോ തിരിക്കാനോ പ്രയാസമാണ്. | Dirt or debris in keyway; worn key; lack of lubrication. | Clean keyway with compressed air. Apply graphite lubricant. Try a spare key. If problem persists, consult a locksmith. |
| Deadbolt does not extend or retract smoothly. | Misalignment of lock or strike plate; debris in bolt path; loose mounting screws. | Check alignment of lock and strike plate. Clear any obstructions. Tighten mounting screws. |
| Lock feels loose on the door/cabinet. | അയഞ്ഞ മൗണ്ടിംഗ് സ്ക്രൂകൾ. | Tighten all mounting screws securely. |
സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | 100DR |
| ബ്രാൻഡ് | Olympus Lock |
| ലോക്ക് തരം | Deadbolt Lock (Key Lock) |
| ബാരൽ വ്യാസം | 7/8 ഇഞ്ച് |
| സിലിണ്ടർ നീളം | 15/16 ഇഞ്ച് |
| മെറ്റീരിയൽ | Zinc Die-Cast Body, Solid Brass Pin Tumbler Cylinder |
| പൂർത്തിയാക്കുക | സാറ്റിൻ ക്രോം |
| ഗ്രേഡ് | ANSI/BHMA Grade 1 (E07121) |
| ഇനത്തിന്റെ അളവുകൾ (L x W x H) | 1.5 x 1.5 x 1.63 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 1 പൗണ്ട് |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | Lock, 2 Keys, 56-1 Bar Strike, Mounting Screws |
Image: Detailed technical drawing showing the standard dimensions for the 100DR Deadbolt Cabinet Door Lock, including cylinder length and barrel diameter.
Image: Comparison diagram of N Series Grade 1 Deadbolt Locks, showing dimensions for both 100DR (cabinet door) and 200DW (drawer) models.
വാറൻ്റിയും പിന്തുണയും
Olympus Lock products are manufactured to high standards. For specific warranty information or technical support, please contact Olympus Lock directly. Details are typically available on the manufacturer's official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ പോയിന്റ് വഴി.
കൂടുതൽ സഹായത്തിന്, നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതാണ് Olympus Lock Store on Amazon.
Image: The official logo for Olympus Lock Inc., highlighting over 25 years of experience in designing and manufacturing rekeyable locks.
