ആമുഖം
Welcome to the Tesvor Robot Vacuum user manual. This guide provides detailed instructions on how to set up, operate, maintain, and troubleshoot your new Tesvor Robot Vacuum with Lidar Navigation. Designed for efficient cleaning of hard floors and suitable for homes with pets, this robotic vacuum cleaner offers powerful suction and smart features to keep your living space tidy.
Image: The Tesvor Robot Vacuum S6 Black, a sleek, round robotic vacuum cleaner with a lidar sensor on top, shown next to a smartphone displaying its mapping capabilities.
പ്രധാന സവിശേഷതകൾ:
- ശക്തമായ സക്ഷൻ: Equipped with 2700 Pa suction and dual spinning edge brushes for effective debris and pet hair removal.
- Lidar Mapping: Advanced laser sensors map your home for precise navigation and efficient cleaning paths.
- Long-Lasting & Self-Charging: Up to 100 minutes runtime, automatically recharges and resumes cleaning.
- Z-shape Route: Optimizes cleaning efficiency and speed.
- സ്മാർട്ട് ആപ്പ് നിയന്ത്രണം: Manage cleaning modes, schedules, zone cleaning, and no-go zones via the Tesvor App (2.4Ghz Wi-Fi compatible).
സജ്ജമാക്കുക
എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്:
Image: All components included with the Tesvor Robot Vacuum: the robot vacuum itself, charging base, power adapter, remote control, cleaning tool, extra high-performance filters, and four side brushes.
അൺബോക്സ് ചെയ്യുമ്പോൾ, എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- റോബോട്ട് വാക്വം
- Remote Control (2 AAA batteries required, not included)
- ചാർജിംഗ് ബേസ്
- പവർ അഡാപ്റ്റർ
- ക്ലീനിംഗ് ടൂൾ
- Extra Set of High-Performance Filters
- 4 സൈഡ് ബ്രഷുകൾ
- ഉപയോക്തൃ ഗൈഡ്
പ്രാരംഭ സജ്ജീകരണ ഘട്ടങ്ങൾ:
- Charging Base Placement: Place the charging base against a wall in an open area, ensuring there are no obstacles within 1 meter (3 feet) to the sides and 2 meters (6 feet) in front of the base. Connect the power adapter to the charging base and plug it into a power outlet.
- സൈഡ് ബ്രഷുകൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Attach the side brushes to the corresponding posts on the bottom of the robot vacuum until they click into place.
- പ്രാരംഭ ചാർജ്: Place the robot vacuum onto the charging base. Ensure the charging contacts on the robot align with those on the base. The indicator light on the robot will show charging status. Fully charge the robot before first use (approximately 4-5 hours).
- Download Tesvor App: ഇതിനായി തിരയുക "Tesvor" in your mobile app store (iOS or Android) and download the official application.
- വൈഫൈയിലേക്ക് കണക്റ്റുചെയ്യുക: Open the Tesvor App and follow the on-screen instructions to connect your robot vacuum to your home Wi-Fi network. കുറിപ്പ്: The robot is only compatible with 2.4Ghz Wi-Fi networks.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
ഒരു ക്ലീൻ ആരംഭിക്കുന്നു:
Once fully charged and connected to the app, you can initiate cleaning in several ways:
- മാനുവൽ ആരംഭം: Press the power button on the robot or the "Clean" button on the remote control.
- ആപ്പ് നിയന്ത്രണം: Use the Tesvor App to start, pause, or stop cleaning.
- ഷെഡ്യൂൾ ചെയ്ത ക്ലീനിംഗ്: Set up cleaning schedules through the Tesvor App for automated cleaning.
Lidar Navigation and Mapping:

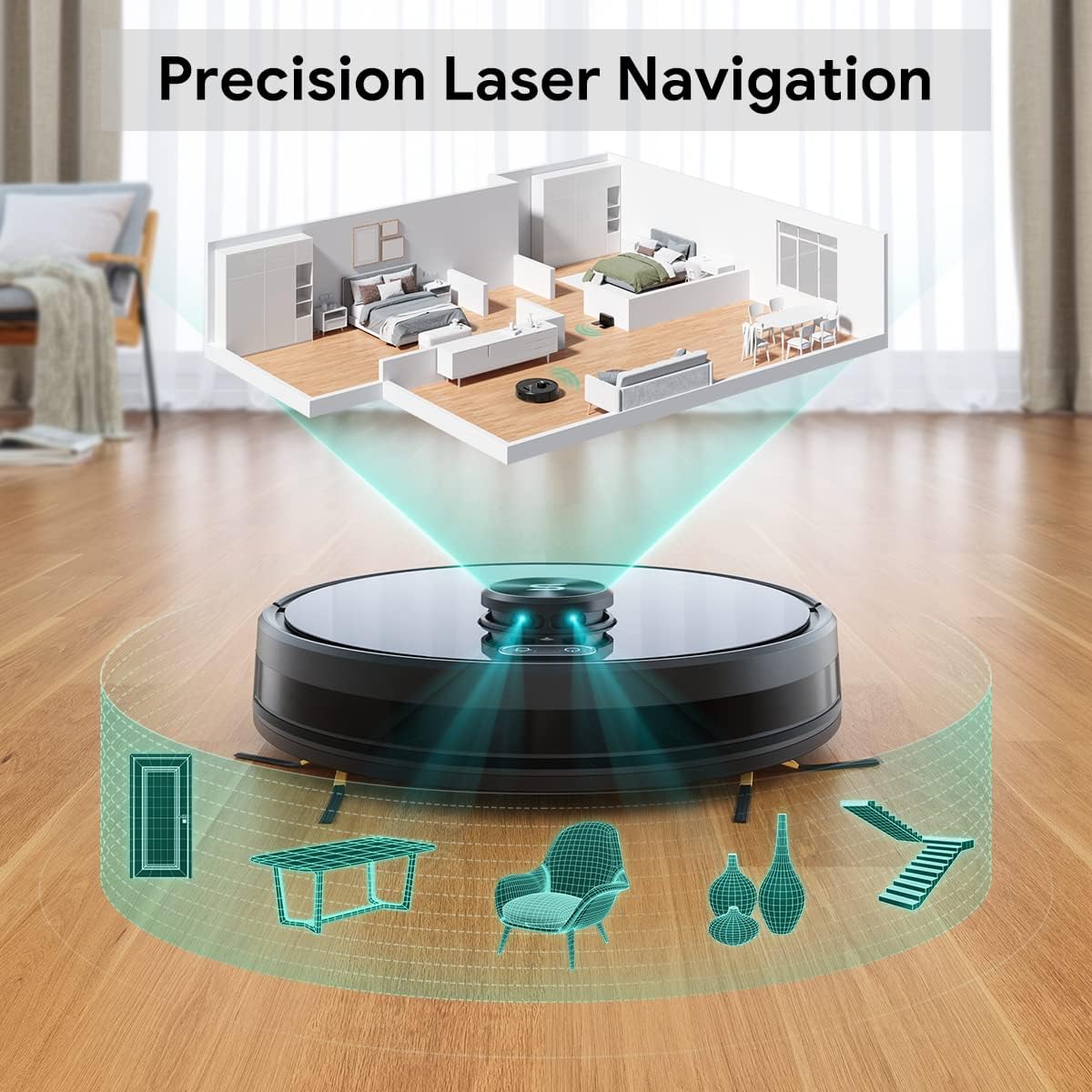

Image: A diagram illustrating the Tesvor Robot Vacuum's lidar navigation system, showing laser beams mapping out a room with furniture and walls.
The Tesvor Robot Vacuum utilizes advanced LiDAR sensors to create a precise map of your home. This allows it to navigate efficiently, avoid obstacles, and clean systematically. The more it cleans, the more accurately it learns your home's layout.
Cleaning Modes and Features:
- Z-shape Route: The robot follows an optimized Z-shaped cleaning pattern to ensure thorough coverage and efficiency.
Image: The Tesvor Robot Vacuum cleaning a tiled floor, with a green path indicating its efficient Z-shaped cleaning route.
- No-Go Zones & Invisible Walls: Through the Tesvor App, you can define specific areas the robot should avoid, such as pet bowls or delicate furniture.
Image: The Tesvor Robot Vacuum operating near a bed, with a blue grid indicating an "invisible wall" or "no-go zone" preventing it from entering a specific area.
- ശക്തമായ സക്ഷൻ: The 2700Pa suction power effectively picks up dirt, dust, and pet hair from various floor types.

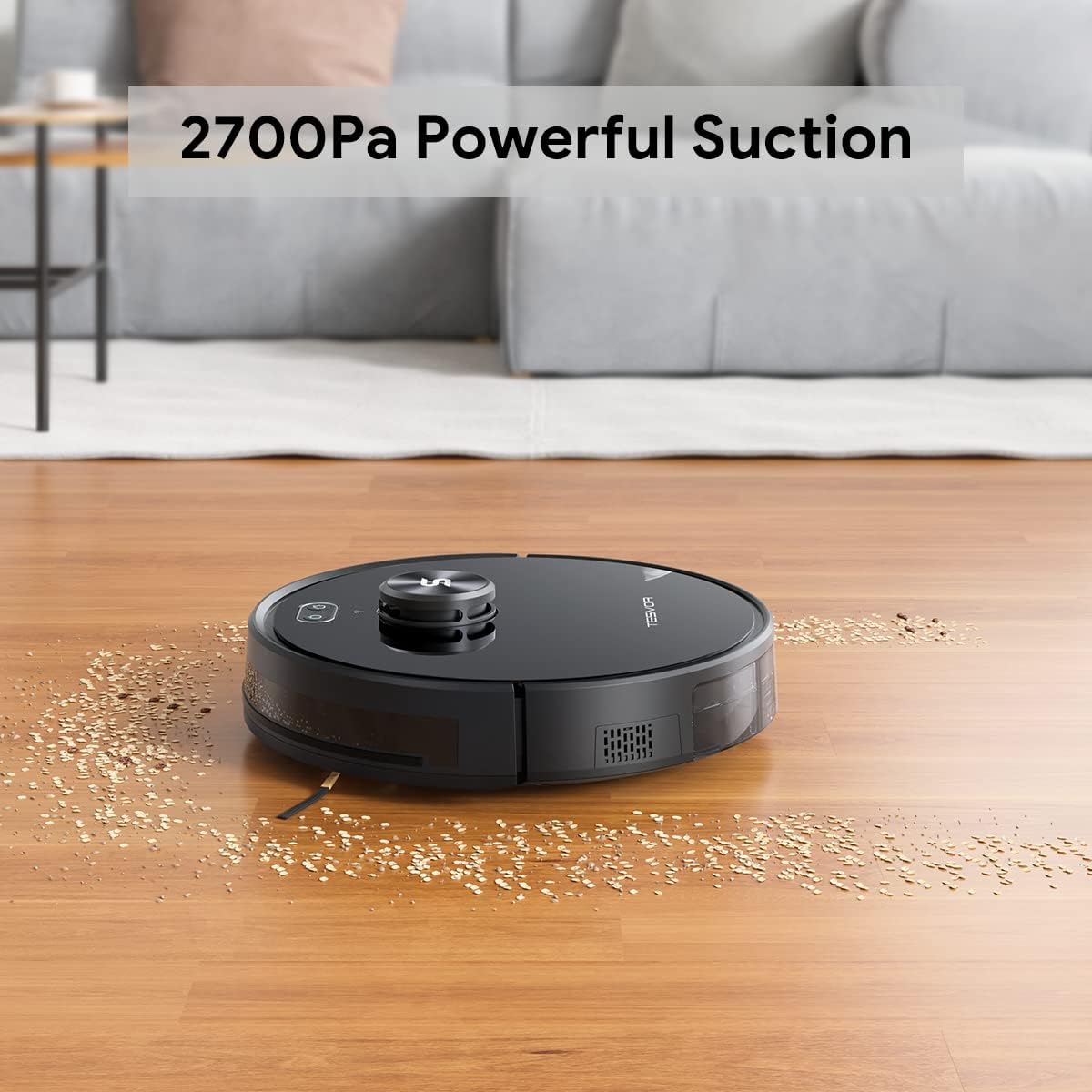

Image: The Tesvor Robot Vacuum cleaning a wooden floor, effectively picking up scattered debris, demonstrating its powerful suction.
- സ്വയം ചാർജിംഗ്: When the battery runs low, the robot will automatically return to its charging base. Once recharged, it will resume cleaning from where it left off.
- Tesvor App Control: The app provides comprehensive control over your robot vacuum.
Image: A hand holding a smartphone displaying the Tesvor App interface, showing options for schedules, real-time map, no-go zones, custom cleaning zones, and spot cleaning.
- Schedules: Set specific times for cleaning.
- Real-time Map: View the robot's cleaning path and mapped areas.
- No-go Zones: Define areas to avoid.
- Custom Cleaning Zone: Direct the robot to clean specific areas.
- Spot Cleaning: Focus cleaning on a particular dirty spot.
മെയിൻ്റനൻസ്
Regular maintenance ensures optimal performance and extends the lifespan of your Tesvor Robot Vacuum.
- ഡസ്റ്റ് ബിൻ ശൂന്യമാക്കൽ:
The dust bin should be emptied after each cleaning cycle, especially in homes with pets or high traffic. Press the release button to remove the dust bin, open it, and discard collected debris. Close the bin securely and reinsert it into the robot.
- ഫിൽട്ടർ വൃത്തിയാക്കൽ:
The high-performance filter inside the dust bin should be cleaned regularly. Tap the filter gently to remove dust, or use the provided cleaning tool. For best results, replace the filter every 1-3 months depending on usage.
- സൈഡ് ബ്രഷുകൾ വൃത്തിയാക്കുന്നു:
Inspect the side brushes for tangled hair or debris. Carefully pull off any tangled material. If brushes are worn or damaged, replace them with new ones from the extra set provided.
- Cleaning Main Brush (if applicable):
Remove the main brush cover and lift out the main brush. Use the cleaning tool to cut and remove any tangled hair or fibers. Reinstall the main brush and cover.
- Cleaning Sensors and Charging Contacts:
Wipe the anti-drop sensors, wall sensors, and charging contacts on both the robot and the charging base with a clean, dry cloth. This ensures proper navigation and charging.
- മോപ്പിംഗ് ഫംഗ്ഷൻ:
The Tesvor Robot Vacuum supports a mopping function, however, water tank accessories are sold separately. Please contact service@tesvor.com for more information on obtaining mopping accessories.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your Tesvor Robot Vacuum, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| റോബോട്ട് ഓണാക്കുകയോ ചാർജ് ചെയ്യുകയോ ചെയ്യുന്നില്ല. | Battery low or charging contacts are dirty/misaligned. | Ensure the robot is properly placed on the charging base. Clean charging contacts on both the robot and base. Check power adapter connection. |
| റോബോട്ട് ഇടയ്ക്കിടെ കുടുങ്ങിപ്പോകാറുണ്ട്. | Obstacles, tangled brushes, or uneven surfaces. | Clear cables, small objects, and thick rugs from the cleaning path. Clean main and side brushes. Use no-go zones in the app for problematic areas. |
| ആപ്പ് കണക്ഷൻ പ്രശ്നങ്ങൾ. | Incorrect Wi-Fi band (not 2.4Ghz), weak signal, or incorrect password. | Ensure your router is broadcasting a 2.4Ghz Wi-Fi signal. Move the robot closer to the router. Re-enter Wi-Fi password carefully. Restart the robot and your router. |
| മോശം ക്ലീനിംഗ് പ്രകടനം. | Full dust bin, dirty filter, or worn brushes. | Empty the dust bin. Clean or replace the filter. Clean or replace side and main brushes. |
| Robot falls down stairs. | Anti-drop sensors are dirty or obstructed. | Clean the anti-drop sensors located on the bottom of the robot with a dry cloth. Ensure there are no reflective surfaces near stairs that might interfere with sensors. |
For further assistance, please contact Tesvor customer support.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ടെസ്വർ |
| മോഡൽ | എസ്6 കറുപ്പ് |
| പ്രത്യേക ഫീച്ചർ | LiDAR Navigation, No Go Zone |
| സക്ഷൻ പവർ | 2700 Pa |
| ഫിൽട്ടർ തരം | ഡിസ്ക് |
| ബാറ്ററി ലൈഫ് | 100 മിനിറ്റ് |
| പവർ ഉറവിടം | ബാറ്ററി പവർ |
| നിയന്ത്രണ രീതി | റിമോട്ട്, ആപ്പ് |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | ആമസോൺ എക്കോ (അലക്സാ), ഗൂഗിൾ അസിസ്റ്റന്റ് |
| ഫോം ഫാക്ടർ | റോബോട്ടിക് |
| ഇനത്തിൻ്റെ ഭാരം | 11.92 പൗണ്ട് |
| പാക്കേജ് അളവുകൾ | 19 x 17 x 6.5 ഇഞ്ച് |
| ബാറ്ററികൾ | 1 ലിഥിയം അയോൺ ബാറ്ററി (ഉൾപ്പെടുത്തിയിരിക്കുന്നു) |
വാറൻ്റിയും പിന്തുണയും
Your Tesvor Robot Vacuum comes with a worry-free 12 മാസ വാറൻ്റി from the date of purchase. This warranty covers manufacturing defects and ensures your product functions as intended under normal use.
For technical support, warranty claims, or any inquiries regarding your product, please contact Tesvor customer service:
- ഇമെയിൽ: service@tesvor.com
- Tesvor Store: ഉദ്യോഗസ്ഥനെ സന്ദർശിക്കുക Tesvor Store on Amazon കൂടുതൽ ഉൽപ്പന്നങ്ങൾക്കും വിവരങ്ങൾക്കും.
Please have your product model and purchase information ready when contacting support to expedite the process.
