ആമുഖം
Thank you for choosing the Feit Electric LED Outdoor Security Flood Light. This fixture is designed to provide bright, energy-efficient illumination with advanced motion sensing and dusk-to-dawn capabilities for enhanced outdoor security and convenience. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

ചിത്രം: മുൻഭാഗം view of the Feit Electric LED Outdoor Security Flood Light, showing its dual adjustable heads and motion sensor.
സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installing or servicing. Improper wiring can result in electric shock or fire.
- എല്ലാ വൈദ്യുത കണക്ഷനുകളും പ്രാദേശിക, ദേശീയ ഇലക്ട്രിക്കൽ കോഡ് (NEC) മാനദണ്ഡങ്ങൾക്കനുസൃതമായിരിക്കണം.
- വയറിംഗ് നടപടിക്രമങ്ങളെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ, യോഗ്യതയുള്ള ഒരു ഇലക്ട്രീഷ്യനെ സമീപിക്കുക.
- കത്തുന്ന വസ്തുക്കൾക്ക് സമീപമോ സ്ഫോടനാത്മകമായ അന്തരീക്ഷമുള്ള സ്ഥലങ്ങളിലോ സ്ഥാപിക്കരുത്.
- Ensure the fixture is securely mounted to a structural surface.
- This fixture is rated for outdoor wet locations (IP65).
പാക്കേജ് ഉള്ളടക്കം
ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:
- LED Outdoor Security Flood Light Fixture
- മൗണ്ടിംഗ് ഹാർഡ്വെയർ (സ്ക്രൂകൾ, വയർ നട്ടുകൾ)
- ഗാസ്കറ്റ്
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ

Image: The Feit Electric LED Outdoor Security Flood Light, showing the main unit and its components.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | S9DFL/850/MOT/WH |
| ബ്രാൻഡ് | Feit ഇലക്ട്രിക് |
| ലൈറ്റ് ഔട്ട്പുട്ട് | 2000 ല്യൂമെൻസ് |
| വർണ്ണ താപനില | 5000K പകൽ വെളിച്ചം |
| വാട്ട്tage | 28 വാട്ട്സ് |
| വാല്യംtage | 120 വോൾട്ട് |
| മോഷൻ സെൻസർ ആംഗിൾ | 180° |
| മോഷൻ സെൻസർ ശ്രേണി | 50 അടി വരെ |
| ഡസ്ക്-ടു-ഡോൺ സെൻസർ | സംയോജിപ്പിച്ചത് |
| കാലാവസ്ഥ പ്രതിരോധം | IP65 വാട്ടർപ്രൂഫ് റേറ്റഡ് |
| മെറ്റീരിയൽ | Plastic, Polycarbonate Lens |
| അളവുകൾ (L x W x H) | 9" x 5.6" x 7.7" |
| ജീവിതകാലയളവ് | 50,000 മണിക്കൂർ |

Image: A graphic detailing key specifications of the Feit Electric LED Outdoor Security Flood Light, including wattage, lumens, color temperature, and IP rating.
ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
1. ഇൻസ്റ്റാളേഷനായി തയ്യാറെടുക്കുക
- പവർ ഓഫ് ചെയ്യുക: Locate the circuit breaker or fuse box and turn off the power to the junction box where the fixture will be installed.
- പ്രദേശം വൃത്തിയാക്കുക: Ensure the installation area is clear of obstructions and provides stable support for the fixture.
2. Mounting the Fixture
The fixture is designed for wall mounting. Use the provided mounting plate for secure installation.
- Attach the mounting plate to the junction box using the provided screws. Ensure the plate is flush and secure.
- Feed the electrical wires from the junction box through the center hole of the mounting plate.
- Position the fixture against the mounting plate, ensuring the gasket is properly seated to prevent water intrusion.

Image: Illustration of the mounting back plate and screws, demonstrating the hands-free wiring design for easier installation.
3. വയറിംഗ് കണക്ഷനുകൾ
Connect the fixture wires to the household wiring using the provided wire nuts:
- ബന്ധിപ്പിക്കുക കറുപ്പ് ഫിക്സ്ചറിൽ നിന്ന് വയർ കറുപ്പ് ജംഗ്ഷൻ ബോക്സിൽ നിന്നുള്ള (ലൈവ്) വയർ.
- ബന്ധിപ്പിക്കുക വെള്ള ഫിക്സ്ചറിൽ നിന്ന് വയർ വെള്ള ജംഗ്ഷൻ ബോക്സിൽ നിന്ന് (നിഷ്പക്ഷ) വയർ.
- ബന്ധിപ്പിക്കുക പച്ച ഫിക്സ്ചറിൽ നിന്ന് (നിലം) വയർ പച്ച അല്ലെങ്കിൽ ജംഗ്ഷൻ ബോക്സിൽ നിന്ന് വെറും ചെമ്പ് (നിലം) വയർ.
- എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും വയർ നട്ടുകൾ ഉപയോഗിച്ച് ഇൻസുലേറ്റ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
4. Secure the Fixture
Once wiring is complete, align the fixture with the mounting plate and secure it using the provided screws. Ensure a tight seal to maintain the IP65 waterproof rating.

ചിത്രം: വശം view of the flood light, illustrating the adjustable light heads and motion sensor for optimal positioning.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
1. Power On and Initial Test
After installation, restore power at the circuit breaker. The light may cycle on and off briefly as it calibrates.
2. Motion Sensor Functionality
The integrated motion sensor detects movement within a 180° wide sensing angle and up to 50 feet away. When motion is detected, the light will turn on automatically. The duration the light stays on after motion ceases is typically adjustable (refer to specific model controls if available, usually a dial on the sensor itself).

Image: Diagram illustrating the wide-beam optics and motion sensor detection range, showing coverage up to 50 feet.
3. Dusk-to-Dawn Functionality
The built-in light sensor automatically detects ambient light levels. The fixture will activate at dusk and deactivate at dawn, ensuring illumination only when needed. This feature works in conjunction with the motion sensor, meaning the motion sensor will only be active during nighttime hours.

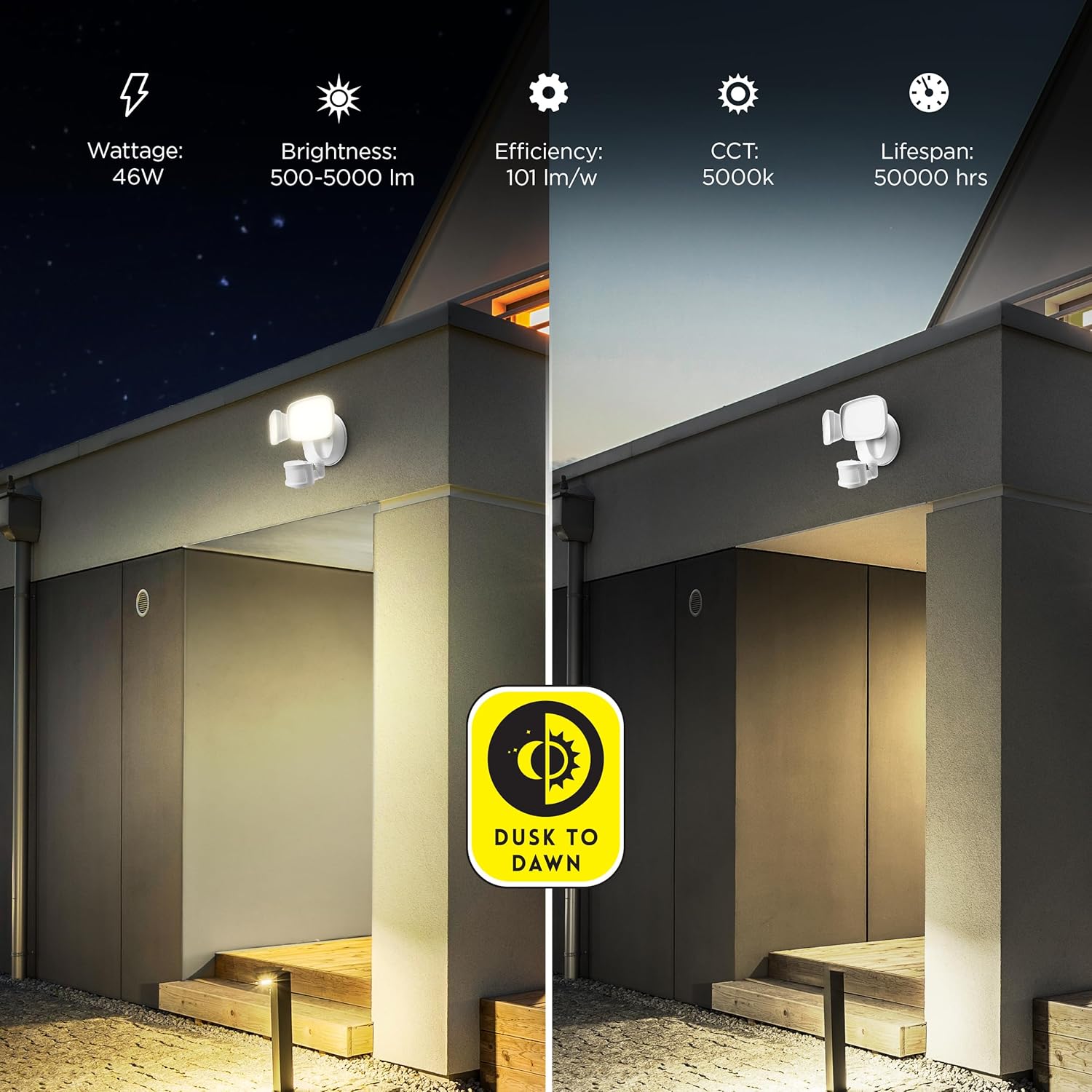

Image: Visual representation of the dusk-to-dawn sensor, showing the light activating as ambient light decreases and deactivating as it increases.
4. Adjusting Light Heads and Sensor
The two LED light heads and the motion sensor are adjustable. Carefully pivot them to direct light and motion detection to your desired areas. Do not overtighten adjustment screws.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Ensure power is off before cleaning. Wipe the fixture with a soft, damp തുണി. അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്, കാരണം അവ ഫിനിഷിനോ ഇലക്ട്രിക്കൽ ഘടകങ്ങൾക്കോ കേടുവരുത്തും.
- പരിശോധന: കേടുപാടുകൾ, അയഞ്ഞ വയറിംഗ് അല്ലെങ്കിൽ തേയ്മാനം എന്നിവയുടെ ലക്ഷണങ്ങൾക്കായി ഫിക്സ്ചർ ഇടയ്ക്കിടെ പരിശോധിക്കുക.
- LED- കൾ: സംയോജിത എൽഇഡികൾ ദീർഘായുസ്സിനായി രൂപകൽപ്പന ചെയ്തിരിക്കുന്നതിനാൽ ഉപയോക്താക്കൾക്ക് മാറ്റിസ്ഥാപിക്കാൻ കഴിയില്ല.

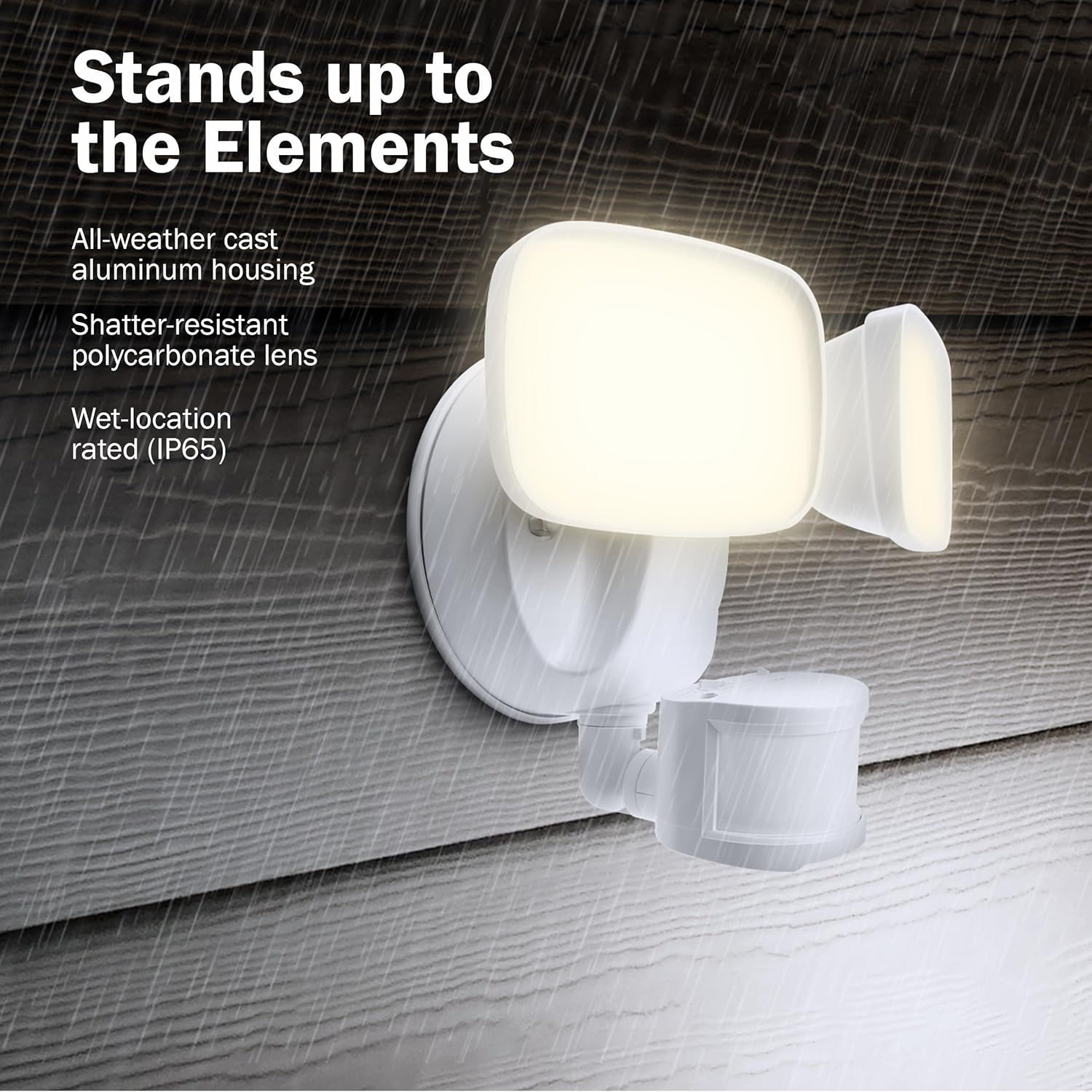

Image: The Feit Electric flood light shown in a rainy environment, emphasizing its IP65 wet-rated and weather-resistant construction.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ലൈറ്റ് ഓണാക്കില്ല. | വൈദ്യുതിയില്ല, വയറിങ് അയഞ്ഞിരിക്കുന്നു, സെൻസർ തകരാറിലായി. | Check circuit breaker. Verify all wiring connections. Ensure sensor is not obstructed. |
| വെളിച്ചം തുടർച്ചയായി തുടരുന്നു. | Constant motion detected, sensor sensitivity too high, dusk-to-dawn sensor malfunction. | Check for continuous motion in sensor's field of view. Adjust sensor sensitivity. Ensure no ambient light is interfering with the dusk-to-dawn sensor. |
| പകൽ സമയത്ത് വെളിച്ചം തിരിയുന്നു. | Dusk-to-dawn sensor obstructed or malfunctioning. | Ensure the dusk-to-dawn sensor is not covered or in a shaded area that mimics nighttime conditions. |
| മോഷൻ സെൻസർ ശ്രേണി മോശമാണ്. | Sensor obstructed, incorrect angle, environmental factors. | Clear obstructions. Adjust sensor angle. Avoid placing near heat sources or reflective surfaces. |
വാറൻ്റി
ഈ ഫീറ്റ് ഇലക്ട്രിക് ഉൽപ്പന്നം വർക്ക്മാൻഷിപ്പിലും മെറ്റീരിയലുകളിലും പിഴവുകളില്ല എന്ന് ഉറപ്പുനൽകുന്നു. 5 വർഷം from the date of purchase. If the product fails within the warranty period, please contact Feit Electric for replacement or refund. This warranty expressly excludes incidental and consequential damages.
പിന്തുണ
For technical assistance or further inquiries, please visit the official Feit Electric website or contact their customer support. Refer to the product packaging or the Feit Electric webഏറ്റവും പുതിയ ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്കായി സൈറ്റ്.
Feit ഇലക്ട്രിക് Webസൈറ്റ്: www.feit.com
