SONOFF S40 വൈഫൈ സ്മാർട്ട് പ്ലഗ് ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The SONOFF S40 WiFi Smart Plug is a compact, ETL-certified smart outlet designed to bring convenience and energy efficiency to your home. It allows you to remotely control connected appliances, monitor energy consumption, set schedules, and integrate with popular voice assistants like Amazon Alexa and Google Home. This manual provides detailed instructions for setting up and operating your S40 Smart Plug.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• റിമോട്ട് കൺട്രോൾ: Turn devices on/off from anywhere using the eWeLink app.
• ഊർജ്ജ നിരീക്ഷണം: Track real-time power, current, voltagഇ, ഒപ്പം view 180-day energy usage data.
• ശബ്ദ നിയന്ത്രണം: ഹാൻഡ്‌സ്-ഫ്രീ പ്രവർത്തനത്തിനായി ആമസോൺ അലക്‌സ, ഗൂഗിൾ ഹോം എന്നിവയുമായി പൊരുത്തപ്പെടുന്നു.
• ഷെഡ്യൂളിംഗ്: Set countdown, single, or repeat timers to automate device operation.
• കോംപാക്റ്റ് ഡിസൈൻ: Occupies minimal space on your wall outlet.
• ഓവർലോഡ് സംരക്ഷണം: Automatically powers off to prevent damage from excessive current.
• ETL സാക്ഷ്യപ്പെടുത്തിയത്: സുരക്ഷയും ഗുണനിലവാര മാനദണ്ഡങ്ങളും പാലിക്കുന്നുണ്ടെന്ന് ഉറപ്പാക്കുന്നു.

3 സുരക്ഷാ വിവരങ്ങൾ

Please read and follow all safety instructions to prevent injury or damage. Ensure the device is used within its specified electrical ratings (15A, 120V). Do not disassemble or modify the device. Keep away from water and high humidity environments. This device is for indoor use only.

4. ഉൽപ്പന്നം കഴിഞ്ഞുview

The SONOFF S40 Smart Plug is a compact device that plugs directly into a standard wall outlet. It features a power button/indicator light on the front for manual control and status indication. The back of the plug displays important electrical specifications and certifications.

5. സജ്ജീകരണ ഗൈഡ്

5.1. eWeLink ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക

The SONOFF S40 Smart Plug requires the eWeLink app for initial setup and smart control. Download the app from your device's app store or scan the QR code on the product packaging.

• ഡൗൺലോഡ് ലിങ്ക്: http://app.coolkit.cc/dl.html

5.2. ഉപകരണ ജോടിയാക്കൽ

Before pairing, ensure your eWeLink app is updated to version 4.31.0 or above. The SONOFF S40 only supports 2.4GHz WiFi networks. Ensure your router has separate SSIDs for 2.4GHz and 5GHz networks, or temporarily disable the 5GHz network during pairing if you encounter issues.

1. Plug the S40 Smart Plug into a power outlet.
2. Press and hold the pairing button on the plug for 5 seconds until the WiFi LED indicator flashes in a pattern of two short blinks and one long blink, indicating it's in pairing mode.
3. Open the eWeLink app, go to "Home", and tap the "+" icon (bottom).
4. Select "Add Device" and then choose "2.4GHz WiFi Only".
5. നിങ്ങളുടെ 2.4GHz വൈഫൈ നെറ്റ്‌വർക്ക് തിരഞ്ഞെടുത്ത് പാസ്‌വേഡ് നൽകുക.
6. The app will search for and add the device. Once found, confirm the addition.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

6.1. റിമോട്ട് കൺട്രോൾ

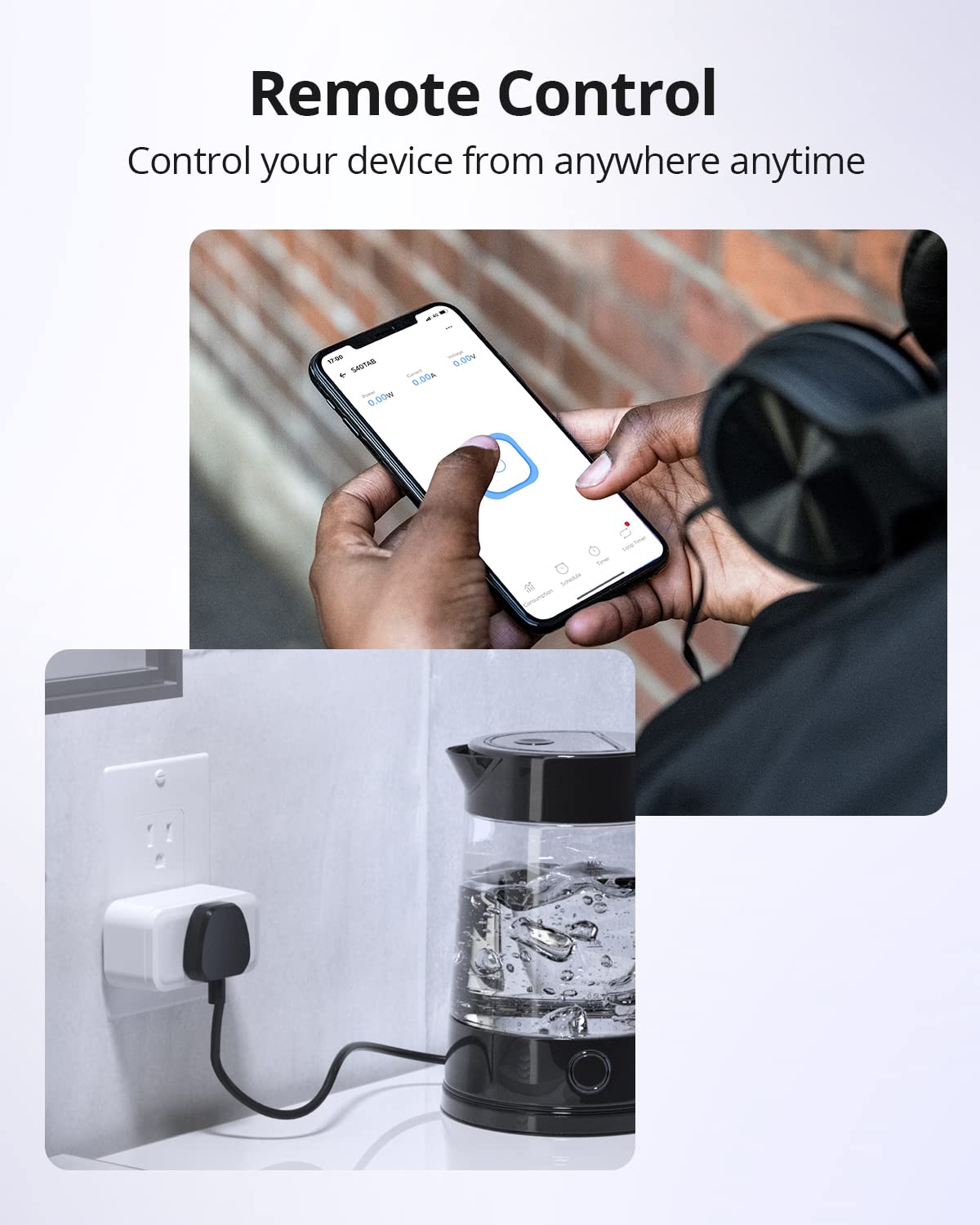

Once paired, you can control your S40 Smart Plug from anywhere using the eWeLink app. Simply tap the power icon next to the device name to toggle it on or off.

6.2. എനർജി മോണിറ്ററിംഗ്

The S40 Smart Plug provides real-time energy consumption data. Within the eWeLink app, you can view current power, current, and voltage. The app also stores 180 days of daily and monthly energy usage data, allowing you to track electricity costs.

6.3. Scheduling and Timers

Automate your devices by setting schedules and timers. You can configure countdown timers, single-event timers, or recurring schedules to automatically turn your appliances on or off at specific times.

6.4. ശബ്ദ നിയന്ത്രണ സംയോജനം

The S40 Smart Plug is compatible with Amazon Alexa and Google Home, allowing for convenient voice control of your connected devices.

6.4.1. Linking with Amazon Alexa

1. Log in to your Amazon Alexa app and add your Echo device.
2. Log in to your eWeLink account.
3. In the eWeLink app, go to "Home", tap the "+" icon, then "Link Accounts".
4. Select "Amazon Alexa".
5. Tap "Link with Amazon Alexa" and follow the prompts to link your accounts.
6. Once linked, say "Alexa, discover devices" or use the Alexa app to discover devices.

6.4.2. Linking with Google Home

1. Log in to your Google Home app and add your Google Home speaker.
2. Log in to your eWeLink account.
3. In the eWeLink app, go to "Home", tap the "+" icon, then "Link Accounts".
4. Select "Google Home".
5. Tap "Link with Google Assistant" and follow the prompts to link your accounts.
6. Sync and configure your eWeLink devices within the Google Home app.

6.5. ഓവർലോഡ് സംരക്ഷണം

The S40 Smart Plug is equipped with overload protection. If the connected appliance draws current exceeding 15A, the plug will automatically power off to prevent damage to the device and the appliance. This feature enhances safety and prolongs the lifespan of your electronics.

7. പരിപാലനം

To ensure optimal performance and longevity of your SONOFF S40 Smart Plug, keep it clean and free from dust. Disconnect from power before cleaning. Use a dry, soft cloth for cleaning. Avoid using harsh chemicals or abrasive materials. Regularly check for firmware updates in the eWeLink app to benefit from new features and improvements.

8. പ്രശ്‌നപരിഹാരം

• ഉപകരണം ഓഫ്‌ലൈൻ: Ensure the plug is powered on and within range of your 2.4GHz WiFi router. Check your router settings to confirm the 2.4GHz network is active and has a stable connection.
• ജോടിയാക്കൽ പരാജയം: Verify your WiFi network is 2.4GHz. If you have a combined 2.4GHz/5GHz network, try separating them or temporarily disabling 5GHz during pairing. Ensure the WiFi password is entered correctly. Try resetting the plug by holding the button for 5 seconds until the LED flashes as described in the pairing section.
• ശബ്ദ നിയന്ത്രണ പ്രശ്നങ്ങൾ: Confirm that your eWeLink account is correctly linked to Amazon Alexa or Google Home. Ensure the device names are recognized by the voice assistant.
• No Energy Data: Ensure the device is connected and actively being used. Check the eWeLink app for any error messages or update the app to the latest version.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official SONOFF webസൈറ്റ് സന്ദർശിക്കുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി ബന്ധപ്പെടുക. നിങ്ങൾക്ക് സന്ദർശിക്കാനും കഴിയും SONOFF Store on Amazon കൂടുതൽ ഉൽപ്പന്ന വിവരങ്ങൾക്കും ഉറവിടങ്ങൾക്കും.
