ആമുഖം
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your TAMIYA Neo Fighter Off Road Buggy Kit (DT03 chassis). This 1/10 scale electric kit requires assembly and additional components to be fully operational. Please read this manual thoroughly before beginning assembly or operation to ensure correct procedures and safe use.
Image: The fully assembled TAMIYA Neo Fighter Off Road Buggy Kit DT03, showcasing its white and blue body design and off-road tires.
സുരക്ഷാ വിവരങ്ങൾ
ഉൽപ്പന്നത്തിന് പരിക്കേൽക്കുകയോ കേടുപാടുകൾ സംഭവിക്കുകയോ ചെയ്യാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ എപ്പോഴും പാലിക്കുക:
- This product is a model kit and not a toy. It is intended for adult hobbyists.
- ശ്വാസംമുട്ടൽ ഉണ്ടാകുന്നത് തടയാൻ ചെറിയ ഭാഗങ്ങൾ കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- Always use appropriate tools and wear safety glasses during assembly.
- Ensure all electronic components (battery, motor, ESC, receiver, servo) are correctly connected and insulated to prevent short circuits.
- Operate the RC vehicle in open, safe areas away from people, pets, and obstacles.
- Do not operate near public roads or in wet conditions.
- Disconnect the battery when not in use and store it safely.
പാക്കേജ് ഉള്ളടക്കം
The TAMIYA Neo Fighter Off Road Buggy Kit (DT03) includes the following components:
- DT03 Chassis parts
- Body shell and wing
- ചക്രങ്ങളും ടയറുകളും
- Motor (typically a 540-type brushed motor)
- ഇലക്ട്രോണിക് സ്പീഡ് കണ്ട്രോളർ (ESC)
- Hardware (screws, nuts, washers, bearings)
- ഡെക്കൽ ഷീറ്റ്
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ
Please note: This kit does not include the steering servo, receiver, battery, transmitter, or assembly tools. These items must be purchased separately.
അസംബ്ലിയും സജ്ജീകരണവും
Assembly of the DT03 chassis is a multi-step process. Follow the included pictorial instructions carefully. Key steps include:
- ചേസിസ് നിർമ്മാണം: Assemble the main chassis frame, ensuring all screws are tightened appropriately but not overtightened.
- Gearbox Assembly: Build the differential and gearbox. Apply grease as indicated in the manual to ensure smooth operation.
- സസ്പെൻഷൻ ഇൻസ്റ്റാളേഷൻ: Assemble the front and rear suspension arms, shock absorbers, and attach them to the chassis. Ensure shocks are filled with oil as per instructions.
- സ്റ്റിയറിംഗ് മെക്കാനിസം: Install the steering servo (not included) and connect the steering linkages. Adjust for proper alignment.
- Wheel and Tire Mounting: Mount the tires onto the wheels and attach them to the axles.
- ഇലക്ട്രോണിക്സ് ഇൻസ്റ്റാളേഷൻ: Install the motor, ESC, receiver (not included), and battery (not included). Route wires neatly and securely.
- Body Preparation: Cut out, paint (if desired), and apply decals to the body shell. Mount the body to the chassis.
ചിത്രം: ഒരു ഓവർഹെഡ് view of the TAMIYA DT03 chassis, showing the layout of the battery compartment, motor, and electronic speed controller (ESC) within the frame.

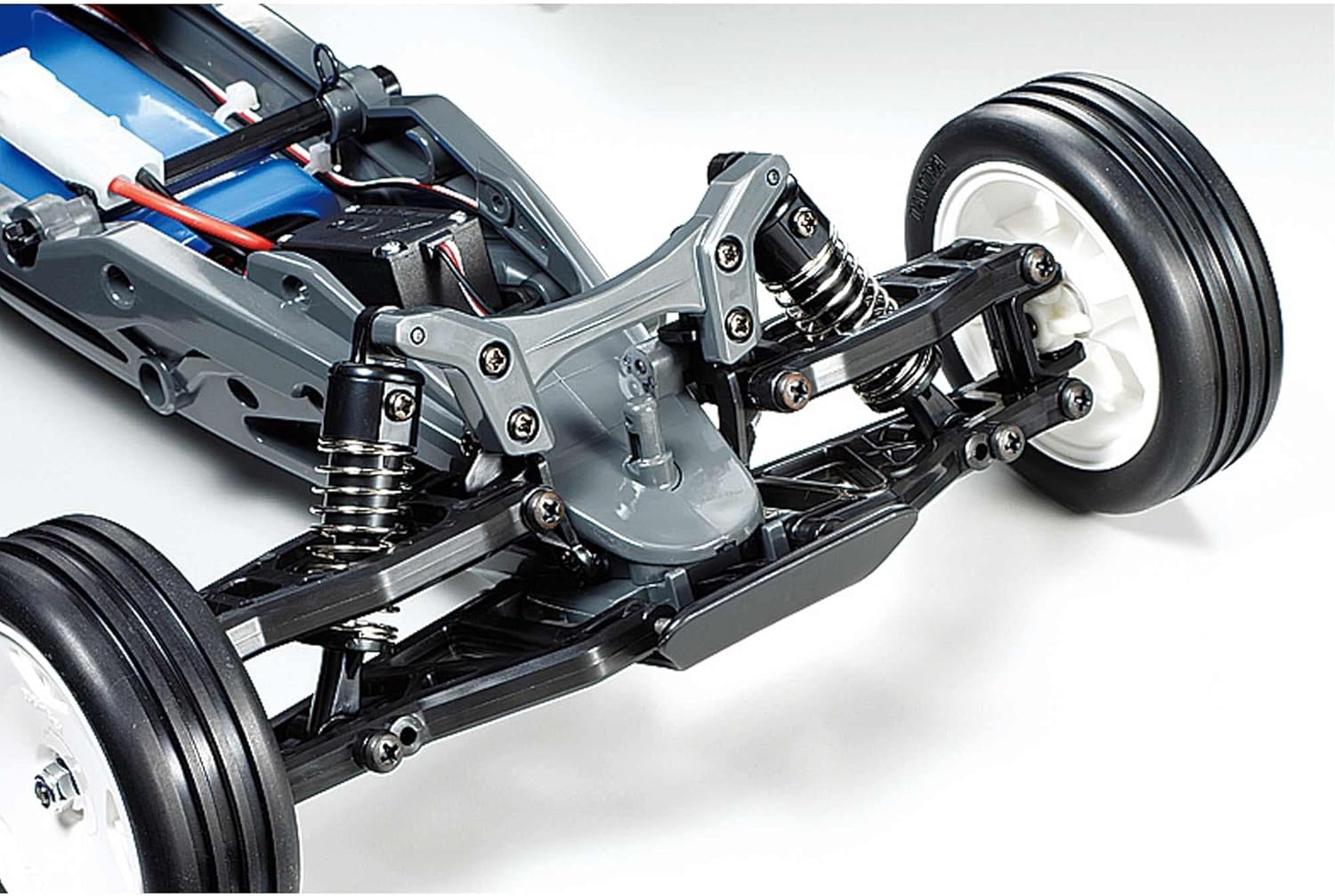

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the front suspension and steering components of the TAMIYA DT03 chassis, highlighting the shock absorbers and control arms.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once assembled and all necessary electronic components are installed and charged, follow these steps for operation:
- ട്രാൻസ്മിറ്റർ സജ്ജീകരണം: Ensure your transmitter (radio controller) is properly bound to the receiver in the buggy and that all trim settings are neutral.
- പവർ ഓൺ സീക്വൻസ്: Turn on the transmitter first, then connect the battery to the ESC in the buggy and turn on the buggy's power switch.
- പ്രവർത്തന പരിശോധന: Before driving, test steering and throttle response. Ensure the steering turns correctly (left for left, right for right) and the throttle provides forward and reverse motion.
- ഡ്രൈവിംഗ്: Start with slow, controlled movements to get accustomed to the buggy's handling. Avoid sudden acceleration or braking.
- പവർ ഓഫ് ക്രമം: Turn off the buggy's power switch first, then turn off the transmitter. Disconnect the battery from the ESC.
Always monitor battery levels and avoid over-discharging LiPo batteries, as this can cause permanent damage.
മെയിൻ്റനൻസ്
Regular maintenance will prolong the life and performance of your TAMIYA Neo Fighter Buggy:
- വൃത്തിയാക്കൽ: After each run, especially off-road, clean dirt and debris from the chassis, suspension, and gearbox area using a soft brush or compressed air.
- പരിശോധന: Regularly check all screws for tightness. Inspect suspension components, drive shafts, and gears for wear or damage.
- ലൂബ്രിക്കേഷൻ: Re-grease gearbox components and lubricate moving parts as recommended in the assembly manual.
- ടയറുകൾ: Check tires for wear and damage. Replace if necessary to maintain optimal traction.
- ഇലക്ട്രോണിക്സ്: എല്ലാ ഇലക്ട്രിക്കൽ കണക്ഷനുകളും സുരക്ഷിതവും നാശത്തിൽ നിന്ന് മുക്തവുമാണെന്ന് ഉറപ്പാക്കുക.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your buggy, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Buggy does not move | Battery discharged, loose connection, ESC not calibrated, motor issue. | Charge battery, check all wiring, recalibrate ESC, inspect motor. |
| No steering response | Servo disconnected/damaged, receiver issue, transmitter battery low. | Check servo connection, replace servo, check receiver, replace transmitter batteries. |
| Buggy runs slowly or intermittently | Low battery, motor overheating, gear mesh too tight, binding in drivetrain. | Charge battery, allow motor to cool, adjust gear mesh, check for obstructions. |
| Unusual noises from gearbox | Damaged gears, insufficient lubrication, foreign object. | Inspect and replace damaged gears, re-lubricate, remove debris. |
സ്പെസിഫിക്കേഷനുകൾ
- മോഡലിൻ്റെ പേര്: Neo Fighter Off Road Buggy Kit
- ചേസിസ് തരം: DT03
- സ്കെയിൽ: 1/10
- ഊർജ്ജ സ്രോതസ്സ്: Electric (requires separate battery)
- ഡ്രൈവ് തരം: 2WD (Rear Wheel Drive)
- നീളം: ഏകദേശം 400 മിമി (15.7 ഇഞ്ച്)
- വീതി: ഏകദേശം 248 മിമി (9.8 ഇഞ്ച്)
- ഉയരം: ഏകദേശം 132 മിമി (5.2 ഇഞ്ച്)
- ഭാരം: Approximately 1000g (2.2 lbs) (without electronics)
- മെറ്റീരിയൽ: Plastic chassis components
- Required for Completion (Not Included): 2-channel RC system (transmitter, receiver), steering servo, 7.2V battery pack, compatible charger, assembly tools, paint for body.
വാറൻ്റിയും പിന്തുണയും
For specific warranty information, please refer to the documentation provided with your purchase or contact the retailer where the kit was acquired. TAMIYA products are known for their quality, and any manufacturing defects should be addressed through the appropriate channels.
For technical support, spare parts, or further inquiries, please visit the official TAMIYA website or contact your local TAMIYA distributor. You can often find detailed parts lists and exploded views on the manufacturer's support pages, which are invaluable for assembly and maintenance.
Official TAMIYA Webസൈറ്റ്: www.tamiya.com
