1. ആമുഖം
This manual provides essential information for the safe and effective operation of your RoofWorld RC Plane SU27 Model HW28. Designed for beginners, this 2-channel remote control glider features an automatic flight stabilization system and durable EPP foam construction. Please read this manual thoroughly before first use.

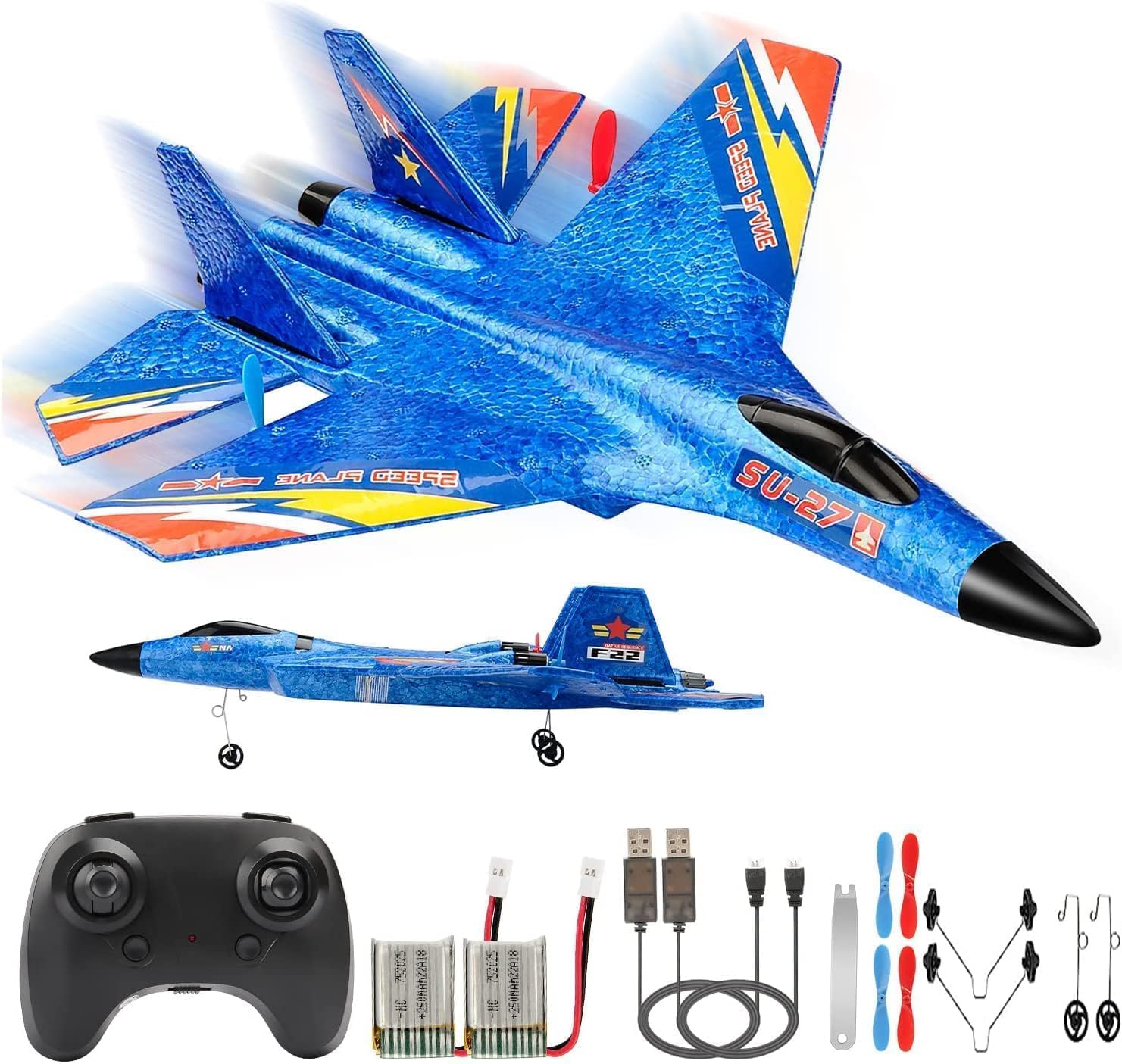

The RoofWorld RC Plane SU27 Model HW28, showcasing its design and included components.
2. ബോക്സിൽ എന്താണുള്ളത്?
അൺബോക്സിംഗ് ചെയ്യുമ്പോൾ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- SU27 RC Plane (main body)
- വിദൂര നിയന്ത്രണ ട്രാൻസ്മിറ്റർ
- 2 x 3.7V 250mAh Aircraft Lithium Batteries
- യുഎസ്ബി ചാർജിംഗ് കേബിൾ
- Spare Propellers (red and blue)
- Landing Gear Set (wheels and support wires)
- പ്രൊപ്പല്ലർ നീക്കംചെയ്യൽ ഉപകരണം
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ
Contents of the RoofWorld RC Plane SU27 package.
3. സജ്ജീകരണം
3.1. അസംബ്ലി
- Tail Installation: Carefully attach the vertical and horizontal tail fins to the designated slots on the aircraft body. Ensure they are securely fitted.
- Landing Gear Mounting: Insert the landing gear wires into the slots on the underside of the plane. The wheels should be facing downwards.
Proper installation of the tail fin.
Attaching the landing gear to the aircraft.
3.2. ബാറ്ററി ഇൻസ്റ്റാളേഷനും ചാർജിംഗും
- Charge Aircraft Battery: Connect the 3.7V 250mAh lithium battery to the USB charging cable. Plug the USB cable into a suitable USB power source (e.g., computer, USB wall adapter). The indicator light on the charger will show charging status. Charge for approximately 50 minutes for a full charge. 2 മണിക്കൂറിൽ കൂടുതൽ ചാർജ് ചെയ്യരുത്.
- എയർക്രാഫ്റ്റ് ബാറ്ററി ഇൻസ്റ്റാൾ ചെയ്യുക: Open the battery compartment on the underside of the plane. Connect the charged battery to the aircraft's power connector. Securely place the battery inside the compartment and close the cover.
- റിമോട്ട് കൺട്രോൾ ബാറ്ററികൾ ഇൻസ്റ്റാൾ ചെയ്യുക: The remote control requires 3 AAA batteries (not included). Open the battery compartment on the back of the remote and insert the batteries, observing correct polarity. Close the cover.
The included 3.7V 250mAh lithium battery.
3.3. വിദൂര നിയന്ത്രണ ജോടിയാക്കൽ
- Ensure the aircraft's battery is installed and the plane's power switch is OFF.
- Turn ON the remote control. The indicator light on the remote will flash.
- Turn ON the aircraft's power switch.
- Move the left joystick (throttle) on the remote control fully UP, then fully DOWN. The indicator lights on both the remote and the aircraft should become solid, indicating successful pairing.
For a visual guide on assembly and pairing, please refer to the video below:
Video demonstrating the assembly and basic flight instructions for the SU-27 RC Plane.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1. ഫ്ലൈറ്റ് പരിസ്ഥിതി
Choose an open area free from obstructions such as trees, buildings, and power lines. Avoid flying in windy conditions; the recommended wind speed is below level 4. A large open field, like a football field, is ideal.
An ideal flight environment for the RC plane.
4.2. ടേക്ക്-ഓഫ് രീതികൾ
The SU27 RC Plane offers two take-off methods:
- Hand Toss: Hold the aircraft at shoulder height, parallel to the ground, with the nose slightly upward. Gently and smoothly throw the plane forward while applying full throttle.
- Ground Take-off: Place the aircraft on a flat, clear surface. Ensure a runway length of at least 10 meters. Apply full throttle and allow the plane to taxi for approximately 10 meters before lifting off.
Visual guide for hand toss and ground take-off.
4.3. ഫ്ലൈറ്റ് നിയന്ത്രണങ്ങൾ
The 2.4GHz remote control allows for precise manipulation of the aircraft:
- ഇടത് ജോയ്സ്റ്റിക്ക് (ത്രോട്ടിൽ): Controls the speed and altitude (up/down).
- വലത് ജോയ്സ്റ്റിക്ക് (ദിശാസൂചന): Controls turning (left/right).
For your first flight, apply throttle to about 30%-40% initially and adjust gently. Avoid immediately setting the throttle to maximum to prevent uncontrolled flight.
വീഡിയോ പ്രദർശനംasing the SU-27 Glider RC Plane in flight, demonstrating its maneuverability.
5. പരിപാലനം
- വൃത്തിയാക്കൽ: Wipe the aircraft body with a soft, dry cloth after use. Avoid using harsh chemicals.
- പ്രൊപ്പല്ലർ മാറ്റിസ്ഥാപിക്കൽ: If a propeller is damaged, use the provided propeller removal tool to carefully detach it. Install a new propeller, ensuring it is securely fastened.
- ബാറ്ററി കെയർ: Always disconnect the battery from the aircraft after use. Store batteries in a cool, dry place. Do not overcharge or over-discharge batteries.
- സംഭരണം: When not in use, store the plane and remote control in their original packaging or a safe, dry place to prevent damage.
The durable EPP material and replaceable propellers contribute to the plane's longevity.
6. പ്രശ്നപരിഹാരം
പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും അറിയാൻ താഴെയുള്ള പട്ടിക കാണുക:
| പ്രശ്നം | കാരണം | പരിഹാരം |
|---|---|---|
| The airplane loses balance and suddenly drops during flight. | 1. Push the throttle lever to the maximum position. 2. Keep pulling the directional lever towards the direction where the airplane is deviating. 3. The direction of pulling the directional lever should be consistent with the direction in which the airplane is deviating. | 1. Accelerate or decelerate in accordance with the flight posture. 2. Gently pull the directional lever. 3. The direction of pulling the directional lever should be opposite to the direction the airplane is deviating. |
| The airplane makes abrupt left or right turns after taking off. | 1. The vertical tail fin is skewed to the left (right). 2. The rotation speed of the left engine is not synchronized with the right engine. | 1. Adjust the tail wing to the right or to the left. 2. Adjust the left or right trimmer, or replace the engine if necessary. |
| The airplane is climbing too slowly. | 1. The battery's got no pep—it's time for a recharge. | 1. Plug in that battery for a power boost. |
7 സ്പെസിഫിക്കേഷനുകൾ
- ഉൽപ്പന്ന അളവുകൾ: 12.6 x 10.04 x 3.54 ഇഞ്ച്
- ഇനത്തിൻ്റെ ഭാരം: 12.8 ഔൺസ്
- ഇനം മോഡൽ നമ്പർ: HW28
- നിർമ്മാതാവ് ശുപാർശ ചെയ്യുന്ന പ്രായം: 14 വർഷവും അതിൽ കൂടുതലും
- ബാറ്ററികൾ: 2 ലിഥിയം പോളിമർ ബാറ്ററികൾ ആവശ്യമാണ് (ഉൾപ്പെടുത്തിയിരിക്കുന്നു)
- നിയന്ത്രണ സംവിധാനം: 2.4GHz, 2 Channels
- മെറ്റീരിയൽ: EPP Foam
- ഫീച്ചറുകൾ: Automatic Balance Gyro, LED Light Bar
Detailed product dimensions of the RC Plane.
8 സുരക്ഷാ വിവരങ്ങൾ
- This product is not a toy. Adult supervision is recommended for users under 14 years of age.
- Always operate in open areas, away from people, animals, and obstacles.
- Do not fly near power lines, roads, or airports.
- ശക്തമായ കാറ്റിലോ പ്രതികൂല കാലാവസ്ഥയിലോ പറക്കുന്നത് ഒഴിവാക്കുക.
- Never touch moving propellers.
- Ensure batteries are charged correctly and not overcharged.
- If the aircraft crashes, inspect for damage before attempting to fly again.
9. വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official RoofWorld webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
