1. ആമുഖം
The CRANACH Swing Bar Door Lock Latch is a security device designed to provide additional reinforcement for inward-swinging doors. It enhances privacy and security for various settings, including homes, hotels, and offices. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new door lock.
Image 1.1: The CRANACH Swing Bar Door Lock Latch, showcasing its robust black finish and design.
2. ഉൽപ്പന്ന സവിശേഷതകൾ
- Thicken Solid Aluminium Alloy: Constructed from premium solid aluminum alloy with a satin nickel finish, ensuring durability and resistance to rust or oxidation.
- Enhanced Home Security: Designed to reinforce inward-swinging doors, providing an additional layer of security against forced entry.
- Child Proof Safety: Can be installed out of children's reach to prevent them from opening doors unsupervised, offering child-safe door security.
- Ventilation and Identification: Allows the door to be opened a few inches for identification or ventilation while maintaining security.
- ഉയർന്ന പ്രതിരോധം: Features an ultra-thick swing arm and solid lock base capable of resisting up to 600 lbs of force.
- Steel Ball Positioning: Unique locking design holds the swing arm in place, preventing it from swinging freely for added security.
- ഗംഭീരമായ ഡിസൈൻ: Countersunk hole design contributes to a noble and elegant appearance, complementing home decor.
- എളുപ്പമുള്ള ഇൻസ്റ്റാളേഷൻ: Designed for quick and straightforward installation with included screws, suitable for most homeowners.
ചിത്രം 2.1: വിശദമായത് view of the lock's upgraded design, highlighting the three gear positions for varied opening needs.
Image 2.2: The versatility of the CRANACH Swing Bar Door Lock, suitable for various rooms and applications.
3. ഉൾപ്പെടുത്തിയിരിക്കുന്ന ഘടകങ്ങൾ
The CRANACH Swing Bar Door Lock Latch package includes the following components:
- 1 x Black Swing Bar Door Lock
- 8 x മൗണ്ടിംഗ് സ്ക്രൂകൾ
- 1 x ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
4 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | മൂല്യം |
|---|---|
| നിർമ്മാതാവ് | ക്രാനാച്ച് |
| ഭാഗം നമ്പർ | CR-MDK |
| ഇനത്തിൻ്റെ ഭാരം | 5.6 ഔൺസ് |
| ഉൽപ്പന്ന അളവുകൾ | 3.78 x 2.5 x 0.9 ഇഞ്ച് |
| ഇനം മോഡൽ നമ്പർ | എച്ച്ആർഡിഎൽ-01 |
| നിറം | കറുപ്പ് |
| ശൈലി | Black Polished -1P |
| മെറ്റീരിയൽ | അലുമിനിയം അലോയ് |
| ഇനത്തിൻ്റെ പാക്കേജ് അളവ് | 1 |
| ബാറ്ററികൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ടോ? | ഇല്ല |
| ബാറ്ററികൾ ആവശ്യമുണ്ടോ? | ഇല്ല |
| ആദ്യ തീയതി ലഭ്യമാണ് | ജൂൺ 15, 2022 |
Image 4.1: Product dimensions for accurate installation planning.
5. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്
The CRANACH Swing Bar Door Lock is designed for easy installation. Please follow these steps carefully for optimal security and function.
പ്രധാന പരിഗണനകൾ:
- This lock is compatible with most wooden doors and molding when the door is flush with the door jamb.
- ഇത് രൂപകൽപ്പന ചെയ്തിരിക്കുന്നത് inward-swinging doors only. Do not attempt to install on outward-swinging doors.
- Ensure there is no significant height difference (greater than 0.4 inches) between the door and the door frame where the lock will be mounted.

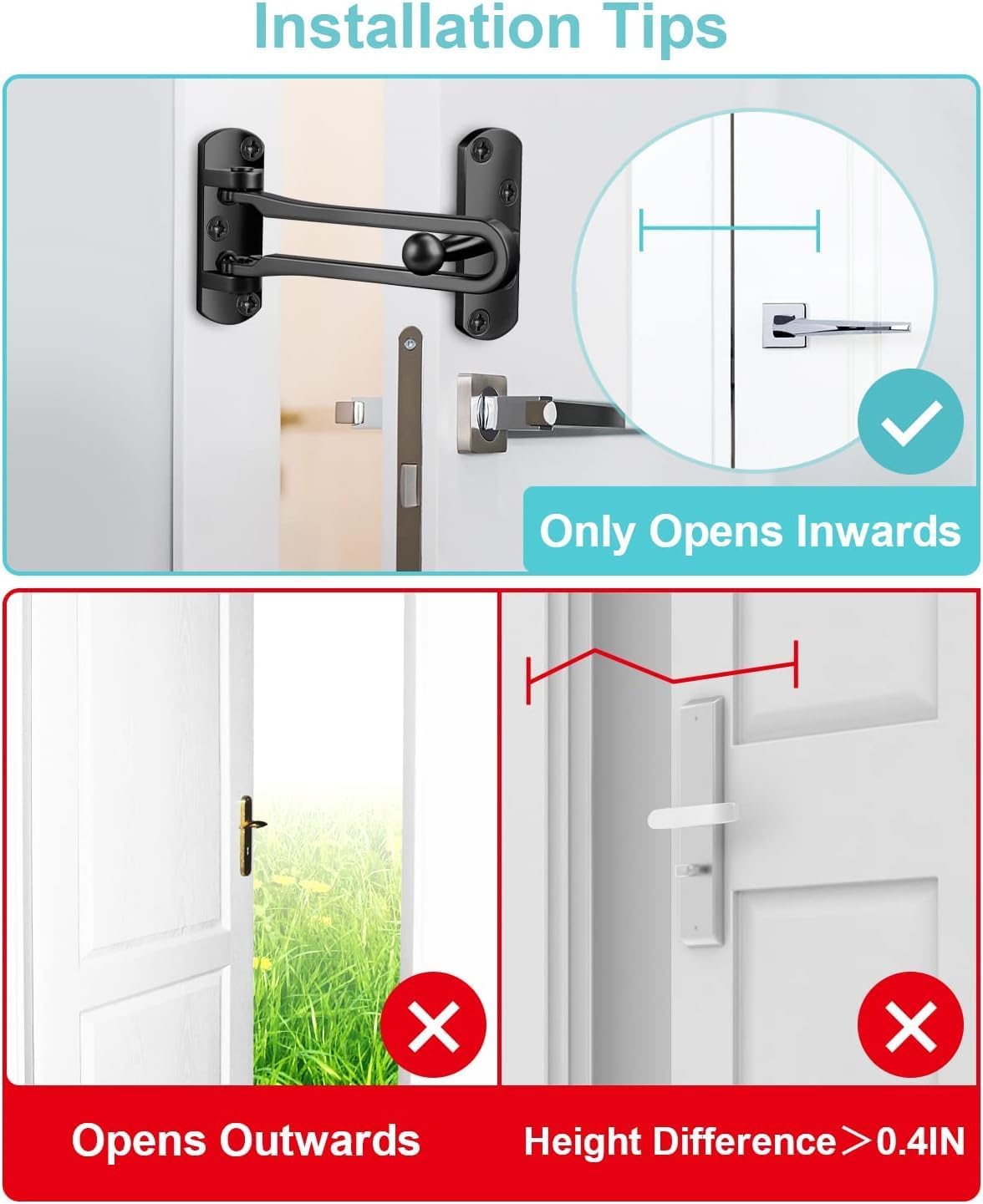

Image 5.1: Key installation tips, emphasizing compatibility with inward-opening doors and proper door frame alignment.
ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:
- Position the Lock: Place the swing bar door lock on the door frame at the desired height. Ensure it is positioned so that the swing arm can freely extend and engage with the door when closed. For child safety, consider installing it out of a child's reach.
- സ്ക്രൂ ദ്വാരങ്ങൾ അടയാളപ്പെടുത്തുക: Using a pencil, mark the locations for the mounting screws through the holes on the lock's base plates.
- ഡ്രിൽ പൈലറ്റ് ദ്വാരങ്ങൾ: Using a drill, create pilot holes at the marked locations. Ensure the drill bit size is appropriate for the included screws to prevent wood splitting.
- ലോക്ക് സുരക്ഷിതമാക്കുക: Align the lock with the pilot holes and use the provided screws to firmly attach the lock to the door frame. Ensure all screws are tightened securely.
Image 5.2: Step-by-step visual guide for installing the CRANACH Swing Bar Door Lock.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Using your CRANACH Swing Bar Door Lock is straightforward:
- ലോക്ക് ചെയ്യാൻ: Close the door completely. Swing the bar arm over the door and slide the ball end into the receiving slot on the base plate. The steel ball positioning feature will hold the arm securely in place.
- അൺലോക്ക് ചെയ്യാൻ: From the inside, simply swing the bar arm away from the door. The lock can be easily disengaged with a simple motion.
- Security Peek/Ventilation: When the door is closed, you can partially open it a few inches while the swing bar is engaged. This allows for identification of visitors or ventilation without fully compromising security.
Image 6.1: Demonstrating the security peek feature, allowing partial door opening for identification or pet interaction.
Child Safety Usage:
When installed at a height inaccessible to children, the lock acts as an effective child-proof safety device, preventing toddlers from opening doors on their own.
Image 6.2: The CRANACH Swing Bar Door Lock effectively prevents young children from opening doors when installed correctly.
7. പരിചരണവും പരിപാലനവും
To ensure the longevity and optimal performance of your CRANACH Swing Bar Door Lock, follow these simple maintenance guidelines:
- വൃത്തിയാക്കൽ: Wipe the lock regularly with a soft, damp cloth to remove dust and grime. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
- ലൂബ്രിക്കേഷൻ: Periodically apply a small amount of silicone-based lubricant to the pivot points of the swing arm to ensure smooth operation.
- സ്ക്രൂവിന്റെ ഇറുകിയത: Occasionally check the mounting screws to ensure they remain tight. Retighten if necessary to maintain secure installation.
- പരിശോധന: Inspect the lock for any signs of wear or damage. If any components appear damaged or loose, contact customer support for assistance.
8. പ്രശ്നപരിഹാരം
If you encounter any issues with your CRANACH Swing Bar Door Lock, refer to the following common problems and solutions:
| പ്രശ്നം | പരിഹാരം |
|---|---|
| Lock feels loose after installation. | Ensure all mounting screws are fully tightened. If the issue persists, check if the pilot holes were drilled too large or if the wood is stripped. Consider using larger screws or wood anchors if necessary. |
| സ്വിംഗ് ആം സുഗമമായി ചലിക്കുന്നില്ല. | Apply a small amount of silicone-based lubricant to the pivot points of the swing arm. Ensure no debris is obstructing the movement. |
| Lock does not engage properly. | Verify that the door is fully closed and flush with the door jamb. Check if the lock was installed at the correct height and alignment. The steel ball positioning should click into place. |
| എന്റെ വാതിലിൽ ഇൻസ്റ്റാൾ ചെയ്യാൻ കഴിയില്ല. | Confirm your door is inward-swinging and that there is no significant height difference between the door and the frame (max 0.4 inches). This lock is not suitable for outward-swinging doors. |
9. വാറൻ്റിയും പിന്തുണയും
CRANACH is committed to providing high-quality products. For any questions, concerns, or support needs regarding your Swing Bar Door Lock Latch, please refer to the following:
- കസ്റ്റമർ സർവീസ്: For direct assistance, please visit the official CRANACH store on Amazon or contact their customer support channels as listed on the product packaging or purchase platform.
- അധിക വിഭവങ്ങൾ: A detailed User Manual in PDF format is available for download. You can typically find this document on the product's Amazon listing page under the 'Product guides and documents' section.
- തിരികെ നൽകൽ നയം: This product is eligible for a 30-day return/replacement policy through Amazon. Please refer to Amazon's return policy for specific details.
Thank you for choosing CRANACH for your home security needs.
