LIORQUE Wireless Weather Station with Outdoor Sensor

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

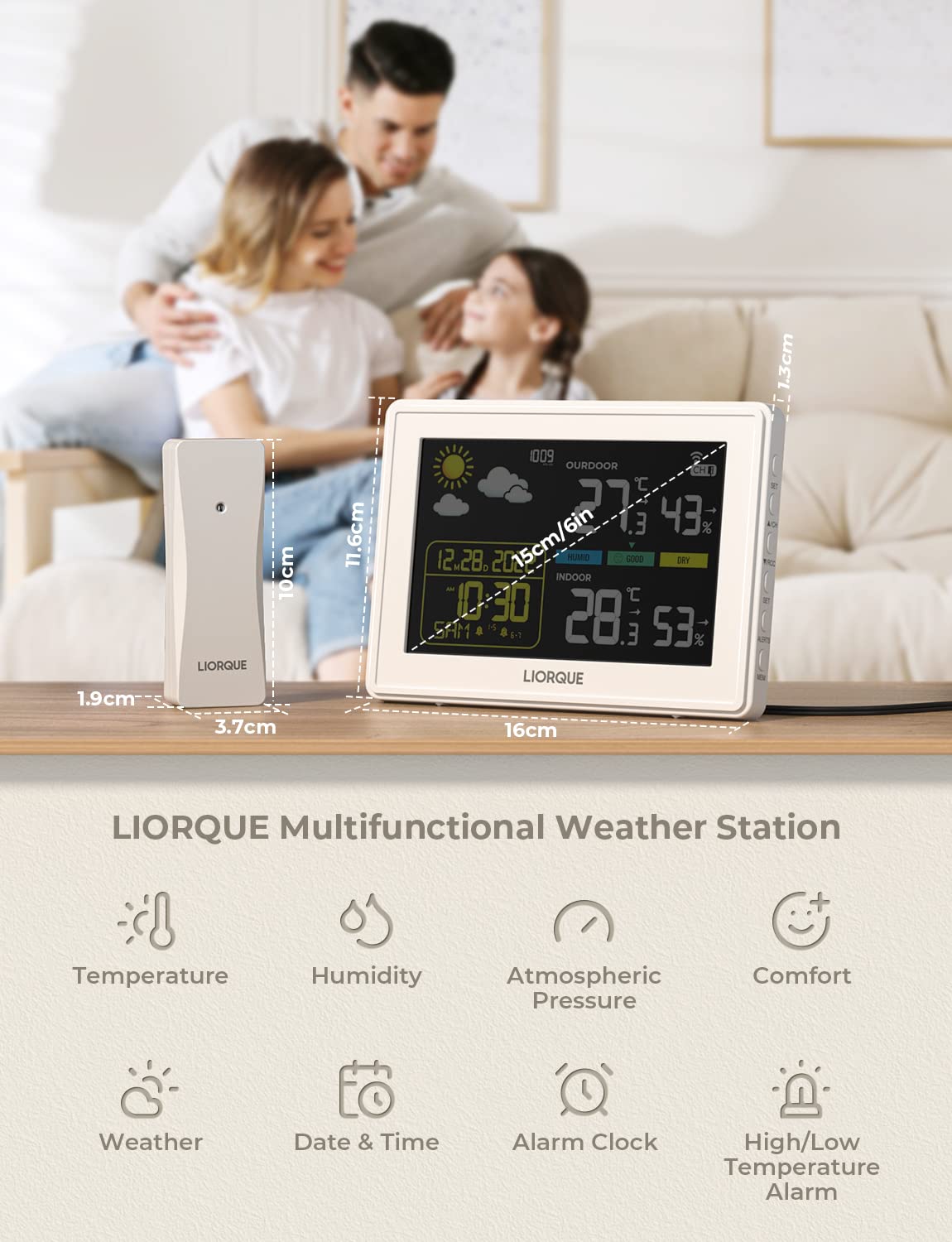

The LIORQUE Wireless Weather Station provides comprehensive indoor and outdoor environmental monitoring. It displays temperature, humidity, atmospheric pressure, and offers a 12-hour weather forecast. Equipped with a DCF radio clock, alarm functions, and a large color display, this device is designed for clear readability and ease of use.

പ്രധാന സവിശേഷതകൾ:

• Indoor and Outdoor Temperature & Humidity Display
• 12-Hour Weather Forecast (Sunny, Sunny to Cloudy, Cloudy, Rain, Snow)
• DCF Radio Controlled Clock with Automatic Time Synchronization
• Dual Alarm Clock with Snooze Function
• Atmospheric Pressure Display (hPa/mb)
• Frost Point Warning and High/Low Temperature Alerts
• Min/Max Temperature and Humidity Records
• Adjustable 5-level Screen Brightness
• Wireless Outdoor Sensor with up to 100m/328ft transmission range

2. പാക്കേജ് ഉള്ളടക്കം

അൺബോക്സിംഗ് ചെയ്യുമ്പോൾ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കാൻ പാക്കേജ് ഉള്ളടക്കങ്ങൾ പരിശോധിക്കുക:

• 1 x LIORQUE Weather Station (Main Unit)
• 1 x വയർലെസ് ഔട്ട്ഡോർ സെൻസർ
• 1 x Power Adapter for Main Unit
• 1 x ഉപയോക്തൃ മാനുവൽ

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

3.1 ഉപകരണങ്ങൾക്ക് പവർ നൽകുന്നു

1. ഔട്ട്‌ഡോർ സെൻസർ: Open the battery compartment on the back of the outdoor sensor. Insert 2 x AA batteries (not included), ensuring correct polarity. Close the compartment.
2. പ്രധാന യൂണിറ്റ്: Connect the provided power adapter to the DC IN port on the back of the main unit and plug it into a power outlet. The display will light up.

3.2 Sensor Pairing and Initial Synchronization

Once both devices are powered, the main unit will automatically search for and connect to the outdoor sensor. The RCC (Radio Controlled Clock) function will also automatically synchronize the local time. This process may take a few minutes.

• Ensure the outdoor sensor is within the 100m/328ft transmission range in an open space.
• For optimal outdoor temperature readings, mount the sensor on a north-facing wall, protected from direct sunlight and rain.
• The weather station can connect to up to 3 outdoor sensors (only 1 included). Use the 'CH' button to switch between channels if multiple sensors are used.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 ഡിസ്പ്ലേ ഘടകങ്ങൾ

4.2 ബട്ടൺ പ്രവർത്തനങ്ങൾ

The main unit features several buttons on the back for configuration and control:

• SET ബട്ടൺ: Short press to cycle through display settings. Press and hold for 3 seconds to enter the main settings menu.
• CH / + Button: Short press to switch between outdoor sensor channels (if multiple sensors are connected). In setting mode, short press to increase values.
• RCC / - Button: Press and hold for 3 seconds to manually initiate RCC time synchronization. In setting mode, short press to decrease values.
• ALERTS Button: ഇതിലേക്ക് ഹ്രസ്വമായി അമർത്തുക view temperature alerts. Press and hold to set high/low temperature alert thresholds.
• MEM ബട്ടൺ: ഇതിലേക്ക് ഹ്രസ്വമായി അമർത്തുക view maximum and minimum recorded temperature and humidity values. Press and hold to clear the recorded max/min values.
• SNOOZE/LIGHT Button (Top): Short press to activate snooze when the alarm sounds (5 minutes duration). Short press to adjust screen brightness (5 levels).

4.3 നിർദ്ദിഷ്ട പ്രവർത്തനങ്ങൾ

• സമയവും തീയതിയും: The DCF radio clock automatically sets the time and date. You can choose between 12/24 hour format and select from 7 weekday languages in the settings.

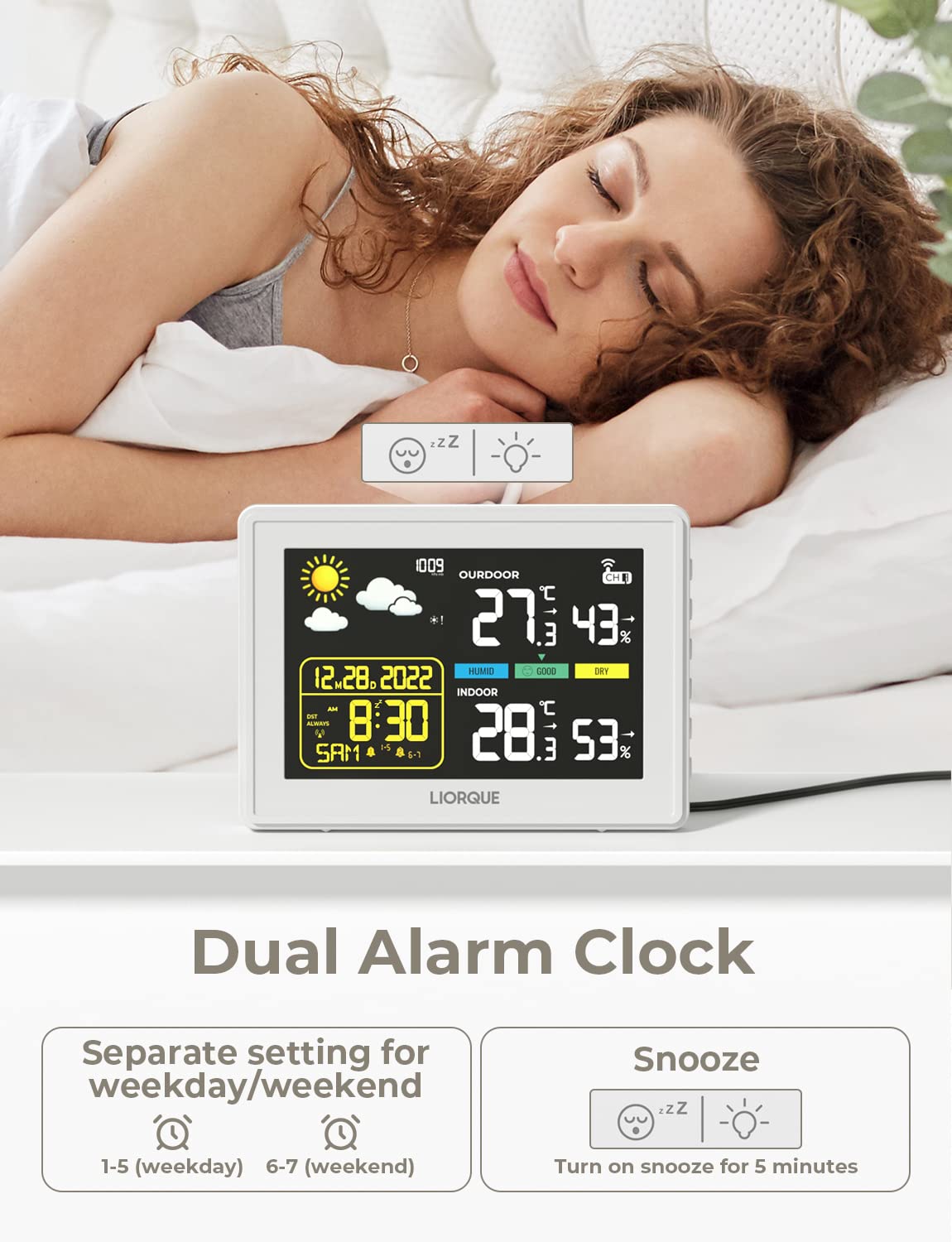

• അലാറം ക്ലോക്ക്: The alarm can be set separately for weekdays (1-5) and weekends (6-7). When the alarm sounds, press the SNOOZE/LIGHT button for a 5-minute snooze.

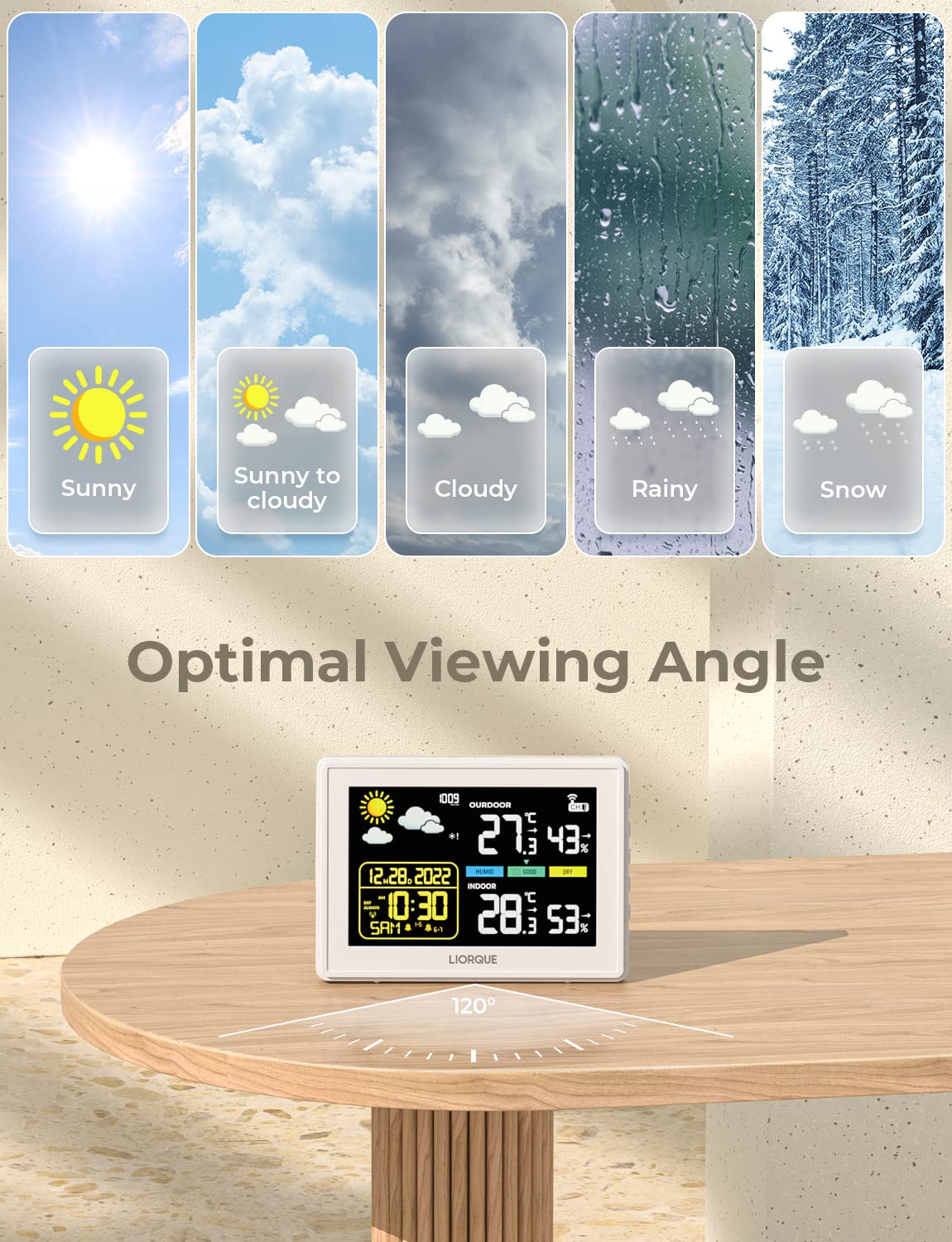

• കാലാവസ്ഥാ പ്രവചനം: The station predicts weather trends for the next 12 hours, displaying icons for Sunny, Sunny to Cloudy, Cloudy, Rain, and Snow.
• Frost Point Warning: An icon will flash when the outdoor temperature is between 0°C and 2.9°C. If the temperature drops below 0°C, the icon remains steadily displayed.
• സ്‌ക്രീൻ തെളിച്ചം: Adjust the display brightness through 5 levels using the SNOOZE/LIGHT button to suit your environment and preference.

5. പരിപാലനം

To ensure the longevity and accurate operation of your LIORQUE Weather Station, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe the main unit and outdoor sensor with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the surfaces.
• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ (ഔട്ട്ഡോർ സെൻസർ): Replace the AA batteries in the outdoor sensor when the low battery indicator appears on the main unit. Ensure to use fresh batteries and dispose of old ones responsibly.
• പ്ലേസ്മെൻ്റ്: Avoid placing the main unit in direct sunlight or near heat sources, as this can affect indoor temperature readings. Ensure the outdoor sensor is protected from extreme weather conditions and direct precipitation.
• സംഭരണം: If storing the device for an extended period, remove batteries from the outdoor sensor.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your weather station, please refer to the following common troubleshooting steps:

• No Outdoor Temperature/Humidity Display:
  • Check if the outdoor sensor batteries are correctly installed or need replacement.
  • Ensure the outdoor sensor is within the transmission range of the main unit. Obstacles like thick walls or electronic interference can reduce range.
  • Try re-pairing the sensor: Remove batteries from both units, wait a few minutes, then reinsert batteries into the sensor first, followed by powering on the main unit.
• തെറ്റായ സമയ പ്രദർശനം:
  • Ensure the main unit is placed in an area with good reception for the DCF signal (away from electronic devices that might cause interference).
  • Manually initiate RCC synchronization by pressing and holding the RCC button.
• Display is Dim or Unresponsive:
  • Ensure the power adapter is securely connected to the main unit and the power outlet.
  • Adjust the screen brightness using the SNOOZE/LIGHT button.
• കൃത്യമല്ലാത്ത വായനകൾ:
  • Ensure both the main unit and outdoor sensor are not exposed to direct sunlight, heat sources, or extreme drafts, which can skew readings.
  • Allow some time for the sensors to stabilize after initial setup or relocation.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

Specific warranty information for the LIORQUE Wireless Weather Station is not provided in the product details. For warranty claims, technical support, or further assistance, please refer to the contact information provided with your purchase or visit the official LIORQUE webസൈറ്റ്.
