Eden 94106 Turbo Oscillating Sprinkler Instruction Manual

ആമുഖം

The Eden 94106 Turbo Oscillating Sprinkler is designed to provide efficient and precise watering for your lawn, garden, and flower beds. Featuring 18 precision nozzles, adjustable range control, and a flow control knob, this sprinkler ensures optimal coverage up to 4,000 sq. ft. (371m²). Its patented turbo drive motor guarantees smooth and quiet operation, while the Quick Connect Starter Set simplifies setup and tool switching.

സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്:

• Do ട്ട്‌ഡോർ ഉപയോഗത്തിന് മാത്രം ഉദ്ദേശിച്ചുള്ളതാണ്.
• Severe electrical shock could result if water is sprayed into outlets or sources of electrical current.
• Do not use water more than 115°F (46°C).
• Do not use when the ambient air temperature is less than 40°F (4.5°C).

പാക്കേജ് ഉള്ളടക്കം

• Eden 94106 Turbo Oscillating Sprinkler
• Quick Connect Starter Set (includes water-stop connector and two product adapters)
• Built-in Nozzle Cleaning Tool

സജ്ജമാക്കുക

1. ജലസ്രോതസ്സുമായി ബന്ധിപ്പിക്കുക: Attach the Quick Connect Starter Set to your garden hose. The water-stop feature allows for easy disconnection without turning off the water supply. Secure the sprinkler by twisting the quick connect until it locks into place.

Figure 1: Quick Connect Starter Set for easy connection and disconnection.

Video: Demonstrates the quick connect feature for attaching the sprinkler to a hose.

2. സ്പ്രിംഗ്ളർ സ്ഥാപിക്കുക: Place the sprinkler on a flat, stable surface in the desired watering area. The weighted base helps keep the sprinkler stable during operation.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Eden 94106 offers precise control over your watering patterns.

1. Adjust Spray Range (Sliding Tabs): Use the red sliding tabs located on the side of the sprinkler to adjust the length of the watering area. Slide them inwards for a shorter, more concentrated spray, or outwards for maximum coverage.

2. Adjust Flow Control: The red flow control knob allows you to regulate the water pressure, which in turn controls the overall watering area and intensity. Turn the knob to increase or decrease water flow as needed.

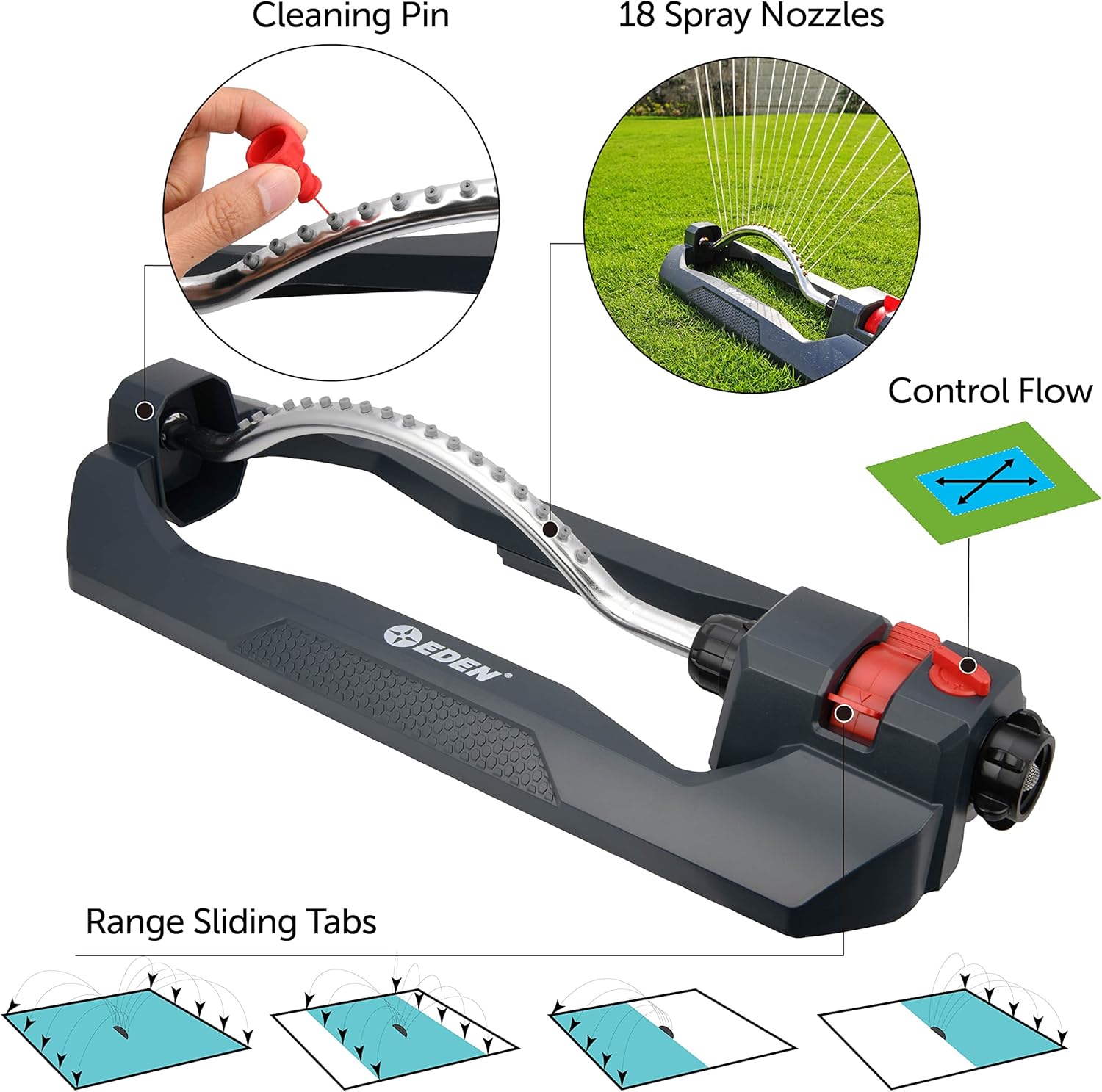

Figure 2: Key features of the Eden 94106 Sprinkler, including range sliding tabs and flow control knob.

Video: Illustrates how to adjust the spray range and flow control on the oscillating sprinkler.

3. Nozzle Control: The sprinkler features 18 precision-drilled nozzles. Individual buttons on the nozzle bar allow you to turn specific nozzles on or off, providing even more customized watering patterns for irregular areas or to avoid watering sidewalks/patios.

Figure 3: The Eden 94106 Sprinkler providing even coverage on a lawn.

മെയിൻ്റനൻസ്

1. ക്ലീനിംഗ് നോസിലുകൾ: The sprinkler includes a built-in cleaning tool located at one end of the sprinkler. Use this tool to clear any clogs from the 18 precision nozzles, ensuring consistent and optimal water flow.

Figure 4: Using the built-in cleaning tool to maintain clear nozzles.

2. ഫിൽട്ടർ വൃത്തിയാക്കൽ: Periodically check and clean the filter located at the hose connection point to prevent debris from entering the sprinkler mechanism and affecting performance.

ട്രബിൾഷൂട്ടിംഗ്

If you experience issues with your Eden 94106 Sprinkler, consider the following:

• Uneven Spray/Low Pressure: Check the nozzles for clogs and use the cleaning tool. Ensure the water flow control knob is fully open if maximum pressure is desired. Verify adequate water pressure from your spigot.
• ചോർച്ച കണക്ഷനുകൾ: Ensure all hose connections are tight. Check the rubber washers in the quick connect and hose fittings for proper seating and damage.
• Sprinkler Movement: Ensure the sprinkler is placed on a flat, stable surface. The weighted base is designed to minimize movement, but extreme water pressure or uneven ground may cause slight shifting.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി & പിന്തുണ

This Eden product comes with a Limited 2-Year Warranty. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Eden webസൈറ്റ്.
