1. ഉൽപ്പന്നം കഴിഞ്ഞുview
This manual provides essential information for the installation, operation, and maintenance of the Astralpool White Flat Grille for Drain Ring. This product is designed as an accessory and replacement part for swimming pool filter, pump, and accessory systems. It serves as a white submersible grille for the drain ring, ensuring proper water flow and preventing debris from entering the drainage system.

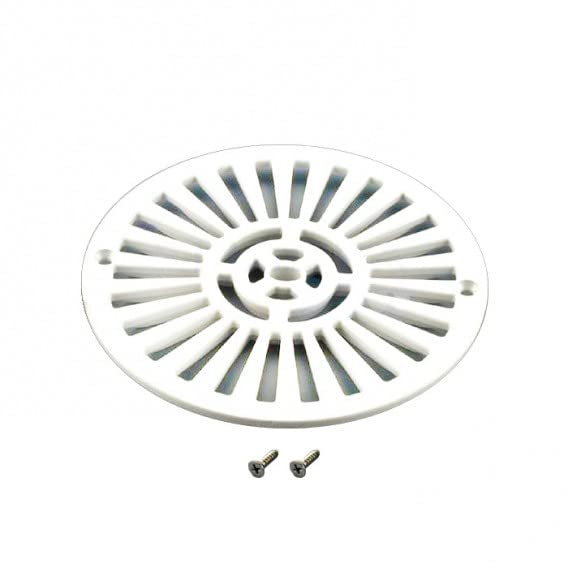

ചിത്രം 1: Astralpool White Flat Grille for Drain Ring. This image shows the circular white grille with radial slots and a central support structure, designed for pool drainage. Two small screws are visible below the grille, indicating the mounting hardware.
2. പാക്കേജ് ഉള്ളടക്കം
Upon opening the package, verify that all components are present and undamaged. The standard package for the Astralpool White Flat Grille for Drain Ring typically includes:
- 1 x Astralpool White Flat Grille for Drain Ring
- Mounting Screws (quantity as required for installation, typically 2)
If any items are missing or damaged, please contact your supplier or Astralpool customer support immediately.
3. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
The Astralpool White Flat Grille is designed for straightforward installation as a replacement or new component in compatible pool drain ring systems.
3.1. തയ്യാറാക്കൽ
- Ensure the pool's filtration system is turned off and any relevant valves are closed to prevent water flow through the drain.
- If replacing an existing grille, carefully remove the old grille and any remaining debris or sealant from the drain ring.
- Clean the area around the drain ring thoroughly to ensure a secure and proper fit for the new grille.
3.2. Grille Placement
- Align the new Astralpool White Flat Grille with the drain ring opening. Ensure the screw holes on the grille align with the corresponding holes on the drain ring.
- Insert the provided mounting screws into the aligned holes.
- Using a suitable screwdriver, carefully tighten the screws. Do not overtighten, as this may damage the grille or the drain ring. Tighten until the grille is firmly secured and flush with the drain ring surface.
After installation, visually inspect the grille to ensure it is properly seated and stable.
4. ഓപ്പറേഷൻ
The Astralpool White Flat Grille is a passive component designed to facilitate water drainage while preventing large debris from entering the pool's filtration system. Once installed, it operates continuously as part of the pool's circulation and drainage system.
- Ensure the grille remains clear of large obstructions to maintain optimal water flow.
- Regularly check the grille for any signs of damage or wear.
5. പരിപാലനം
Regular maintenance of the drain grille is crucial for the efficient operation of your pool's drainage system and to prolong the product's lifespan.
- വൃത്തിയാക്കൽ: Periodically remove any accumulated debris (leaves, hair, etc.) from the surface of the grille. This can be done manually or with a pool cleaning brush.
- പരിശോധന: Regularly inspect the grille for cracks, chips, or loosening of the mounting screws. Damage to the grille can compromise its function and potentially lead to larger debris entering the drain.
- മാറ്റിസ്ഥാപിക്കൽ: If the grille shows significant signs of wear, damage, or becomes brittle, it should be replaced to ensure continued safety and functionality of the pool drainage system.
6. പ്രശ്നപരിഹാരം
This section addresses common issues related to the Astralpool White Flat Grille.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Grille is loose or wobbly. | മൗണ്ടിംഗ് സ്ക്രൂകൾ അയഞ്ഞതോ ഊരിപ്പോയതോ ആണ്. | Tighten the mounting screws. If screws are stripped, replace them with appropriate size screws. If the grille's screw holes are damaged, the grille may need replacement. |
| Water flow through drain is restricted. | Debris accumulated on or under the grille. | Clean the grille surface and remove any debris. Check the drain basket for clogs. |
| Grille is cracked or broken. | Physical impact or material degradation over time. | The grille cannot be repaired and must be replaced with a new Astralpool White Flat Grille for Drain Ring. |
7 സ്പെസിഫിക്കേഷനുകൾ
Technical specifications for the Astralpool White Flat Grille for Drain Ring:
- മോഡൽ നമ്പർ: 8420382102505
- നിർമ്മാതാവ്: ആസ്ട്രൽപൂൾ
- ഉൽപ്പന്ന അളവുകൾ: Approximately 5 x 10 x 20 cm (Length x Width x Height)
- ഭാരം: ഏകദേശം 300 ഗ്രാം
- മെറ്റീരിയൽ: Durable plastic suitable for pool environments
- നിറം: വെള്ള
- അപേക്ഷ: Swimming pool drain ring accessory
8. വാറൻ്റിയും പിന്തുണയും
For information regarding product warranty, returns, or technical support, please refer to the official AstralPool website or contact your authorized AstralPool dealer. Keep your purchase receipt as proof of purchase.
നിർമ്മാതാവ്: ആസ്ട്രൽപൂൾ
Webസൈറ്റ്: www.astralpool.com (Note: This is a generic link, please refer to the specific regional webകൃത്യമായ പിന്തുണാ വിവരങ്ങൾക്കായി സൈറ്റ്.)
