ആമുഖം
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Yokomo BL-RS4 Drift Spec Sensored Brushless Electronic Speed Controller (ESC) and Zero S Drift Spec Motor combo set. This system is designed for high-performance RC drift applications, offering precise control and robust power delivery.
The BL-RS4 ESC comes pre-programmed with a drift-specific setup, providing an expert-level starting point for enthusiasts. Its powerful basic performance can be further optimized using a dedicated programmer (BL-YBP4) or a Wi-Fi module (sold separately). When paired with the color-anodized ZERO-S motor, this combo is fully compatible with the Yokomo YD-2 series chassis, ensuring a coordinated and high-performing setup.

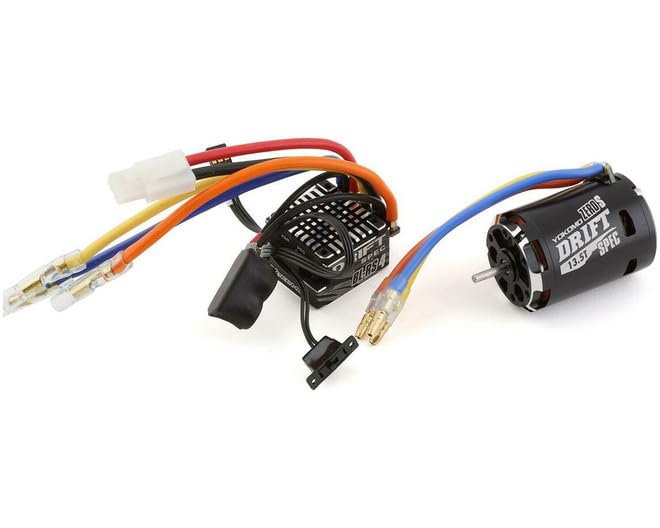

Image: The Yokomo BL-RS4 Drift Spec Sensored Brushless ESC and Zero S Drift Spec Motor combo set. This image displays the compact design of the ESC and the sleek appearance of the motor, highlighting their intended use in RC drift vehicles.
സുരക്ഷാ മുൻകരുതലുകൾ
- Always disconnect the battery from the ESC when not in use to prevent accidental operation and potential damage.
- ഷോർട്ട് സർക്യൂട്ടുകൾ ഒഴിവാക്കാൻ എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
- Operate your RC vehicle in a safe environment, away from people, pets, and obstacles.
- Do not expose the ESC or motor to water or excessive moisture unless specifically designed for waterproof operation.
- Keep hands and loose clothing away from rotating parts of the motor and drivetrain.
- Use only recommended battery types and chargers. Incorrect charging or battery usage can lead to fire or explosion.
- 16 വയസ്സും അതിൽ കൂടുതലുമുള്ള ഉപയോക്താക്കൾക്ക് ഈ ഉൽപ്പന്നം ശുപാർശ ചെയ്യുന്നു. പ്രായം കുറഞ്ഞ ഉപയോക്താക്കൾക്ക് മുതിർന്നവരുടെ മേൽനോട്ടം നിർദ്ദേശിക്കുന്നു.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
1. ESC Mounting
- Choose a location on your chassis that allows for good airflow to the ESC for cooling.
- Secure the ESC using double-sided tape or mounting screws, ensuring it is firmly attached and protected from impacts.
- Avoid mounting the ESC near sources of extreme heat or vibration.
2 മോട്ടോർ കണക്ഷൻ
- Connect the three motor wires from the ESC to the corresponding terminals on the Zero S motor. Ensure correct phase matching (A-A, B-B, C-C). Incorrect connection can damage the ESC or motor.
- Connect the sensor cable from the motor to the sensor port on the ESC. Ensure the connector is fully seated and oriented correctly.
3 ബാറ്ററി കണക്ഷൻ
- Connect the battery connector from the ESC to your compatible RC battery pack. Observe correct polarity: red wire to positive (+), black wire to negative (-). Reverse polarity will cause severe damage.
- പ്രവർത്തനത്തിന് മുമ്പ് ബാറ്ററി പൂർണ്ണമായി ചാർജ്ജ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
4. റിസീവർ കണക്ഷൻ
- Plug the ESC's receiver cable into the throttle channel (usually Channel 2) of your RC receiver.
- Ensure the receiver is properly bound to your transmitter.
5. ESC Calibration
Before first use, the ESC must be calibrated to your radio system's throttle range.
- Turn on your transmitter and ensure the throttle trim is at neutral.
- With the ESC turned off, hold down the ESC's setup button.
- Turn on the ESC while continuing to hold the setup button. Release the button when the LED starts flashing.
- Set the throttle to full forward and press the setup button once.
- Set the throttle to full reverse and press the setup button once.
- Set the throttle to neutral and press the setup button once.
- The ESC will emit a confirmation tone, indicating successful calibration.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
അടിസ്ഥാന പ്രവർത്തനം
- Ensure all connections are secure and the battery is fully charged.
- Turn on your RC transmitter first.
- Turn on the ESC by pressing its power button.
- The ESC will initialize, and you should hear a series of tones.
- Test throttle response gently to ensure proper function before full operation.
- To stop operation, turn off the ESC first, then turn off your transmitter.
Advanced Settings (with optional programmer/Wi-Fi module)
The BL-RS4 ESC allows for advanced parameter adjustments using the optional Yokomo BL-YBP4 programmer or a compatible Wi-Fi module. These tools enable fine-tuning of settings such as:
- ത്രോട്ടിൽ പ്രതികരണം: Adjust punch and acceleration curves.
- ബ്രേക്ക് ഫോഴ്സ്: Modify braking strength and drag brake settings.
- Timing/Boost: Optimize motor timing for increased power or efficiency (use with caution to avoid overheating).
- കുറഞ്ഞ വോളിയംtagഇ കട്ട്ഓഫ്: വോളിയം സജ്ജമാക്കുകtage at which the ESC reduces power to protect your battery.
- റിവേഴ്സ് സ്പീഡ്: Adjust the maximum speed in reverse.
Refer to the specific manual for the BL-YBP4 programmer or Wi-Fi module for detailed instructions on accessing and modifying these settings.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Regularly clean the ESC and motor to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid using solvents or harsh chemicals.
- പരിശോധനകൾ: Periodically inspect all wires and connectors for signs of wear, fraying, or damage. Replace damaged components immediately.
- മോട്ടോർ ബെയറിംഗുകൾ: Check motor bearings for smooth operation. If they feel rough or noisy, they may need lubrication or replacement.
- താപനില നിരീക്ഷണം: Monitor the operating temperature of the ESC and motor during use. Excessive heat can indicate an issue (e.g., incorrect gearing, aggressive timing, or insufficient cooling). Allow components to cool down between runs.
- സംഭരണം: Store the ESC and motor in a dry, cool place away from direct sunlight and extreme temperatures. Disconnect batteries during storage.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ESC പവർ ഓൺ ചെയ്യുന്നില്ല. | Battery not connected, battery discharged, reverse polarity, faulty power switch. | Check battery connection and charge. Verify polarity. Inspect power switch. |
| Motor does not respond to throttle. | ESC not calibrated, receiver not connected, transmitter off, motor wires loose, sensor cable disconnected. | Perform ESC calibration. Check receiver connection. Ensure transmitter is on. Secure motor and sensor wires. |
| Motor runs rough or cogging. | Incorrect motor phase connection, damaged sensor cable, motor timing issues, gearing too high. | Verify motor wire connections. Check sensor cable. Adjust motor timing. Reduce gearing. |
| ESC or motor overheats. | Gearing too high, aggressive timing settings, insufficient airflow, faulty component. | Reduce gearing. Lower timing settings. Improve cooling. Inspect components for damage. |
| Loss of control or erratic behavior. | Radio interference, low battery in transmitter/receiver, loose connections, damaged receiver. | Check radio environment. Charge/replace batteries. Secure all connections. Inspect receiver. |
സ്പെസിഫിക്കേഷനുകൾ
| ഘടകം | സ്പെസിഫിക്കേഷൻ |
|---|---|
| മോഡലിൻ്റെ പേര് | BL-RS4 Drift Spec Sensored Brushless ESC / Zero S Drift Spec Motor |
| ഉൽപ്പന്ന കോഡ് | YOKBL-R4135DBA |
| ESC തരം | സെൻസർ ചെയ്ത ബ്രഷ്ലെസ് |
| മോട്ടോർ തരം | Sensored Brushless (Zero S Drift Spec) |
| അനുയോജ്യത | Yokomo YD-2 series chassis (recommended) |
| ശുപാർശ ചെയ്യുന്ന പ്രായം | 16 വർഷവും അതിൽ കൂടുതലും |
| ഓപ്ഷണൽ ആക്സസറികൾ | BL-YBP4 Programmer, Wi-Fi Module |
വാറൻ്റിയും പിന്തുണയും
Yokomo products are manufactured to high standards of quality and performance. This product is covered by a limited warranty against manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims.
ഇനിപ്പറയുന്ന കാരണങ്ങളാൽ ഉണ്ടാകുന്ന നാശനഷ്ടങ്ങൾ വാറൻ്റി കവർ ചെയ്യുന്നില്ല:
- Improper installation or setup.
- ദുരുപയോഗം, ദുരുപയോഗം അല്ലെങ്കിൽ അശ്രദ്ധ.
- അനധികൃത പരിഷ്കാരങ്ങൾ അല്ലെങ്കിൽ അറ്റകുറ്റപ്പണികൾ.
- Operating outside of specified parameters.
- സാധാരണ തേയ്മാനം.
For technical support, spare parts, or warranty inquiries, please contact your local Yokomo dealer or visit the official Yokomo website. Provide your product model number (YOKBL-R4135DBA) and a detailed description of the issue when seeking support.
Official Yokomo Webസൈറ്റ്: www.teamyokomo.com
