SVANTTO Portable Monitor IPM01 User Manual

1. ആമുഖം

The SVANTTO IPM01 Portable Monitor is a 15.6-inch Full HD (1080P) display designed to extend your screen real estate and enhance productivity or entertainment on the go. Featuring 400 Nits brightness, 100% sRGB color reproduction, and a 178° IPS viewing angle, it delivers a vibrant and immersive visual experience. Its slim and lightweight design makes it an ideal companion for laptops, PCs, gaming consoles, and mobile devices.

2. ബോക്സിൽ എന്താണുള്ളത്?

Upon unboxing your SVANTTO IPM01 Portable Monitor, please ensure all the following items are present:

• SVANTTO IPM01 പോർട്ടബിൾ മോണിറ്റർ
• USB-C to USB-C Cable (Full-function)
• HDMI to Mini-HDMI Cable
• USB-A മുതൽ USB-C കേബിൾ വരെ (പവറിനായി)
• Power Adapter (Wall Wart)
• User Manual (Printed Guide)
• Screen Protector Kit (Wipes)

Figure 2.1: Included accessories with the SVANTTO IPM01 Portable Monitor.

3. സജ്ജീകരണവും കണക്ഷനുകളും

The SVANTTO IPM01 monitor offers versatile connectivity options for various devices. Ensure your device supports video output via USB-C (DisplayPort Alternate Mode) or HDMI.

3.1 Connecting via USB-C (Single Cable Solution)

For devices with a full-function USB-C port (supporting both video and power delivery), a single USB-C to USB-C cable is sufficient for both display and power.

1. Connect one end of the provided USB-C to USB-C cable to the monitor's USB-C port.
2. Connect the other end to your device's full-function USB-C port.
3. മോണിറ്റർ സ്വയമേവ സിഗ്നൽ കണ്ടെത്തി പവർ ഓൺ ചെയ്യണം.

3.2 Connecting via HDMI (with External Power)

For devices with an HDMI output, you will need to provide external power to the monitor.

1. Connect one end of the provided HDMI to Mini-HDMI cable to the monitor's Mini-HDMI port.
2. Connect the other end of the HDMI cable to your device's HDMI port.
3. Connect the provided USB-A to USB-C cable to the monitor's second USB-C port (for power).
4. Plug the USB-A end of the cable into the power adapter and then into a power outlet.
5. The monitor should power on and display the signal.

Figure 3.1: SVANTTO Portable Monitor connected and in use.

3.3 ഔദ്യോഗിക ഉൽപ്പന്നം അവസാനിച്ചുview വീഡിയോ

വീഡിയോ 3.1: ഒരു ഉദ്യോഗസ്ഥൻview of the SVANTTO IPM01 Portable Monitor, showcasing its features and portability.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 ഡിസ്പ്ലേ മോഡുകൾ

The monitor supports both mirror and split-screen modes, allowing you to duplicate your primary display or extend it for increased workspace.

• മിറർ മോഡ്: Duplicates the content of your primary display onto the portable monitor.
• Split Screen (Extend) Mode: Extends your desktop, allowing you to drag windows between your primary display and the portable monitor.

These modes are typically configured through your device's display settings (e.g., Windows Display Settings, macOS System Preferences).

Figure 4.1: The monitor supports both landscape and portrait orientations for flexible use.

4.2 ഓൺ-സ്ക്രീൻ ഡിസ്പ്ലേ (OSD) മെനു

The OSD menu allows you to adjust various display settings. Typically, buttons on the side or back of the monitor control navigation and selection within the OSD.

• തെളിച്ചം/തീവ്രത: ഡിസ്പ്ലേയുടെ മൊത്തത്തിലുള്ള പ്രകാശവും കോൺട്രാസ്റ്റും ക്രമീകരിക്കുക.
• വർണ്ണ ക്രമീകരണങ്ങൾ: വർണ്ണ താപനില, നിറം, സാച്ചുറേഷൻ എന്നിവ സൂക്ഷ്മമായി ക്രമീകരിക്കുക.
• ഇൻപുട്ട് ഉറവിടം: Manually select the input source (USB-C or HDMI) if auto-detection fails.
• ഓഡിയോ: Control volume for the built-in speakers.

5 പ്രധാന സവിശേഷതകൾ

5.1 Ultimate Picture Experience

The SVANTTO IPM01 features a 15.6-inch FHD (1920x1080P) IPS panel with 400 Nits high brightness and 100% sRGB color reproduction. This ensures vivid colors, sharp details, and a wide 178° viewing angle, making it ideal for various applications from professional work to multimedia consumption. HDR support further enhances picture quality by providing more realistic colors and stunning visuals.

Figure 5.1: High-quality display features for an optimal viewഅനുഭവം.

5.2 Slim and Portable Design

Designed for portability, the IPM01 is exceptionally thin and lightweight, making it easy to carry in your bag. Its elegant space silver color and delicate polishing process provide a premium feel.

Figure 5.2: The monitor's ultra-thin and lightweight profile.

5.3 വൈഡ് കോംപാറ്റിബിലിറ്റി

The monitor offers broad compatibility with a variety of devices, including laptops, PCs, smartphones, MacBooks, PS4, Xbox, and Nintendo Switch. Its dual full-function USB-C ports and HDMI port ensure flexible connection options for almost any setup.

Figure 5.3: Broad device compatibility for diverse usage scenarios.

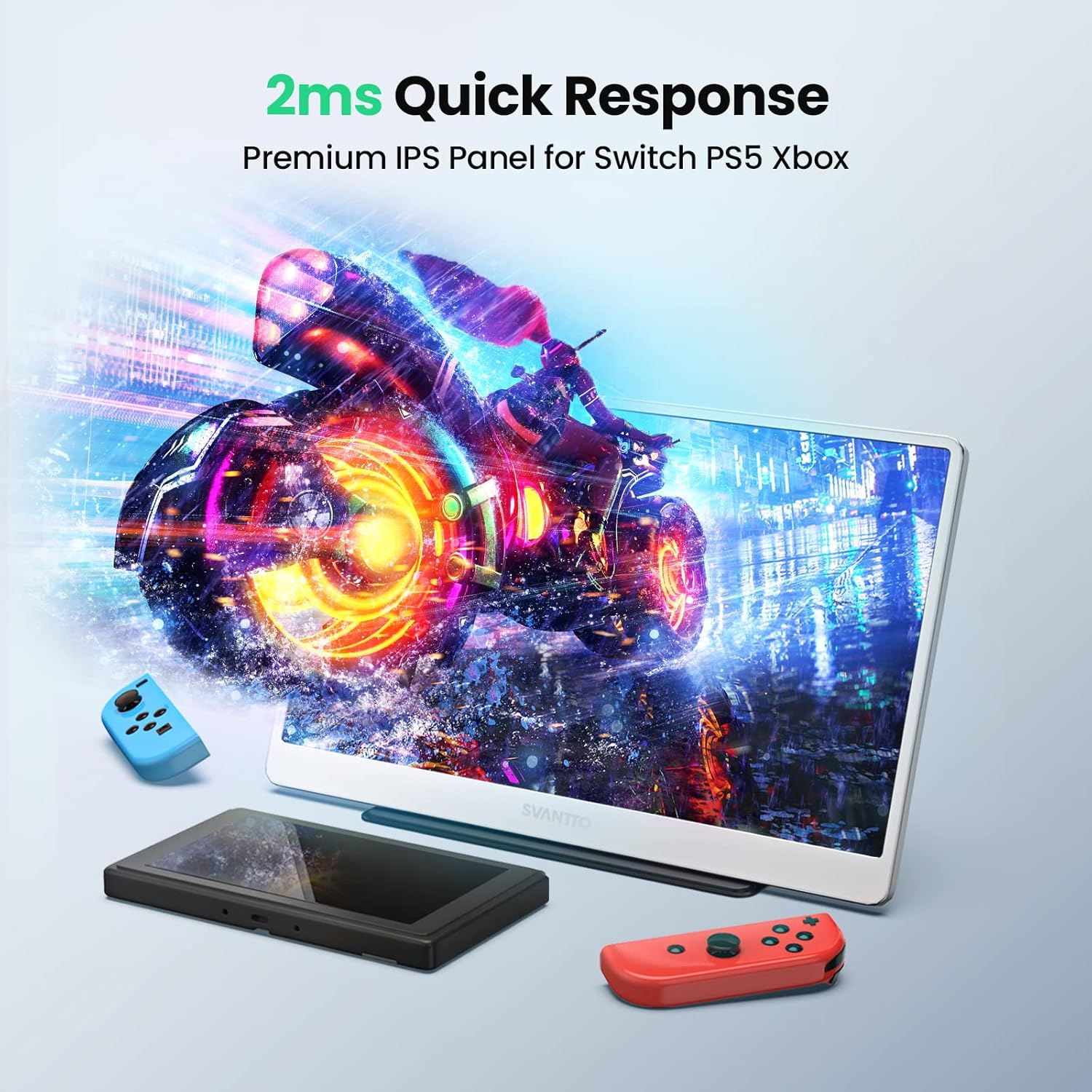

5.4 Enhanced Gaming Experience

With a 2ms quick response time and AMD FreeSync technology, the IPM01 provides smooth, tear-free visuals, making it an excellent choice for gaming on consoles or PCs.

Figure 5.4: Optimized for gaming with fast response times.

6 സ്പെസിഫിക്കേഷനുകൾ

7. പരിപാലനം

To ensure the longevity and optimal performance of your SVANTTO Portable Monitor, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: സ്‌ക്രീൻ മൃദുവായി തുടയ്ക്കാൻ മൃദുവായ, ലിന്റ് രഹിത തുണി ഉപയോഗിക്കുക. കഠിനമായ കറകൾക്ക്, ചെറുതായി dampen the cloth with water or a screen-cleaning solution. Avoid harsh chemicals, abrasive materials, or direct spraying onto the screen.
• കൈകാര്യം ചെയ്യൽ: Always handle the monitor with care. Avoid dropping it or subjecting it to strong impacts. When transporting, use the protective cover to prevent scratches and damage.
• സംഭരണം: Store the monitor in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
• കേബിളുകൾ: Ensure cables are not bent sharply or tangled, as this can damage the internal wires.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your SVANTTO Portable Monitor, refer to the following common troubleshooting steps:

8.1 സിഗ്നൽ ഇല്ല / ബ്ലാക്ക് സ്ക്രീൻ

• കണക്ഷനുകൾ പരിശോധിക്കുക: എല്ലാ കേബിളുകളും (USB-C, HDMI, പവർ) മോണിറ്ററിലേക്കും നിങ്ങളുടെ ഉപകരണത്തിലേക്കും സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• വൈദ്യുതി വിതരണം: If using HDMI, confirm the monitor is receiving adequate power from the power adapter. Insufficient power can lead to screen flickering or no display.
• ഇൻപുട്ട് ഉറവിടം: Verify that the correct input source is selected on the monitor via the OSD menu.
• ഉപകരണ ഔട്ട്പുട്ട്: Confirm your source device (laptop, console, etc.) is configured to output video to an external display. Try restarting your source device.

8.2 സ്ക്രീൻ മിന്നിമറയൽ അല്ലെങ്കിൽ അസ്ഥിരത

• ശക്തി: This is often due to insufficient power. Ensure the monitor is connected to a stable power source, especially when using HDMI. If using USB-C, ensure your device's USB-C port provides enough power or connect the external power adapter.
• കേബിൾ നിലവാരം: Use the provided cables or high-quality certified cables to ensure stable signal transmission.
• പുതുക്കൽ നിരക്ക്: Check your device's display settings to ensure the refresh rate is compatible with the monitor's capabilities.

8.3 ഓഡിയോ ഇല്ല

• വോളിയം: Check the monitor's volume settings in the OSD menu and your device's audio output settings.
• Putട്ട്പുട്ട് ഉപകരണം: Ensure the SVANTTO monitor is selected as the audio output device on your computer or console.

8.4 Physical Screen Damage (e.g., lines, discoloration)

If the screen displays lines, discoloration, or other physical damage not caused by external impact, this may indicate an internal panel issue. As noted in some user experiences, such issues can occur over time. If this happens, please refer to the warranty and support section for assistance.

Video 8.1: A user demonstrating screen discoloration and lines after extended use, highlighting a potential issue that may require warranty support.

9. വാറൻ്റിയും പിന്തുണയും

SVANTTO provides 18 months of product protection for your IPM01 Portable Monitor. For any technical assistance, product inquiries, or warranty claims, please contact SVANTTO customer support.

ഉപഭോക്തൃ പിന്തുണ: SVANTTO offers 24-hour America time tech support to assist you with any issues or questions you may have.

For additional resources, you may also refer to the official user manual PDF available online: SVANTTO IPM01 User Manual (PDF)
