EMKE Hot Water Towel Dryer Instruction Manual

1. ആമുഖം

This manual provides comprehensive instructions for the installation, operation, and maintenance of your EMKE Hot Water Towel Dryer. Please read this manual thoroughly before installation and use to ensure safe and efficient operation. Keep this manual for future reference.

The EMKE Hot Water Towel Dryer is designed to provide efficient heating for your bathroom and to dry towels, enhancing comfort and hygiene. This model features a robust steel construction and a modern anthracite finish, operating on a hot water heating system.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Failure to follow these safety instructions could result in fire, electric shock, injury, or property damage.

• Installation must be performed by a qualified professional in accordance with local building and plumbing codes.
• Ensure the heating system is completely drained and depressurized before attempting any installation or maintenance.
• Do not operate the towel dryer if it is damaged or leaking.
• The surface of the towel dryer can become hot during operation. Avoid prolonged direct contact to prevent burns.
• Keep children and pets away from the appliance when it is in use.
• Do not hang excessively heavy items on the towel dryer, as this may compromise its stability or damage the unit.
• Ensure proper ventilation in the room where the towel dryer is installed.
• This appliance is designed for hot water heating systems only. Do not connect to an electrical supply unless specifically designed for electric operation (this model is hot water).

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1 പ്രധാന സവിശേഷതകൾ

• കാര്യക്ഷമമായ ചൂടാക്കൽ: 838W power output, suitable for areas up to 8 m².
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made from premium steel with integral welding for robustness and excellent thermal conduction.
• നാശ സംരക്ഷണം: Special coating protects against corrosion and water leaks, ideal for humid bathroom environments.
• സ്പേസ് സേവിംഗ് ഡിസൈൻ: Wall-mounted design optimizes bathroom space.
• ഫ്ലെക്സിബിൾ ഇൻസ്റ്റലേഷൻ: Can be installed inverted and connected from either the left or right side.
• സ്റ്റാൻഡേർഡ് കണക്ഷൻ: G1/2" thread with a 50 mm pitch.

3.2 ഉൽപ്പന്ന ഘടകങ്ങൾ

The EMKE Hot Water Towel Dryer consists of a series of horizontal heating bars connected to vertical manifolds. It is designed for integration into your existing hot water central heating system.

Figure 1: EMKE Hot Water Towel Dryer in Anthracite, wall-mounted in a bathroom setting.

Figure 2: Diagram illustrating the multifunctionality of the towel dryer, highlighting low energy consumption, rapid heating, and bacterial growth reduction.

ചിത്രം 3: ക്രോസ്-സെക്ഷൻ view detailing the high-quality construction, including environmental coating, low-carbon SPCC steel (1.5mm thickness), and a corrosion protection layer.

3.3 ഉൽപ്പന്ന വീഡിയോ

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

കുറിപ്പ്: Installation should only be carried out by a qualified professional. Ensure all necessary tools and safety equipment are available before beginning.

4.1 അൺപാക്കിംഗും പരിശോധനയും

• Carefully unpack the towel dryer and all components.
• Inspect for any signs of damage during transit. If damaged, do not proceed with installation and contact customer support.
• Verify all accessories are present as per the packing list.

Figure 4: Illustration of included accessories (wall mounts, expansion screws, long screws, small screws) and the four-layer reinforced packaging for safe transport. Note: The valve is not included and must be purchased separately.

4.2 മ ing ണ്ടിംഗ് സ്ഥാനം

• Choose a suitable wall location in your bathroom, ensuring sufficient space around the unit for heat circulation and towel hanging.
• The wall must be capable of supporting the weight of the towel dryer when filled with water.
• Ensure the chosen location allows for easy connection to your hot water heating system pipes.

4.3 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. അടയാളപ്പെടുത്തൽ: Use the provided template (if any) or measure carefully to mark the drilling points for the wall brackets. The adjustable wall distance is between 99-115 mm from the wall to the outer edge of the radiator.
2. ഡ്രില്ലിംഗ്: Drill holes at the marked points and insert the expansion screws.
3. മൗണ്ടിംഗ് ബ്രാക്കറ്റുകൾ: Secure the wall mounting brackets using the long screws.
4. ബന്ധിപ്പിക്കുന്ന പൈപ്പുകൾ: Connect the towel dryer to your hot water system pipes. The connection method allows for installation in an inverted position and connection from either the left or right side. The thread is G1/2" with a 50 mm pitch.
5. Securing the Radiator: Carefully place the towel dryer onto the mounted brackets and secure it with the small screws.
6. നിറയലും രക്തസ്രാവവും: Once connected, slowly fill the heating system and bleed any air from the towel dryer using the bleed valve (not included, typically part of the heating system or purchased separately).
7. ചോർച്ച പരിശോധന: ചോർച്ചയ്ക്കായി എല്ലാ കണക്ഷനുകളും പരിശോധിക്കുക.

ചിത്രം 5: വിശദമായി view of the adjustable wall distance (99-115mm) and the G1/2" connection with a 50mm pitch, indicating the hot water energy type and high thermal conductivity.

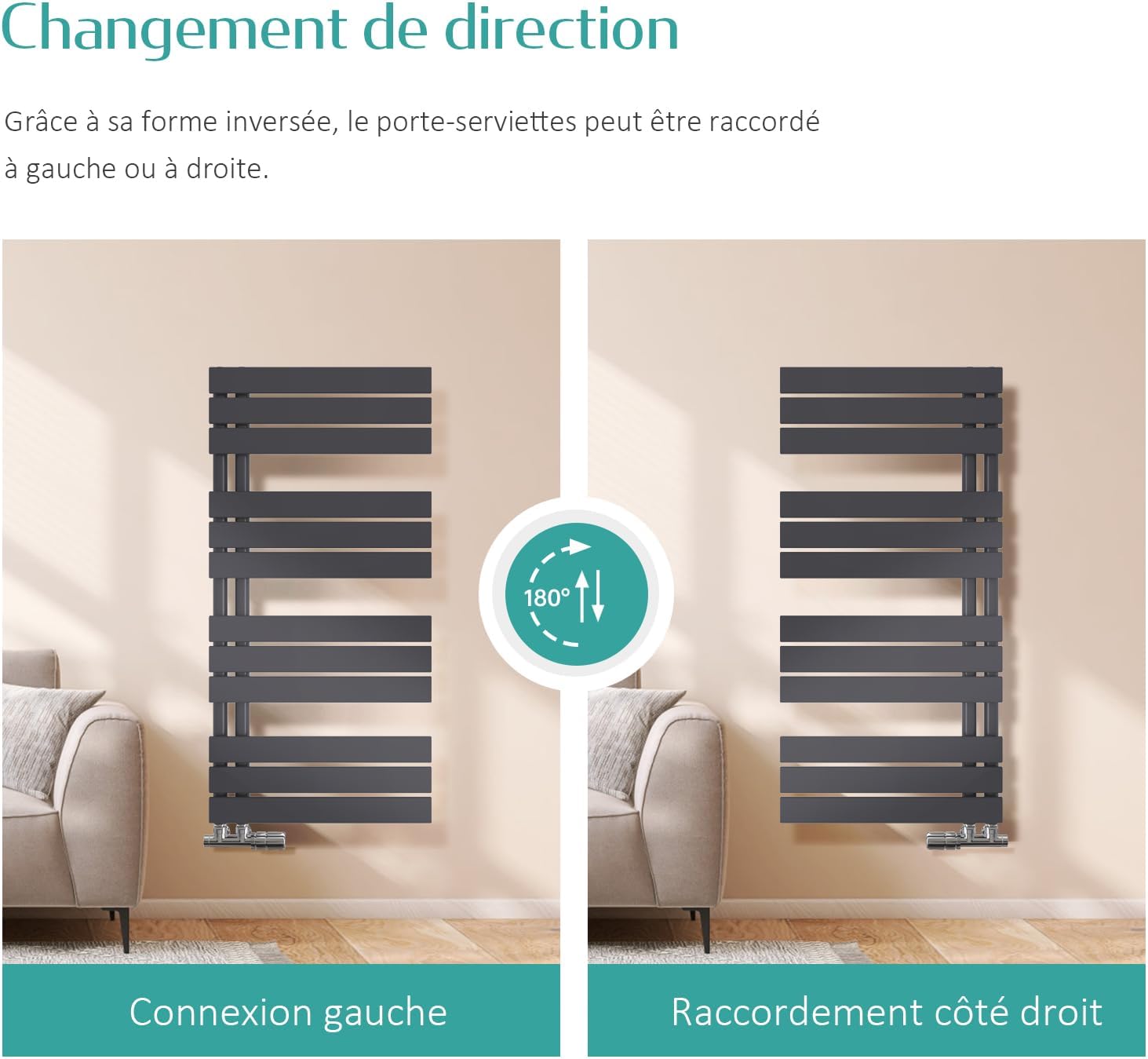

Figure 6: Illustration showing the flexibility of installation, allowing for both left and right side connections by inverting the radiator.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The EMKE Hot Water Towel Dryer operates as part of your central hot water heating system. Its operation is typically controlled by your home's thermostat and the flow of hot water through the system.

• സജീവമാക്കൽ: The towel dryer will heat up when hot water circulates through your central heating system. Ensure your central heating system is turned on and functioning correctly.
• താപനില നിയന്ത്രണം: The temperature of the towel dryer is regulated by the temperature of the hot water in your heating system and your home's thermostat settings. Individual temperature control for the towel dryer itself is not applicable for this hot water model, unless an additional thermostatic radiator valve (TRV) is installed (not included).
• Towel Drying: Hang towels evenly over the bars to allow for efficient drying and heat distribution. Avoid overcrowding the dryer.

Figure 7: Visual representation of the towel dryer's heating power and uniform heat diffusion, ensuring effective warming of the bathroom and towels.

6. പരിപാലനം

6.1 വൃത്തിയാക്കൽ

• Ensure the towel dryer is cool before cleaning.
• മൃദുവായ, ഡി ഉപയോഗിച്ച് ഉപരിതലം തുടയ്ക്കുകamp തുണി.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and corrosion protection layer.
• വെള്ളം കെട്ടിനിൽക്കുന്നത് തടയാൻ വൃത്തിയാക്കിയ ശേഷം ഉപരിതലം നന്നായി ഉണക്കുക.

6.2 സിസ്റ്റം പരിശോധനകൾ

• Periodically check the system pressure of your central heating system.
• Bleed the towel dryer annually, or if you notice cold spots, to remove any trapped air that can reduce heating efficiency.
• Inspect connections for any signs of leaks or corrosion. Address any issues promptly.

7. പ്രശ്‌നപരിഹാരം

8 സ്പെസിഫിക്കേഷനുകൾ

Figure 8: Technical diagram showing dimensions (height, width) and a table listing output power and applicable area for various sizes of EMKE towel dryers.

9. വാറൻ്റിയും പിന്തുണയും

Specific warranty details are not provided in the product information. Please refer to the retailer or manufacturer's official webഏറ്റവും കാലികമായ വാറന്റി നയത്തിനായുള്ള സൈറ്റ്.

For technical support, spare parts, or further inquiries, please contact EMKE customer service through their official channels or visit their brand store:

Visit the EMKE Brand Store
