Nitecore HLB1500 USB-C Rechargeable Battery Pack User Manual

ആമുഖം

This manual provides essential information for the safe and effective use of your Nitecore HLB1500 USB-C Rechargeable Battery Pack. Please read this manual thoroughly before operation and retain it for future reference.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Nitecore HLB1500 is a high-capacity rechargeable Li-ion battery pack designed to power compatible Nitecore devices, offering extended runtime and convenient USB-C charging.

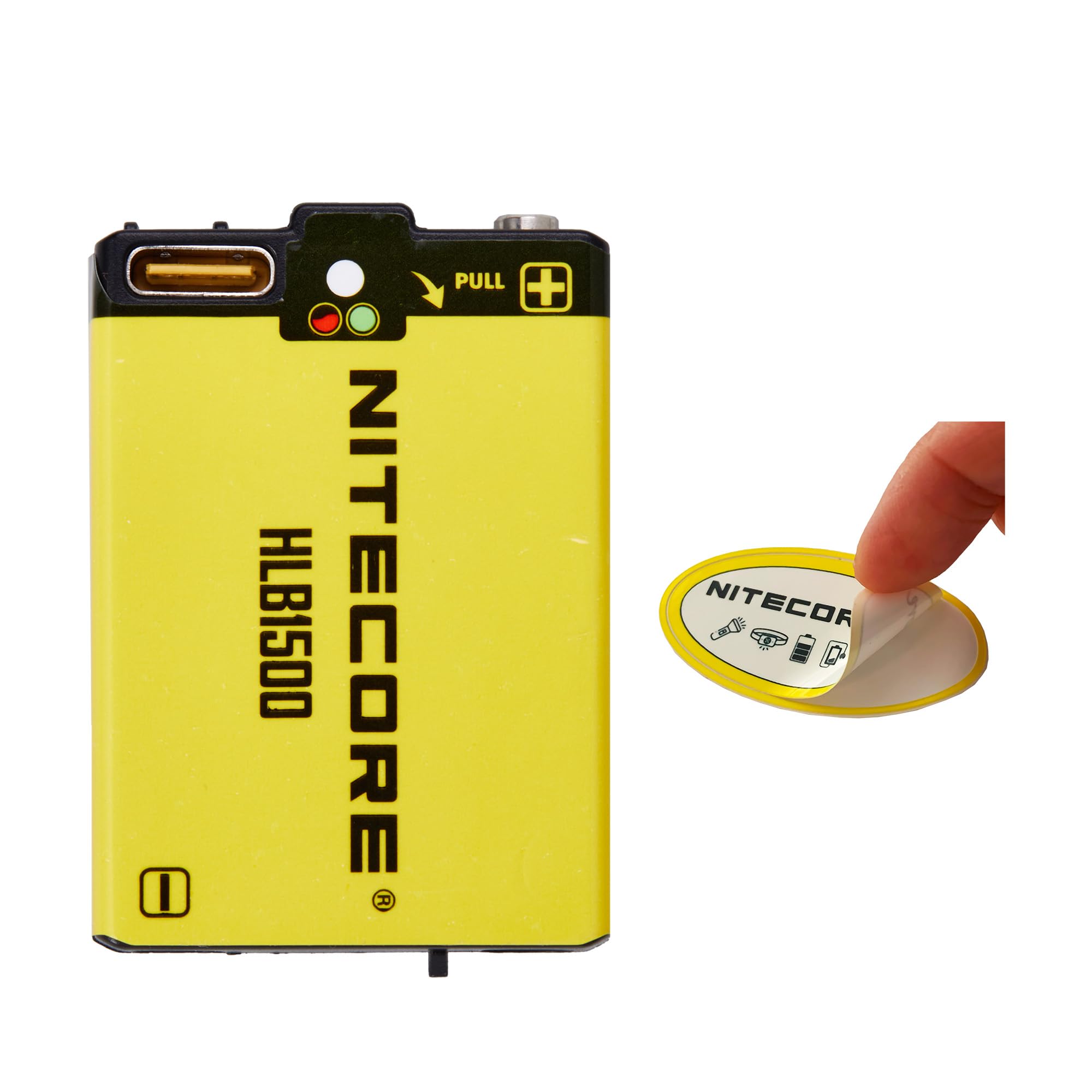

Image: The Nitecore HLB1500 USB-C Rechargeable Battery Pack, showing its USB-C port and indicator lights.

പ്രധാന സവിശേഷതകൾ:

• ശക്തമായ ശേഷി: 1500mAh rechargeable battery providing extended use.
• ദൈർഘ്യമേറിയ പ്രവർത്തനസമയം: Delivers up to 14.5 hours of power, ideal for extended adventures.
• USB-C റീചാർജ് ചെയ്യാവുന്നത്: Fully recharges in just 1.5 hours via USB-C.
• ചാർജിംഗ് സൂചകങ്ങൾ: Built-in red and green indicator lights show real-time charge status.
• അനുയോജ്യത: Specifically designed for Nitecore UT27, HA13, HA23 UHE headlamps, and the Bubble Lantern.

സ്പെസിഫിക്കേഷനുകൾ

സജ്ജമാക്കുക

പ്രാരംഭ ചാർജ്:

Before first use, fully charge the HLB1500 battery pack. Connect a USB-C cable to the battery's USB-C port and a compatible USB power source. The indicator lights will show the charging status.

ഇൻസ്റ്റലേഷൻ:

Insert the HLB1500 battery pack into compatible Nitecore devices such as the UT27, HA13, HA23 UHE headlamps, or the Bubble Lantern. Ensure correct polarity and a secure fit according to the device's specific instructions.

Image: A person wearing a Nitecore headlamp, demonstrating a typical use case for the HLB1500 battery.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ബാറ്ററി ചാർജ് ചെയ്യുന്നു:

1. Connect one end of a USB-C cable to the HLB1500 battery's USB-C port.
2. Connect the other end of the USB-C cable to a USB power adapter (e.g., wall charger, computer USB port, power bank).
3. ദി ചുവപ്പ് indicator light will illuminate to indicate that charging is in progress.
4. ബാറ്ററി പൂർണ്ണമായി ചാർജ് ചെയ്തുകഴിഞ്ഞാൽ, പച്ച indicator light will illuminate. Disconnect the battery from the power source.

ബാറ്ററി സൂചകങ്ങൾ:

The HLB1500 features built-in indicator lights to provide real-time charging status:

• ചുവന്ന വെളിച്ചം: ബാറ്ററി നിലവിൽ ചാർജ് ചെയ്യുന്നു.
• ഗ്രീൻ ലൈറ്റ്: ബാറ്ററി പൂർണ്ണമായി ചാർജ്ജ് ചെയ്തു.

Usage with Devices:

Once installed in a compatible device, the device will draw power from the HLB1500 battery pack. Refer to the specific user manual of your Nitecore headlamp (UT27, HA13, HA23 UHE) or Bubble Lantern for detailed operating instructions of the device itself.

മെയിൻ്റനൻസ്

സംഭരണം:

Store the HLB1500 battery pack in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge the battery to approximately 50% every three months to maintain optimal performance and extend its lifespan.

വൃത്തിയാക്കൽ:

Wipe the surface of the battery with a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the battery in water or any other liquids.

നീക്കം ചെയ്യൽ:

Do not dispose of the battery with household waste. Please dispose of the battery responsibly at designated recycling points or according to local regulations for lithium-ion batteries.

ട്രബിൾഷൂട്ടിംഗ്

• ബാറ്ററി ചാർജ്ജുചെയ്യുന്നില്ല:

  Ensure the USB-C cable is securely connected to both the battery and the power source. Verify that the power source is active and providing sufficient power. Try using a different USB-C cable or power adapter to rule out faulty accessories.
• Device not powering on with battery:

  Ensure the HLB1500 battery is fully charged and correctly installed in the compatible device. Check the device's own power switch and connections. If the issue persists, consult the device's user manual or Nitecore support.

• Shortened runtime:

  This may indicate that the battery is not fully charged or is nearing the end of its operational lifespan. Ensure proper charging cycles are followed. If performance significantly degrades over time, consider replacing the battery.

വാറൻ്റിയും പിന്തുണയും

Nitecore products are backed by a warranty. For detailed warranty information, terms, and conditions, please refer to the official Nitecore website or the warranty card included with your purchase. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical support, product inquiries, or service, please contact Nitecore customer service directly or visit their official brand store:
