TOWILD BR800S Bike Light User Manual

1. ആമുഖം

Thank you for choosing the TOWILD BR800S Bike Light. This manual provides essential information for the proper setup, operation, and maintenance of your new bike light. Please read it thoroughly before use to ensure optimal performance and safety.

Figure 1.1: The TOWILD BR800S Bike Light, a lightweight and bright front light designed for night riding.

2. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x TOWILD BR800S Bike Light
• 1 x ഹാൻഡിൽബാർ മൗണ്ട്
• 1 x Compatible Base for GoPro Mount
• 1 x ടൈപ്പ്-സി യുഎസ്ബി ചാർജിംഗ് കേബിൾ
• 1 x ഉപയോക്തൃ മാനുവൽ

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 Mounting the Bike Light

The BR800S bike light can be mounted both above and below the handlebars using the provided mount. It is compatible with standard handlebar mounts and GoPro-style bases.

1. Attach the handlebar mount securely to your bicycle's handlebars.
2. Align the bike light with the mount's slot.
3. Slide the light onto the mount until it clicks into place, ensuring it is firmly attached.
4. The light features a 180-degree rotatable design, allowing for formal or inverse installation to suit your preference and handlebar setup.

Figure 3.1: The BR800S light can be rotated 180 degrees for flexible mounting options, either above or below the handlebars. This image also illustrates the replaceable battery compartment.

ചിത്രം 3.2: പൊട്ടിത്തെറിച്ച ഒരു view showing key components including the replaceable battery, Type-C charge port, on/off button, quick-release mount, and anti-glare design.

3.2 പ്രാരംഭ ചാർജിംഗ്

Before first use, fully charge the bike light. The BR800S features a Type-C charging port for convenience.

• Connect the provided Type-C USB cable to the charging port on the light.
• Connect the other end of the cable to a USB power source (e.g., computer, power bank, or car charger).
• A full charge typically takes approximately four hours.

Figure 3.3: The BR800S bike light being charged using the included Type-C USB cable, compatible with various USB power sources.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 പവർ ഓൺ/ഓഫ്, മോഡ് തിരഞ്ഞെടുക്കൽ

The BR800S bike light offers multiple brightness levels and flash modes for various riding conditions.

• പവർ ഓൺ/ഓഫ്: Press and hold the power button for a few seconds to turn the light on or off.
• സൈക്ലിംഗ് മോഡ്: Short press the power button to cycle through the available light modes:
  • Low Brightness (200 lumens, 8 hours runtime)
  • Medium Brightness (400 lumens, 3.5 hours runtime)
  • High Brightness (800 lumens, 2 hours runtime)
  • Night Flash (200 lumens, 12 hours runtime)
  • Day Flash (600 lumens, 8 hours runtime)

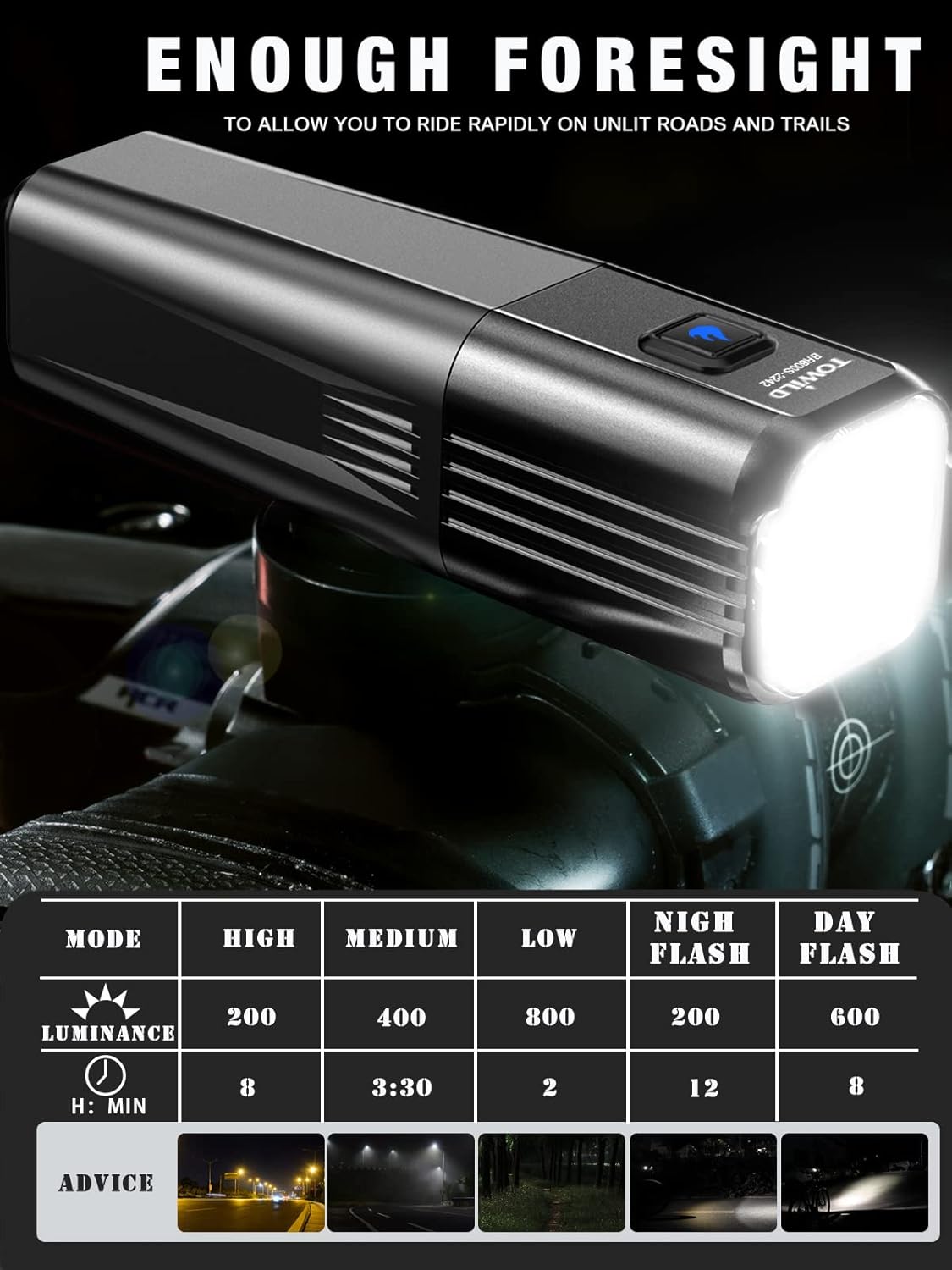

Figure 4.1: Table detailing the different light modes, their respective luminance (lumens), and approximate runtimes. Visual examples of light projection in various environments are also shown.

The light features an anti-glare design to prevent dazzling oncoming traffic, ensuring safer riding for everyone.

Figure 4.2: Illustration of the wide beam pattern provided by the BR800S, designed to illuminate a broad area for enhanced visibility during night riding.

4.2 പവർ സൂചകം

The power indicator on the light provides real-time battery status. Click the button when the light is off to display the power level.

Figure 4.3: Visual representation of the power indicator lights for both Smart and Manual modes, showing different colors and flashing patterns to indicate battery levels.

5. പരിപാലനം

5.1 ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

The BR800S features a replaceable 18650 battery (2600mAh). This allows for extended use by swapping out batteries or replacing an aged battery.

• To replace the battery, twist the front section of the light counter-clockwise to open the battery compartment.
• Carefully remove the old battery and insert a new 18650 battery, ensuring correct polarity.
• Twist the front section clockwise to securely close the compartment.

5.2 വൃത്തിയാക്കലും സംഭരണവും

• ലൈറ്റ് ഒരു സോഫ്റ്റ്, ഡി ക്ലീനർ ഉപയോഗിച്ച് വൃത്തിയാക്കുക.amp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• Ensure the Type-C port cover is securely closed to maintain IPX6 waterproof rating.
• Store the light in a cool, dry place when not in use. For long-term storage, charge the battery to approximately 50% every few months to preserve battery life.

6. പ്രശ്‌നപരിഹാരം

7 സ്പെസിഫിക്കേഷനുകൾ

8. ഉൽപ്പന്ന വീഡിയോ പ്രദർശനം

Watch the official product video for a visual guide on the BR800S Bike Light's features and usage.

9. വാറൻ്റിയും പിന്തുണയും

The TOWILD BR800S Bike Light comes with a 2 വർഷത്തെ വാറൻ്റി വാങ്ങിയ തീയതി മുതൽ. ഈ വാറന്റി നിർമ്മാണ വൈകല്യങ്ങളും സാധാരണ ഉപയോഗത്തിൽ നിന്ന് ഉണ്ടാകുന്ന പ്രശ്നങ്ങളും ഉൾക്കൊള്ളുന്നു.

For technical support, warranty claims, or any inquiries regarding your product, please contact TOWILD customer service through the retailer's platform or visit the official TOWILD webബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്കുള്ള സൈറ്റ്.

We are committed to providing excellent service and ensuring your satisfaction with our products.
