ഇൻസ്ട്രക്ഷൻ മാനുവൽ

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Barksdale C9612-3 is a robust pressure switch designed for reliable performance in various industrial applications. It is capable of monitoring and controlling pressure within a range of 250 to 3000 PSI and is compatible with 125/250/480/600V-AC electrical systems. This manual provides essential information for the safe and effective installation, operation, and maintenance of your pressure switch.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

WARNING: Always use this product in accordance with the Barksdale Product Catalog and all applicable local and national electrical codes.

• Disconnect all power before installation or servicing to prevent electrical shock.
• Ensure the pressure system is depressurized before connecting or disconnecting the switch.
• ഇൻസ്റ്റാളേഷനും അറ്റകുറ്റപ്പണിയും യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ മാത്രമേ നടത്താവൂ.
• Do not exceed the maximum rated pressure or voltagഉപകരണത്തിൻ്റെ ഇ.
• വൈദ്യുത അപകടങ്ങൾ തടയുന്നതിന് ശരിയായ ഗ്രൗണ്ടിംഗ് പരിശോധിക്കുക.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

അൺപാക്ക് ചെയ്യുന്നു

Carefully remove the pressure switch from its packaging. Inspect the unit for any signs of damage during transit. Retain the packaging for future storage or transport.

The Barksdale C9612-3 Pressure Switch as it appears with its original manufacturer's packaging. The box indicates 'Barksdale Controls Division' and 'IMO Industries Inc.'.

മൗണ്ടിംഗ്

Mount the pressure switch securely in a location that is free from excessive vibration, extreme temperatures, and corrosive environments. Ensure adequate space for wiring and pressure line connections. The unit can be mounted using its integrated bracket.

ഒരു സൈഡ് പ്രോfile of the pressure switch, highlighting the electrical wiring connections and the visible pressure adjustment scale with markings for PSI and BAR.

A view from the bottom of the pressure switch, clearly showing the pressure inlet port with a blue protective cap and the mounting bracket for secure installation.

ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ

Connect the pressure switch to the electrical system according to the wiring diagram provided on the product label and in compliance with local electrical codes. The C9612-3 features screw terminals for secure connections. Refer to the label for lead color codes:

• പർപ്പിൾ: സാധാരണ
• ചുവപ്പ്: Normally Open (N.O.)
• നീല: Normally Closed (N.C.)

This image provides another perspective of the pressure switch, focusing on the multi-colored electrical leads (red, blue, purple) extending from the unit, ready for connection.

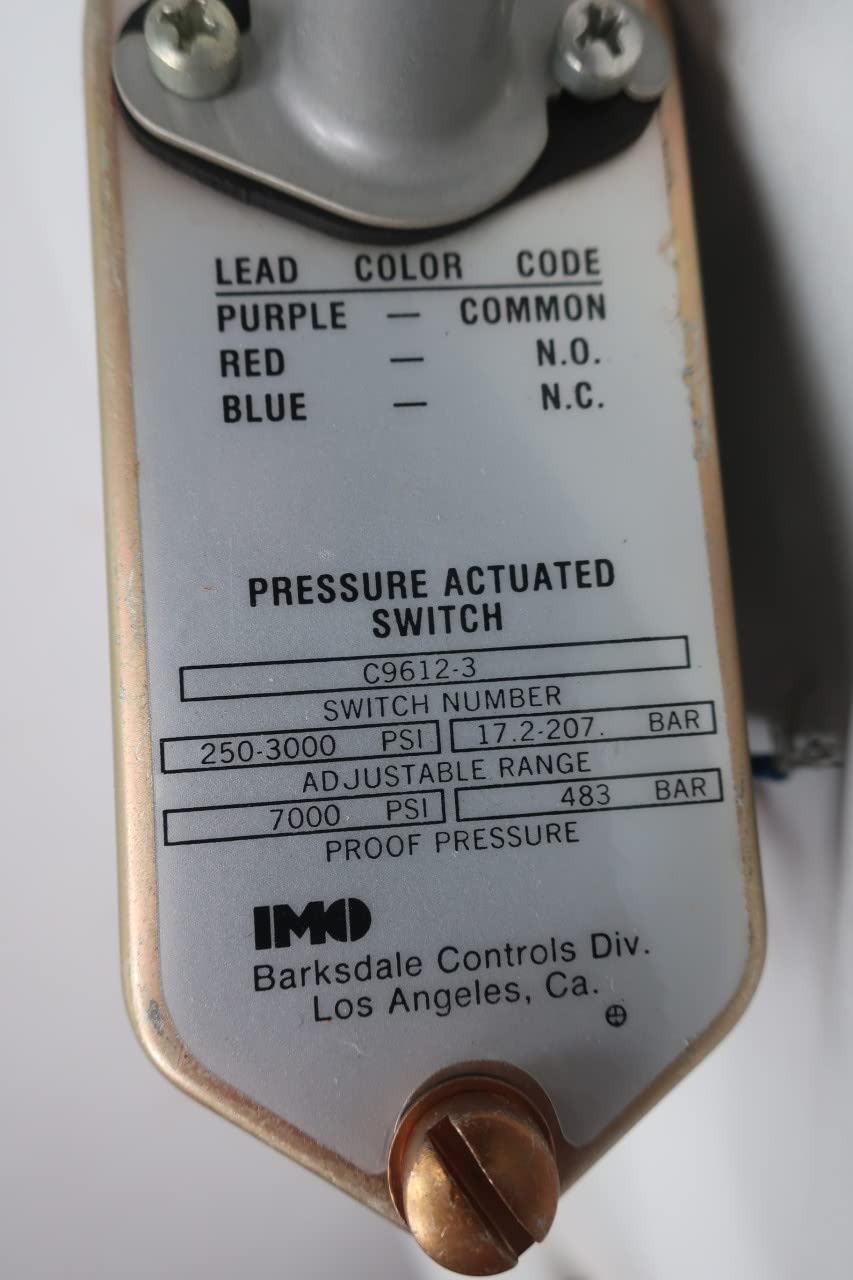

A detailed close-up of the product label affixed to the pressure switch. It displays the model number C9612-3, adjustable pressure range (250-3000 PSI / 17.2-207 BAR), proof pressure (7000 PSI / 483 BAR), and wiring color codes: Purple (Common), Red (N.O.), Blue (N.C.).

ഓപ്പറേഷൻ

Adjusting Pressure Setpoint

The pressure setpoint can be adjusted using the knob located on the side of the unit. Rotate the knob to align the desired pressure value (in PSI or BAR) with the indicator line. Ensure the system is depressurized before making adjustments to prevent injury or damage.

ഒരു കോണാകൃതിയിലുള്ള view from the top of the pressure switch, providing a clear look at the grey adjustment knob used to set the desired pressure range.

മെയിൻ്റനൻസ്

The Barksdale C9612-3 Pressure Switch is designed for minimal maintenance. Periodically inspect the unit for any signs of wear, corrosion, or damage. Ensure all electrical connections are secure and free from oxidation. Keep the pressure port clean and free of debris. No user-serviceable parts are inside the sealed housing.

ട്രബിൾഷൂട്ടിംഗ്

This section provides solutions to common issues you might encounter with your pressure switch.

സാങ്കേതിക സവിശേഷതകൾ

A close-up image of the label on the product packaging, showing 'BARKSDALE C9612-3' and a barcode with the number '0908057'.

വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official Barksdale website or contact their customer service department. Keep your purchase receipt and product model number (C9612-3) readily available when seeking support.
