STINGER Single 10" 700 Watt (RMS) Loaded Car Audio Subwoofer Enclosure

1. ആമുഖം

Thank you for choosing the STINGER Single 10" 700 Watt (RMS) Loaded Car Audio Subwoofer Enclosure. This product is designed to deliver powerful and clear bass, enhancing your in-car audio experience. This manual provides important information regarding the safe installation, operation, and maintenance of your new subwoofer enclosure. Please read it thoroughly before use and retain it for future reference.

Figure 1: STINGER Single 10" Loaded Subwoofer Enclosure

2 സുരക്ഷാ വിവരങ്ങൾ

ഉൽപ്പന്നത്തിനും നിങ്ങളുടെ വാഹനത്തിനും പരിക്കുകളോ കേടുപാടുകളോ ഉണ്ടാകാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ എപ്പോഴും പാലിക്കുക:

• Ensure the vehicle's battery is disconnected before installation to prevent electrical shorts.
• Mount the subwoofer enclosure securely to prevent it from shifting during vehicle movement, which could cause injury or damage.
• സബ് വൂഫറിനെ അമിതമായ ഈർപ്പത്തിലേക്കോ തീവ്രമായ താപനിലയിലേക്കോ തുറന്നുകാട്ടരുത്.
• Use appropriate gauge wiring for power, ground, and speaker connections to handle the power output.
• Avoid operating the subwoofer at distortion levels, as this can cause permanent damage to the speaker.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• STINGER Single 10" Loaded Subwoofer Enclosure (MC1S10A)

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for optimal performance and safety. It is recommended to have this product installed by a professional car audio technician.

4.1 പ്ലേസ്മെന്റ് പരിഗണനകൾ

The MC1S10A subwoofer enclosure is designed for versatile placement within your vehicle's cargo area. It supports down-firing, front-facing, or rear-facing orientations to optimize bass performance based on your vehicle's acoustics and available space.

Figure 2: Subwoofer Placement Options

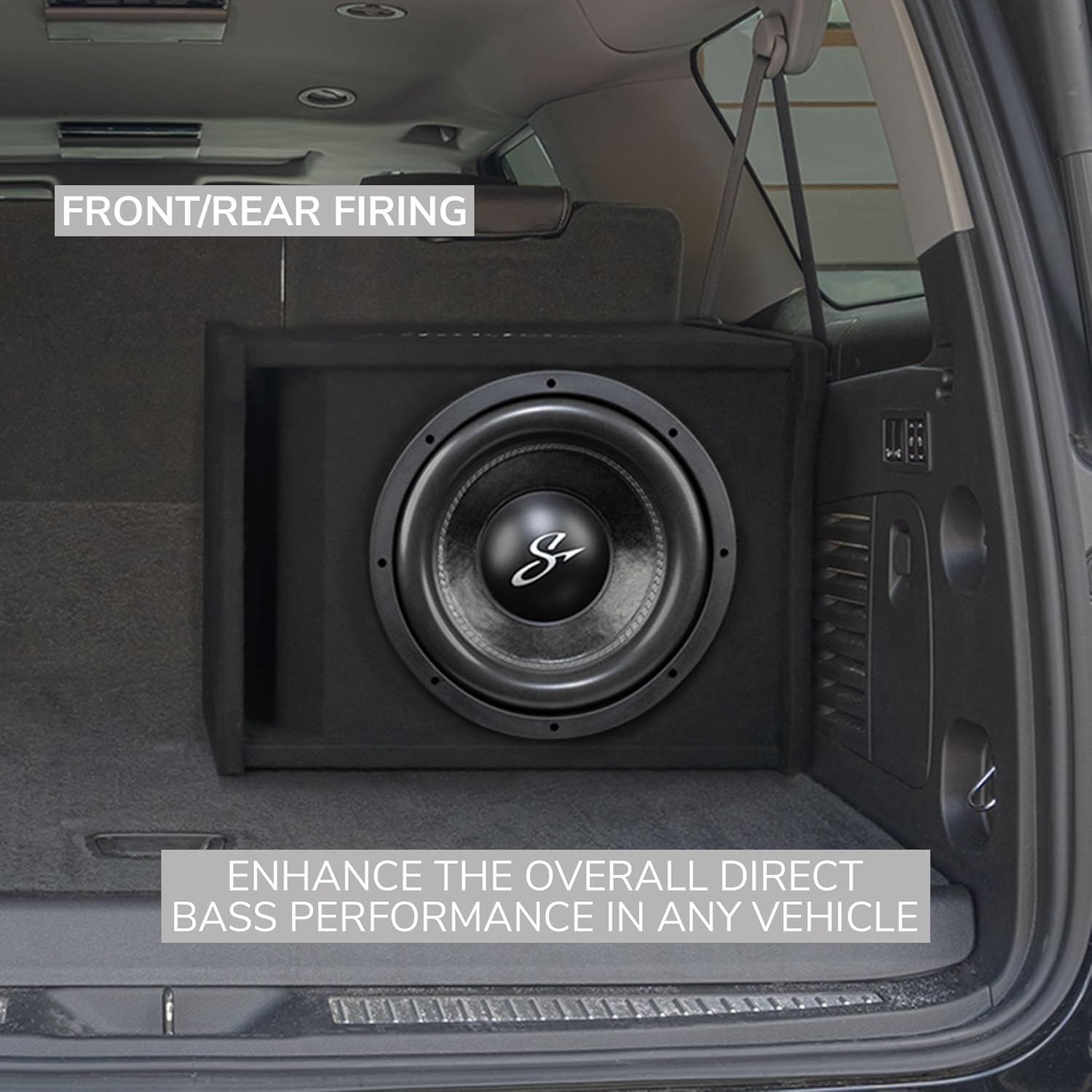

Figure 3: Front/Rear Firing Placement

Figure 4: Down Firing Placement

4.2 വയറിംഗ് കണക്ഷനുകൾ

The enclosure features spring-loaded, high-quality push terminals for connecting to external amplifiers. Ensure correct polarity (+ to + and - to -) when connecting the subwoofer to your amplifier. Refer to your amplifier's manual for specific wiring diagrams and impedance matching.

Figure 5: Spring-Loaded Push Terminals

For optimal performance, ensure the amplifier's power output matches the subwoofer's RMS power handling (700 Watts RMS). The subwoofer is pre-wired for a 1 Ohm impedance.

Video 1: Stinger Audio MC1 & DC2 Series Subwoofer Enclosures Overview. ഈ വീഡിയോ ഒരു ദൃശ്യാവിഷ്കാരം നൽകുന്നു.view of the Stinger Audio MC1 and DC2 series subwoofer enclosures, highlighting key features and design aspects.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once properly installed and connected to a compatible amplifier, the subwoofer will operate as part of your car audio system. Adjust the amplifier's gain, crossover, and bass boost settings according to your preferences and the subwoofer's specifications to achieve the desired sound quality.

• ഗെയിൻ സെറ്റിംഗ്: ഉപയോഗിച്ച് ആരംഭിക്കുക amplifier gain at its lowest setting and gradually increase it until the desired volume is reached without distortion.
• ലോ-പാസ് ഫിൽട്ടർ (LPF): Set the LPF on your amplifier or head unit to filter out high frequencies from the subwoofer, typically between 80Hz and 120Hz, to ensure only bass frequencies are reproduced.
• സബ്സോണിക് ഫിൽട്ടർ: If available, set the subsonic filter to protect the subwoofer from playing frequencies below its resonant frequency, which can cause damage.

6. പരിപാലനം

The STINGER subwoofer enclosure requires minimal maintenance:

• Regularly inspect wiring connections to ensure they are secure and free from corrosion.
• Keep the enclosure clean by wiping it with a dry, soft cloth. Avoid using harsh chemicals or abrasive cleaners.
• Ensure the enclosure is not exposed to direct sunlight for prolonged periods or extreme temperatures, which can degrade materials over time.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ സബ് വൂഫറിൽ പ്രശ്നങ്ങൾ അനുഭവപ്പെടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്ന പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും പരിശോധിക്കുക:

If the problem persists after attempting these solutions, contact STINGER customer support or a qualified car audio technician.

8 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the STINGER MC1S10A Subwoofer Enclosure:

Figure 6: MC1S10A Specifications Overview

Figure 7: MC1S10A Dimensions

9. വാറൻ്റിയും പിന്തുണയും

STINGER products are designed and manufactured to the highest quality standards. This product comes with a limited warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official STINGER website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact STINGER customer service through their official channels.

ഓൺലൈൻ പിന്തുണ: Visit the STINGER webപതിവുചോദ്യങ്ങൾ, പിന്തുണാ ലേഖനങ്ങൾ, ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ എന്നിവയ്‌ക്കുള്ള സൈറ്റ്.

ഫോൺ പിന്തുണ: Refer to your product packaging or the STINGER webഉപഭോക്തൃ സേവന ഫോൺ നമ്പറുകൾക്കായുള്ള സൈറ്റ്.
