ആമുഖം
The LFF Weather Station is a versatile device designed to provide accurate indoor and outdoor environmental data, timekeeping, and weather forecasting. Equipped with multiple wireless sensors, it allows you to monitor temperature and humidity in various locations simultaneously. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your weather station.
ബോക്സിൽ എന്താണുള്ളത്
- LFF Weather Station Main Display Unit
- 3 x Wireless Outdoor Sensors
- AC-AC Power Adapter
- ഉപയോക്തൃ മാനുവൽ (PDF ഓൺലൈനിൽ ലഭ്യമാണ്)
ഉൽപ്പന്നം കഴിഞ്ഞുview
പ്രധാന ഡിസ്പ്ലേ യൂണിറ്റ്
The main unit features a large 7.5-inch full-color touch screen that displays all relevant information clearly. It includes sections for time, date, weather forecast, barometric pressure trend, and temperature/humidity readings from the indoor sensor and up to three outdoor sensors. Seven touch buttons on the front panel allow for easy operation and settings adjustments.
Figure 1: Main Display Unit highlighting its 7.5-inch color screen and various display sections.
വയർലെസ് സെൻസറുകൾ
The weather station comes with three wireless remote sensors designed for real-time monitoring of temperature and humidity in different outdoor or indoor locations. Each sensor has its own small display and transmits data wirelessly to the main unit up to a range of 330 feet (100 meters) in open areas. Ensure each sensor is set to a unique channel (1, 2, or 3) for proper communication.
Figure 2: Wireless sensors demonstrating their 330ft/100m transmission range for multi-location monitoring.
സജ്ജമാക്കുക
Powering the Main Unit
- Connect the included AC-AC power adapter to the main unit and plug it into a standard wall outlet. The screen will remain on when using the adapter.
- (Optional) For battery backup, insert 2 x AAA batteries (not included) into the battery compartment. When operating on battery power only, the screen will automatically turn off after approximately 10 seconds to conserve energy.
Figure 3: Power supply options for the main weather station unit.
Installing Batteries in Wireless Sensors
- Open the battery compartment on the back of each wireless sensor.
- Insert 2 x AAA batteries (not included) into each sensor, observing the correct polarity (+/-).
- Set the channel switch inside each sensor's battery compartment to a unique channel (Channel 1, Channel 2, Channel 3). This is crucial for the main unit to distinguish between sensors.
- ബാറ്ററി കമ്പാർട്ടുമെൻ്റുകൾ സുരക്ഷിതമായി അടയ്ക്കുക.
Pairing Sensors with Main Unit
The main unit will automatically search for and connect to the wireless sensors once they are powered on and within range. Ensure the sensors are placed within 330 feet (100 meters) of the main unit, avoiding large metal objects or thick walls that may interfere with the signal. For best results, place the main unit and sensors close to each other during initial pairing, then move sensors to desired locations.
Initial Setup and Atomic Clock Synchronization
Upon first power-up or after a reset, the weather station will attempt to synchronize with the WWVB atomic clock signal. Select the correct time zone (AST, EST, CST, MST, PST, AKT, HST) according to your location. The atomic clock function ensures accurate timekeeping without manual adjustments.
Video: Official LFF weather station overview, demonstrating features like atomic clock synchronization and multi-sensor display.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
ഡിസ്പ്ലേ തെളിച്ചം ക്രമീകരിക്കുന്നു

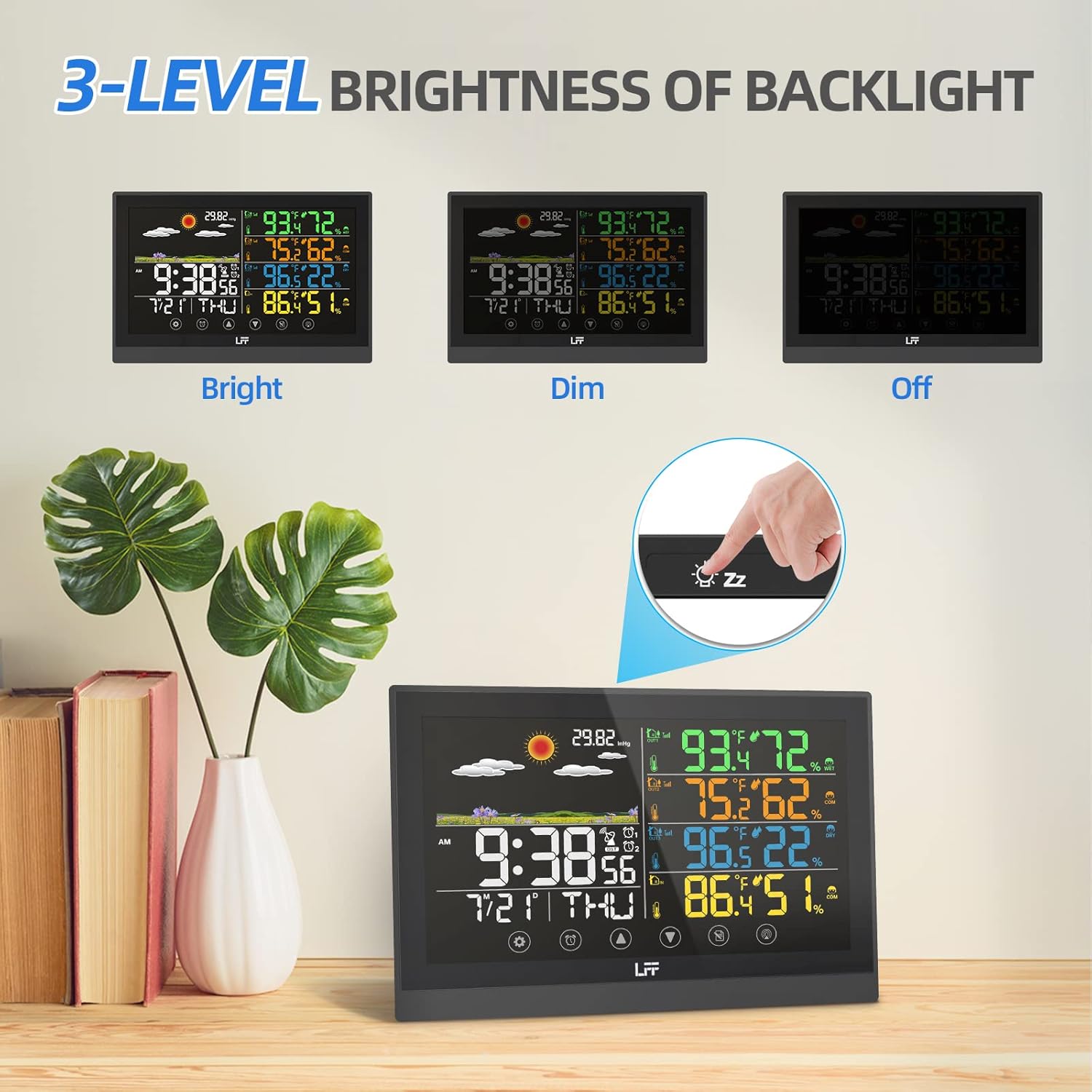

The main unit's display features 3 levels of adjustable brightness. Press the 'Light/Snooze' touch button on the front panel to cycle through bright, dim, and off settings. This allows you to customize the display's visibility based on ambient light conditions or personal preference.
Figure 4: Demonstrates the three adjustable brightness levels of the weather station display.
അലാറങ്ങൾ സജ്ജീകരിക്കുന്നു
The weather station supports two independent alarms with a snooze function. Use the 'Alarm' touch button to access and set alarm times. The snooze function provides a brief delay before the alarm sounds again, offering convenience for waking up.
കാലാവസ്ഥാ പ്രവചനം മനസ്സിലാക്കൽ
The weather station predicts the weather for the next 6-12 hours based on barometric pressure fluctuations, not current weather conditions. The forecast is displayed using 6 intuitive weather icons: sunny, slightly cloudy, cloudy, rainy, heavy rainy, and snowy. This feature helps you prepare for upcoming weather changes.
Figure 5: Visual representation of the six weather forecast types.
Viewതാപനിലയും ഈർപ്പവും
The main display shows real-time temperature and humidity for the indoor environment and each connected outdoor sensor. The comfort level icon indicates whether the indoor environment is too dry, comfortable, or too wet, helping you maintain optimal living conditions.
മെയിൻ്റനൻസ്
ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ
When the low battery indicator appears on the display for either the main unit or a specific sensor, it's time to replace the batteries. For the main unit, replace 2 x AAA batteries. For each wireless sensor, replace 2 x AAA batteries. Always use fresh batteries and dispose of old ones responsibly.
വൃത്തിയാക്കൽ
To clean the weather station, use a soft, damp cloth. Avoid abrasive cleaners or solvents that may damage the display or casing. Ensure the unit is powered off before cleaning.
ട്രബിൾഷൂട്ടിംഗ്
| ഇഷ്യൂ | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഒരു ഡിസ്പ്ലേയും/യൂണിറ്റും ഓണാക്കുന്നില്ല. | Power adapter not connected or faulty; batteries drained or incorrectly inserted. | Check power adapter connection; replace batteries, ensuring correct polarity. |
| Outdoor sensor not connecting/displaying data | Sensor out of range; incorrect channel setting; sensor batteries drained. | Move sensor closer to main unit; ensure sensor channel matches main unit's setting; replace sensor batteries. |
| തെറ്റായ സമയം പ്രദർശിപ്പിച്ചിരിക്കുന്നു | Atomic clock signal weak or not synchronized; incorrect time zone. | Ensure unit is in an open area for better signal reception; manually set time zone; allow time for automatic synchronization. |
| കൃത്യമല്ലാത്ത താപനില/ഈർപ്പനില വായനകൾ | Sensor exposed to direct sunlight or heat sources; sensor placed in an area with poor air circulation. | Relocate sensor to a shaded area away from direct heat/cold sources; ensure proper air circulation around the sensor. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ഉൽപ്പന്ന അളവുകൾ | 7.48 x 0.59 x 5.12 ഇഞ്ച്; 1.41 പൗണ്ട് |
| ഇനം മോഡൽ നമ്പർ | LWS125-EU |
| Batteries (Main Unit) | 2 AAA ബാറ്ററികൾ ആവശ്യമാണ് (ഉൾപ്പെടുത്തിയിട്ടില്ല) |
| Batteries (Wireless Sensor) | 2 AAA batteries required per sensor (not included) |
| പവർ ഉറവിടം | Corded Electric (5.0V AC, 0.15A AC-AC adaptor) |
| ഡിസ്പ്ലേ തരം | 7.5" Full-Color Touch Screen |
| വയർലെസ് ട്രാൻസ്മിഷൻ ശ്രേണി | Up to 330ft/100m (open area) |
| പ്രത്യേക സവിശേഷതകൾ | Weather forecast, Dual alarm, Atomic clock, Adjustable backlight |
| മെറ്റീരിയൽ | പ്ലാസ്റ്റിക് |
| നിറം | കറുപ്പ് |
വാറൻ്റി & പിന്തുണ
For detailed warranty information and further support, please refer to the official user manual provided with your product. A digital version of the user manual is also available online for your convenience.
