1. ആമുഖം
This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your INGCO HHCT0170 Hydraulic Crimping Tool. Please read this manual thoroughly before using the tool to ensure proper function and to prevent injury or damage.
2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ
Always follow basic safety precautions when using this hydraulic crimping tool to reduce the risk of personal injury and damage to the equipment.
- വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (PPE) ധരിക്കുക: സാധ്യമായ അപകടങ്ങളിൽ നിന്ന് പരിരക്ഷിക്കുന്നതിന് എല്ലായ്പ്പോഴും സുരക്ഷാ ഗ്ലാസുകൾ, കയ്യുറകൾ, ഉചിതമായ ജോലി വസ്ത്രങ്ങൾ എന്നിവ ധരിക്കുക.
- ഉപയോഗിക്കുന്നതിന് മുമ്പ് ഉപകരണം പരിശോധിക്കുക: Before each use, check the tool for any signs of damage, wear, or loose parts. Do not use a damaged tool.
- Ensure Work Area Safety: Keep the work area clean, well-lit, and free from obstructions. Ensure proper ventilation if working with chemicals.
- Proper Material Handling: Ensure the cable or lug to be crimped is clean, dry, and correctly sized for the selected dies.
- അമിതമായി മുറിവേൽപ്പിക്കുന്നത് ഒഴിവാക്കുക: Do not apply excessive force or attempt to crimp materials beyond the tool's specified capacity.
- കൈകൾ വ്യക്തമായി സൂക്ഷിക്കുക: Always keep hands and fingers away from the crimping dies during operation to prevent pinching or crushing injuries.
- സുരക്ഷിതമായി സംഭരിക്കുക: When not in use, store the tool in its protective case in a dry, secure location, out of reach of children.
- Hydraulic Fluid Safety: Handle hydraulic fluid with care. In case of skin contact, wash thoroughly with soap and water. If ingested or in eyes, seek immediate medical attention.
3. ഉൽപ്പന്ന ഘടകങ്ങളും സവിശേഷതകളും
Familiarize yourself with the different parts of your INGCO HHCT0170 Hydraulic Crimping Tool for safe and efficient operation.
Image 3.1: Key components of the hydraulic crimping tool.
- Crimping Head ("C"-Head): The main body where the dies are inserted and crimping occurs.
- Crimping Die: Interchangeable inserts that form the crimp on the lug or cable.
- Oil Return Switch (OFF/ON): Controls the hydraulic pressure. Set to 'ON' for crimping, 'OFF' to release pressure and retract the ram.
- Hydraulic Oil Return Valve: Releases hydraulic pressure when the switch is set to 'OFF'.
- സ്ക്രീൻ: Secures the crimping head or other components.
- Active Handle: The movable handle used to pump and build hydraulic pressure.
- ഫിക്സഡ് ഹാൻഡിൽ: The stationary handle providing grip and stability during operation.

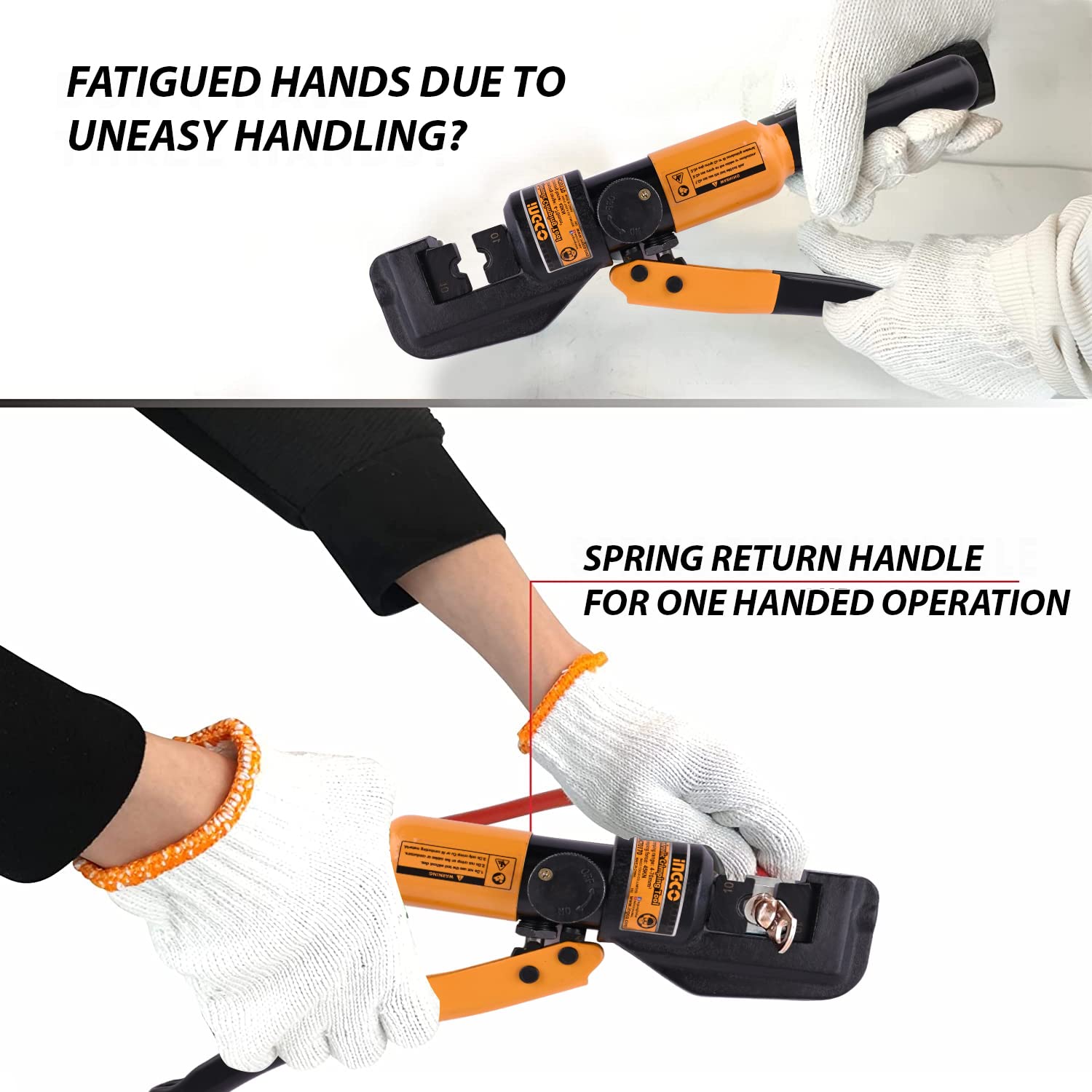

Image 3.2: Ergonomic design with spring return handle for comfortable, one-handed operation.
The tool features an ergonomic design with a spring return handle, allowing for comfortable and efficient one-handed operation, reducing user fatigue.
4. സജ്ജീകരണം
Before beginning any crimping task, ensure the tool is properly set up.
- അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the hydraulic crimping tool and all accessories from its protective case. Inspect for any shipping damage.
- Die Selection: Identify the correct crimping dies for the specific cable and lug size you intend to crimp. The tool comes with a pair of hardened steel dies for various sizes.
- ഡൈ ഇൻസ്റ്റാളേഷൻ: Open the crimping head by rotating it or releasing any locking mechanism. Insert the selected dies into their respective slots in the crimping head. Ensure they are seated correctly and securely.
- Close Crimping Head: Close and secure the crimping head.

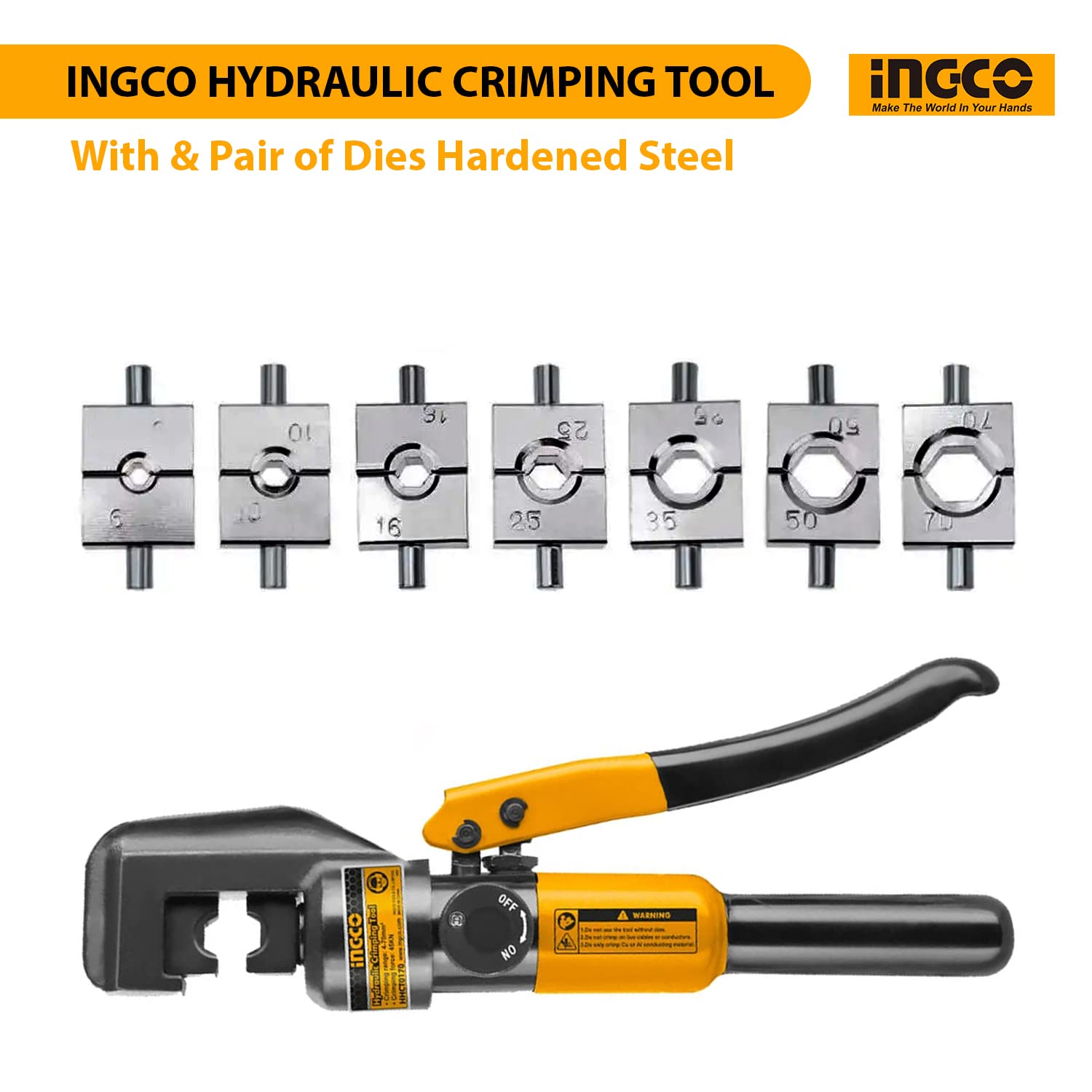

Image 4.1: The hydraulic crimping tool with its accompanying set of hardened steel dies.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Follow these steps for effective and safe crimping:
- Prepare Cable and Lug: Strip the insulation from the cable to the appropriate length for the lug. Insert the stripped cable into the lug.
- Position for Crimping: Place the cable lug between the installed crimping dies. Ensure the lug is centered and properly aligned within the dies.
- Set Oil Return Switch: Turn the Oil Return Switch to the 'ON' position to engage the hydraulic mechanism.
- ക്രിമ്പിംഗ് നടത്തുക: Pump the Active Handle repeatedly. The dies will close, applying hydraulic pressure to crimp the lug onto the cable. Continue pumping until the dies meet or the crimp is complete according to industry standards. The tool provides 360-degree connector support during the crimping cycle for a secure connection.
- റിലീസ് മർദ്ദം: Once the crimp is complete, turn the Oil Return Switch to the 'OFF' position. The hydraulic pressure will release, and the dies will retract.
- Remove Crimped Connection: Carefully remove the crimped cable and lug from the tool.
- ക്രിമ്പ് പരിശോധിക്കുക: Visually inspect the crimped connection to ensure it is secure and properly formed.
Image 5.1: The tool offers 360-degree connector support for reliable crimps.
6. പരിപാലനം
പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ ഹൈഡ്രോളിക് ക്രിമ്പിംഗ് ഉപകരണത്തിന്റെ ദീർഘായുസ്സും ഒപ്റ്റിമൽ പ്രകടനവും ഉറപ്പാക്കുന്നു.
- വൃത്തിയാക്കൽ: After each use, wipe down the tool with a clean, dry cloth to remove any dirt, dust, or debris. Do not use harsh chemicals or solvents that could damage the tool's finish or seals.
- ലൂബ്രിക്കേഷൻ: Periodically apply a light coat of machine oil to moving parts and pivot points to ensure smooth operation.
- ഡൈ കെയർ: Keep the crimping dies clean and free from corrosion. Store them in their designated slots within the tool case.
- ഹൈഡ്രോളിക് ഓയിൽ ലെവൽ: Check the hydraulic oil level periodically. If the level is low or the oil appears contaminated, consult a qualified technician for refilling or replacement. Use only recommended hydraulic oil.
- സംഭരണം: Store the tool in its original protective case in a dry, cool environment, away from direct sunlight and moisture. The compact and portable toolkit design facilitates easy storage and transport.
Image 6.1: The tool and its accessories stored in the compact and portable toolkit.
7. പ്രശ്നപരിഹാരം
പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും അറിയാൻ ഈ വിഭാഗം കാണുക.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Incomplete crimp or weak connection. | Incorrect die size; insufficient pumping; worn dies. | Ensure correct die size for cable/lug. Pump until dies meet. Replace worn dies. |
| ക്രിമ്പിംഗിന് ശേഷം ഡൈകൾ പിൻവലിക്കില്ല. | Oil Return Switch not in 'OFF' position; hydraulic oil issue. | Turn Oil Return Switch to 'OFF'. Check hydraulic oil level; if low or contaminated, consult technician. |
| Tool feels stiff or difficult to pump. | Lack of lubrication; low hydraulic oil; air in hydraulic system. | Lubricate moving parts. Check hydraulic oil level. Consult technician for air bleeding. |
| എണ്ണ ചോർച്ച. | കേടായ സീലുകൾ; അയഞ്ഞ ഫിറ്റിംഗുകൾ. | Stop use immediately. Consult a qualified technician for inspection and repair. |
8 സ്പെസിഫിക്കേഷനുകൾ
Detailed specifications for the INGCO HHCT0170 Hydraulic Crimping Tool.
Image 8.1: Product dimensions of the hydraulic crimping tool.
- മോഡൽ: HHCT0170
- ബ്രാൻഡ്: Ingco
- നിറം: കറുപ്പ്
- ഇനത്തിൻ്റെ ഭാരം: 350 ഗ്രാം
- Product Dimensions (Approximate): 12 inches (Length) x 11.5 inches (Width) x 5 inches (Height of head)
- ഹാൻഡിൽ മെറ്റീരിയൽ: വിനൈൽ
- ഗ്രിപ്പ് തരം: എർഗണോമിക്
- ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ: Hydraulic crimping tool, set of hardened steel dies.
9. വാറൻ്റിയും പിന്തുണയും
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service inquiries, please reach out to the official Ingco customer service channels or your authorized dealer.
