1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Interstate Batteries 31-AGM7 is a premium heavy-duty marine deep cycle battery designed for both cranking and extreme cycling applications. Utilizing Pure Matrix Power technology, this 12V 100Ah 925CCA AGM battery offers superior performance and extended lifespan compared to conventional batteries. It is engineered for reliability in demanding environments, making it suitable for a wide range of commercial and recreational uses.
ചിത്രം 1: മുൻഭാഗം view of the Interstate Batteries 31-AGM7 battery.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- Commercial Pure Lead AGM: Delivers 400 extreme deep cycles, significantly more than conventional alloy AGM products.
- വിപുലീകരിച്ച സംഭരണം: Can be stored for up to 2 years, double the duration of conventional AGM batteries.
- ബഹുമുഖ പ്രയോഗങ്ങൾ: Ideal for refrigeration units, APU units, uninterruptible power supply, GEM cars, large yachts, oil-field equipment, and trucks requiring high-power and high-energy.
- Enhanced Lifespan: Offers 2-3 times more battery life than conventional flooded batteries and 2 times longer than alloyed lead AGM batteries.
- Pure Matrix Advantage: Provides super-premium battery life and power for starting and accessories, with improved performance in extreme cold temperatures.
2 സുരക്ഷാ വിവരങ്ങൾ
WARNING: Batteries contain sulfuric acid and produce explosive gases. Always follow safety precautions to prevent injury.
- Always wear eye protection and gloves when handling batteries.
- പുകവലിക്കരുത് അല്ലെങ്കിൽ ബാറ്ററികൾക്ക് സമീപം തുറന്ന തീജ്വാലകൾ അനുവദിക്കരുത്.
- ബാറ്ററികൾ ചാർജ് ചെയ്യുമ്പോഴോ അവ ഉപയോഗിച്ച് പ്രവർത്തിക്കുമ്പോഴോ മതിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
- കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- In case of contact with sulfuric acid, flush immediately with water and seek medical attention.

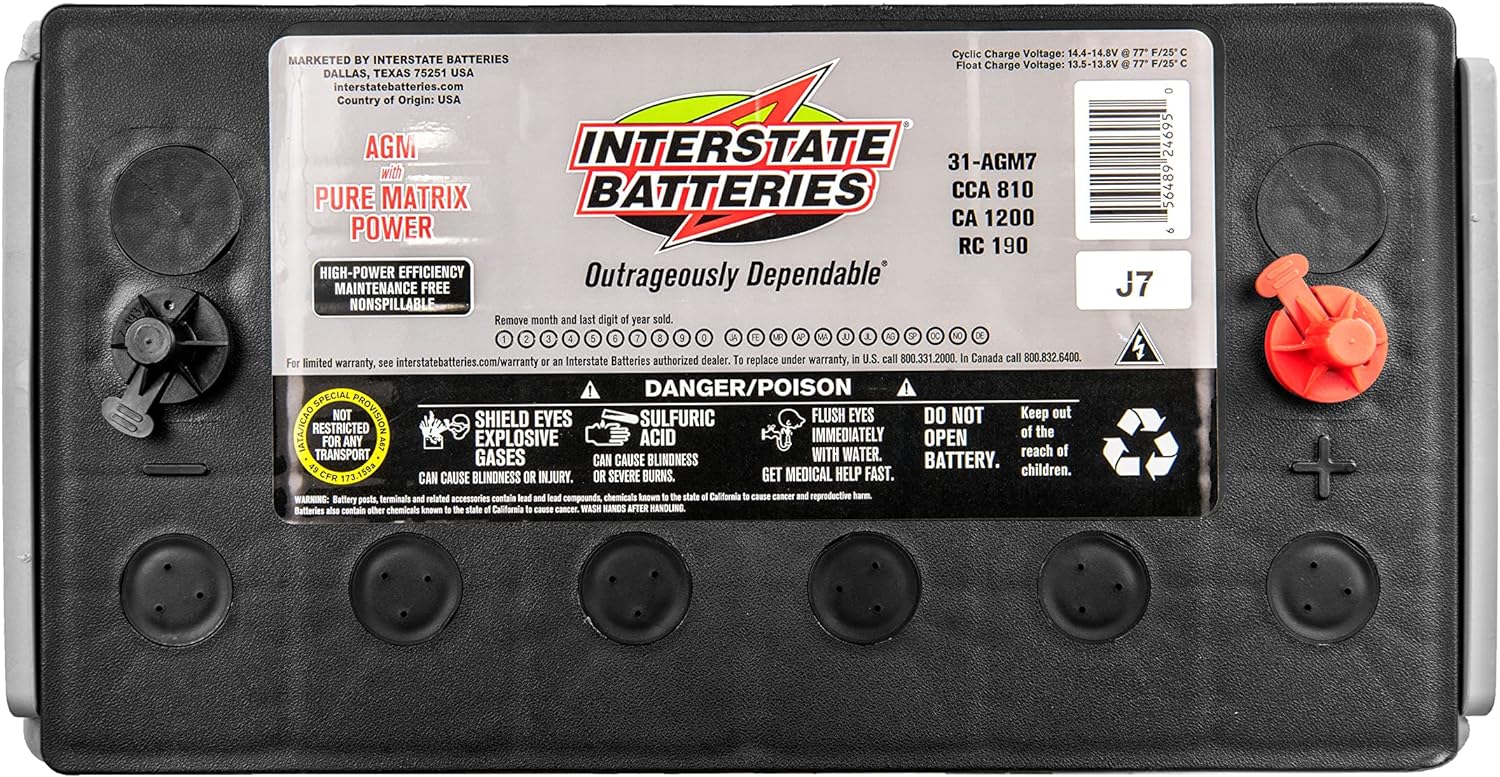

Figure 2: Top label of the battery showing safety warnings and specifications.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the performance and longevity of your Interstate Batteries 31-AGM7. Follow these steps carefully:
- തയ്യാറാക്കൽ: Ensure the vehicle or equipment is turned off and the ignition key is removed. Wear appropriate safety gear (gloves, eye protection).
- Old Battery Removal (if applicable):
- Disconnect the negative (-) cable first, then the positive (+) cable.
- Remove any hold-down clampകൾ അല്ലെങ്കിൽ സ്ട്രാപ്പുകൾ.
- Carefully lift and remove the old battery. Be aware of its weight (approximately 69.5 lbs).
- ബാറ്ററി പ്ലേസ്മെന്റ്:
- Clean the battery tray and cable terminals.
- Place the new Interstate 31-AGM7 battery securely in the battery tray.
- Ensure it is stable and will not shift during operation.
- കേബിൾ കണക്ഷൻ:
- Connect the positive (+) cable first, then the negative (-) cable.
- Ensure connections are clean and tight to prevent arcing and ensure optimal current flow.
- Apply a thin layer of anti-corrosion grease to the terminals if desired.
- സുരക്ഷിത ബാറ്ററി: Reinstall any hold-down clamps or straps to firmly secure the battery.
ചിത്രം 3: ഉദാample of the 31-AGM7 battery in an application setting.
4. പ്രവർത്തന മാർഗ്ഗനിർദ്ദേശങ്ങൾ
The Interstate 31-AGM7 battery is designed for reliable performance in various demanding applications. To maximize its lifespan and efficiency, consider the following:
- Deep Cycle Use: This battery excels in deep cycle applications, providing sustained power over long periods. Avoid excessively deep discharges if possible, though the battery is built to withstand them.
- Cranking Power: It also provides high cranking power for starting engines, even in challenging conditions.
- താപനില പ്രകടനം: The Pure Matrix Power technology enhances performance in extreme temperatures, delivering more power at lower temperatures compared to conventional AGM batteries.
- വൈബ്രേഷൻ പ്രതിരോധം: The robust design with Vibratach End Walls and Epoxy Anchor Bonding helps resist damage from vibration, making it suitable for heavy-duty vehicles and marine environments.
5. പരിപാലനവും സംഭരണവും
While the 31-AGM7 is a maintenance-free, fully sealed AGM battery, proper care ensures optimal performance and longevity.
- വൃത്തിയാക്കൽ: Keep the battery top clean and dry. Use a damp cloth to wipe away dirt or grime. Ensure terminals are free of corrosion.
- ടെർമിനൽ കണക്ഷനുകൾ: Periodically check that terminal connections are tight and secure. Loose connections can lead to power loss and heat buildup.
- ചാർജിംഗ്:
- Use a charger compatible with AGM batteries.
- Avoid overcharging, which can damage the battery.
- For optimal lifespan, recharge the battery promptly after discharge.
- സംഭരണം:
- If storing the battery for an extended period, ensure it is fully charged before storage.
- നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും അങ്ങേയറ്റത്തെ താപനിലയിൽ നിന്നും അകലെ തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.
- The 31-AGM7 can be stored for up to 2 years without significant degradation, but periodic checks and a top-off charge every 6-12 months are recommended for very long storage periods.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your Interstate 31-AGM7 battery, consider the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ബാറ്ററി ഹോൾഡിംഗ് ചാർജ് അല്ല | Undercharging, faulty charging system, parasitic drain, end of life. | Check charging system (alternator/charger). Inspect for parasitic drains. Ensure full charge after use. If battery is old, consider replacement. |
| Low cranking power | Low state of charge, loose/corroded terminals, undersized cables. | Fully charge battery. Clean and tighten terminal connections. Verify cable gauge is appropriate for application. |
| ബാറ്ററി വീർത്തതോ കേടായതോ ആയി തോന്നുന്നു | Overcharging, internal short circuit, extreme heat. | Immediately disconnect and replace the battery. Do not attempt to charge or use. Consult a professional. |
| ചുരുക്കിയ ബാറ്ററി ലൈഫ് | Consistent deep discharges without full recharge, extreme operating temperatures, improper charging. | Ensure battery is fully recharged after each use. Optimize charging practices. Protect battery from extreme heat. |
If problems persist, contact Interstate Batteries customer support or a certified technician.
7 സ്പെസിഫിക്കേഷനുകൾ
Detailed specifications for the Interstate Batteries 31-AGM7:
Figure 4: Key performance metrics of the 31-AGM7 battery.
- മോഡൽ നമ്പർ: 31-AGM7
- വാല്യംtage: 12V
- ശേഷി: 100അഹ്
- തണുത്ത ക്രാങ്കിംഗ് Amps (CCA): 925 സിസിഎ
- ക്രാങ്കിംഗ് Amps (CA): 1200 CA
- Reserve Capacity (RC): 190 മിനിറ്റ്
- സാങ്കേതികവിദ്യ: Pure Lead Absorbed Glass Mat (AGM)
- ഇനത്തിൻ്റെ ഭാരം: 69.5 പൗണ്ട്
- പാക്കേജ് അളവുകൾ: 16 x 14 x 11.5 ഇഞ്ച്
- ടെർമിനൽ തരം: Marine Terminal
- പ്രത്യേക സവിശേഷതകൾ: Rechargeable, Gas-Guard Technology, Single Handle, Vibratach End Walls, Epoxy Anchor Bonding, Fully Sealed Design.
Figure 5: Physical dimensions of the 31-AGM7 battery.
8. വാറൻ്റിയും പിന്തുണയും
Interstate Batteries stands behind the quality of its products. The 31-AGM7 battery comes with a 36 മാസത്തെ സൗജന്യ റീപ്ലേസ്മെന്റ് വാറന്റി, ensuring peace of mind for your investment.
For warranty claims, technical support, or any questions regarding your battery, please contact Interstate Batteries directly or visit their official website. You can also return the battery to an Interstate All Battery Center for recycling.
Interstate Batteries Contact Information:
- Webസൈറ്റ്: www.interstatebatteries.com
- Customer Service: Refer to the product label or website for the most current contact numbers.
