ലെക്ട്രോൺ പോർട്ടബിൾ ടെസ്‌ല ചാർജർ യൂസർ മാനുവൽ

ആമുഖം

This user manual provides comprehensive instructions for the safe and efficient operation of your Lectron Portable Tesla Charger. Designed for convenience and versatility, this charger supports both Level 1 (12 Amp) and Level 2 (32 Amp) charging, making it compatible with all Tesla Model X, Y, 3, and S vehicles through its dual NEMA 5-15 and 14-50 plugs. Please read this manual thoroughly before first use to ensure proper setup and to maximize the lifespan of your device.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Lectron Portable Tesla Charger is a robust and adaptable charging solution for your Tesla vehicle. It features a durable construction and offers flexible charging options to suit various power outlets.

The Lectron Portable Tesla Charger, featuring its control box and Tesla-compatible connector.

The charger includes interchangeable NEMA 14-50 (Level 2, 32A, 240V) and NEMA 5-15 (Level 1, 12A, 110V) plugs for versatile charging.

This charger is fully compatible with all Tesla models: Model Y, Model 3, Model S, and Model X.

Charging performance table indicating estimated miles of range per hour for various Tesla models using Level 1 (12 Amp) and Level 2 (32 Amp) charging.

The charger features a generous 21-foot long cable, providing ample reach for convenient charging.

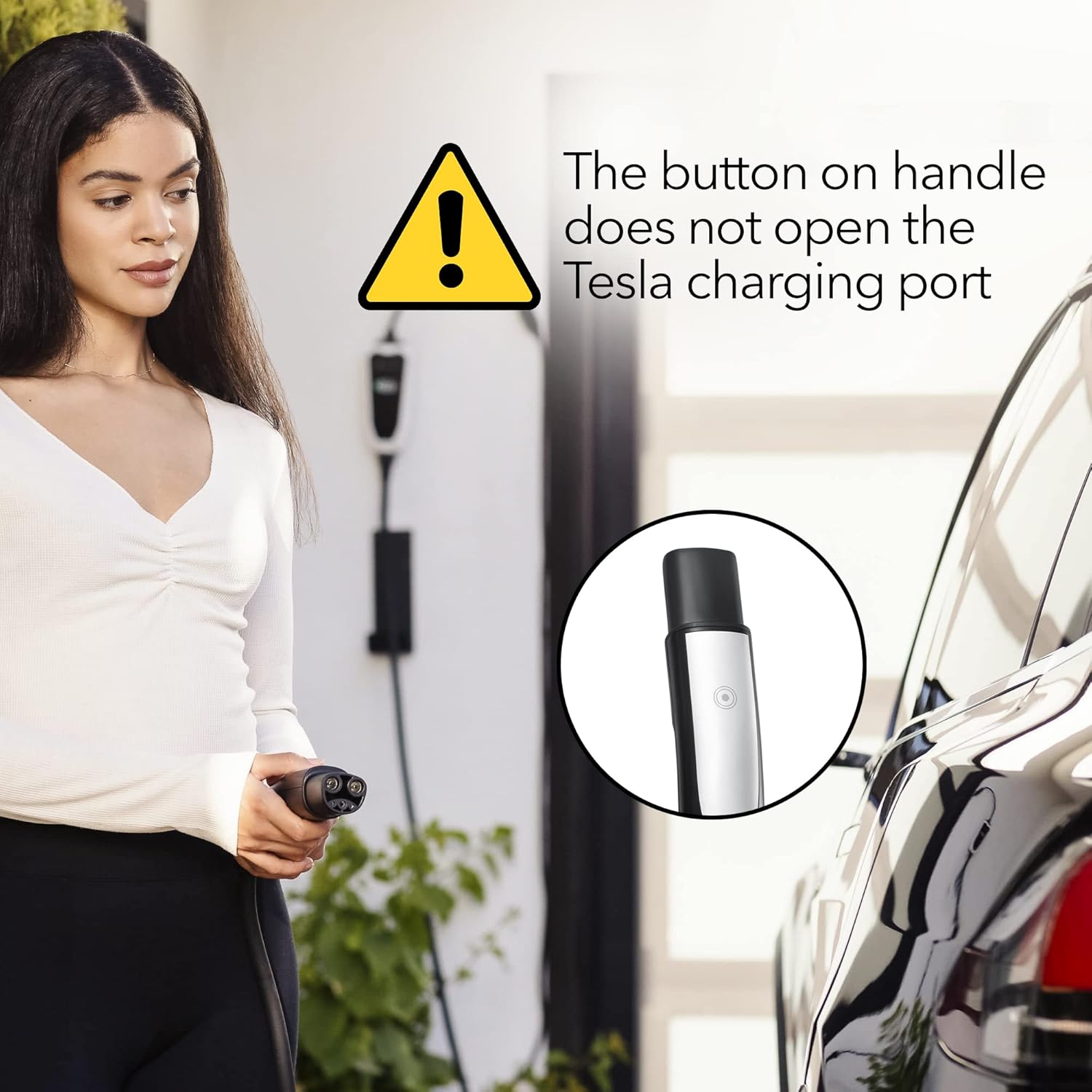

Important Note: The button on the charger handle does not open the Tesla charging port. The port must be opened via the vehicle's touchscreen or mobile app.

The compact design of the Lectron charger makes it portable and convenient for travel or on-the-go charging.

സജ്ജമാക്കുക

1. ശരിയായ പ്ലഗ് തിരഞ്ഞെടുക്കുക: Identify the appropriate NEMA plug for your power outlet. Use the NEMA 5-15 plug for standard 110V household outlets (Level 1 charging) or the NEMA 14-50 plug for 240V outlets (Level 2 charging).
2. പ്ലഗ് ബന്ധിപ്പിക്കുക: Securely attach the chosen NEMA plug to the charger's control box. Ensure a firm connection.
3. പവർ ഔട്ട്ലെറ്റിൽ പ്ലഗ് ഇൻ ചെയ്യുക: Insert the NEMA plug into the corresponding wall outlet. The charger's LED indicators will illuminate, signaling power is received.
4. വാഹനവുമായി ബന്ധിപ്പിക്കുക: Open your Tesla's charge port (via the vehicle's touchscreen or mobile app). Insert the Tesla-compatible connector into the vehicle's charge port until it clicks securely into place.
5. കണക്ഷൻ സ്ഥിരീകരിക്കുക: The charger's LED indicators will change to a green, pulsating light, indicating that charging has begun. Confirm charging status on your Tesla's display.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

• Initiating Charge: Once the charger is plugged into a power source and connected to your Tesla, charging will typically begin automatically. The LED indicators on the control box will show the charging status.
• LED സൂചകങ്ങൾ: The control box features LED lights that provide quick visual feedback on the charging status. A solid green light indicates power is connected, while a pulsating green light signifies active charging.
• Stopping Charge: To stop charging, first unlock your vehicle's charge port via the Tesla touchscreen or mobile app, then carefully remove the connector from the vehicle. Unplug the charger from the wall outlet.
• പ്രധാന കുറിപ്പ്: The button located on the charger handle is for releasing the connector from the vehicle's charge port once unlocked. It does not open the charge port itself.

മെയിൻ്റനൻസ്

To ensure the longevity and optimal performance of your Lectron Portable Tesla Charger, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Regularly wipe down the charger's exterior, cable, and connectors with a dry, clean cloth. Avoid using harsh chemicals or abrasive materials that could damage the unit. Ensure the charger is unplugged before cleaning.
• സംഭരണം: When not in use, store the charger in a cool, dry place, away from direct sunlight and extreme temperatures. Coil the cable neatly to prevent kinks or damage. The charger is designed for portability and comes with a carrying case for protection.
• പരിശോധന: Periodically inspect the cable and connectors for any signs of wear, cuts, or damage. If any damage is observed, discontinue use immediately and contact customer support.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your Lectron Portable Tesla Charger, refer to the following common troubleshooting steps:

• ചാർജർ ഓണാക്കുന്നില്ല:
  • Ensure the NEMA plug is fully inserted into the wall outlet.
  • Check the circuit breaker for the outlet to ensure it has not tripped.
  • Verify that the chosen NEMA plug is correctly attached to the charger's control box.
• വാഹനം ചാർജ് ചെയ്യുന്നില്ല:
  • Confirm that the Tesla-compatible connector is fully inserted into the vehicle's charge port.
  • Ensure the vehicle's charge port is unlocked (check Tesla touchscreen or mobile app).
  • Verify that the charger's LED indicators show an active charging status (pulsating green).
  • If using a NEMA 14-50 outlet, ensure it is properly wired and providing 240V.
• അമിത ചൂടാക്കൽ പ്രശ്നങ്ങൾ:
  • If the charger or outlet feels excessively hot, immediately discontinue charging.
  • Ensure the outlet and wiring are rated for the amperage being drawn (especially for 32 Amp Level 2 charging). Consult a qualified electrician if unsure.
  • Avoid charging in direct sunlight or in poorly ventilated areas, which can contribute to heat buildup.
  • If overheating persists, contact Lectron customer support.
• സ്ലോ ചാർജിംഗ്:
  • Confirm you are using the correct NEMA plug for your desired charging speed (NEMA 14-50 for Level 2, 32 Amp).
  • Check your Tesla's charging settings to ensure the amperage limit is not set too low.
  • Environmental factors and vehicle battery condition can affect charging speed.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or any inquiries regarding your Lectron Portable Tesla Charger, please contact Lectron customer service directly. Refer to the product packaging or the official Lectron webഏറ്റവും പുതിയ കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായി സൈറ്റ്.

While protection plans are available for purchase separately, direct product support and warranty claims should be initiated through the manufacturer.
