HIDGEEM BE16A01 Li-Ion Battery Pack User Manual

1. ആമുഖം

The HIDGEEM BE16A01 Li-Ion Battery Pack is specifically designed to provide extended power for compatible portable oxygen concentrators, ensuring longer operating times and greater mobility for users. This manual outlines the proper procedures for installation, operation, maintenance, and troubleshooting to ensure safe and efficient use of your battery pack.

ചിത്രം 1.1: The HIDGEEM BE16A01 Li-Ion Battery Pack, showing its compact design and integrated labels for specifications and warnings. The battery features a power button and five LED indicators for battery level.

Key features of the BE16A01 battery pack include:

• ബാറ്ററി ലെവൽ ഇൻഡിക്കേറ്റർ: Equipped with 5 LED indicator lights to easily monitor the remaining battery charge.
• സുരക്ഷിത മൗണ്ടിംഗ്: Features a lock buckle and guide column design for secure and reliable connection to the oxygen concentrator.
• ഉയർന്ന ശേഷി: Provides extended operating time for your portable oxygen concentrator.

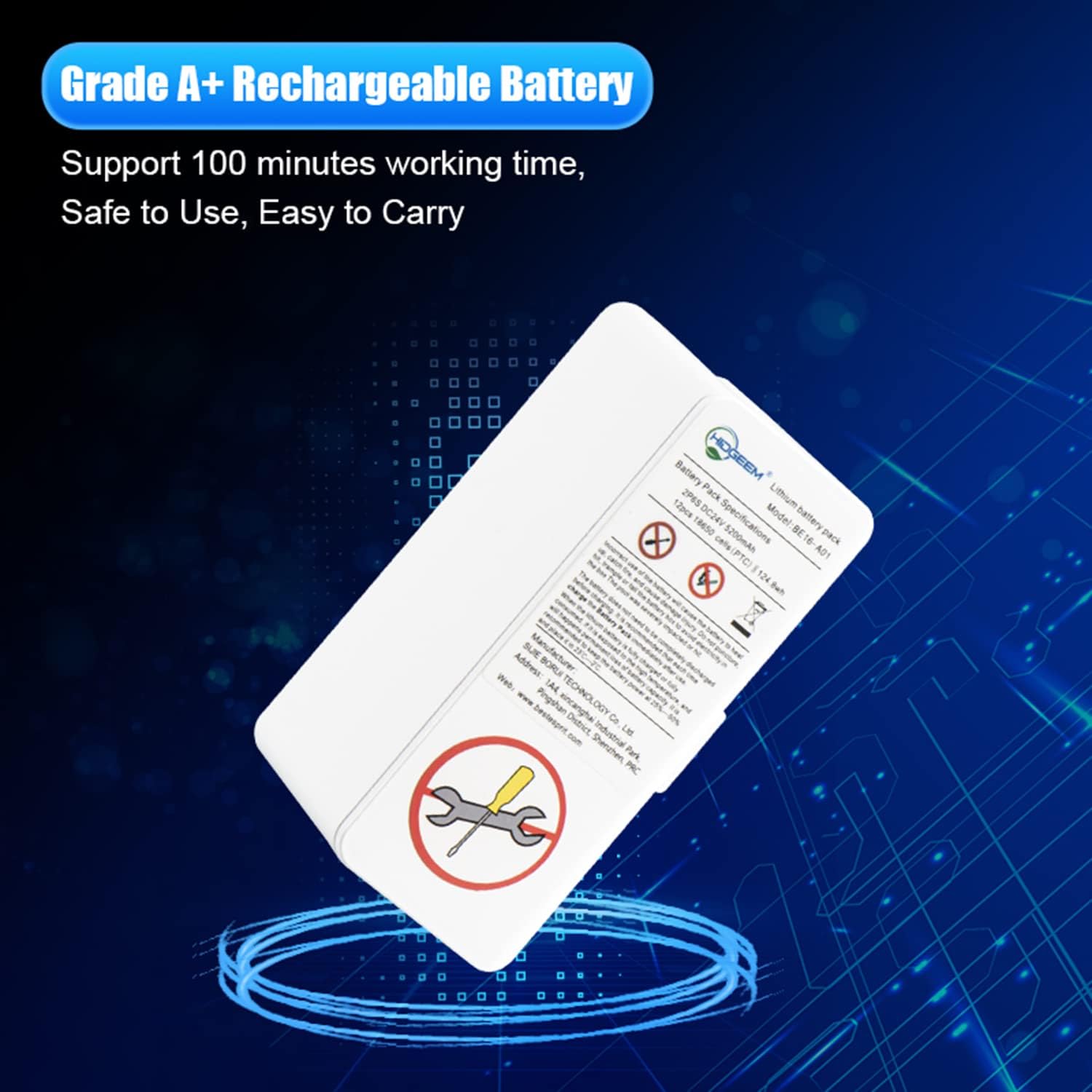

ചിത്രം 1.2: The HIDGEEM BE16A01 battery pack, highlighting its Grade A+ rechargeable battery quality, designed for reliable performance and extended working time.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read all safety warnings and instructions carefully before using the HIDGEEM BE16A01 Li-Ion Battery Pack. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

പൊതു സുരക്ഷാ മുൻകരുതലുകൾ:

• Do not disassemble, crush, puncture, or short-circuit the battery pack.
• Do not expose the battery pack to high temperatures (above 60°C / 140°F) or fire.
• Do not use the battery pack if it is damaged, swollen, leaking, or shows any signs of abnormality.
• Charge the battery pack immediately after use to maintain optimal performance and lifespan.
• Store the battery pack in a cool, dry place, ideally at 25°C ± 5°C (77°F ± 9°F).
• Only use the original charger and accessories provided or authorized by HIDGEEM. Using non-brand authorized battery packs or accessories may void your warranty and pose safety risks.
• Keep flammable and explosive materials strictly prohibited around the oxygen concentrator and battery pack.
• This battery pack is intended for use with portable oxygen concentrators and is not designed to be used as a life support device.

ചിത്രം 2.1: പിൻഭാഗം view of the oxygen concentrator with the battery pack installed, showing important safety warnings regarding oxygen use, fire hazards, and the use of authorized accessories.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 ബാറ്ററി പാക്ക് ഇൻസ്റ്റാൾ ചെയ്യുന്നു

To install the HIDGEEM BE16A01 battery pack into your portable oxygen concentrator:

1. Ensure the oxygen concentrator is turned off and disconnected from any power source.
2. Locate the battery compartment on your oxygen concentrator. This is typically on the rear or side of the device.
3. Align the battery pack with the compartment, ensuring the guide column and lock buckle align correctly with the concentrator's slots.
4. Gently slide the battery pack into the compartment until it clicks securely into place. Do not force the battery.

ചിത്രം 3.1: Proper method for inserting the HIDGEEM BE16A01 battery pack into the designated compartment of the portable oxygen concentrator.

3.2 ബാറ്ററി പായ്ക്ക് ചാർജ് ചെയ്യുന്നു

Before first use, or when the battery level is low, charge the battery pack fully. The battery does not need to be completely discharged before recharging.

1. Connect the charging cable to the charging port on the battery pack. The charging port is typically located on the bottom or side of the battery.
2. Connect the other end of the charging cable to the appropriate power adapter.
3. ഒരു മതിൽ ഔട്ട്ലെറ്റിലേക്ക് പവർ അഡാപ്റ്റർ പ്ലഗ് ചെയ്യുക.
4. The battery indicator lights will illuminate to show the charging progress. All 5 lights will be solid when fully charged.

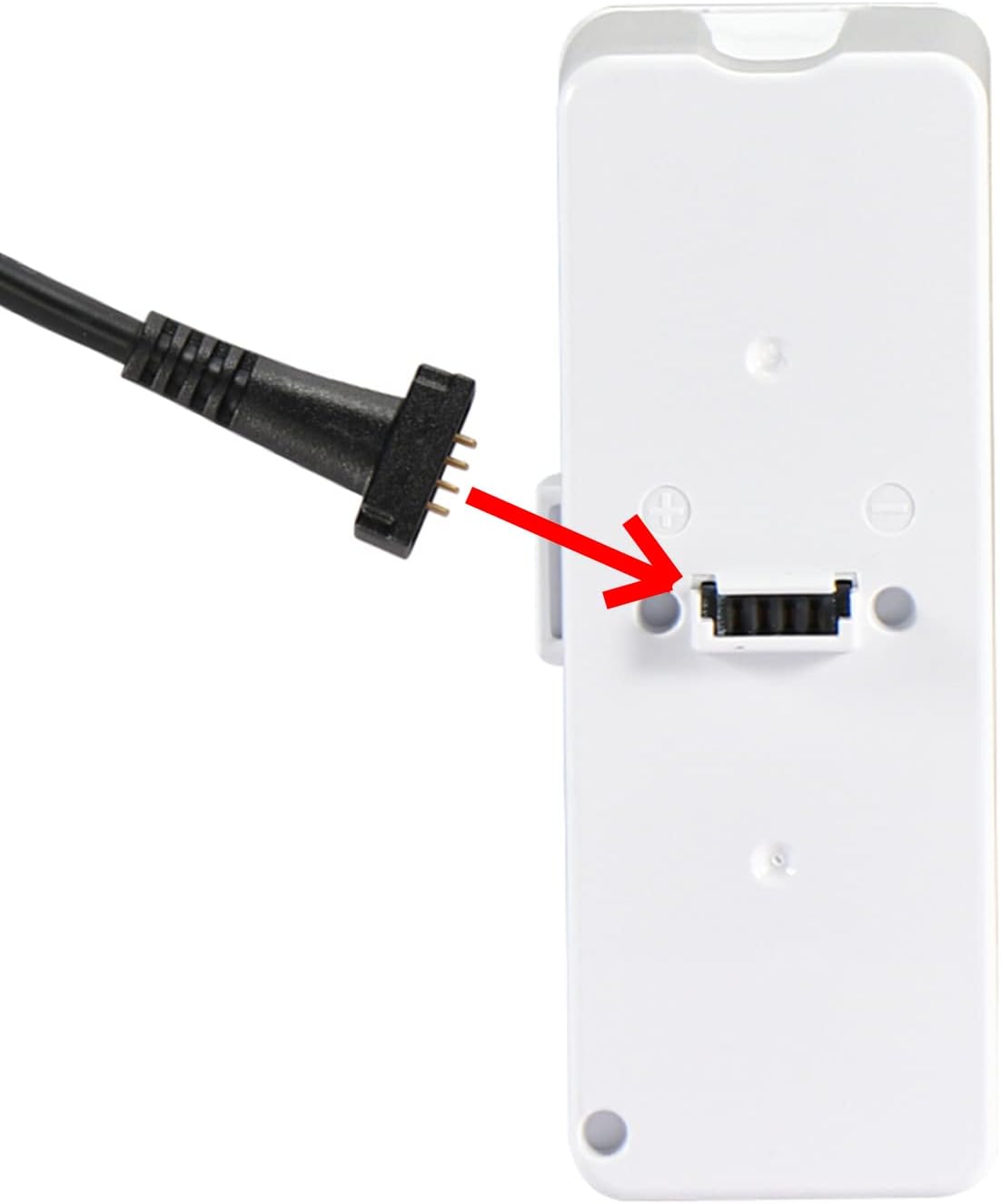

ചിത്രം 3.2: Connecting the charging cable to the HIDGEEM BE16A01 battery pack's charging port.

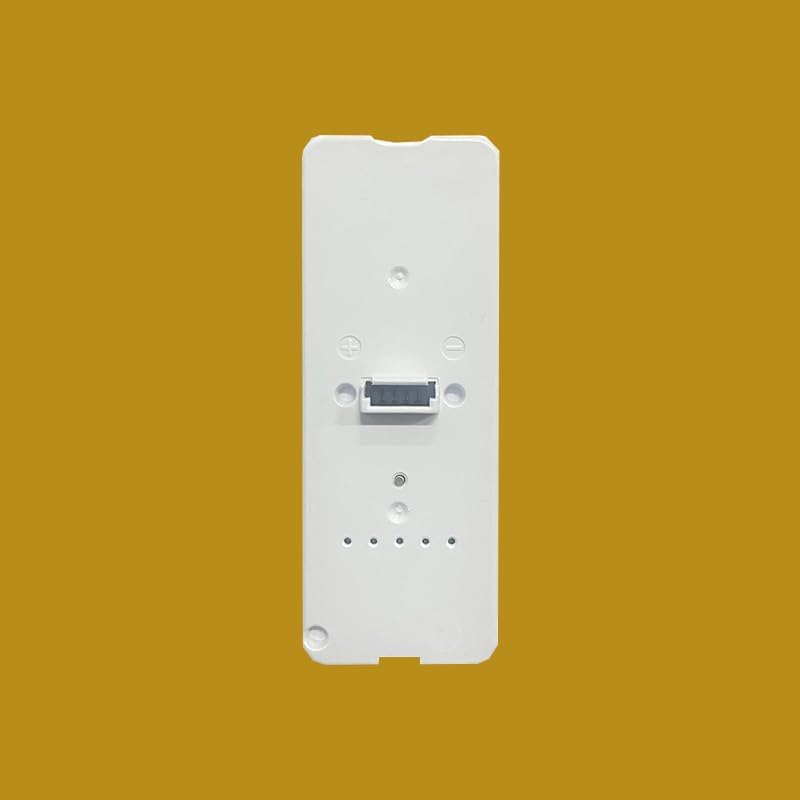

ചിത്രം 3.3: ഒരു ക്ലോസപ്പ് view of the bottom of the HIDGEEM BE16A01 battery pack, clearly showing the charging port.

4. ഓപ്പറേഷൻ

4.1 ബാറ്ററി നില പരിശോധിക്കുന്നു

The HIDGEEM BE16A01 battery pack features 5 LED indicator lights to display the current charge level. To check the battery level:

• Click the Power Button: A short press on the battery's power button will illuminate the LED indicators.
• Interpret the Lights: Each illuminated light represents approximately 20% of the battery's charge. For example, 5 lights indicate a full charge, while 1 light indicates a low charge.

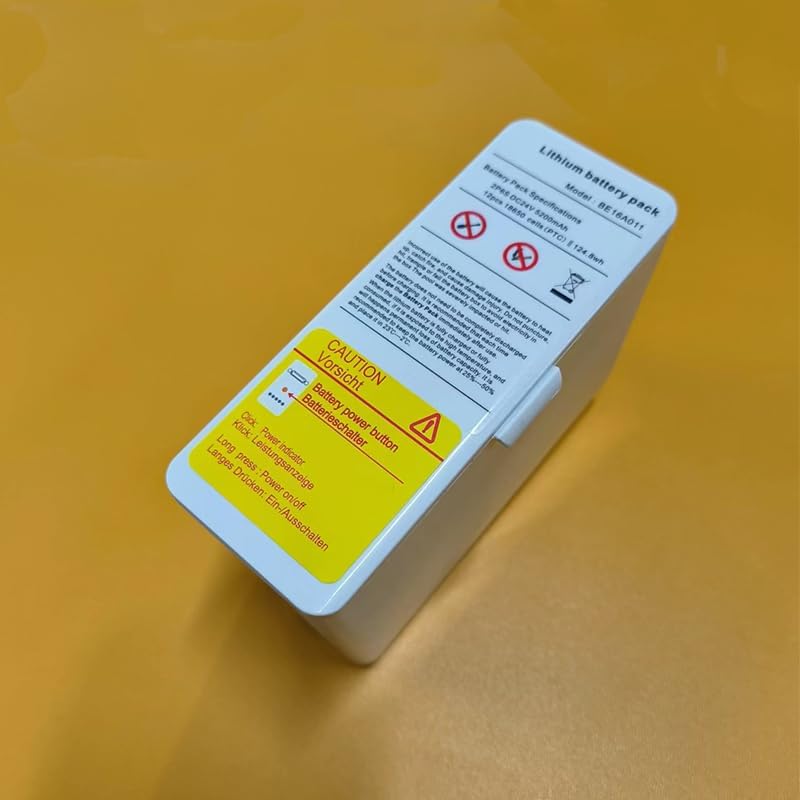

ചിത്രം 4.1: The HIDGEEM BE16A01 battery pack, highlighting the power button and the five LED battery level indicators.

4.2 പവർ ഓൺ/ഓഫ്

To power on or off the oxygen concentrator using the battery pack:

• പവർ ഓൺ: With the battery pack securely installed, perform a long press on the battery's power button. The concentrator should power on.
• പവർ ഓഫ്: To turn off the concentrator, perform another long press on the battery's power button.

5. പരിപാലനം

Proper maintenance ensures the longevity and optimal performance of your HIDGEEM BE16A01 battery pack.

5.1 വൃത്തിയാക്കൽ

• Wipe the exterior of the battery pack with a soft, dry, or slightly damp തുണി.
• അബ്രാസീവ് ക്ലീനറുകൾ, ലായകങ്ങൾ, കഠിനമായ രാസവസ്തുക്കൾ എന്നിവ ഉപയോഗിക്കരുത്.
• ചാർജിംഗ് പോർട്ടിലേക്കോ മറ്റ് ദ്വാരങ്ങളിലേക്കോ ദ്രാവകം പ്രവേശിക്കുന്നില്ലെന്ന് ഉറപ്പാക്കുക.

5.2 സംഭരണം

• If storing the battery for an extended period, ensure it is charged to approximately 50-60% before storage.
• Store the battery pack in a cool, dry place, away from direct sunlight and extreme temperatures. The ideal storage temperature is 25°C ± 5°C (77°F ± 9°F).
• Recharge the battery every 3-6 months during long-term storage to prevent deep discharge, which can damage the battery.

5.3 ബാറ്ററി കെയർ

• സാധ്യമാകുമ്പോഴെല്ലാം ബാറ്ററി പൂർണ്ണമായും ഡിസ്ചാർജ് ചെയ്യുന്നത് ഒഴിവാക്കുക.
• Always use the specified charger for the battery pack.
• Do not expose the battery to physical shock or vibration.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your HIDGEEM BE16A01 battery pack, please refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact HIDGEEM customer support for further assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the HIDGEEM BE16A01 Li-Ion Battery Pack:

8. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. HIDGEEM stands behind the quality of its products.

ഉപഭോക്തൃ പിന്തുണ:

If you have any questions, require technical assistance, or need to report an issue with your HIDGEEM BE16A01 Li-Ion Battery Pack, please contact HIDGEEM customer support.

• നിർമ്മാതാവ്: AA TECHNOLOGY Co. Ltd.
• Webസൈറ്റ്: www.hidgeem.com

Please have your product model number (BE16A01) and purchase details ready when contacting support.
