ആമുഖം
This instruction manual provides essential information for the proper installation, operation, and maintenance of your CATLINK Ultrafiltration Filter. This filter is designed exclusively for use with the CATLINK PURE 2 Pet Drinking Fountain to ensure optimal water quality for your pet.
പാക്കേജ് ഉള്ളടക്കം
- UF Ultrafiltration Filter x2

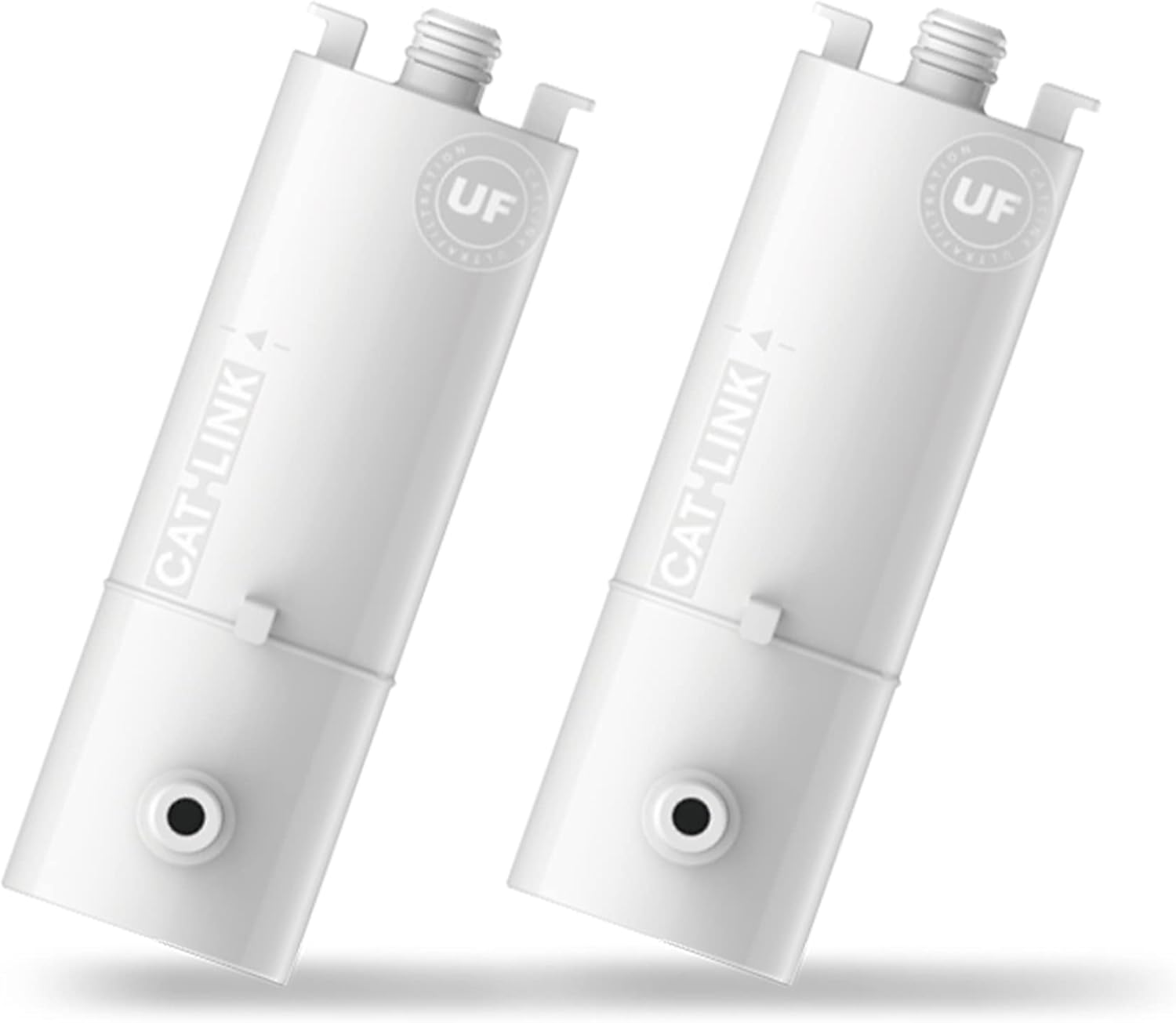

Image: Two CATLINK Ultrafiltration Filters, white in color, designed for the PURE 2 fountain.
അനുയോജ്യത
This Ultrafiltration Filter is only compatible with the CATLINK PURE 2 Cat Water Fountain. Ensure you are using the correct filter for your specific fountain model.
ഉൽപ്പന്ന സവിശേഷതകൾ
The CATLINK Ultrafiltration Filter incorporates advanced technology to provide clean and healthy drinking water for your pet.
- Ultrafiltration Technology: Features high-density micropores (0.01µm) for effective water purification, removing impurities and particles.
- അയോൺ എക്സ്ചേഞ്ച് റെസിൻ: Softens water quality by replacing calcium and magnesium ions, which helps prevent urinary stones in pets.
- Fully Enclosed Structure: The filter element is designed with a fully enclosed structure to prevent external contamination and maintain hygiene.
Image: A detailed diagram illustrating the internal components of the CATLINK Ultrafiltration Filter, highlighting the 0.01µm high-density micropores and ion exchange resin for water purification.
Filter Installation and Replacement
Follow these steps to install a new filter or replace an existing one in your CATLINK PURE 2 Cat Water Fountain.
മാറ്റിസ്ഥാപിക്കാനുള്ള ഘട്ടങ്ങൾ
- Unplug the Fountain: Always disconnect the power supply to the fountain before performing any maintenance.
- ഘടകങ്ങൾ വേർപെടുത്തുക: Carefully remove the top cover and any other components of the fountain to access the filter housing.
- പഴയ ഫിൽറ്റർ നീക്കം ചെയ്യുക: Locate the used Ultrafiltration Filter and gently pull it out from its designated slot. Dispose of the old filter responsibly.
- Rinse New Filter: Rinse the new Ultrafiltration Filter under running water for a few minutes to remove any loose carbon dust or manufacturing residue.
- പുതിയ ഫിൽറ്റർ ചേർക്കുക: Insert the new filter firmly into the filter slot within the fountain's water reservoir. Ensure it is seated correctly.
- Reassemble and Refill: Reassemble all fountain components. Fill the water reservoir with fresh, clean water up to the maximum fill line.
- പ്ലഗ് ഇൻ ചെയ്ത് പ്രവർത്തിപ്പിക്കുക: Connect the power supply to the fountain. The fountain should begin operating, circulating water through the new filter.

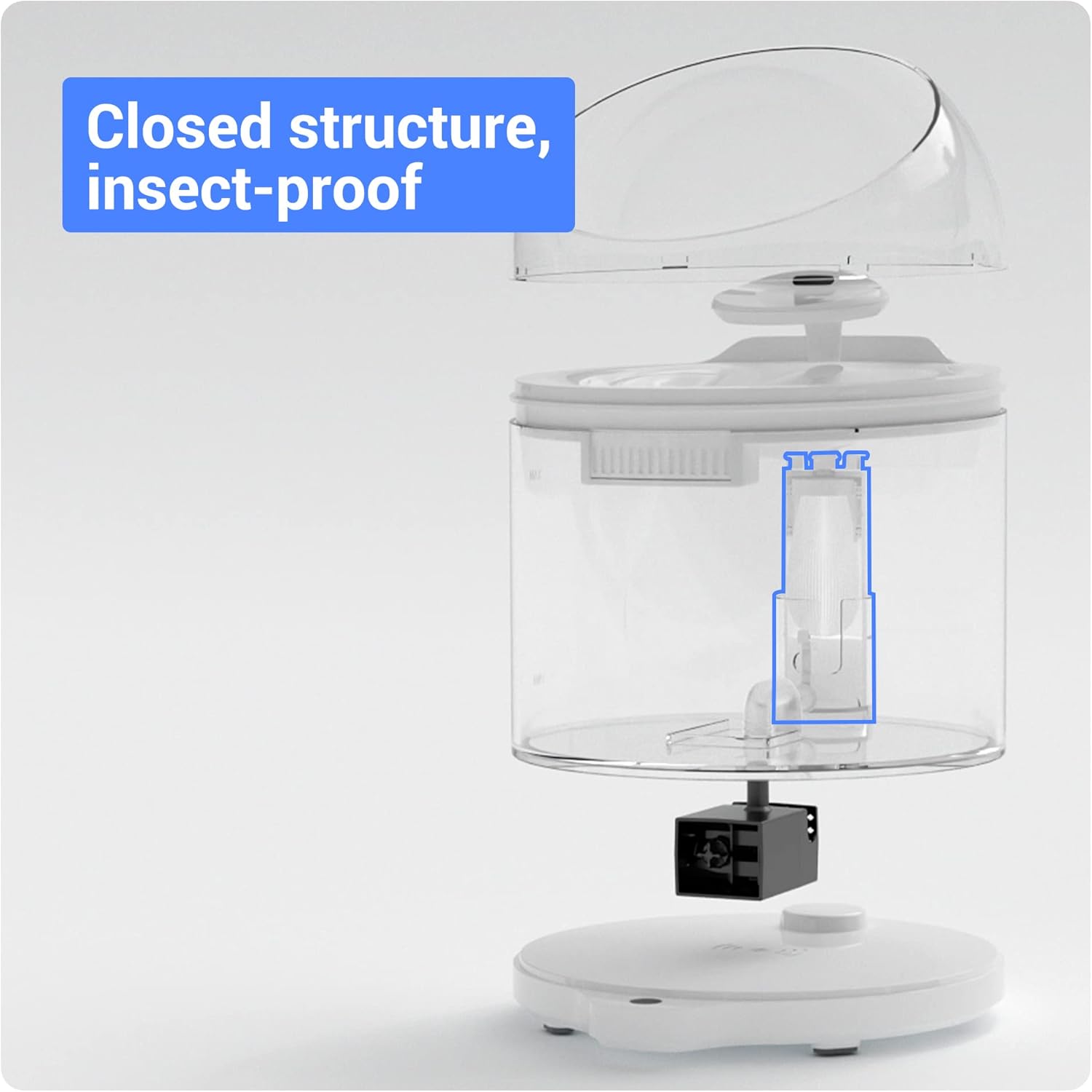

ചിത്രം: പൊട്ടിത്തെറിച്ച ഒരു view of the CATLINK PURE 2 fountain, highlighting the correct placement of the Ultrafiltration Filter within the main water reservoir.
ഓപ്പറേഷൻ
Once installed, the Ultrafiltration Filter continuously purifies the water as it circulates through the CATLINK PURE 2 fountain. The multi-stage filtration process ensures that your pet receives clean, softened water, free from common impurities.

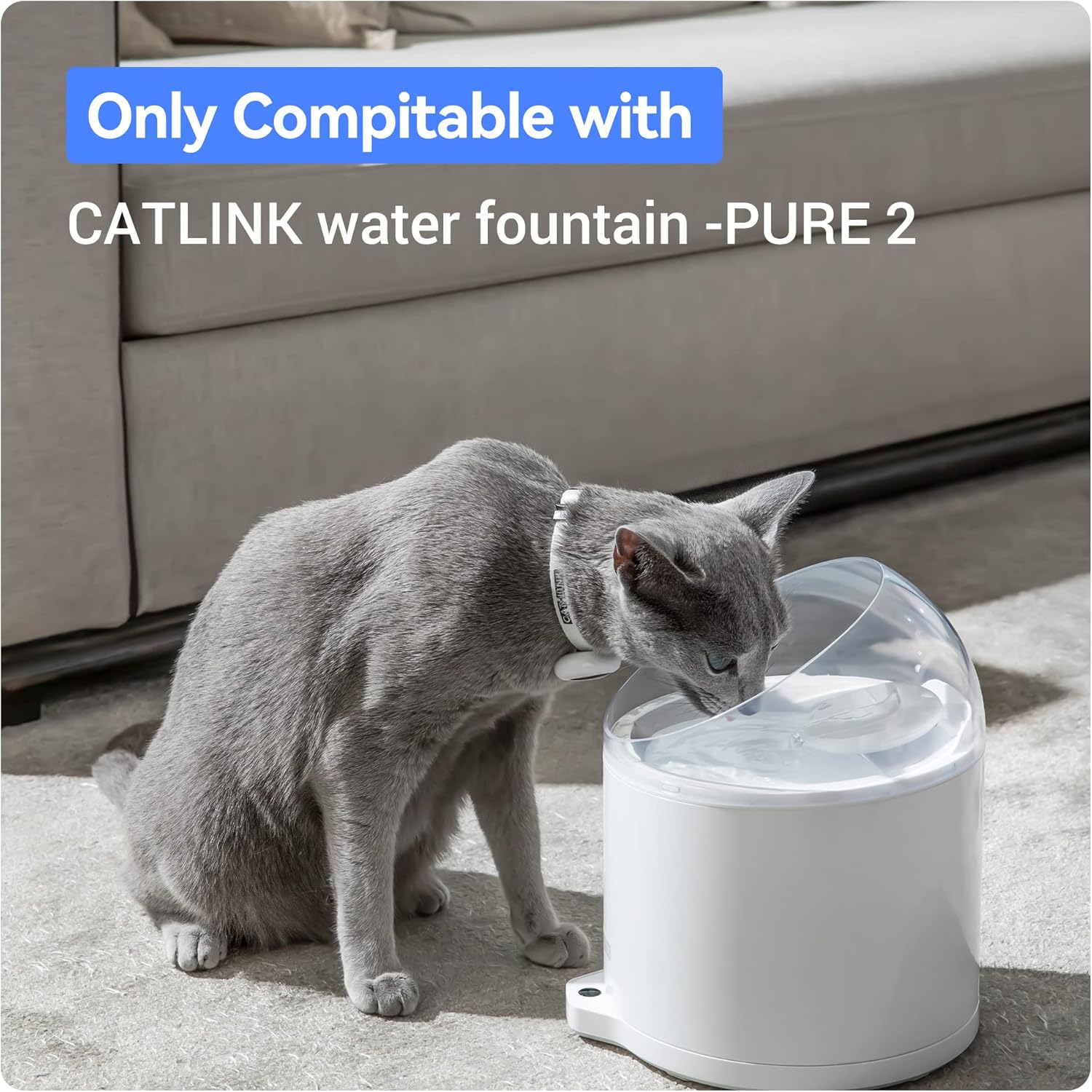

Image: A cat drinking fresh water from the CATLINK PURE 2 water fountain, demonstrating typical operation.
മെയിൻ്റനൻസ്
ഫിൽട്ടർ മാറ്റിസ്ഥാപിക്കൽ ഷെഡ്യൂൾ
For optimal performance and water quality, the CATLINK Ultrafiltration Filter should be replaced every 3 മാസം. Regular replacement ensures continuous effective filtration and helps maintain your pet's health.
ജലധാര വൃത്തിയാക്കൽ
In addition to filter replacement, it is recommended to clean the entire CATLINK PURE 2 fountain regularly (e.g., weekly) to prevent mineral buildup and maintain hygiene. Refer to your CATLINK PURE 2 fountain's instruction manual for detailed cleaning procedures.
ട്രബിൾഷൂട്ടിംഗ്
If you experience issues related to water quality or flow after installing a new filter, consider the following:
- കുറഞ്ഞ ജലപ്രവാഹം: Ensure the filter is correctly seated and not obstructed. Check if the fountain pump is clean and free of debris.
- അസാധാരണമായ രുചി അല്ലെങ്കിൽ ഗന്ധം: If a new filter has an initial slight odor, rinse it thoroughly under running water before installation. If the issue persists, ensure the filter is not expired or damaged.
- Water Clarity Issues: Confirm the filter is installed correctly and that the fountain itself is clean. If the water remains unclear, the filter may be saturated and require replacement, even if before the recommended 3-month period, depending on water hardness and usage.
For further assistance, please refer to the CATLINK PURE 2 fountain manual or contact customer support.
സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ് | CATLINK |
| മോഡൽ | Ultrafiltration Filter (Compatible with PURE 2) |
| മെറ്റീരിയൽ | Carbon (Filter media) |
| ഇനത്തിൻ്റെ ഭാരം | 7.04 ounces (for 2 filters) |
| യൂണിറ്റ് എണ്ണം | 2.0 എണ്ണം |
| യു.പി.സി | 810105180756 |
| ഉൽപ്പന്ന ആനുകൂല്യങ്ങൾ | Improves water quality and prevents urinary stones for pets |
| ബാഹ്യ പരിശോധന സർട്ടിഫിക്കേഷൻ | CE |
വാറൻ്റി വിവരങ്ങൾ
The CATLINK Ultrafiltration Filter is covered by a 1 വർഷത്തെ വാറൻ്റി വാങ്ങിയ തീയതി മുതൽ. ഈ വാറന്റി നിർമ്മാണ വൈകല്യങ്ങൾ ഉൾക്കൊള്ളുന്നു. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
ഉപഭോക്തൃ പിന്തുണ
For technical support, warranty claims, or any questions regarding your CATLINK Ultrafiltration Filter or PURE 2 Cat Water Fountain, please contact CATLINK customer service through their official webഉൽപ്പന്നം വാങ്ങിയ സൈറ്റ് അല്ലെങ്കിൽ റീട്ടെയിലർ.
