MAONO PD100 XLR Podcast Microphone User Manual

1. ആമുഖം

The MAONO PD100 XLR Podcast Microphone is a dynamic microphone designed for high-quality vocal recording, streaming, and content creation. It features a cardioid polar pattern to capture clear, focused audio while minimizing background noise. This manual provides essential information for setting up, operating, and maintaining your PD100 microphone.

2. സവിശേഷതകൾ

• പ്രക്ഷേപണ-ഗുണനിലവാര ശബ്‌ദം: Built-in dynamic core and inner double-layer pop filter for clear, mellow audio with a frequency response range of 60-14kHz.
• കാർഡിയോയിഡ് പോളാർ പാറ്റേൺ: Focuses on sound directly in front of the microphone, reducing ambient noise. Features an "End Address" pickup for detailed voice capture.
• XLR കണക്റ്റിവിറ്റി: Gold-plated 3-pin XLR interface ensures a stable and strong connection to audio interfaces, mixers, and sound cards.
• Noise Isolation Technology: Attenuates plosive sounds and unwanted background noise for cleaner recordings.
• വിശാലമായ അനുയോജ്യത: Works with various audio equipment such as mixers, audio interfaces, and sound cards.

3. ബോക്സിൽ എന്താണുള്ളത്?

Please check the contents of your package. The standard MAONO PD100 XLR Microphone package typically includes:

• MAONO PD100 XLR Dynamic Microphone
• Desktop Microphone Stand
• എക്സ് എൽ ആർ കേബിൾ

Note: The MAONO MH601 headphones, while compatible and often shown with the PD100, are typically sold separately.

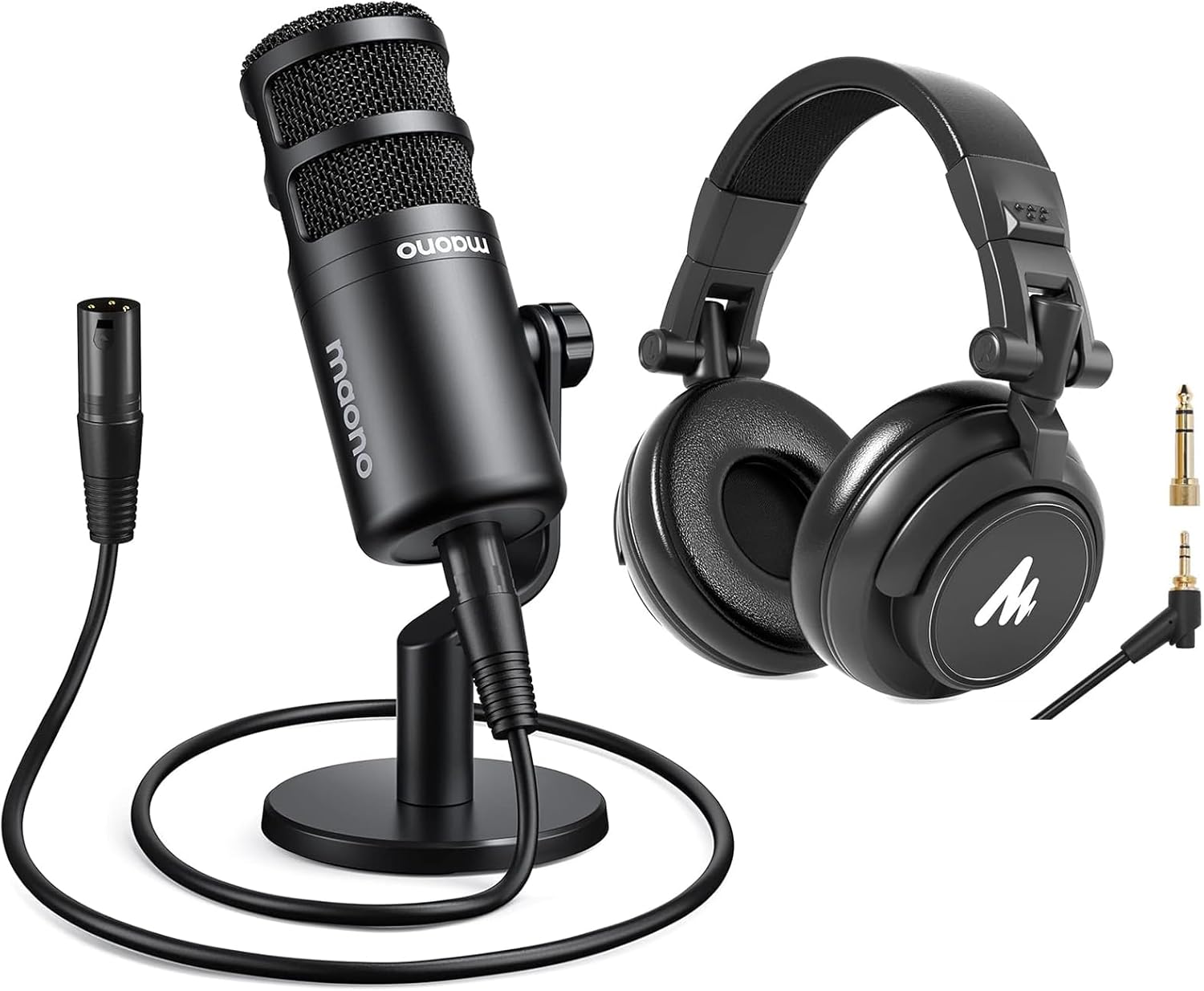

Image: The MAONO PD100 XLR Microphone shown with its included desk stand and XLR cable, alongside compatible MH601 headphones.

4. സജ്ജീകരണം

1. Attach the Microphone to a Stand:

   Secure the MAONO PD100 microphone to the included desktop stand or a compatible boom arm. The microphone features standard 5/8" and 3/8" threading for versatile mounting options.



   Image: Detail of the microphone's base illustrating the 5/8" and 3/8" threading for mounting on various stands.

2. XLR കേബിൾ ബന്ധിപ്പിക്കുക:

   Plug one end of the XLR cable into the 3-pin XLR output port at the bottom of the microphone. Connect the other end of the XLR cable to an audio interface, mixer, or sound card.



   ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the gold-plated 3-pin XLR output on the MAONO PD100 microphone, ensuring a secure connection.

3. ഓഡിയോ ഉപകരണങ്ങളുമായി ബന്ധിപ്പിക്കുക:

   Ensure your audio interface, mixer, or sound card is properly connected to your computer or recording device. The PD100 is compatible with professional studio equipment like the Focusrite Scarlett Solo or various audio mixers.



   Image: The MAONO PD100 microphone integrated into a studio setup, demonstrating compatibility with an audio interface and mixer.
4. പവർ ഓൺ ചെയ്ത് കോൺഫിഗർ ചെയ്യുക:

   Power on your audio interface/mixer. Adjust input gain levels on your audio device. The PD100 is a dynamic microphone and does not require phantom power.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. മൈക്രോഫോൺ പ്ലേസ്മെൻ്റ്:

   Position the microphone 2 to 4 inches (approximately 5-10 cm) from your mouth for optimal sound capture. The PD100 is an "End Address" microphone, meaning you should speak into the top of the microphone, not the side.



   Image: Illustration demonstrating the optimal speaking distance of 2-4 inches from the end-address cardioid dynamic microphone.

2. മോണിറ്ററിംഗ് ഓഡിയോ:

   For real-time audio monitoring, connect headphones (such as the MAONO MH601) to your audio interface or mixer. This allows you to hear your voice as it is being recorded or streamed.



   ചിത്രം: ഒരു മുറിച്ചെടുത്ത ഭാഗം view of the MAONO MH601 headphones, showcasing the 50mm driver responsible for its audio performance.



   Image: The MAONO MH601 headphones illustrating their foldable design and adjustable headband for comfort and portability.



   Image: Two users engaged in an audio session, demonstrating the audio sharing function of the MAONO MH601 headphones.

3. Adjusting Gain Levels:

   Set the input gain on your audio interface or mixer to an appropriate level. Aim for a strong signal without clipping (distortion). Most recording software will have visual indicators for this.
4. റെക്കോർഡിംഗ്/സ്ട്രീമിംഗ്:

   Once connected and levels are set, you can begin your recording or live stream. The PD100 is designed to deliver clear and natural sound for various applications.



   Image: Two individuals collaborating on a recording project, utilizing MAONO PD100 microphones and an audio mixer to achieve broadcast-grade sound quality.

6 സ്പെസിഫിക്കേഷനുകൾ

7. പ്രശ്‌നപരിഹാരം

• സൗണ്ട് ഔട്ട്പുട്ട് ഇല്ല:
  • XLR കേബിൾ മൈക്രോഫോണിലേക്കും ഓഡിയോ ഇന്റർഫേസിലേക്കും/മിക്സറിലേക്കും സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • Verify that the audio interface/mixer is powered on and correctly connected to your computer.
  • നിങ്ങളുടെ ഓഡിയോ ഇന്റർഫേസിൽ/മിക്സറിൽ ഇൻപുട്ട് ഗെയിൻ ലെവൽ പരിശോധിക്കുക; ഇത് വളരെ കുറവായിരിക്കാം.
  • നിങ്ങളുടെ കമ്പ്യൂട്ടറിന്റെ ശബ്ദ ക്രമീകരണങ്ങളിലോ റെക്കോർഡിംഗ് സോഫ്റ്റ്‌വെയറിലോ ശരിയായ ഇൻപുട്ട് ഉപകരണം തിരഞ്ഞെടുത്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• കുറഞ്ഞ വോളിയം:
  • Increase the input gain on your audio interface/mixer.
  • Ensure the microphone is positioned optimally (2-4 inches from the sound source).
  • Check the volume settings in your operating system and recording software.
• വികലമായ ശബ്ദം:
  • ക്ലിപ്പിംഗ് തടയുന്നതിന് നിങ്ങളുടെ ഓഡിയോ ഇന്റർഫേസിലെ/മിക്സറിലെ ഇൻപുട്ട് ഗെയിൻ കുറയ്ക്കുക.
  • Ensure the microphone is not too close to the sound source, which can cause overload.
  • Check for damaged XLR cables and replace if necessary.
• പശ്ചാത്തല ശബ്ദം:
  • Ensure the microphone is facing the desired sound source directly, utilizing its cardioid pattern.
  • നിങ്ങളുടെ റെക്കോർഡിംഗ് പരിതസ്ഥിതിയിൽ ആംബിയന്റ് നോയ്‌സ് കുറയ്ക്കുക.
  • Check for any electrical interference from other devices.

8. പരിപാലനം

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to wipe the microphone body. Avoid using liquid cleaners or solvents, as they may damage the finish or internal components.
• സംഭരണം: When not in use, store the microphone in a clean, dry place, away from extreme temperatures and humidity. It is recommended to keep it in its original packaging or a protective case.
• കേബിൾ കെയർ: Avoid sharply bending or twisting the XLR cable. Store cables neatly to prevent damage.

9. വാറൻ്റിയും പിന്തുണയും

MAONO products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official MAONO website. If you encounter any issues or require technical assistance, please contact MAONO customer support through their official channels.

Official MAONO Webസൈറ്റ്: www.maono.com
