Metro Mobility M1 LITE 4-Wheel Folding Mobility Scooter User Manual

1. ആമുഖം

This manual provides essential instructions for the safe and efficient operation, assembly, maintenance, and troubleshooting of your Metro Mobility M1 LITE 4-Wheel Folding Mobility Scooter. Please read this manual thoroughly before using the scooter to ensure proper function and user safety.

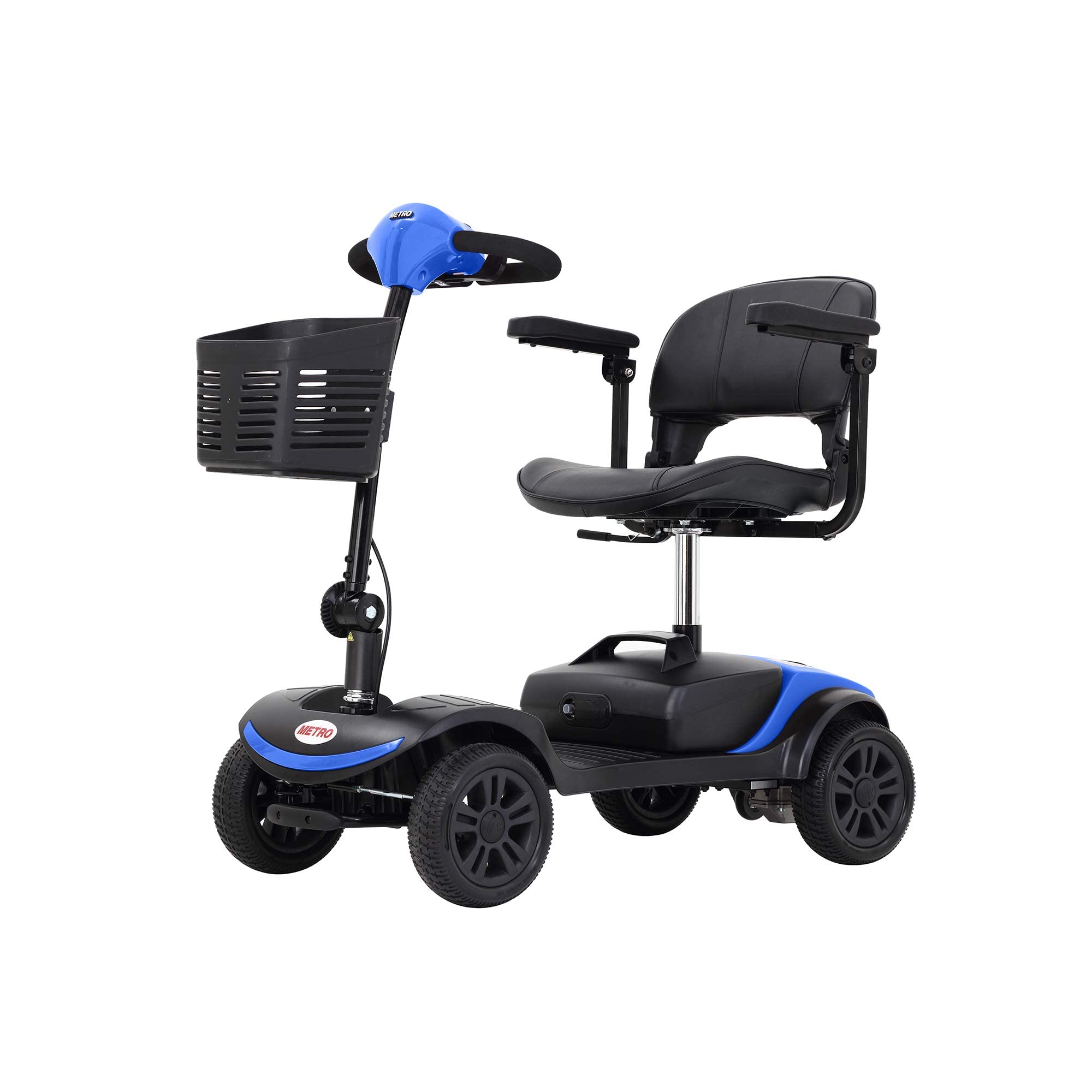

Image 1: The Metro Mobility M1 LITE 4-Wheel Folding Mobility Scooter, ready for use.

2 സുരക്ഷാ വിവരങ്ങൾ

നിങ്ങളുടെ സുരക്ഷയാണ് പരമപ്രധാനം. ഇനിപ്പറയുന്ന മാർഗ്ഗനിർദ്ദേശങ്ങൾ എപ്പോഴും പാലിക്കുക:

• ഭാരം ശേഷി: പരമാവധി ഭാരശേഷി 265 പൗണ്ടിൽ കൂടരുത്.
• Climbing Grade: The scooter is designed for a maximum climbing grade of 8 degrees. Avoid steeper inclines.
• ബ്രേക്കിംഗ്: The scooter is equipped with an intelligent electromagnetic brake system for reliable stopping.
• ആന്റി-ടിപ്പ് വീലുകൾ: Utilize the anti-tip wheels for enhanced stability, especially on uneven surfaces or when navigating ramps.
• പരിസ്ഥിതി വ്യവസ്ഥകൾ: Avoid operating the scooter in extreme weather conditions or on excessively slippery surfaces.

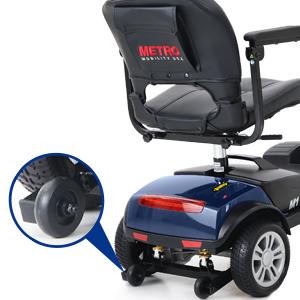

ചിത്രം 2: ക്ലോസ്-അപ്പ് view of the anti-tip wheels, designed to enhance stability.

3. ഘടകങ്ങൾ കഴിഞ്ഞുview

Familiarize yourself with the main components of your M1 LITE scooter:

Image 3: A diagram illustrating the key components including the control panel, basket, adjusting armrest, seat, battery, anti-tip wheels, and main wheels.

1. നിയന്ത്രണ പാനൽ: Located on the tiller, houses the speed dial, horn, and battery indicator.
2. കൊട്ട: Front-mounted for carrying personal items.
3. Adjusting Armrest: Padded armrests that can be adjusted for comfort.
4. സീറ്റ്: Thickly cushioned for comfort, with height adjustment.
5. ബാറ്ററി: Detachable for convenient charging and transport.
6. ചക്രങ്ങൾ: 9-inch solid tires designed for durability and various surfaces.
7. ആന്റി-ടിപ്പ് വീലുകൾ: Rear-mounted for stability.

4. Assembly & Disassembly

The M1 LITE scooter is designed for quick and efficient assembly and disassembly without the need for tools, making it highly portable.

• വേർപെടുത്തുക: The scooter can be quickly separated into 4 distinct sections for easy transport and storage. The heaviest piece weighs approximately 55 lbs.
• പോർട്ടബിലിറ്റി: Once disassembled, the scooter can be easily placed into the trunk of a car, with dimensions of approximately 44 × 20 × 17 inches for the main folded section.

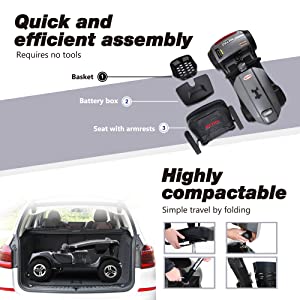

Image 4: The scooter disassembled into its main components, demonstrating its compact storage in a car trunk.

5. ക്രമീകരണങ്ങൾ

Customize your scooter for optimal comfort and control:

• സീറ്റ് ഉയരം: The luxury leather seat is height-adjustable to accommodate various user preferences and leg room requirements.
• കൈത്തണ്ടകൾ: The padded armrests can be adjusted forward or backward, and their width can be adjusted, providing greater convenience when getting on or off the scooter. They can also be expanded.
• Tiller Tilt: The tiller can be tilted for comfortable steering.

Image 5: Visual representation of the scooter's adjustable features: tilt, armrest width, armrest expandability, and seat height.

6. ഓപ്പറേഷൻ

Operating your M1 LITE scooter is straightforward:

• നിയന്ത്രണ പാനൽ: The ergonomic wraparound handles allow for one-handed operation using the lever, suitable for both right and left-hand users.
• വേഗത നിയന്ത്രണം: Use the variable speed dial to adjust your desired speed.
• കൊമ്പ്: Press the horn button as needed for safety.
• ബാറ്ററി സൂചകം: Monitor the battery level on the panel to ensure you have sufficient charge for your journey.
• ഫോർവേഡ്/റിവേഴ്സ്: Controls for moving the scooter forward or backward are clearly marked.

ചിത്രം 6: വിശദമായത് view of the control panel, highlighting the battery level indicator, speed control, power switch, horn button, and directional controls.

7. Driving & Performance

The M1 LITE is designed for reliable performance across various environments:

• ഉയർന്ന വേഗത: Achieves a top speed of 4.97 miles per hour.
• പരിധി: A full charge provides a travel range of up to 10 miles.
• ടയറുകൾ: Equipped with 9-inch solid tires that are anti-flat, allowing navigation over various indoor and outdoor surfaces, including bumpy ground, rough grasslands, and even moderate slopes.
• ടേണിംഗ് റേഡിയസ്: Features a turning radius of 42.5 inches for flexible maneuverability.

Image 7: The scooter's long-lasting battery allows for extended travel, up to 10 miles on a single charge.

8. ബാറ്ററി വിവരങ്ങൾ

The M1 LITE features a convenient off-board battery system:

• വേർപെടുത്താവുന്ന ബാറ്ററി: The battery box is detachable, allowing for easy removal for charging or transport.
• ചാർജിംഗ്: Always use the provided charger. Refer to the charger's instructions for proper charging procedures.

9. പരിപാലനം

പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ സ്കൂട്ടറിന്റെ ദീർഘായുസ്സും മികച്ച പ്രകടനവും ഉറപ്പാക്കുന്നു:

• വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് സ്കൂട്ടർ തുടയ്ക്കുകamp തുണി. അബ്രാസീവ് ക്ലീനറുകളോ നേരിട്ടുള്ള വാട്ടർ സ്പ്രേയോ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.
• ടയറുകൾ: The 9-inch solid tires require minimal maintenance as they are anti-flat. Periodically inspect them for wear or damage.
• ബാറ്ററി കെയർ: Keep the battery charged. Store the scooter with a full charge if it will not be used for an extended period.
• പൊതു പരിശോധന: Regularly check all bolts, nuts, and connections to ensure they are secure.

10. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your scooter, consider the following:

• സ്കൂട്ടർ ഓണാക്കുന്നില്ല: Check if the battery is properly connected and charged. Ensure the power switch is in the 'ON' position.
• കുറഞ്ഞ പ്രകടനം: This may indicate a low battery charge. Recharge the battery fully.
• അസാധാരണമായ ശബ്ദങ്ങൾ: Discontinue use immediately and inspect for any loose parts or obstructions.

For persistent issues or concerns not addressed here, please contact Metro Mobility customer service.

11. ഉൽപ്പന്ന വീഡിയോ കഴിഞ്ഞുview

Watch this official product video for a visual guide on the Metro Mobility M1 LITE scooter's features and operation.

12 സ്പെസിഫിക്കേഷനുകൾ

13. വാറണ്ടിയും പിന്തുണയും

Metro Mobility values its customers' experience and provides comprehensive support:

• വാറൻ്റി: A 5-year limited guarantee is provided with your purchase.
• കസ്റ്റമർ സർവീസ്: For any problems or inquiries regarding your scooter, please contact Metro Mobility's professional after-sales service.

കൂടുതൽ സഹായത്തിന്, നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതാണ് Metro Mobility Store on Amazon.
