DarwinFPV Darwin79 FPV Quadcopter User Manual

1. ആമുഖം

The DarwinFPV Darwin79 is a high-performance 3-inch FPV quadcopter designed for agile flight and immersive FPV experiences. Featuring a durable 3K carbon fiber frame with a 140mm wheelbase, it integrates an F4 OSD flight controller, 30A BLHeli_S Electronic Speed Controllers (ESCs), a 40-channel 200mW Video Transmitter (VTX), and a 1200TVL FPV camera. This manual provides essential information for the setup, operation, and maintenance of your DarwinFPV Darwin79 quadcopter.

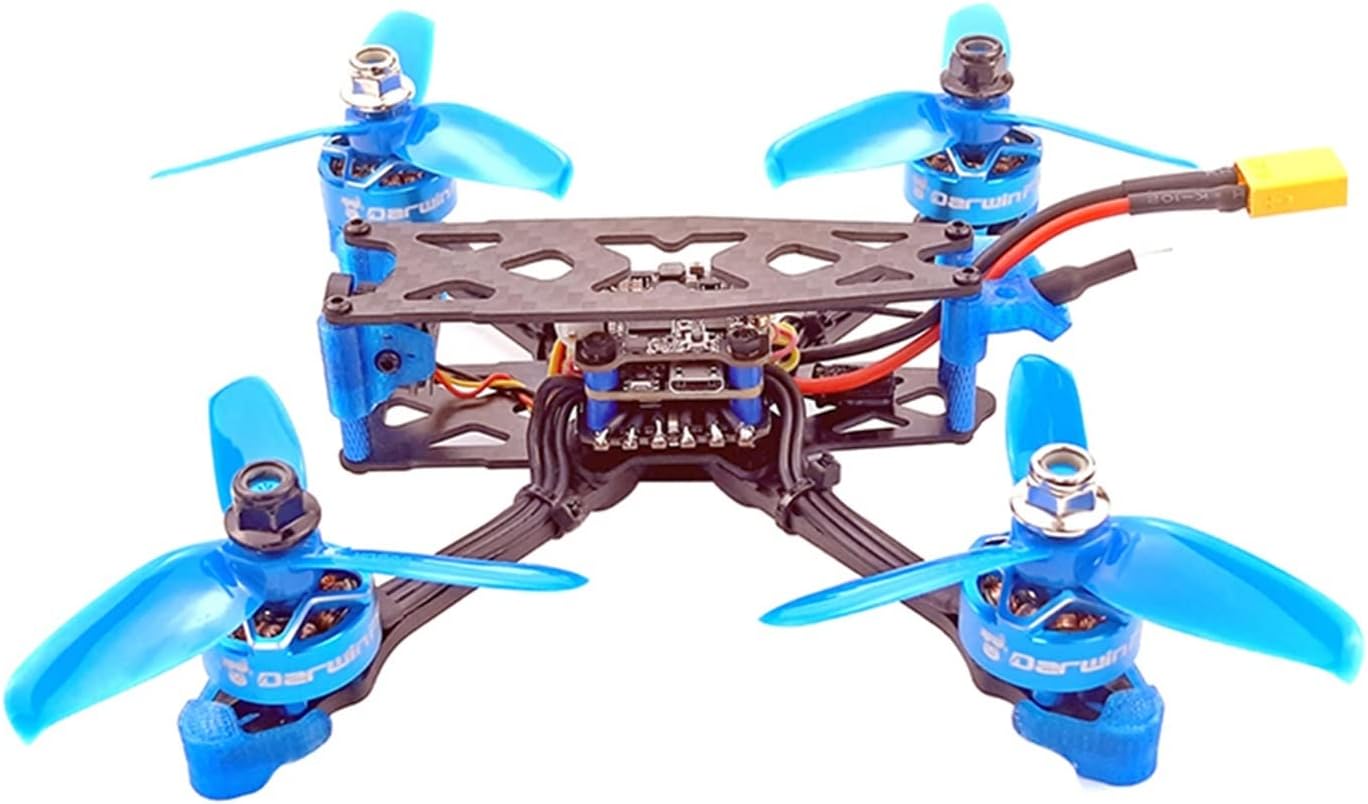

Figure 1.1: The DarwinFPV Darwin79 FPV Quadcopter, showcasing its compact design and blue propellers.

2 സുരക്ഷാ വിവരങ്ങൾ

Operating FPV quadcopters requires adherence to strict safety guidelines to prevent injury and damage.

• പ്രൊപ്പല്ലർ സുരക്ഷ: Always remove propellers before performing any maintenance or configuration. Keep hands and face clear of spinning propellers. They can cause severe injury.
• ബാറ്ററി സുരക്ഷ: Use only compatible LiPo batteries. Never overcharge or over-discharge batteries. Store them in a fire-safe bag and away from flammable materials. Disconnect the battery immediately after flight.
• ഫ്ലൈറ്റ് പരിസ്ഥിതി: Fly in open areas, away from people, animals, buildings, and power lines. Avoid flying near airports or restricted airspace. Always maintain visual line of sight with your quadcopter.
• നിയമപരമായ അനുസരണം: Be aware of and comply with all local laws and regulations regarding drone operation in your region.
• വിമാന യാത്രയ്ക്ക് മുമ്പുള്ള പരിശോധന: Before each flight, inspect the quadcopter for any damage, loose connections, or worn components. Ensure all propellers are securely attached and oriented correctly.
• ചൂട് മുന്നറിയിപ്പ്: Motors, ESCs, and the VTX can become hot during operation. Allow components to cool before handling.

3. പാക്കേജ് ഉള്ളടക്കം

Upon unboxing, verify that all components are present and undamaged. The standard package for the DarwinFPV Darwin79 typically includes:

• DarwinFPV Darwin79 FPV Quadcopter (pre-assembled frame, motors, ESCs, Flight Controller, VTX, Camera)
• Propellers (set of 4 or more)
• Battery Strap(s)
• Hardware (screws, standoffs, etc.)
• Note: A radio receiver and battery are typically not included and must be purchased separately.

4. സജ്ജീകരണവും അസംബ്ലിയും

While the Darwin79 comes largely pre-assembled, some initial setup and configuration are required before its first flight.

4.1. Frame Overview

ചിത്രം 4.1: അടിവശം view of the DarwinFPV Darwin79 frame, highlighting the robust carbon fiber construction.

The Darwin79 features a unibody bottom plate and separate top plate, providing a strong and lightweight structure. Ensure all screws securing the frame components are tightened appropriately.

4.2. Motor and Propeller Installation

The motors are typically pre-installed. Ensure they are securely fastened to the arms.

1. Identify the correct rotation direction for each motor (CW/CCW).
2. Attach the corresponding propellers (CW for CW motors, CCW for CCW motors) using the provided nuts. Ensure they are tightened firmly but do not overtighten.
3. Double-check that no wires are pinched or obstructing propeller rotation.

Figure 4.2: Detail of a motor and propeller assembly, showing the propeller nut and motor bell.

4.3. FPV Camera and VTX Setup

The 1200TVL FPV camera and 200mW VTX are integrated into the quadcopter.

• ക്യാമറ ലെൻസ് വൃത്തിയുള്ളതാണെന്നും തടസ്സങ്ങളില്ലെന്നും ഉറപ്പാക്കുക.
• Verify the VTX antenna is securely connected. Never power on the VTX without an antenna attached, as this can damage the unit.
• Refer to the VTX documentation (if provided separately or online) for instructions on changing video channels and power levels.

Figure 4.3: The FPV camera securely mounted within the carbon fiber frame, providing the pilot's view.

4.4. Receiver Installation and Binding (PNP Version)

If you have the PNP (Plug-N-Play) version, you will need to install your own radio receiver.

1. Connect your chosen receiver to the flight controller according to the flight controller's wiring diagram (typically UART connection for SBUS, IBUS, CRSF, etc.).
2. Secure the receiver within the frame, ensuring its antennas are positioned optimally for signal reception and away from carbon fiber or power wires.
3. Bind your receiver to your radio transmitter following the specific instructions for your receiver and transmitter model.

4.5. Flight Controller Configuration (Betaflight/Cleanflight)

The F4 OSD flight controller requires configuration using software like Betaflight Configurator.

1. Download and install the latest Betaflight Configurator software on your computer.
2. Connect the quadcopter to your computer via a USB cable.
3. Update the flight controller firmware to the latest stable version.
4. Configure the receiver protocol, ESC protocol (e.g., DSHOT600), OSD settings, modes (Arm, Angle, Acro, etc.), and motor directions.
5. Perform accelerometer calibration.
6. Always remove propellers before connecting to Betaflight and testing motor outputs.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. വിമാന യാത്രയ്ക്ക് മുമ്പുള്ള പരിശോധനകൾ

• Ensure battery is fully charged and securely mounted with a strap.
• Verify propellers are correctly installed and tightened.
• Check for any loose wires or damaged components.
• Turn on your radio transmitter and FPV goggles/monitor.
• Confirm clear FPV video feed and OSD display.
• Check arming switch and flight modes on your transmitter.

5.2. ആയുധമാക്കലും നിരായുധീകരണവും

The quadcopter will not arm if it detects an issue (e.g., low battery, no receiver signal, accelerometer not calibrated).

• ആയുധമാക്കൽ: With the quadcopter on a level surface, move the arming switch on your transmitter to the 'armed' position. The motors will typically spin slowly, indicating readiness.
• നിരായുധീകരണം: To disarm, move the arming switch back to the 'disarmed' position. Motors will stop immediately. In an emergency, you can also disarm by setting throttle to minimum and yawing left (or right, depending on configuration) for a few seconds.

5.3. അടിസ്ഥാന ഫ്ലൈറ്റ് നിയന്ത്രണങ്ങൾ

Standard Mode 2 (left stick throttle/yaw, right stick pitch/roll) controls:

• ത്രോട്ടിൽ (ഇടത് സ്റ്റിക്ക് മുകളിലേക്കും/താഴേക്കും): ഉയരം നിയന്ത്രിക്കുന്നു.
• യാവ് (ഇടത് സ്റ്റിക്ക് ഇടത്/വലത്): Rotates the quadcopter horizontally.
• പിച്ച് (വലത് സ്റ്റിക്ക് മുകളിലേക്കും/താഴേക്കും): Tilts the quadcopter forward/backward.
• റോൾ (വലത് സ്റ്റിക്ക് ഇടത്/വലത്): Tilts the quadcopter left/right.

Figure 5.1: The DarwinFPV Darwin79 from an angled perspective, ready for flight.

6. പരിപാലനം

Regular maintenance ensures the longevity and safe operation of your DarwinFPV Darwin79.

• വിമാനത്തിനു ശേഷമുള്ള പരിശോധന: After each flight, check for bent or cracked propellers, loose screws, damaged wires, or signs of impact.
• പ്രൊപ്പല്ലർ മാറ്റിസ്ഥാപിക്കൽ: Replace any damaged propellers immediately. Even minor damage can cause vibrations and affect flight performance.
• വൃത്തിയാക്കൽ: Keep the frame, motors, and electronics free from dirt, dust, and debris. Use compressed air or a soft brush. Avoid using liquids directly on electronics.
• മോട്ടോർ ബെയറിംഗുകൾ: Listen for unusual noises from motors. Worn bearings may need replacement.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Periodically check for new firmware versions for your flight controller and ESCs. Updates can improve performance and add features.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു.

8 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the DarwinFPV Darwin79:

• മോഡൽ: Darwin79
• ഫ്രെയിം മെറ്റീരിയൽ: 3K Carbon Fiber
• വീൽബേസ്: 140 മി.മീ
• പ്രൊപ്പല്ലർ വലുപ്പം: 3 ഇഞ്ച്
• ഫ്ലൈറ്റ് കണ്ട്രോളർ: F4 OSD
• ESC-കൾ: 30A BLHeli_S
• വീഡിയോ ട്രാൻസ്മിറ്റർ (VTX): 40CH 200mW
• FPV Camera: 1200TVL
• Approximate Weight (without battery): 143.1g (as shown in Figure 8.1)
• നിർമ്മാതാവ്: GUANGPENG
• ASIN: B0BNGHS75X

Figure 8.1: The DarwinFPV Darwin79 on a scale, indicating its approximate weight without a battery.

9. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the specific terms provided by your retailer or the manufacturer, SHENGANG. Keep your proof of purchase for any warranty claims.

For further assistance or advanced troubleshooting, consider consulting online FPV communities and forums, which often provide valuable resources and peer support.
