MUNBYN Wi-Fi തെർമൽ ലേബൽ പ്രിന്റർ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The MUNBYN Wi-Fi Thermal Label Printer is a high-performance device engineered for efficiency and convenience in label printing. Ideal for small businesses, e-commerce sellers, and individuals, this printer offers wireless connectivity, high-speed output, and crisp print quality. It is compatible with various operating systems and platforms, making your label printing tasks seamless and productive.

Figure 1: MUNBYN Wi-Fi Thermal Label Printer overview.

2 പ്രധാന സവിശേഷതകൾ

• Multi-Task Printing: Connect up to 5 devices simultaneously (phones, tablets, laptops, computers) for efficient printing without switching devices.
• ശരിക്കും വയർലെസ്: Wi-Fi connectivity eliminates the need for data cables, offering flexible placement and usage. (Note: Supports Wi-Fi/USB connection only, not 5G).
• ഉയർന്ന വേഗത: Prints up to 4800 labels per hour using an external paper bin, significantly boosting productivity.
• മായ്‌ക്കുക പ്രിന്റിംഗ്: Equipped with a ROHM printhead, ensuring stable and clear 203 DPI print quality even at high speeds.
• Ink-Free Thermal Technology: No need for ink or cartridge purchases, reducing operational costs.

3. സജ്ജീകരണ ഗൈഡ്

3.1 അൺബോക്സിംഗും പ്രാരംഭ പ്ലേസ്മെന്റും

Carefully remove the printer and all accessories from the packaging. Place the printer on a stable, flat surface with adequate space for label feeding and output.

3.2 ലേബലുകൾ ലോഡുചെയ്യുന്നു

Ensure the labels are thermal labels compatible with the printer. Open the printer cover, align the labels with the guides, and feed them into the printer until they are properly seated. The printer will automatically detect the label size and calibrate.

3.3 Wi-Fi-ലേക്ക് ബന്ധിപ്പിക്കുന്നു

For truly wireless operation, connect the printer to your Wi-Fi network. This typically involves connecting the printer to your computer via USB first to configure the Wi-Fi settings through the printer's utility software. Ensure your computer and printer are connected to a 2.4GHz Wi-Fi network, as 5G is not supported.

Figure 2: Wireless connectivity setup for the printer.

3.4 Connecting via USB

Alternatively, you can connect the printer directly to your computer using the provided USB cable. This connection method is straightforward and often used for initial setup or if Wi-Fi is not available.

3.5 ഡ്രൈവർ ഇൻസ്റ്റലേഷൻ

Install the necessary drivers for your operating system (Windows, macOS, Chrome OS) from the included USB drive or the official MUNBYN website. Follow the on-screen instructions to complete the installation. For detailed steps, refer to the User Guide PDF available online.

4. പ്രിന്റർ പ്രവർത്തിപ്പിക്കൽ

4.1 Printing from Multiple Devices

The MUNBYN RealWriter 129 supports multi-task printing, allowing up to five devices (smartphones, PCs, tablets, laptops) to send print jobs simultaneously. This feature is ideal for busy environments where multiple users need to print labels.

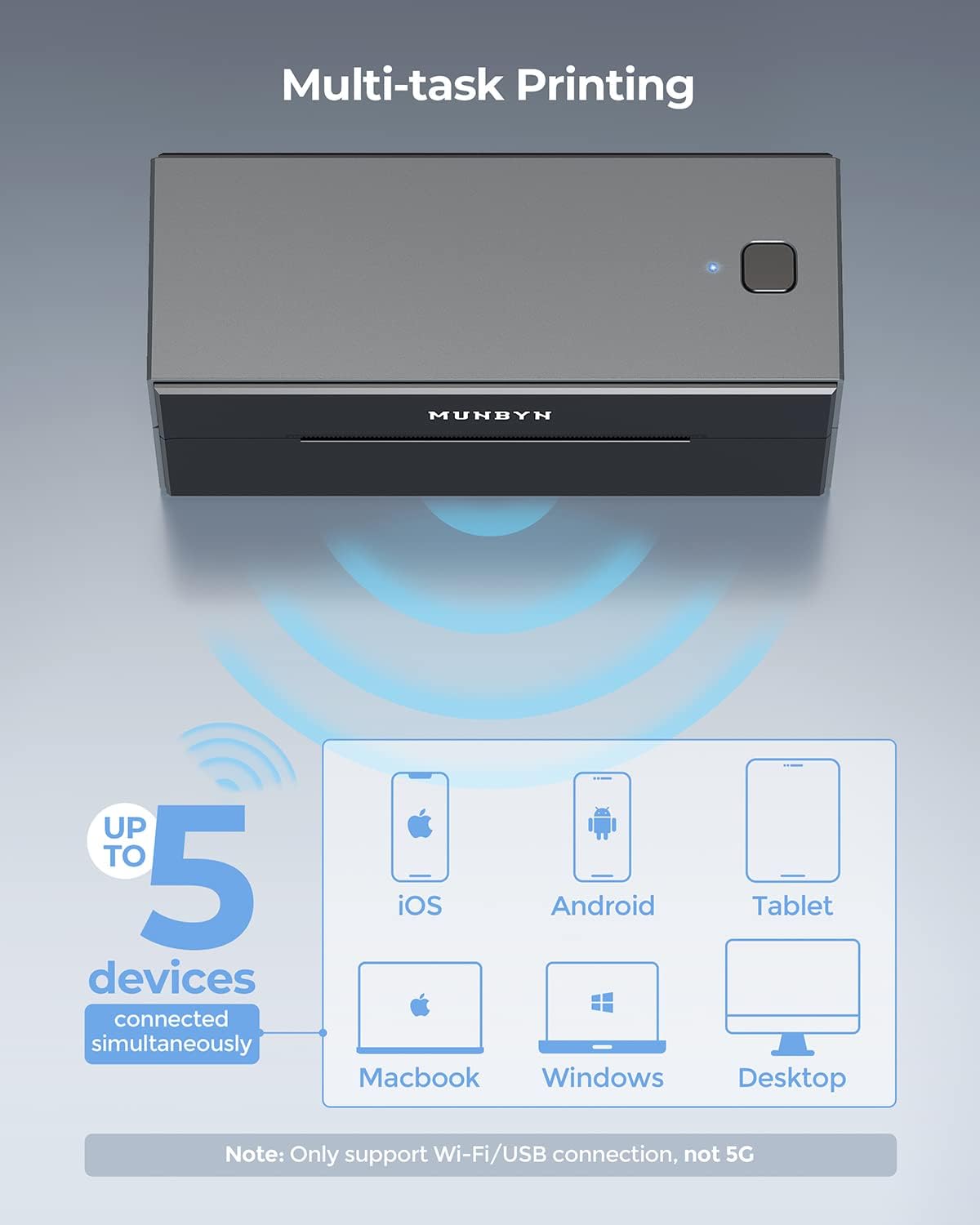

Figure 3: Multi-task printing capability.

4.2 ഹൈ-സ്പീഡ് പ്രിന്റിംഗ്

Experience rapid label printing with speeds up to 4800 labels per hour. This high output is perfect for large volume shipping and business operations.

Figure 4: High-speed label output.

4.3 പ്രിന്റ് നിലവാരം

The ROHM printhead ensures consistently clear and sharp prints at 203 DPI resolution, making barcodes scannable and text easily readable.

Figure 5: Ensuring clear print quality.

4.4 Supported Label Types

The printer is compatible with various thermal label types, including standard white, silver, holographic, and colored thermal stickers, allowing for diverse applications.

5. പരിപാലനം

5.1 പ്രിന്റ് ഹെഡ് വൃത്തിയാക്കൽ

Regularly clean the print head to ensure optimal print quality and prolong printer life. Use an alcohol swab or a specialized print head cleaning pen. Power off the printer and allow the print head to cool before cleaning.

5.2 ബാഹ്യ ശുചീകരണം

പ്രിന്ററിന്റെ പുറംഭാഗം മൃദുവായ, d തുണി ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. ഉപരിതലത്തിന് കേടുവരുത്തുന്ന കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളോ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.

5.3 Label Storage

Store thermal labels in a cool, dry place away from direct sunlight and heat to prevent discoloration and maintain adhesive quality.

6. പ്രശ്‌നപരിഹാരം

6.1 വൈ-ഫൈ കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ

• Printer not connecting to Wi-Fi: Ensure the printer is within range of your 2.4GHz Wi-Fi router. Re-enter Wi-Fi credentials via USB connection if the printer loses its saved password.
• ഇടവിട്ടുള്ള കണക്ഷൻ: Check for network interference or move the printer closer to the router. Restarting both the printer and router can often resolve temporary issues.

6.2 പ്രിന്റ് ഗുണനിലവാര പ്രശ്നങ്ങൾ

• Faint or incomplete prints: Clean the print head as described in the Maintenance section. Ensure you are using high-quality thermal labels.
• Misaligned prints: Perform a label calibration. Ensure labels are loaded correctly and the guides are adjusted snugly.

6.3 പേപ്പർ ഫീഡിംഗ് പ്രശ്നങ്ങൾ

• Labels getting stuck or bent: Verify that labels are loaded straight and not creased. Check for any obstructions in the paper path.
• Printer not feeding labels: Ensure the labels are properly seated and the printer is powered on. Try feeding a few labels manually to check the sensor.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

MUNBYN offers lifetime technical support for any issues you may encounter with your label printer. Support is available via live chat, phone calls, and emails. Remote-desktop operations support can also be provided if needed to assist with complex issues.

കൂടുതൽ സഹായത്തിന്, ദയവായി ഔദ്യോഗിക MUNBYN കാണുക. webസൈറ്റിൽ പ്രവേശിക്കുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ പിന്തുണയുമായി നേരിട്ട് ബന്ധപ്പെടുക.
